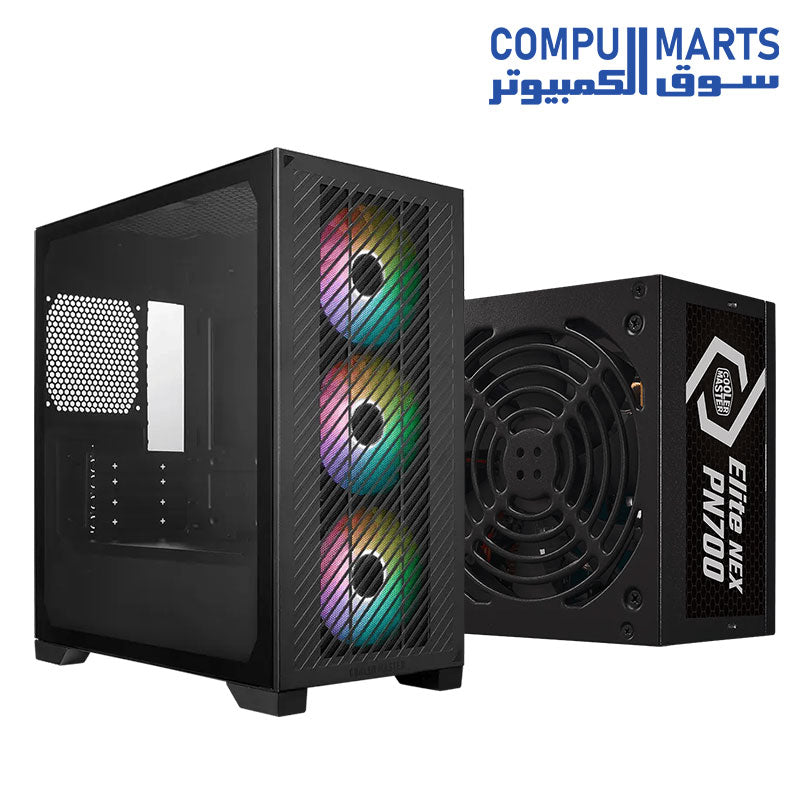

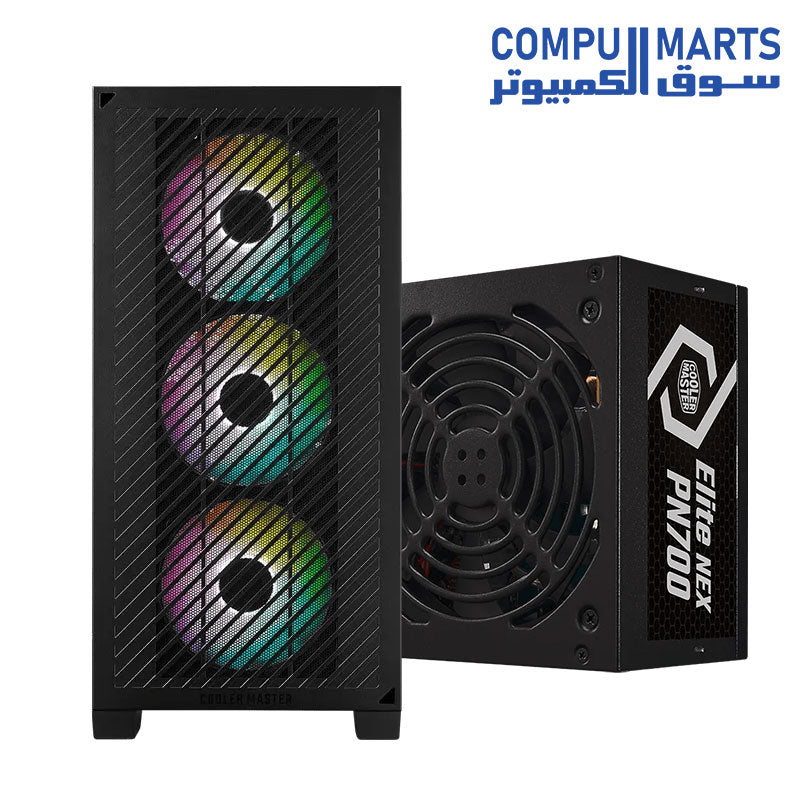

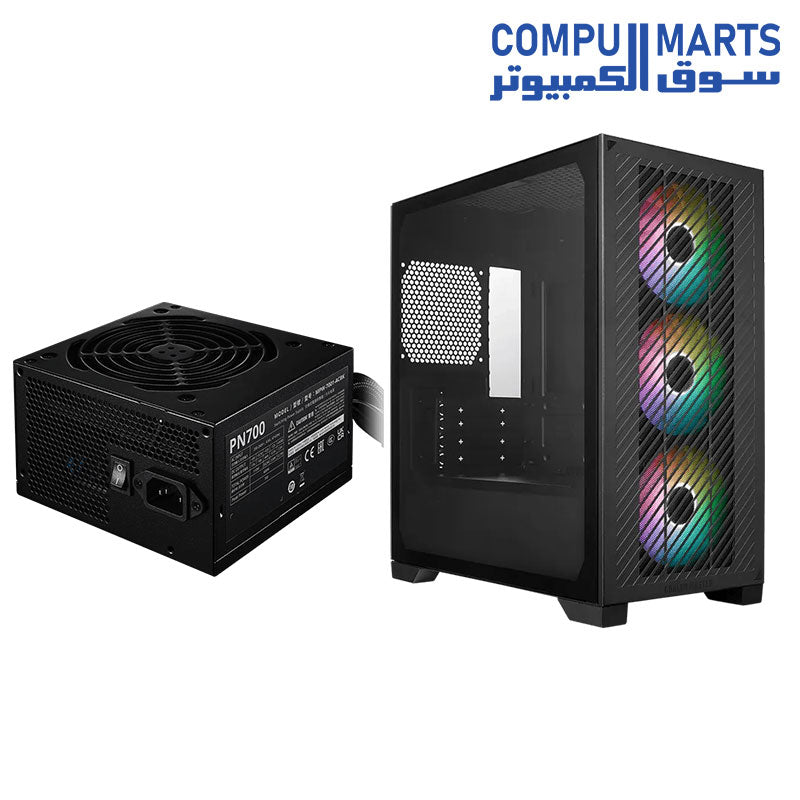

Cooler Master Elite 301 Lite Case + Elite NEX PN700 230V power Supply

Cooler Master Elite 301 Lite Case + Elite NEX PN700 230V power Supply

Cooler Master Elite 301 Lite Micro-ATX High Airflow PC Case

Materials Steel, Plastic, Tempered Glass (Left Side Panel)

Dimensions (L x W x H) 390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions

Motherboard Support ITX / Micro ATX

Expansion Slots 4

3.5" Drive Bays 1

2.5" Drive Bays 1 (Max. 2)

I/O Panel1x USB 3.2 Gen 1 Type-A

I/O Panel1x USB 3.2 Gen 1 Type-C

I/O Panel - Audio In / Out 1x 3.5mm Combo

Pre-installed Fans - Fron t3x 120mm CF120 ARGB

Fan Support - Front 3x 120mm

Fan Support - Top 2x 120mm / 2x 140mm

Fan Support - Rear 1 x 120mm

Radiator Support - Front 120 / 240mm

Radiator Support - Top 120 / 140 / 240 / 280mm

Radiator Support - Rear 120mm

Clearance - CPU Cooler 163.5mm

Clearance - PSU 160mm

Clearance - GFX 365mm (without front fans & radiator)

Cable Routing 18.5mm

Dust Filters Top / Bottom / Front

Power Supply Support ATX

Warranty 2 years

Series Elite Series

Size Mini Tower

Elite NEX PN700 230V power Supply

PFC Active PFC

Input Voltage 200-240V

Input Current 4.5A

Input Frequency 50-60Hz

Dimensions (L x W x H) 140 x 150 x 86 mm

Fan Size 120mm

Fan Bearing Sleeve Fan

Efficiency ≥ 75% @ Typical Load

ErP 2014 Lot 3 Yes

Operating Temperature 0-40°C

Power Good Signal 100 - 500 ms

Hold Up Time ≥10ms at 100% load

MTBF >100,000 Hours

Protections OVP / OPP / SCP / UVP / OTP / Inrush Protection

Regulatory TUV, CE, CCC, EAC, UKCA

ATX 24 Pin Connectors 1

EPS 4+4 Pin Connectors 1

SATA Connectors 5

Peripheral 4 Pin Connectors 3

PCI-e 6+2 Pin Connectors 2

Series Elite Series

Category 500 to 750W

Modular Non Modular

80 Plus Efficiency None 80 PLUS

Form Factor ATX
