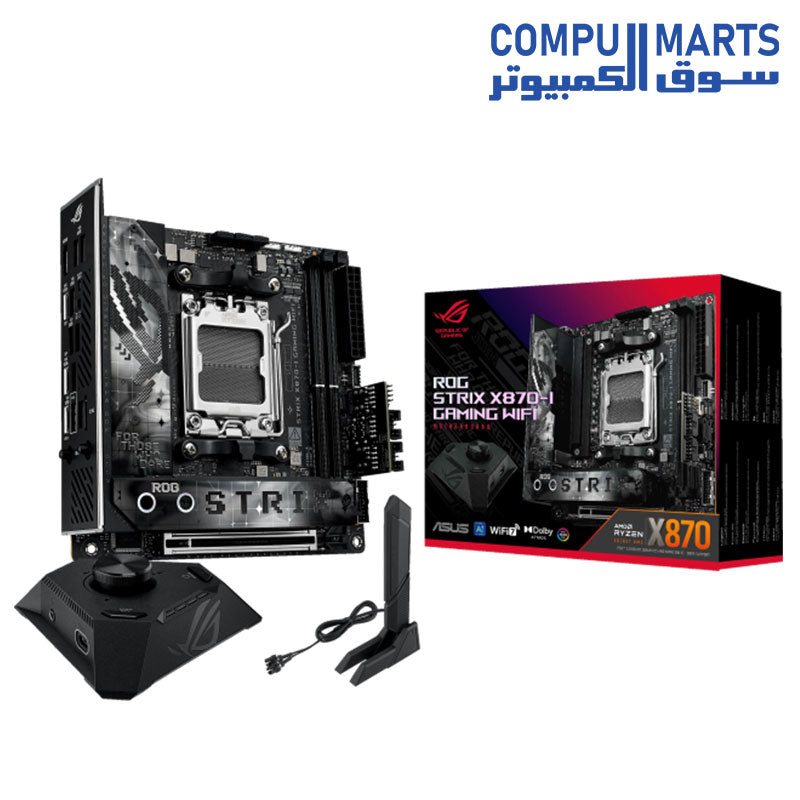

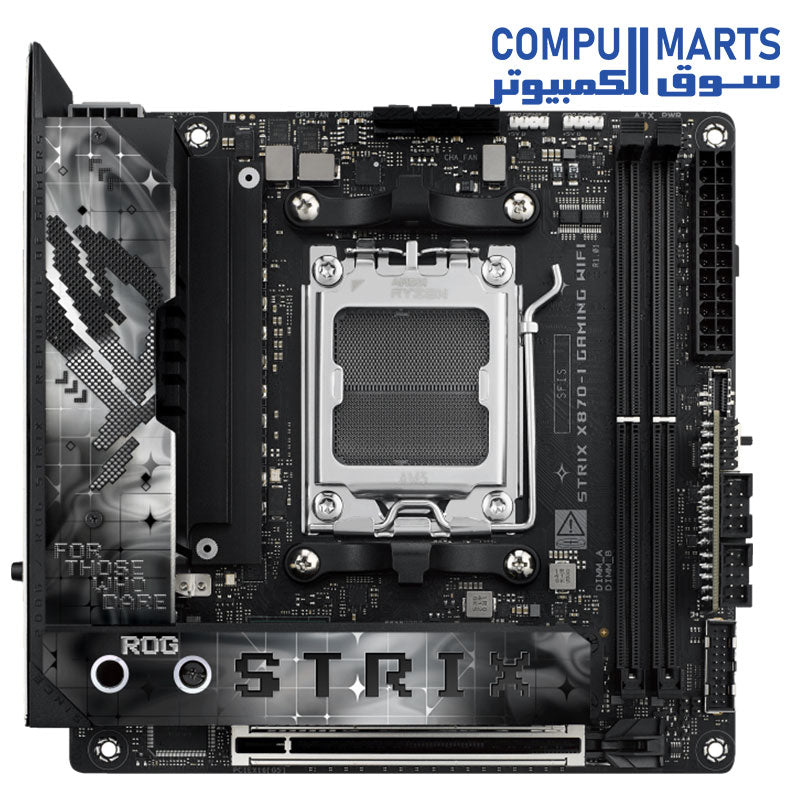

ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX motherboard

ASUS ROG STRIX X870-I GAMING WIFI AMD AM5 X870 Mini ITX motherboard 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 AEMP, WiFi7, 2x M.2, PCIe5.0, Q-Release Slim, USB4, AI OCing & Networking

CPU Support
AMD Socket AM5 for Ryzen 9000, 8000, and 7000 Series Desktop Processors
Chipset
AMD X870
Memory
2 x DIMM slots, up to 128GB DDR5
Overclocking support:
8400+ MT/s (Ryzen 9000)
8600+ MT/s (Ryzen 8000)
8000+ MT/s (Ryzen 7000)
Dual-channel architecture, EXPO, and AEMP support
ECC and non-ECC unbuffered memory
Graphics
1 x HDMI (4K @ 60Hz)
2 x USB4 (40Gbps) Type-C with DisplayPort 1.4a output
Graphics capabilities depend on CPU
Expansion Slots
Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 slot
Ryzen 8000: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Storage
2 x M.2 slots & 2 x SATA 6Gb/s ports
M.2_1:
Ryzen 9000 & 7000: PCIe 5.0 x4
Ryzen 8000: PCIe 4.0 x4
M.2_2: PCIe 4.0 x4 (X870 chipset)
Supports RAID 0/1/10
Networking
1 x Intel 2.5Gb Ethernet
Wi-Fi 7 (2x2, 2.4/5/6GHz, up to 6.5Gbps)
Bluetooth 5.4
USB Ports

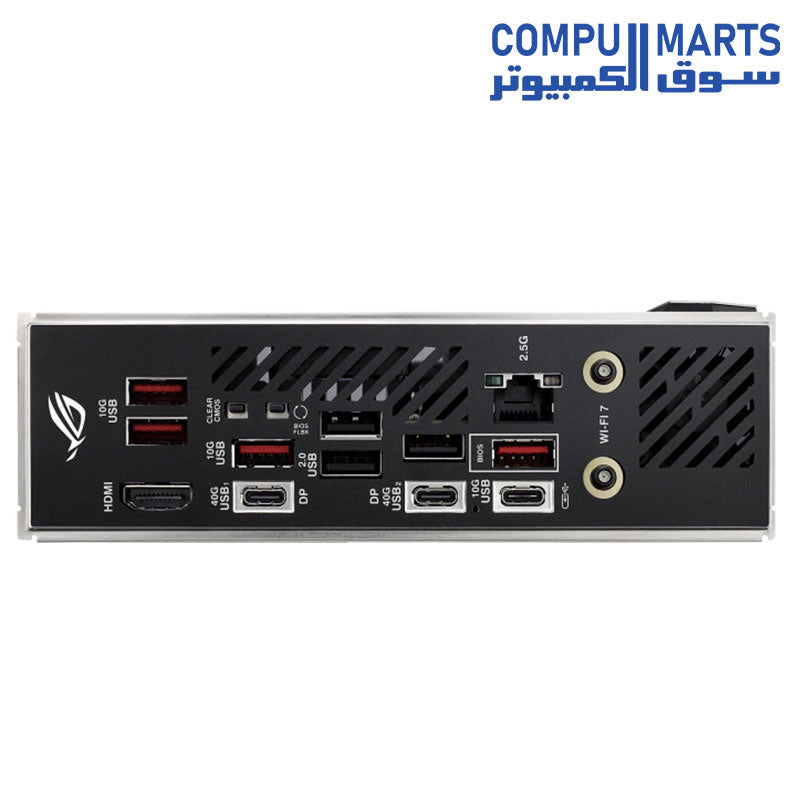

Rear I/O (10 ports):
2 x USB4 (40Gbps, Type-C)
5 x USB 10Gbps (4 x Type-A, 1 x Type-C)
3 x USB 2.0 (Type-A)
Front I/O (3 ports):
1 x USB 10Gbps (Type-C)
1 x USB 5Gbps header (supports 2 ports)
Additional USB:
ROG Strix Hive II: 2 x USB 10Gbps (1 x Type-A, 1 x Type-C)
ROG FPS Card: 2 x USB 2.0 headers (supports 3 ports)
Audio
ESS SABRE9260Q DAC
ROG Hyper-Grounding technology
Silver-plated audio jacks
Dedicated audio PCB layers
Cooling & Power
1 x CPU fan header
1 x AIO pump header
1 x Chassis fan header
1 x 24-pin main power connector
1 x 8-pin CPU power connector
Internal Connectors & Features
2 x Addressable Gen 2 RGB headers
1 x Thermal sensor header
1 x PCIe mode switch
ROG FPS Card: 2 x SATA ports, additional USB 2.0 ports
ASUS Q-Design (M.2 Q-Latch, PCIe Q-Release, SafeSlot, etc.)
Pre-mounted I/O shield
BIOS FlashBack & Clear CMOS buttons
Software & BIOS
Armoury Crate, Aura Sync, Fan Xpert 4, GameFirst, AI Overclocking
ASUS UEFI BIOS with AI Overclocking Guide
Remote management: WOL by PME, PXE
Accessories
ROG FPS Card, Strix Hive II, Wi-Fi Q-Antenna
SATA cables, panel cable, USB 2.0 splitter
Quick start guide, stickers, keychain
Operating System
Windows 11 (full support for Wi-Fi 7 with version 24H2 or later)
Form Factor
Mini-ITX (17 cm x 17 cm)
