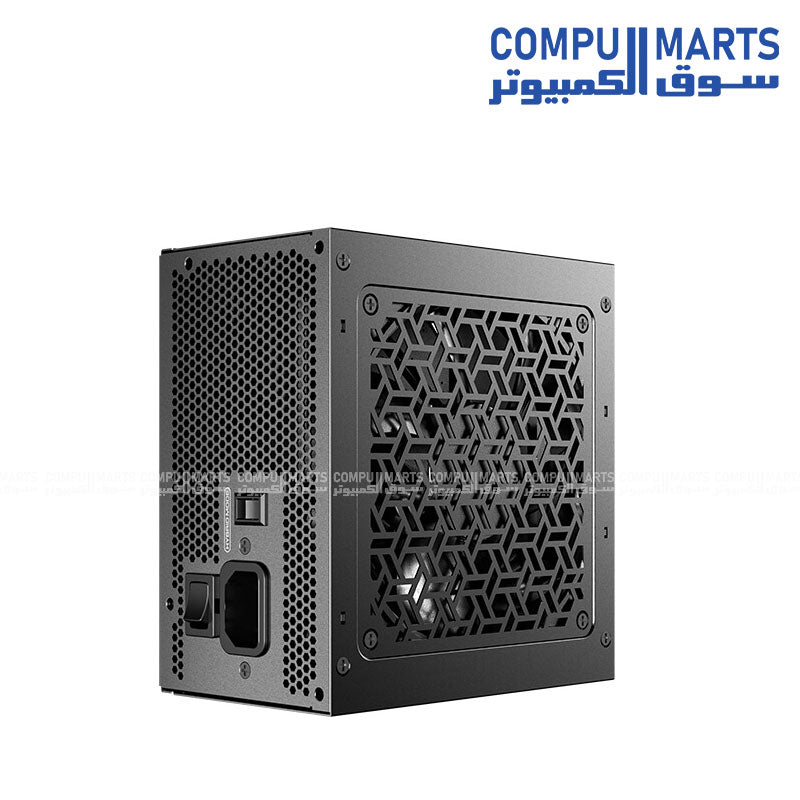

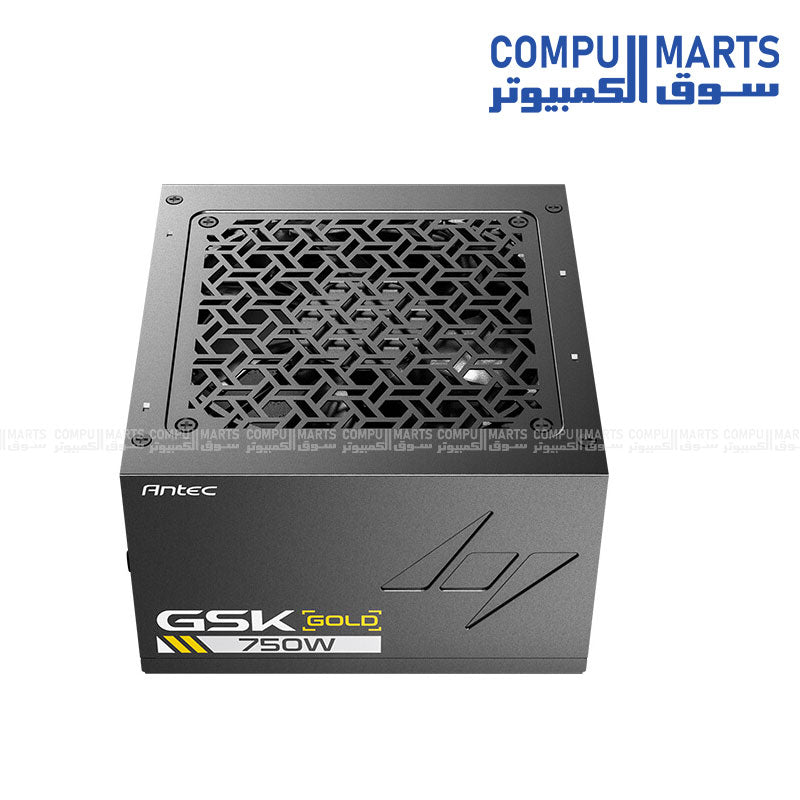

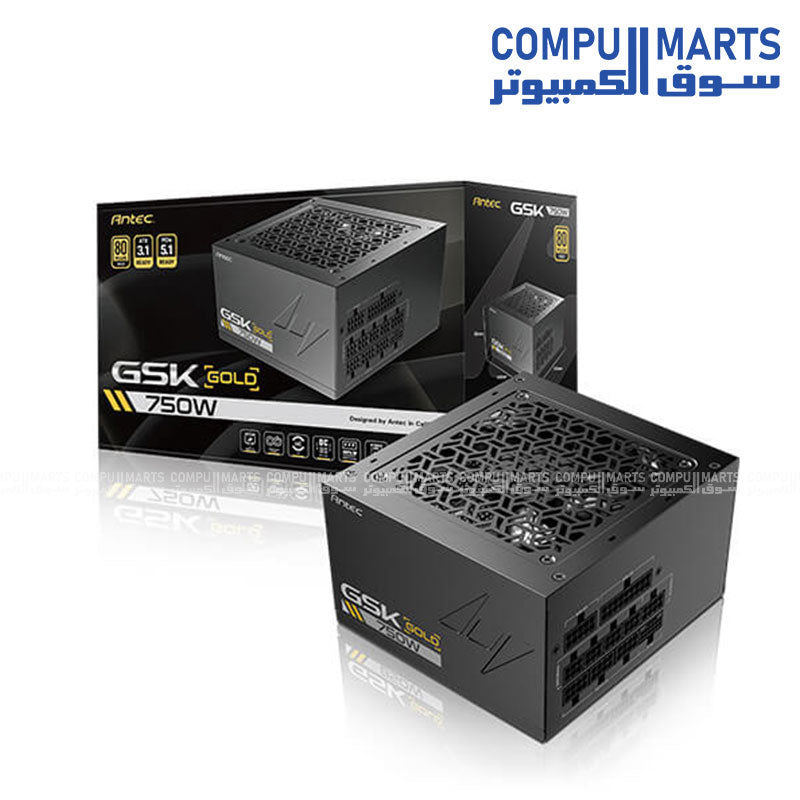

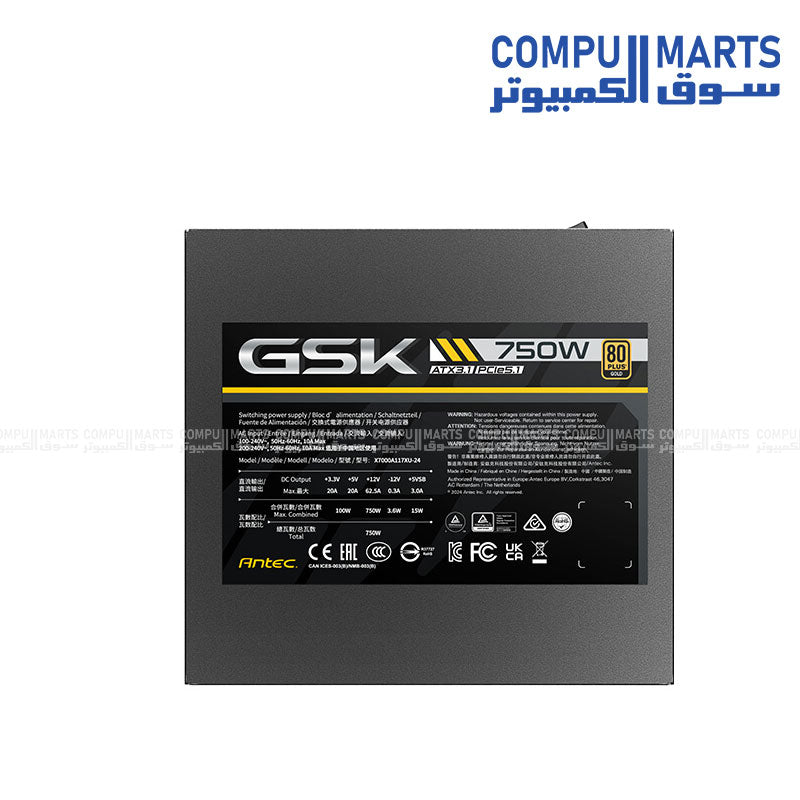

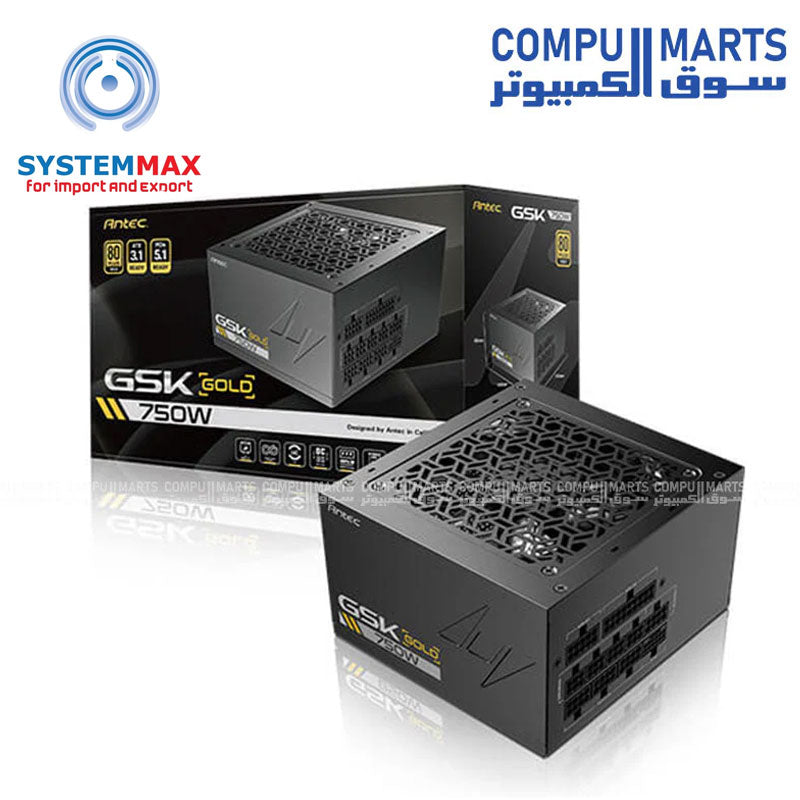

ANTEC GSK750 ATX 3.1 750W 80 Plus Gold Fully Modular Power Supply – PCIe 5.1, Silent Fan

Model

GSK750 ATX3.1

Safe Model

X7000A117XU-24

Type

ATX 12V 3.1

Dimension

140(L) x 150(W) x 86(H) mm

Modular

Full-Modular

Warranty

7 years

Input Voltage

100V-240V

Input Current

10A Max

Input Frequency Range

50Hz-60Hz

PFC

Active PFC

Power Good Signal

100-150ms

Protection

OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Output Capacity

750W

Operation Temperature

0~40°C

Regulatory

cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC

/ UKCA / ICES

Fan

120mm Silent Fan

Certifications

80 Plus Gold

Box Dimensions

296(L) x 203(W) x 130(H) mm

Net Weight

2.52 kg

Gross Weight

2.74 kg

Connector

1 x 24 (20+4) pin MB

1 x 16 (12+4) pin PCIE 5.1 12VHPWR

2 x 8 (4+4) pin CPU

4 x 8 (6+2) pin PCI-E

8 x SATA

4 x Molex

UPC#

0-761345-20053-0 GSK750 US

0-761345-20054-7 GSK750 JP

0-761345-20055-4 GSK750 GB

0-761345-20056-1 GSK750 EC

0-761345-20057-8 GSK750 AU
