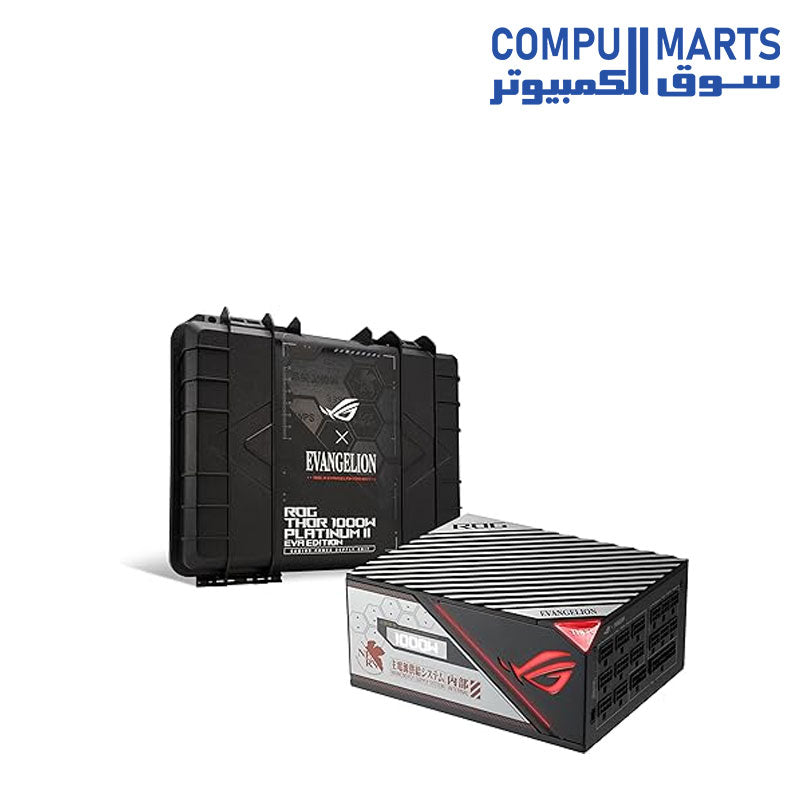

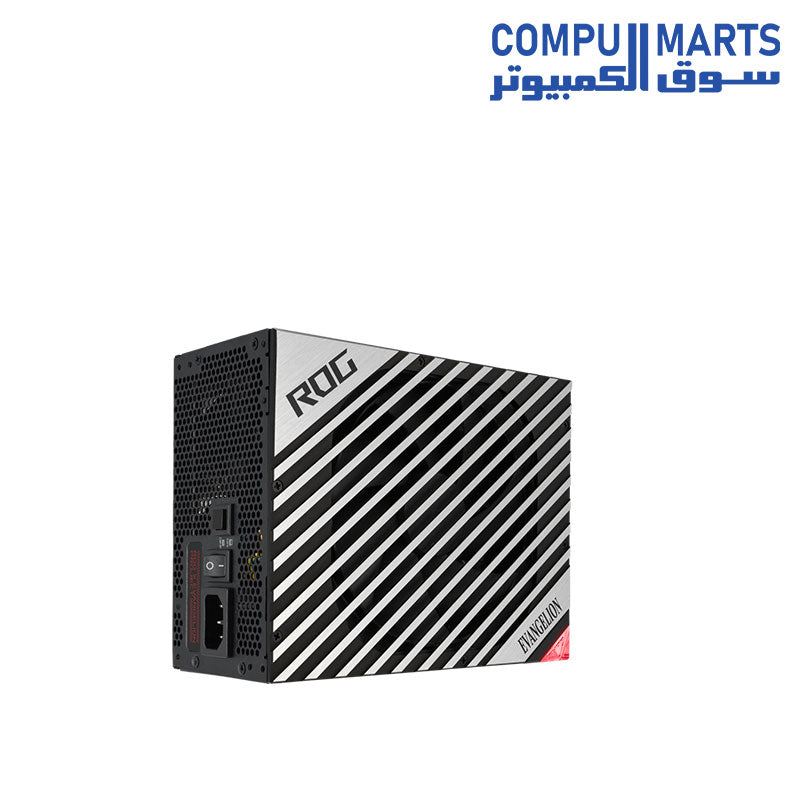

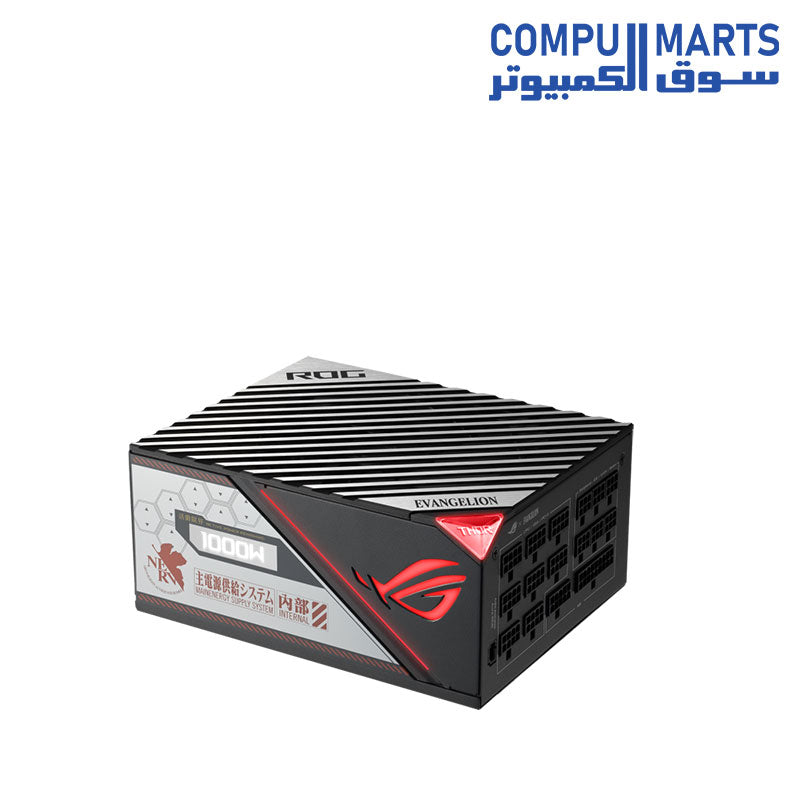

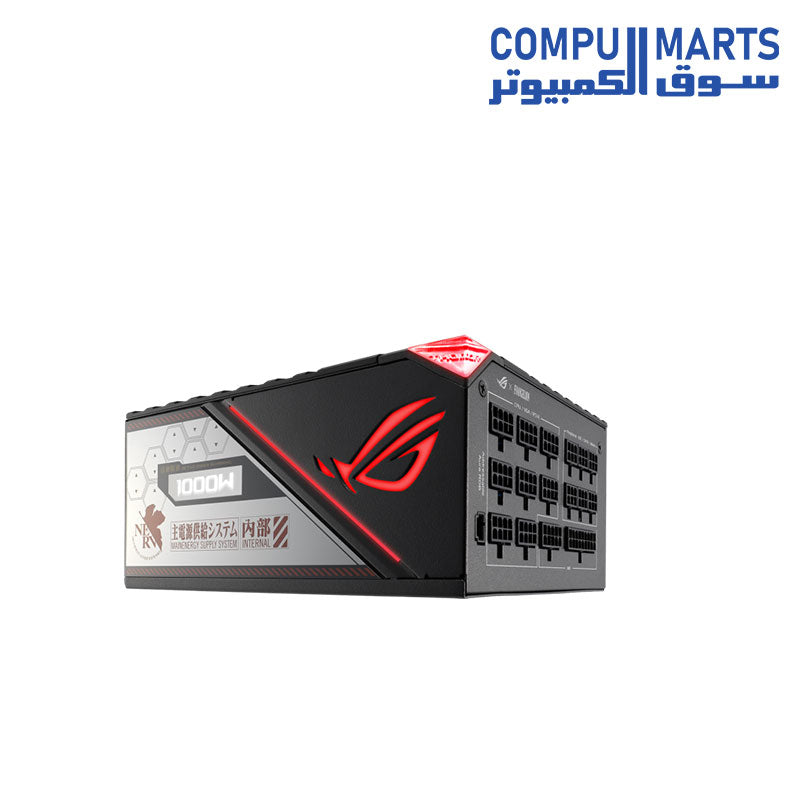

ASUS ROG Thor 1000W Platinum II EVA Edition (80+Platinum,Lambda A++Certified 1000Watt, 135mm PWM fan, AuraSync)

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83A 0.3A 3A

Combined Load

125W 125W 996W 3.6W 15W

Total Output

1000W

Cable Connectors

MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 6+2-pin x 8 SATA x 12 Peripheral x 6

Package Contents

Power Cord x 1 Motherboard Power Cable x1 (610mm) CPU Cable x2 (650mm) 12-pin PCIE Cable x1 (750mm) PCIE 1-to-1 Cable x4 (675mm) PCIE 1-to-2 Cable x2 (675+75mm) SATA 1-to-4 Cable x3 (400+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) Addressable RGB Cable x1 (800mm) ROG sticker x 1 ROG cable tie x 6 Sleeved Cable Combs (6-pin) x 4 Sleeved Cable Combs (8-pin) x 10 Sleeved Cable Combs (24-pin) x 2 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1

Weight

2.35 KG

AURA SYNC

ARGB

0dB Fan Button

Yes

Cybenetics Noise Level Certification

A++
