ASUS  |  SKU: 90MB1HE0-M0EAY0

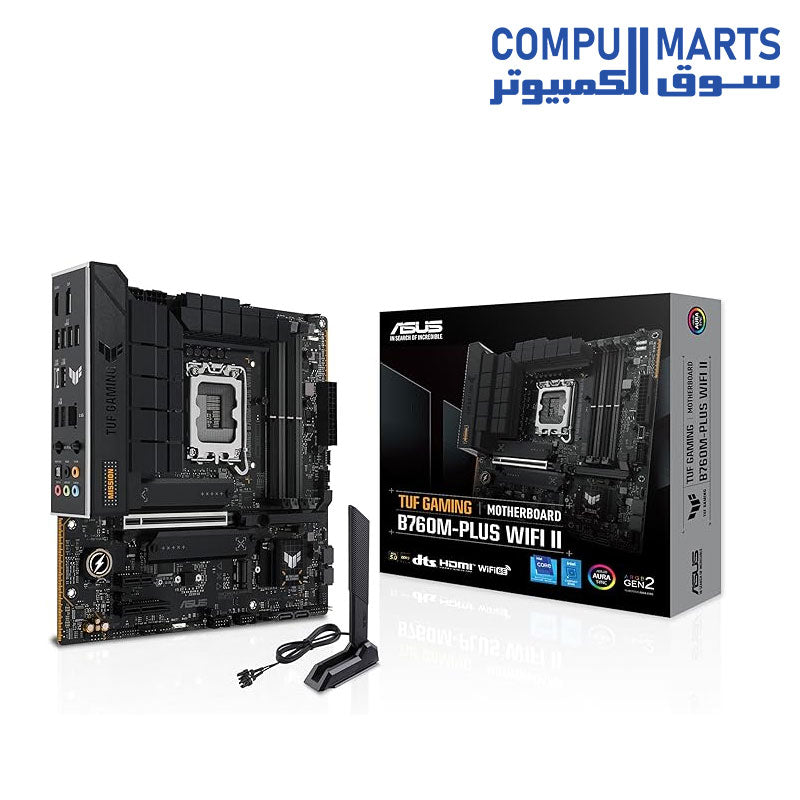

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard

9,000.00 EGP
Shipping calculated at checkout.

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 mATX motherboard is backordered and will ship as soon as it is back in stock.

Pre-order now to make sure you don't miss out!

As soon as it's in stock, we will ship it to you.

Subscribe to our newsletter

Get the latest updates on all our new collections, sales, offers and product arrival dates.

GET CASH BACK

Earn Cash Back Rewards When You Pre-Order Today!

Description

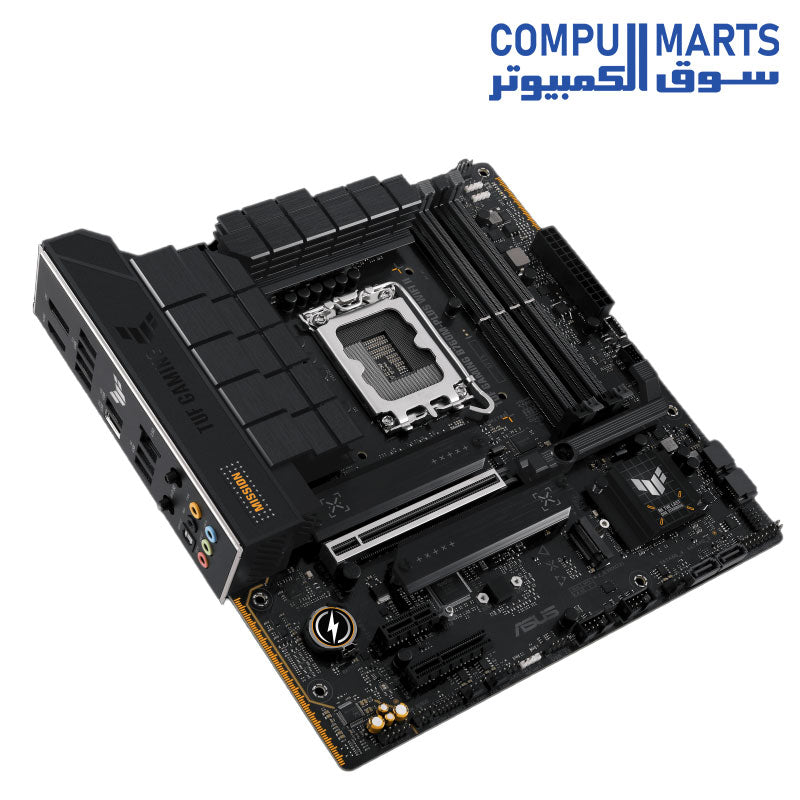

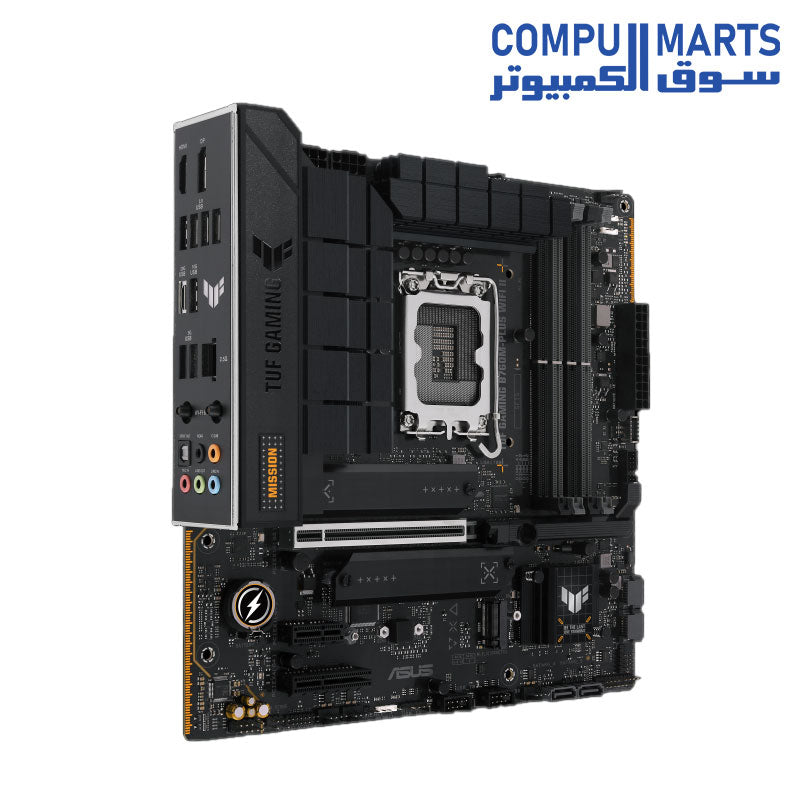

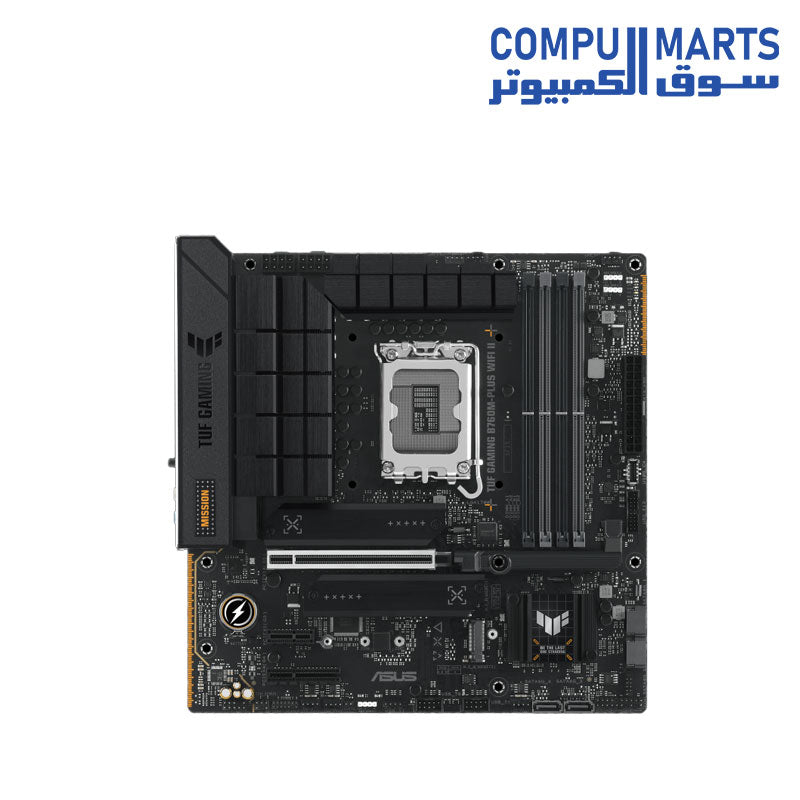

ASUS TUF GAMING B760M-PLUS WIFI II Motherboard



  • Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel processors

  • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+8 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

  • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+

  • Latest connectivity: PCIe 5.0 slot, three PCIe 4.0 M.2 slots, rear USB 20Gbps Type-C, front panel header for USB 10Gbps Type-C and Thunderbolt (USB4) header support

  • Made for online gaming: WiFi 6E, Realtek 2.5Gb Ethernet, TUF LANGuard

  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Chipset

Intel B760

CPU Socket

LGA 1700

Memory Slots

4x 288-Pin

Memory Support

DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7800 MHz

M.2

2x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280 (PCIe 4.0 x2)

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1

Wi-Fi

Wi-Fi 6E (802.11ax) with MU-MIMO Support

Form Factor

Micro-ATX

CPU

Chipset

Intel B760

CPU Socket

LGA 1700

Back Panel I/O

USB

4x USB-A (USB 2.0)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1)
1x USB-A (USB 3.1/3.2 Gen 2)
1x USB-C (USB 3.2 Gen 2x2)

Thunderbolt

No

Display

1x HDMI
1x DisplayPort

Audio

5x 1/8" / 3.5 mm
1x S/PDIF

Ethernet / Controller

1x Realtek 2.5Gigabit

Wi-Fi Antenna

2x Connector

Memory

Memory Slots

4x 288-Pin

Memory Support

DDR5 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7800 MHz

Maximum Capacity

192 GB

Channel Architecture

Dual Channel

ECC Support

Non-ECC Unbuffered

Storage Expansion

SATA

4x SATA III

M.2

2x M Key 2242, 2260, 2280 (PCIe 4.0 x4)
1x M Key 2242, 2260, 2280 (PCIe 4.0 x2)

RAID Support

RAID 0, 1, 5, 10 (SATA)

Internal I/O

Expansion Slots

1x PCIe 5.0 x16
1x PCIe 4.0 x4
1x PCIe 3.0 x1

USB

1x USB 3.1/3.2 Gen 2 Header (Supports 1 USB-C Port)
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port)
3x USB 2.0 Header (Supports 5 USB-A Port)

Air Cooling

2x 4-Pin CPU
3x 4-Pin System

Liquid Cooling

1x 4-Pin Pump

Power Connectors

1x 24-Pin Mainboard
2x 8-Pin CPU

Security

Chassis Intrusion

LED Header

3x RGB

Diagnostics

Clear CMOS

Add-On

1x Thunderbolt Header

BIOS

ROM

128 Mb

Front Panel I/O

Front Panel I/O

USB 3.0 / 3.1/3.2 Gen 1, USB 3.1/3.2 Gen 2

Audio

Audio Codec

Realtek (7.1-Channel)

DAC

No

Wireless

Wi-Fi

Wi-Fi 6E (802.11ax) with MU-MIMO Support

Bluetooth

5.3

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor

Micro-ATX

Dimensions

9.6 x 9.6" / 24.4 x 24.4 cm

Packaging Info

Package Weight

3.29 lb

Box Dimensions (LxWxH)

12 x 10.9 x 2.8"
