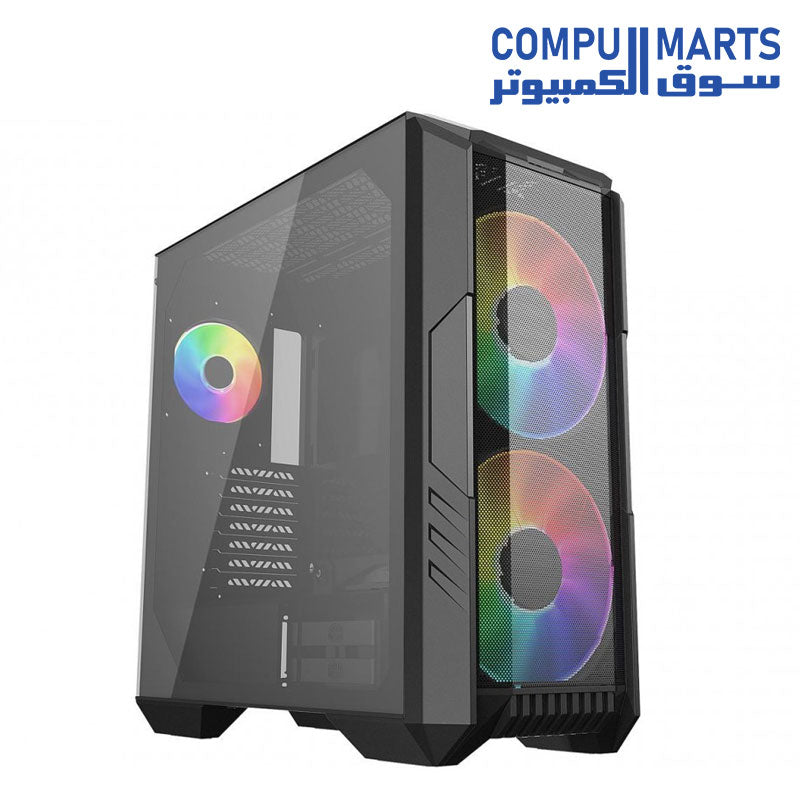

Cooler Master HAF 500 ARGB Mid-Tower Case

Cooler Master

HAF 500

H500-KGNN-S00 - H500-WGNN-S00

ATX Mid Tower

Black - White

Steel / Plastic / Tempered Glass

No

Bottom

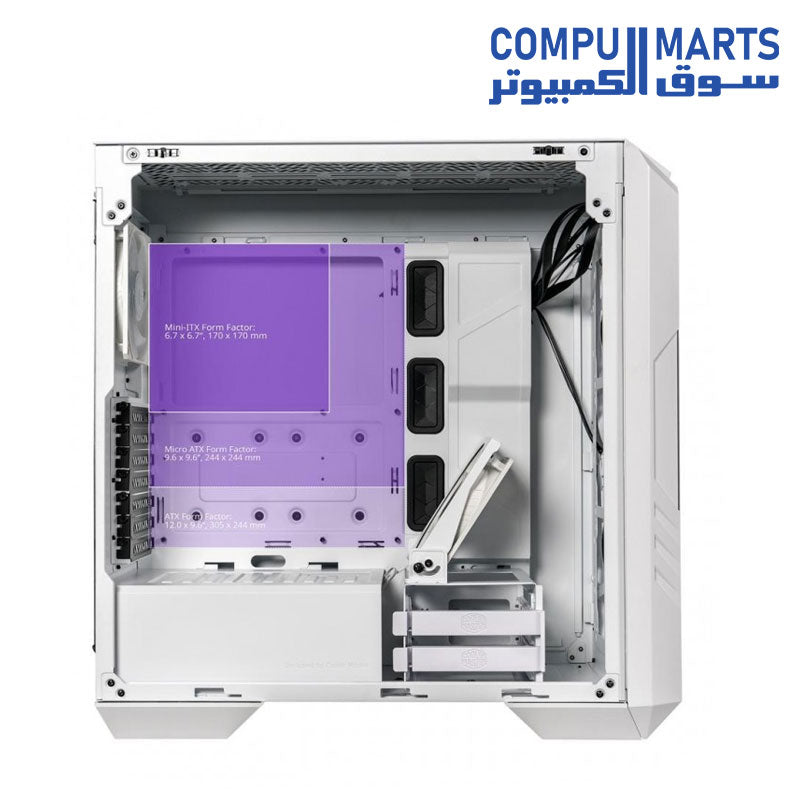

Micro ATX / ATX / ITX / E-ATX / SSICEB *

(* up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features)

Yes

ARGB

Bottom / Front / Top

2

2

7

2 x USB 3.2 Gen 1 (USB 3.0) / 1 x USB 3.2 Gen2 type C / Audio / Reset/ARGB button

Front: 3 x 120mm / 2 x 140mm / 2 x 200mm fan* (1 x 120mm SickleFlow PWM ARGB fans included)

Top: 3 x 120mm / 2 x 140mm / 2 x 200mm fan (2 x 200mm ARGB Fans included)

Rear: 1 x 120mm fan (1 x 120mm SickleFlow PWM (GPU Fan) included)

Top on HDD cage: 1 x 120mm fan

* 200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness

Front: 120 / 140 / 200 / 240 / 280 / 360mm

Top: 120 / 140 / 240 / 280 / 360mm

Rear: 120mm

410 mm

167 mm

180 mm

20.08" x 8.82" x 20.32"

20.90 lbs.

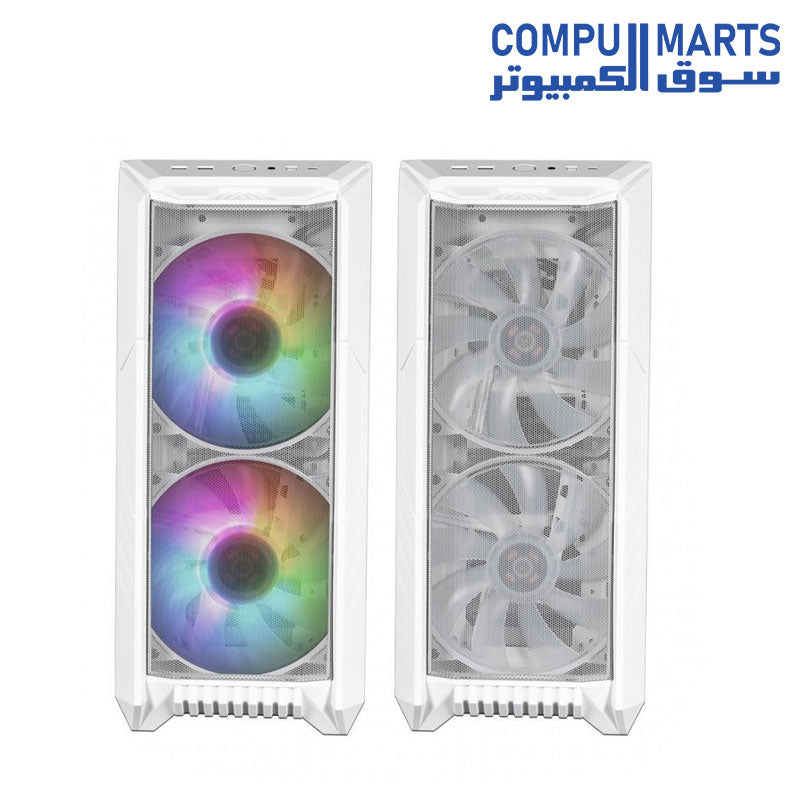

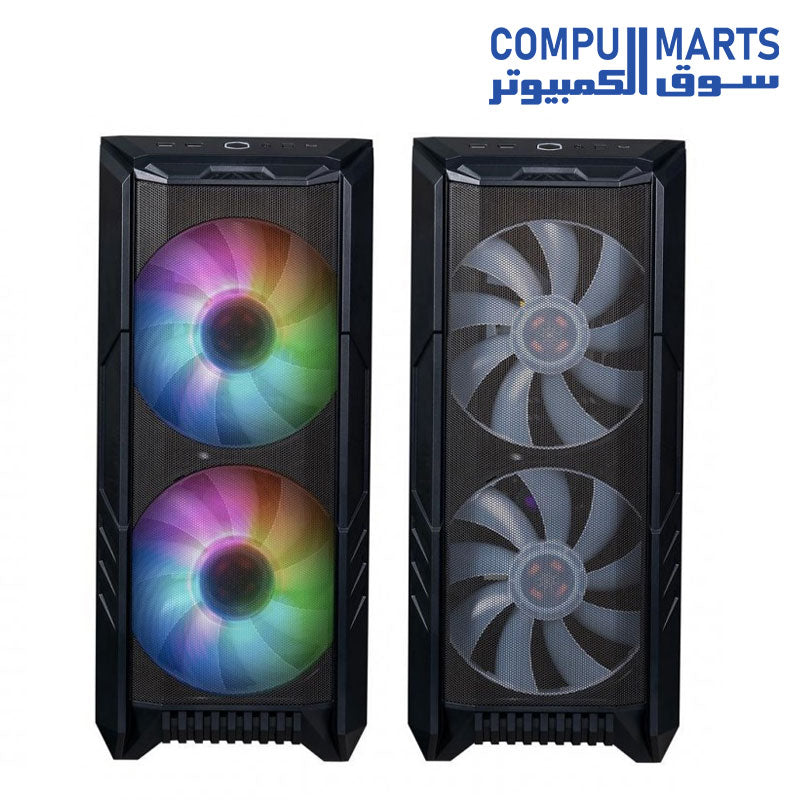

Mesh Front Panel: Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature.

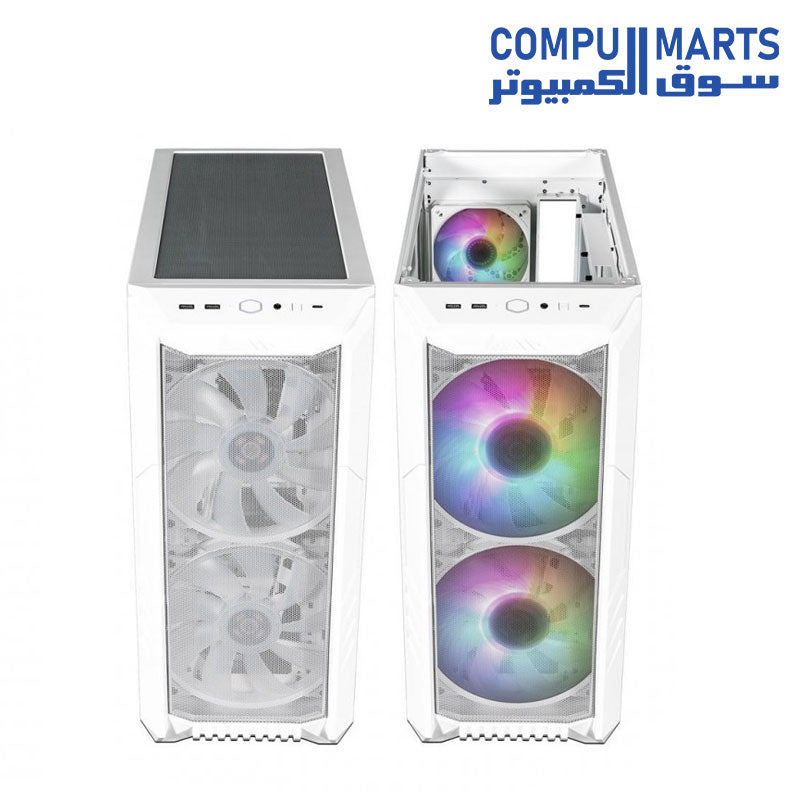

Dual 200mm ARGB Fans: The HAF series iconic 200mm ARGB fans move high volumes of air quietly and effectively due to their large size.

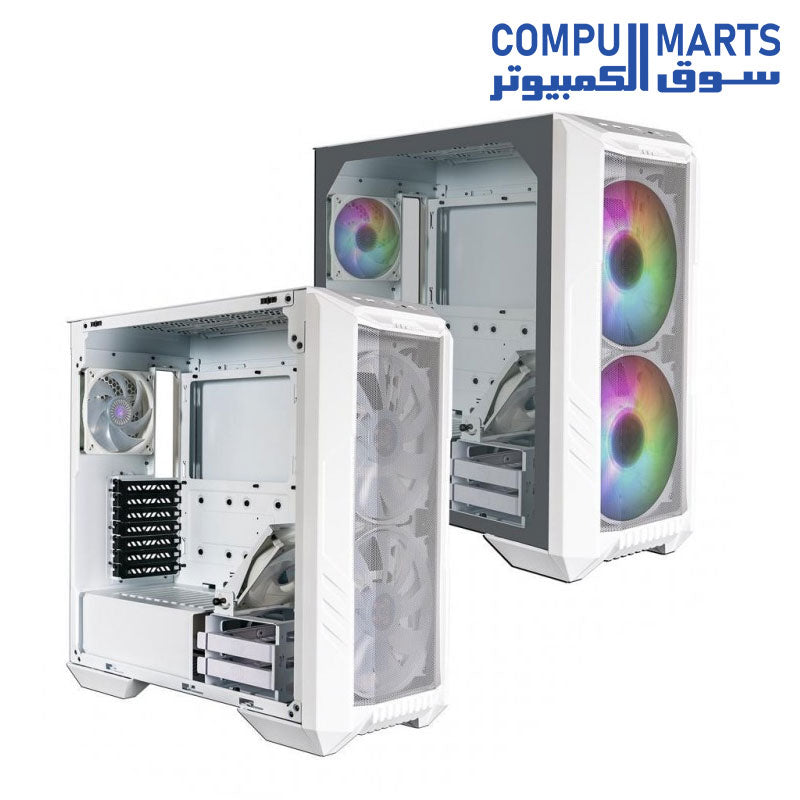

Rotatable GPU Fan: A 120mm rotatable fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance.

USB 3.2 Gen 2 Type C Support: USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.

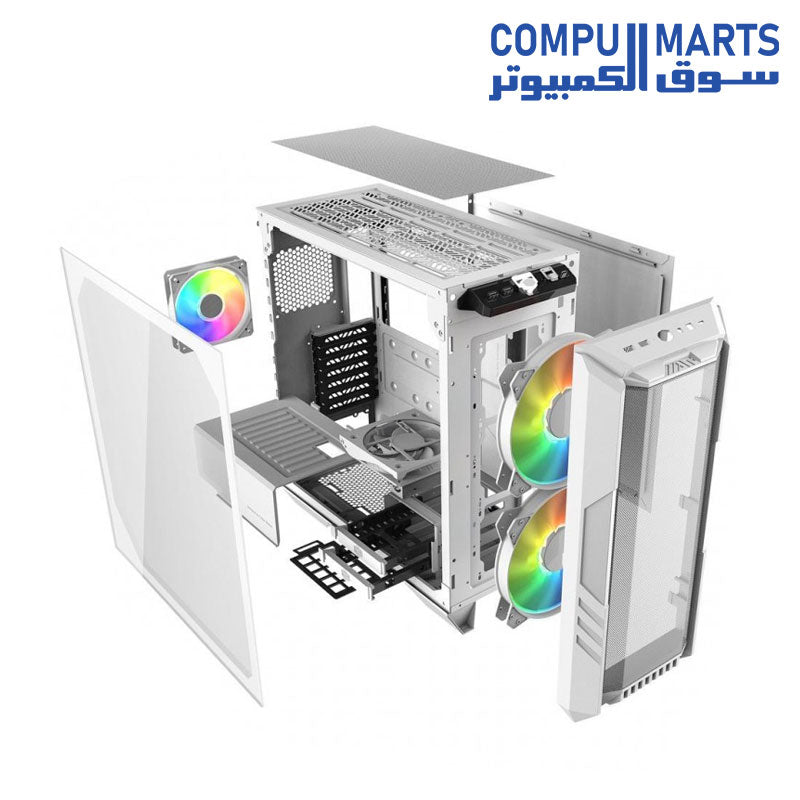

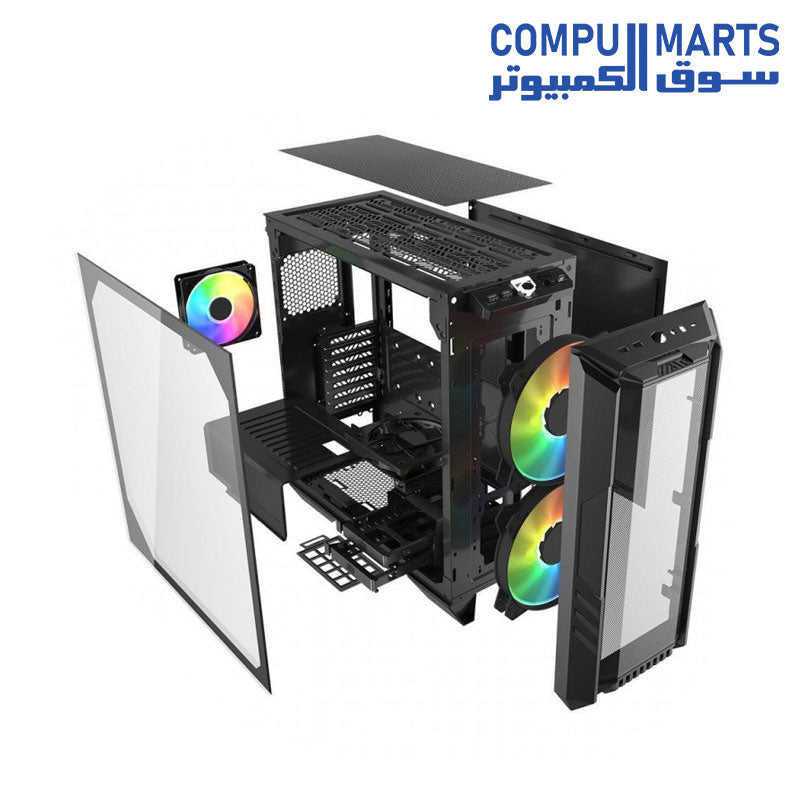

Screwless & Tool-Free TG Side Panel Design: The tempered glass side panel is secured with pins for easy removal without the use of tools.

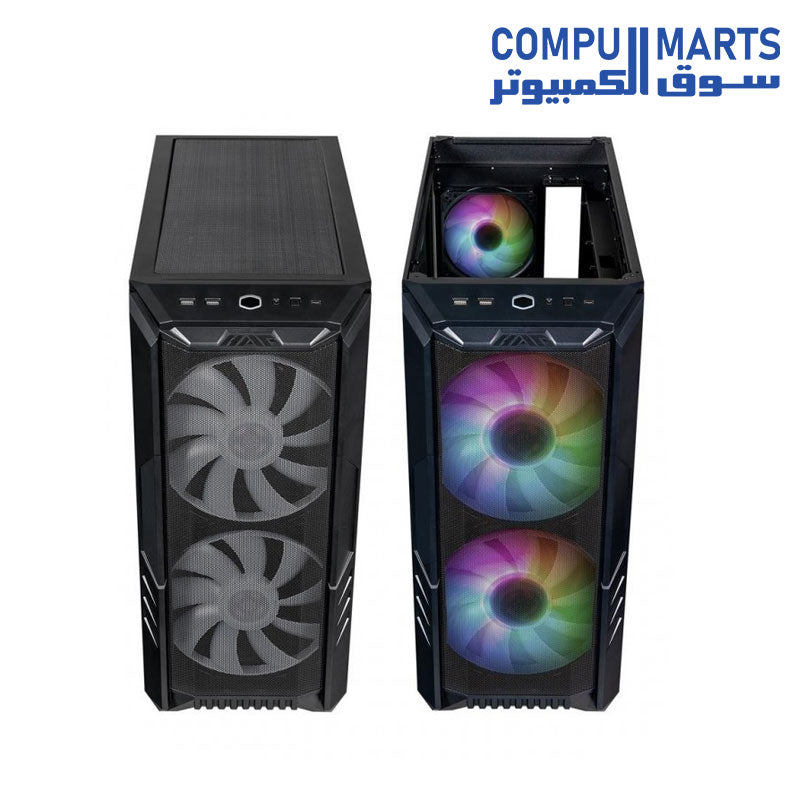

Removable Top Panel : The top panel is entirely removable for improved access to the components during the assembly of cooling solutions.

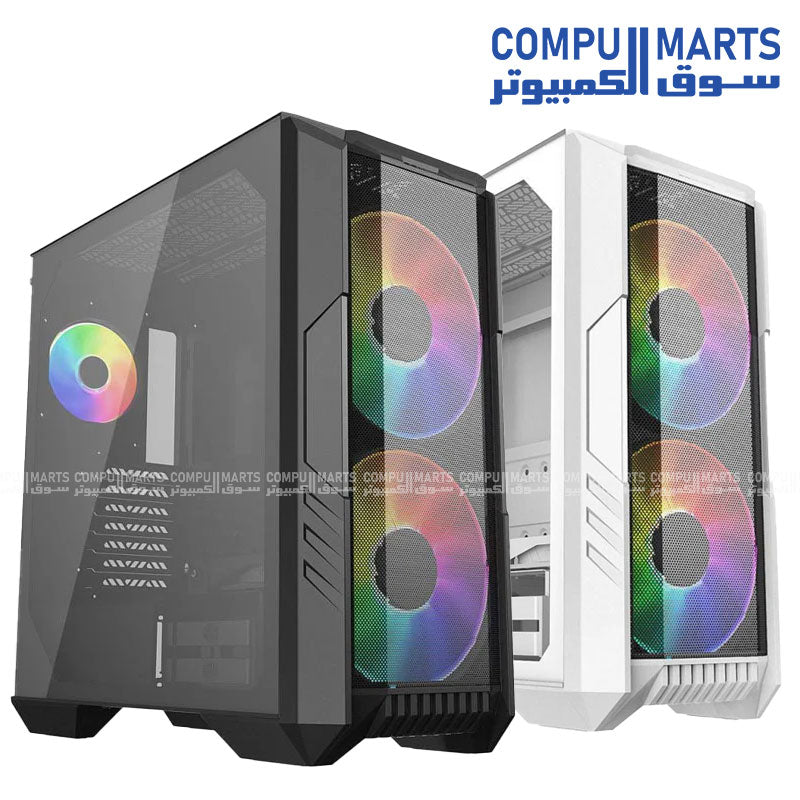

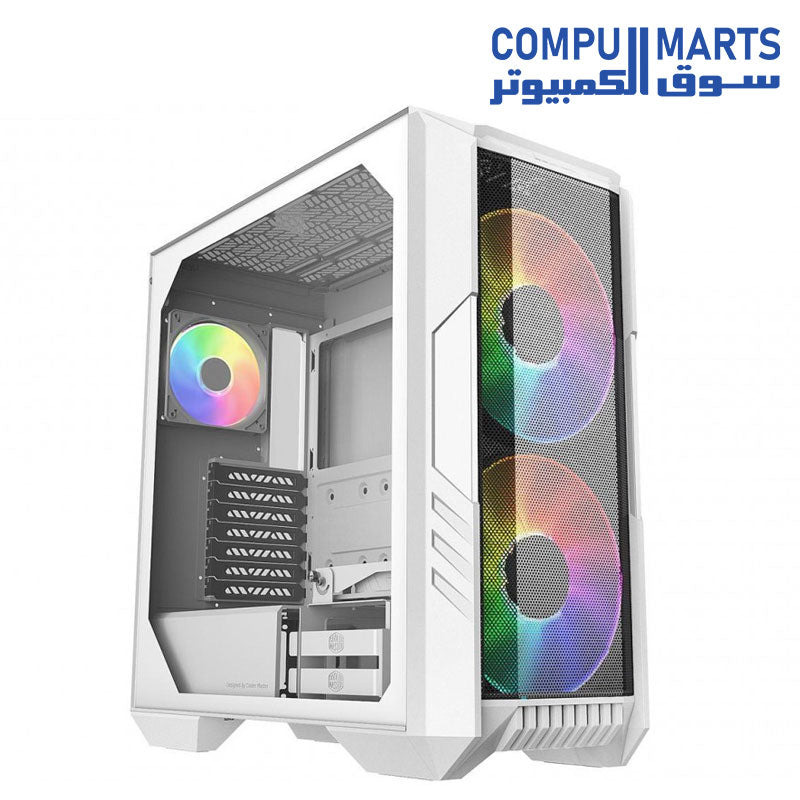

HAF 500 - HAF 500 White

ARGB control

Install Tool Kits

Manual
