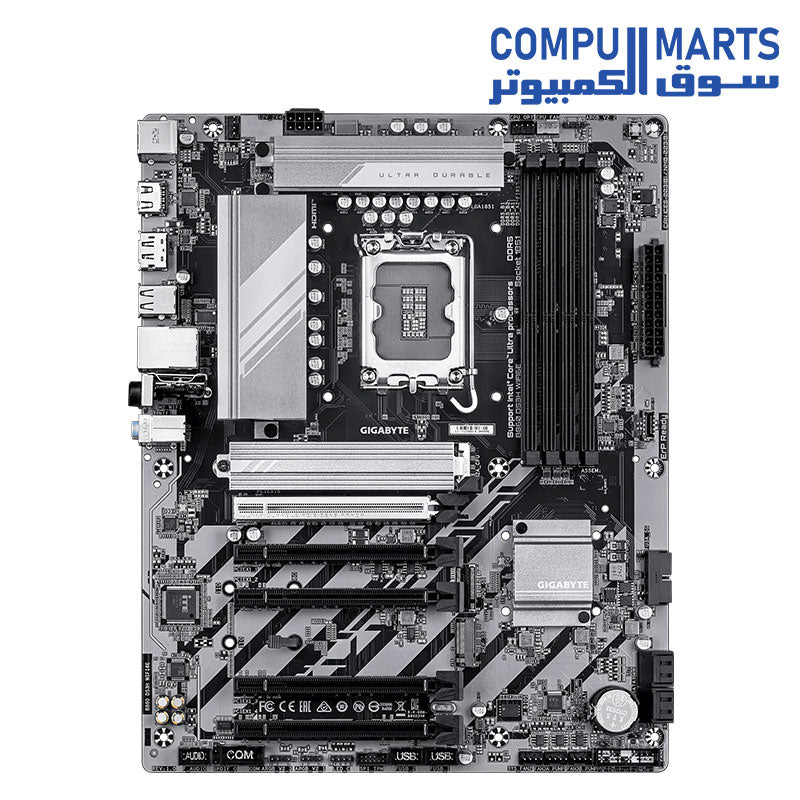

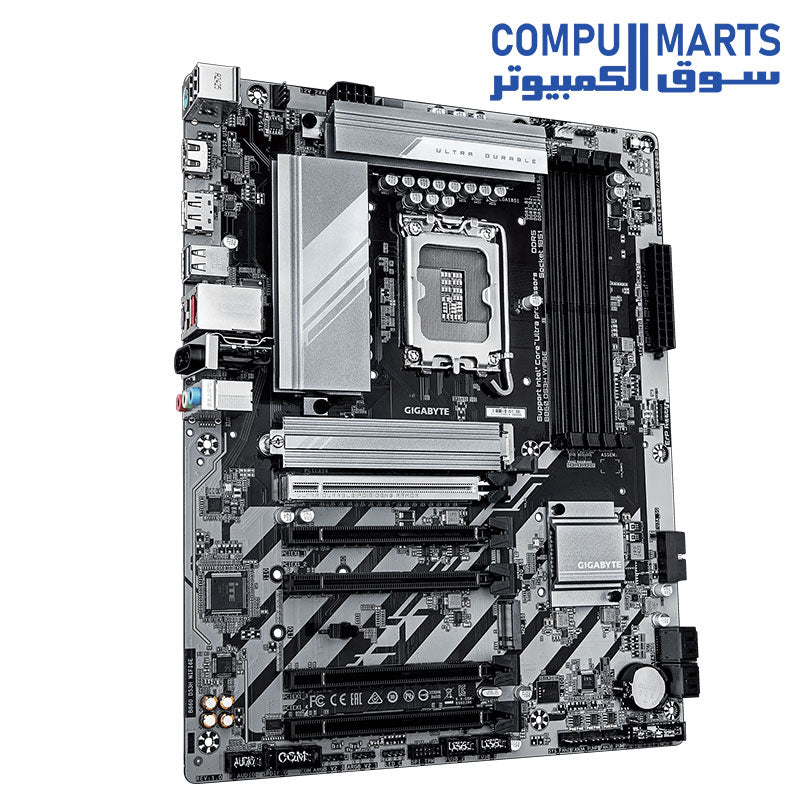

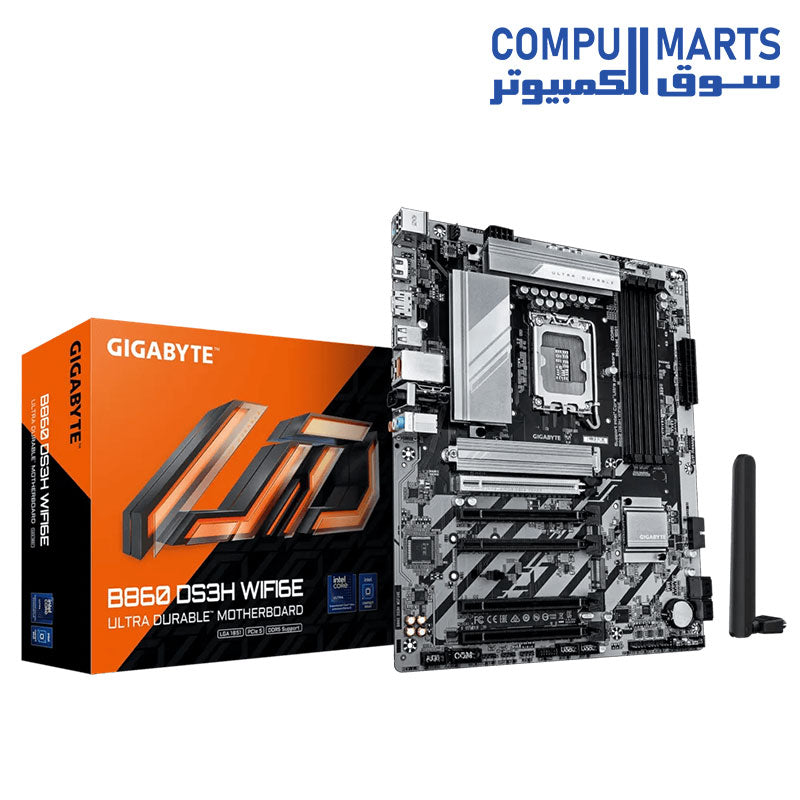

GIGABYTE B860 DS3H WIFI6E MOTHERBOARD

GIGABYTE B860 DS3H WIFI6E MOTHERBOARD

CPU:

LGA1851 socket, support for Intel Core Ultra Processors
L3 cache varies with CPU
Chipset:

Intel B860 Express
Memory:

Supports DDR5 up to 9066MT/s (OC)
4 DIMM slots, up to 256GB capacity
Supports XMP and ECC (operates in non-ECC mode)
Onboard Graphics:

HDMI 2.1 (4096x2160@60Hz)
DisplayPort 2.1 (3840x2160@144Hz)
Specifications depend on CPU support
Audio:

Realtek Audio CODEC
High Definition Audio, 7.1-channel support, S/PDIF Out
Networking:

2.5GbE LAN (Realtek)
Wi-Fi 6E and Bluetooth 5.3 (Intel/Realtek, varies by revision)
Expansion Slots:

1 × PCIe 5.0 x16 (for GPU or NVMe SSD only)
4 × PCIe 4.0 x1
Storage:

1 × M.2 PCIe 5.0 x4 (CPU)
1 × M.2 PCIe 4.0 x4 (Chipset)
4 × SATA 6Gb/s, RAID 0/1/5/10 support
USB Ports:

1 × USB-C 3.2 Gen 2x2 (rear)
1 × USB-C 3.2 Gen 1 (internal)
1 × USB-A 3.2 Gen 2 (rear)
2 × USB-A 3.2 Gen 1 (internal)
8 × USB 2.0/1.1 (4 rear, 4 internal)
Internal Connectors:

1 × 24-pin ATX, 1 × 8-pin 12V power connector
2 × M.2, 4 × SATA
3 × Addressable RGB Gen2, 1 × RGB header
Multiple fan and water cooling pump headers

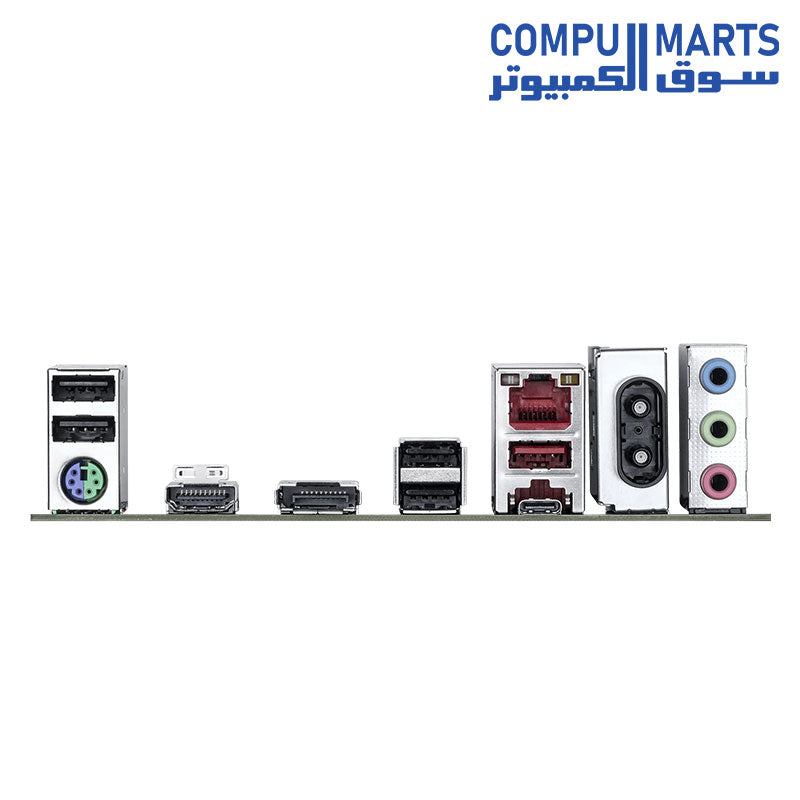

Rear Panel Connectors:

HDMI, DisplayPort
USB-C 3.2 Gen 2x2, USB-A 3.2 Gen 2
4 × USB 2.0, RJ-45, audio jacks, Wi-Fi antenna connectors
Features & Software:

AMI UEFI BIOS, Q-Flash Plus support
Windows 11/10 (64-bit) support
Form Factor:

ATX (30.5 × 24.4 cm)
