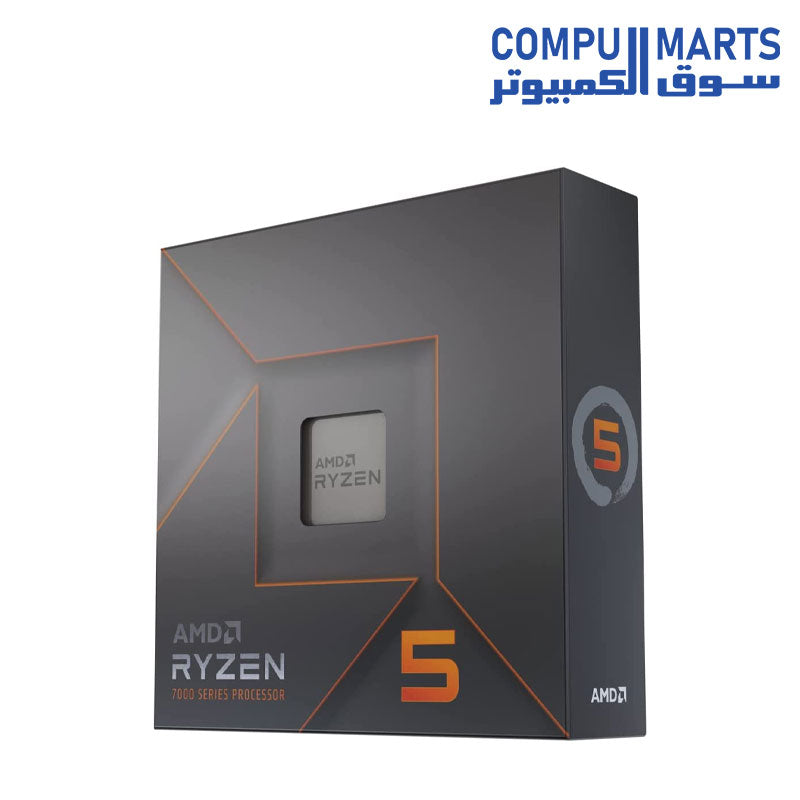

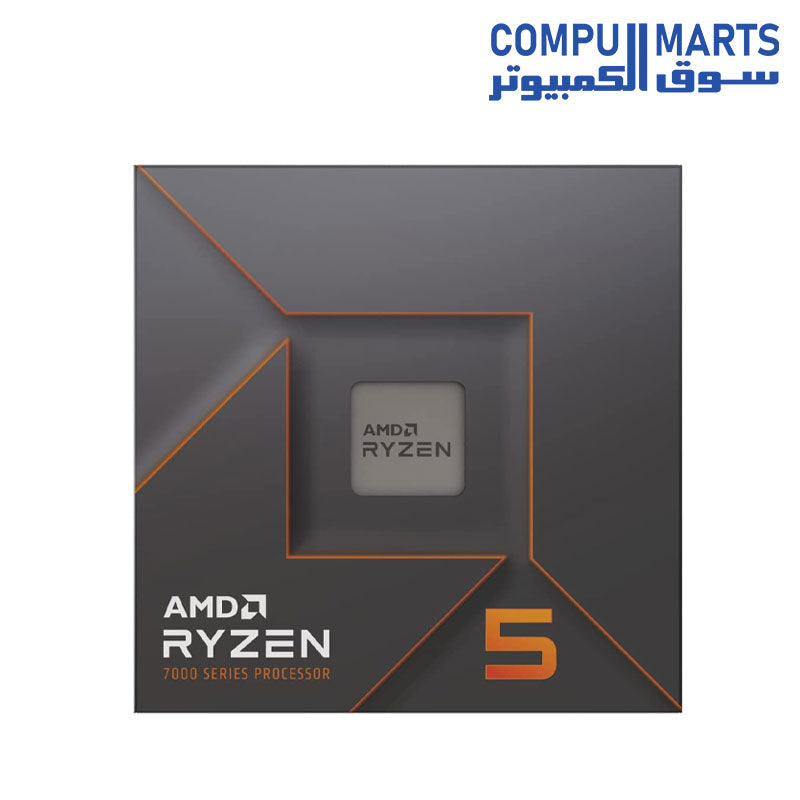

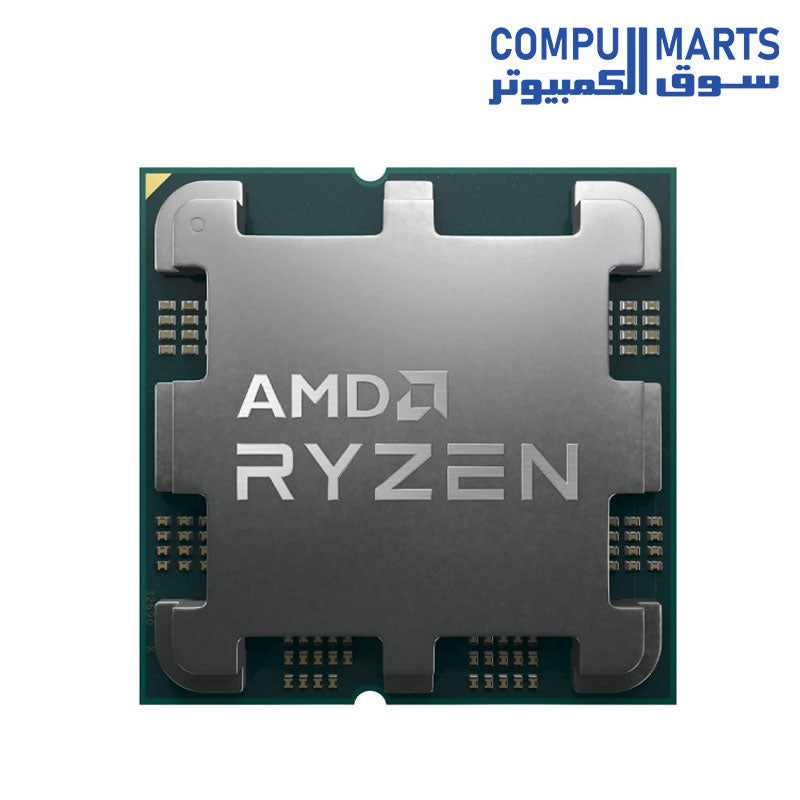

AMD Ryzen 5 7600X 6-Core, 12-Thread Unlocked Desktop Processor

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen Processors

Product Line

AMD Ryzen 5 Processors

AMD PRO Technologies : No

Consumer Use : Yes

Regional Availability

Global

Former Codename

"Raphael AM5"

Architecture

"Zen 4"

 of CPU Cores : 6

Multithreading (SMT) : Yes

 of Threads : 12

Max. Boost Clock : Up to 5.3GHz

Base Clock : 4.7GHz

L1 Cache : 384KB

L2 Cache : 6MB

L3 Cache : 32MB

Default TDP : 105W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

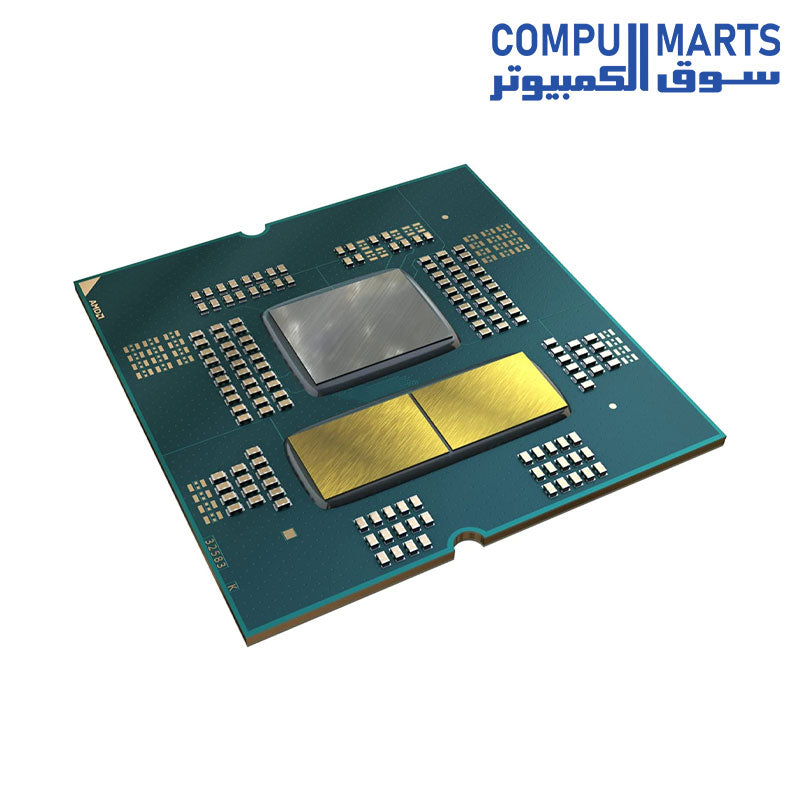

CPU Compute Die (CCD) Size : 71mm

I/O Die (IOD) Size : 122mm

Package Die Count : 2

Unlocked for Overclocking : Yes

AMD EXPO Memory Overclocking Technology : Yes

Precision Boost Overdrive : Yes

Curve Optimizer Voltage Offsets : Yes

AMD Ryzen Master Support : Yes

CPU Socket : AM5

Supporting Chipsets

X670E

X670

B650E

B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)

Not included

Max. Operating Temperature (Tjmax)

95°C

Launch Date

9/27/2022

*OS Support

Windows 11 - 64-Bit Edition

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

USB Type-C Support : Yes

Native USB 3.2 Gen 2 (10Gbps) Ports : 4

Native USB 3.2 Gen 1 (5Gbps) Ports : 0

Native USB 2.0 (480Mbps) Ports : 1

Native SATA Ports : 0

Native PCIe Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670 : 12x Gen4

AMD B650E : 8x Gen4

AMD B650 : 8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type : DDR5

Memory Channels : 2

Max. Memory : 128GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

ECC Support Yes (Requires mobo support)

Graphics Model

AMD Radeon Graphics

Graphics Core Count : 2

Graphics Frequency : 2200 MHz

GPU Base : 400 MHz

USB Type-C DisplayPort Alternate Mode : Yes
