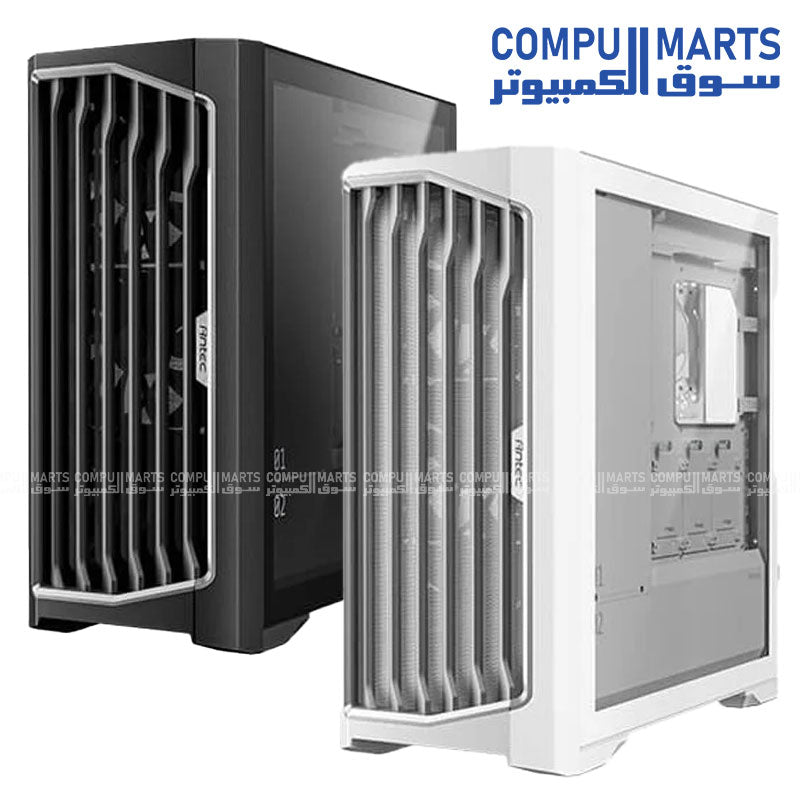

ANTEC Performance 1 FT Full-Tower Case
SYSTEM STATUS WITH A GLANCE
Temperature Display
By pressing the switch button on the I/O panel, users can glance at the temperature of the CPU and GPU on the temperature display.
The temperature display can be switched from CPU temperature to GPU temperature or turned off via the switch button.
Attention: The Antec iUinity software must be installed.
ANTEC iUnity
The Antec iUnity provides instant data on PC specs, loads, and usage.
I/O Panel
-
Including the mainstream Type-C(10Gbps) port for high-speed transfer
-
Included dust plugs for dust prevention.
-
Mic/Audio 2-in-1 port.
PC SHOWCASE
4mm Tempered Glass Side Panel
Both side panels adopt tempered glass for better PC showcase visual effects.
EVERYTHING ORGANIZED
Cable Management on Point
2 cable covers are included for beautifying the cable management area.
There are ten sets of velcro straps for easy cable management.
-
1Three sets of velcro straps for fan & I/O cable routing.
-
2Five velcro straps for hardware and power supply cables.
-
3Two velcro straps at the rear for rear I/O cable routing.
Easy Installation
Removable Top Cooling Bracket.
PRE-INSTALLED 4 FANS OF 30MM THICKNESS
Storm T3 PWM Fan
3 x Storm T3 140mm PWM Fans at the Front.
1 x Storm T3 120mm PWM Fan at the Rear.
COOLING COMPATIBILITY
Storm T3 PWM Fan
The Storm T3 Fan of 30mm thickness comes with thicker and longer fan blades, efficiently increasing the air intake.
The PWM function easily reaches the balance between cooling and silence.
BEST DUST PREVENTION DESIGN
Exquisite Steel Mesh
The mesh front panel adopts the 1.2mm vent holes and the magnetic & clip-on design with easy access.
POWERFUL AIRFLOW PATH DESIGN
Best Airflow Path for GPU Cooling
Airflow-enhancing mesh front panel provides massive air.
Ample mesh at the bottom with fans (optional) on the meshed PSU shroud provides the best performance for the GPU cooling
-
Top: Magnetic dust filter.
-
Front: Magnetic & clip-on dust filter.
-
Bottom: Full-sized pull-out dust filter.
TEMPERATURE TEST
AMD-3600X / NH-U12A / MSI 3070 GAMING X TRIO
HIGHLY COMPATIBLE FULL-TOWER PC CASE
Supports RTX 40 Series Graphics Cards
Full-tower PC case in 230mm width supports the up-to-date 40 Series GPUs and high-end PC components.
THOUGHTFUL DESIGN
Detailed Features
COOLING COMPATIBILITY
Best Cooling Design
-
Support a 420mm radiator at the front. (When installing a 420mm radiator at the front, the radiator at the top must be less than 360mm.)
-
Supports 360mm radiators at the front and top simultaneously.
-
Up to 10 fans simultaneously.
STORAGE COMPATIBILITY
Modular Drive Trays
Supports up to 5 drives: 2 removable drive trays for 3.5" HDD/2.5" SSD & 3 drive trays for 2.5" SSD.
CASE COMPATIBILITY
Extensive Interior
Dimensions
|
522 x 230 x 522 mm (DWH)
|
Form Factor
|
Full Tower
|
Materials
|
Steel + Plastic + Glass
|
Mainboard Support
|
E-ATX, ATX, Micro-ATX, ITX
|
Front Access & Controls
|
Power, Reset , USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1
|
Side Panel
|
4mm Tempered Glass(Both Sides)
|
|
Drive Bays
|
Expansion Slots
|
8
|
3.5" / 2.5"
|
2 / 2
|
2.5"
|
3
|
|
Fan
|
Front
|
3 x 120mm / 3 X 140mm
|
Top
|
3 x 120mm / 3 x 140mm
|
Power Supply Shroud
|
3 x 120mm
|
Rear
|
1 x 120mm
|
Included Fan(s)
|
3 x 140 x 30mm PWM fans in front + 1 x 120 x 30mm PWM fan in rear
Pre-installed Storm T3 PWM fan specs vary from the retail version
|
|
Radiator Support
|
Front
|
120 / 140 / 240 / 280 / 360 / 420mm
|
Top
|
120 / 140 / 240 / 280 / 360mm
|
Rear
|
120mm
|
|
Clearance
|
Max GPU Length
|
≤ 400mm
|
Max CPU Cooler Height
|
≤ 175mm
|
Max PSU Length
|
(Include cable) ≤ 245mm(with HDD)
(Include cable) ≤ 440mm(without HDD)
|
|
Miscellaneous
|
Dust Filter
|
Front / Top / Bottom
|
Net Weight
|
12.55Kgs
|
Gross Weight
|
14.85Kgs
|
|
|
UPC
|
0-761345-10088-5
|
|
