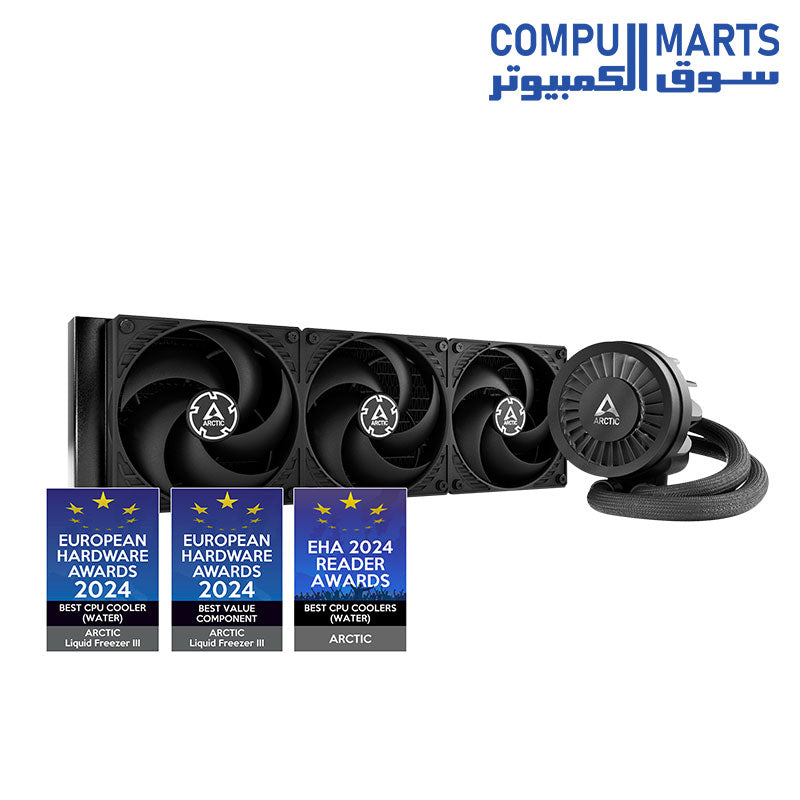

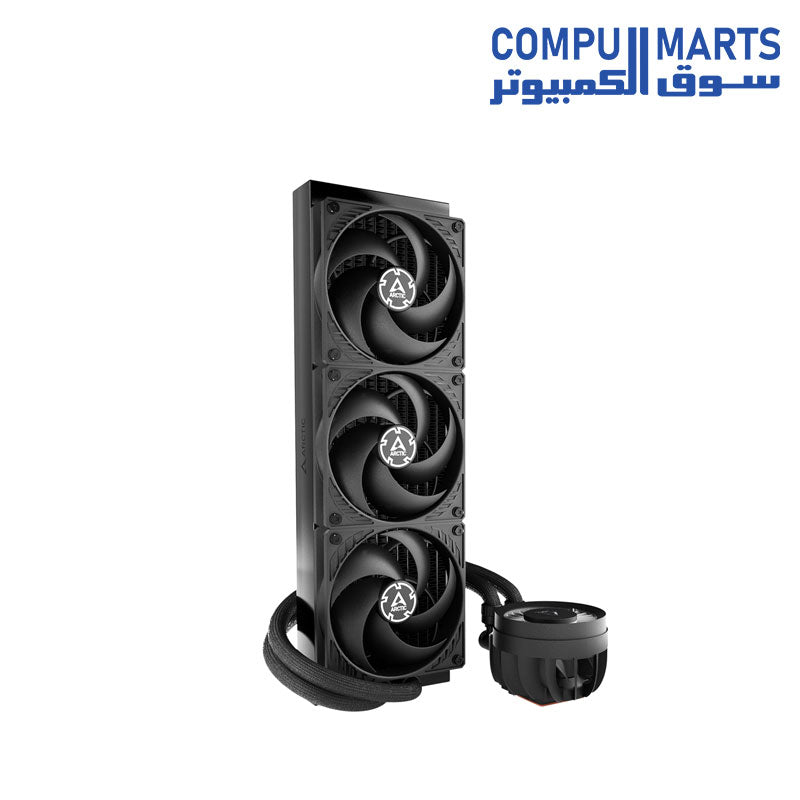

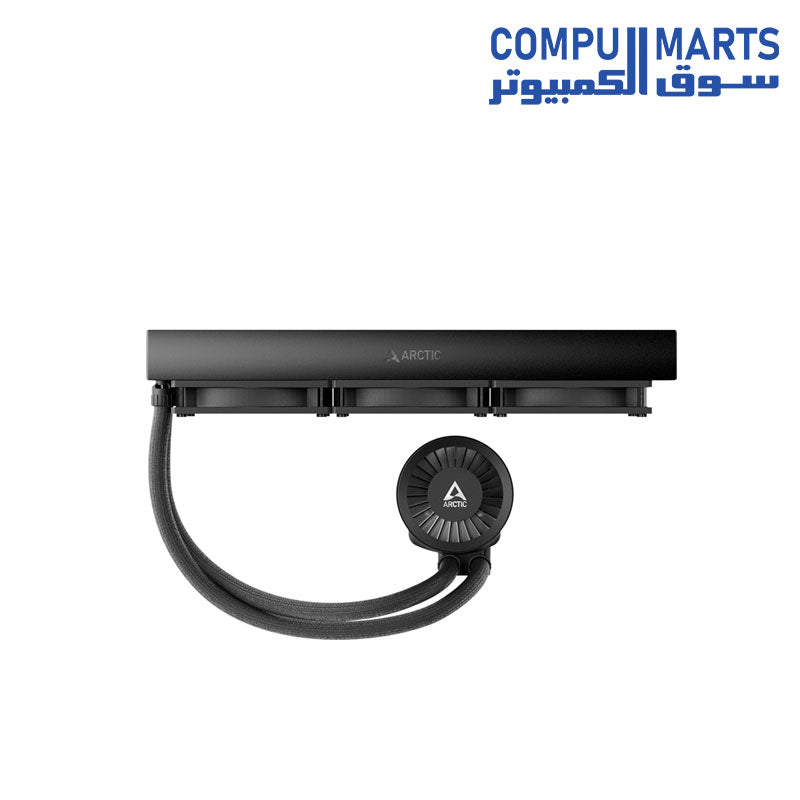

ARCTIC Liquid Freezer III 360 CPU AIO Water Cooler

ARCTIC Liquid Freezer III 360 CPU AIO Water Cooler

Information

• Brand: ARCTIC

• Power Connector Type: 4-Pin

• Voltage: 12 Volts

• Wattage: 4.2 Watts

• Cooling Method: Water

Compatible Devices

• Intel Socket: LGA1851, LGA1700

• AMD Socket: AM5, AM4

Materials

• Radiator Material: Aluminium

• Cold Plate Material: Copper with Micro Skived Fins

Performance Specifications

• Maximum Rotational Speed: 1800 RPM

• Air Flow Capacity: 56.3 Cubic Feet Per Minute (CFM)

General Specifications

• Compatibility:

  • Intel: LGA1851, LGA1700

  • AMD: AM5, AM4

  • PI | NNPI: 338 | 309

  • Thermal Interface Material (TIM): MX-6 (0.8 g)

• Warranty: 6 Years

• Operating Ambient Temperature: 0–40°C

• Weight: 1840 g

• All-In-One Connector: 4-Pin PWM Connector

• Split Connector: 3x 4-Pin PWM Connector

Pump Specifications

• Pump Speed: 800–2800 RPM (PWM controlled)

• Current | Voltage: 0.35 A | 12 V DC

• Cold Plate Material: Copper with Micro Skived Fins

• Tube Length: 450 mm

• Tube Diameter:

  • Outer: 12.4 mm

  • Inner: 6.0 mm

Radiator Specifications

• Material: Aluminium

• Dimensions: 398 mm (L) x 120 mm (W) x 38 mm (H)

VRM Module

• VRM Fan Speed: 400–2500 RPM (PWM controlled)

• Current | Voltage: 0.05 A | 12 V DC

Radiator Fans

• Number of Fans: 3x P12 PWM

• Speed: 200–1800 RPM

• Air Flow: 56.3 CFM | 95.65 m³/h

• Static Pressure: 2.20 mmH2O

• Bearing Type: Fluid Dynamic Bearing

• Current | Voltage: 0.10 A | 12 V DC

• Cable Length: 40 mm

• Connector: 4-Pin PWM Connector

Packaging Dimensions

• Width: 167 mm

• Height: 142 mm

• Length: 414 mm

• Weight: 2.375 kg

Identifiers

• EAN: 4895213704489

• UPC: 840033402255
