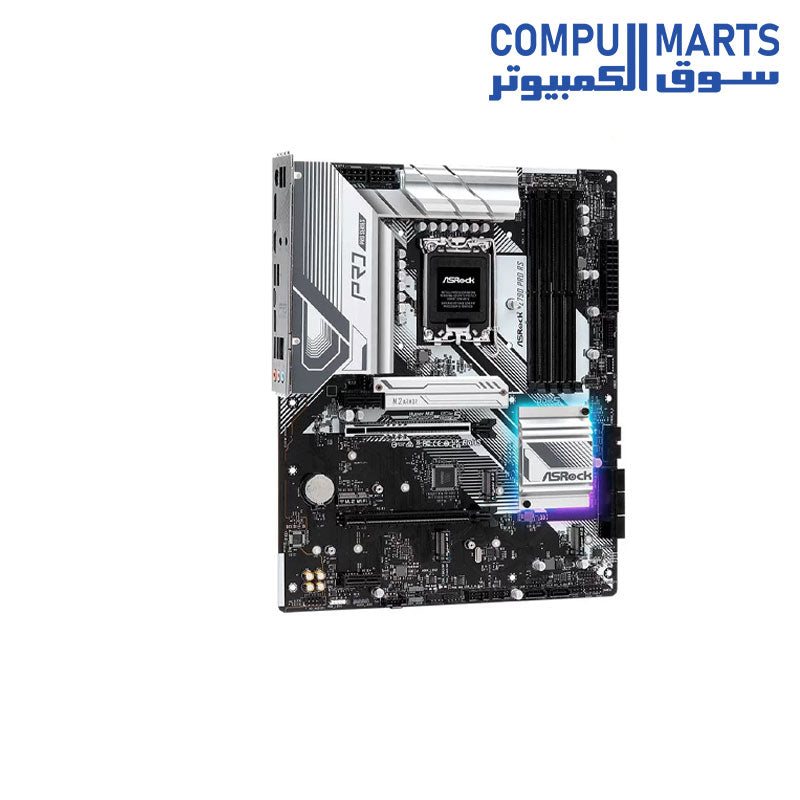

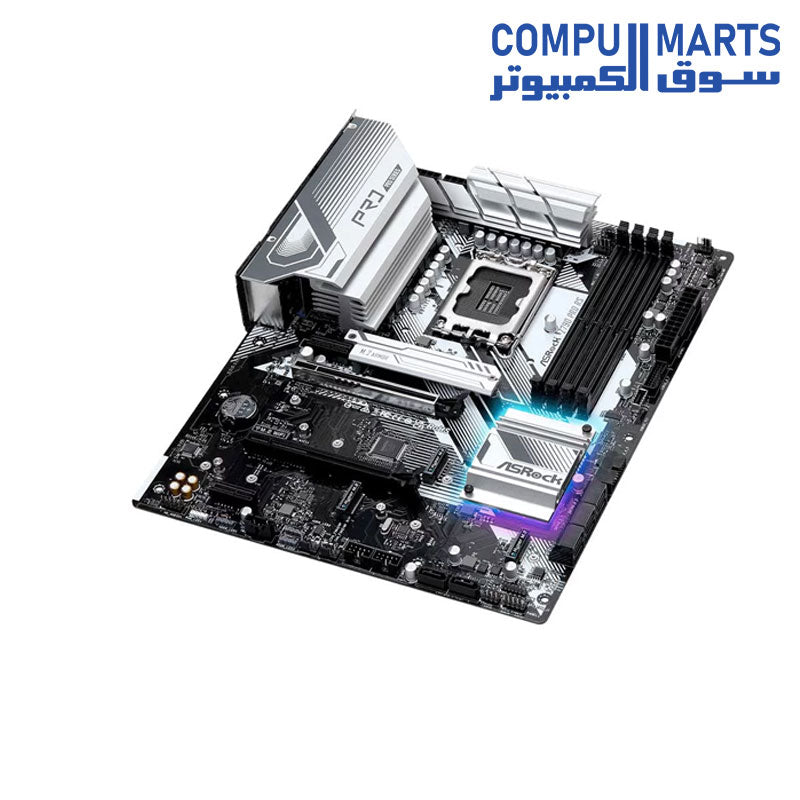

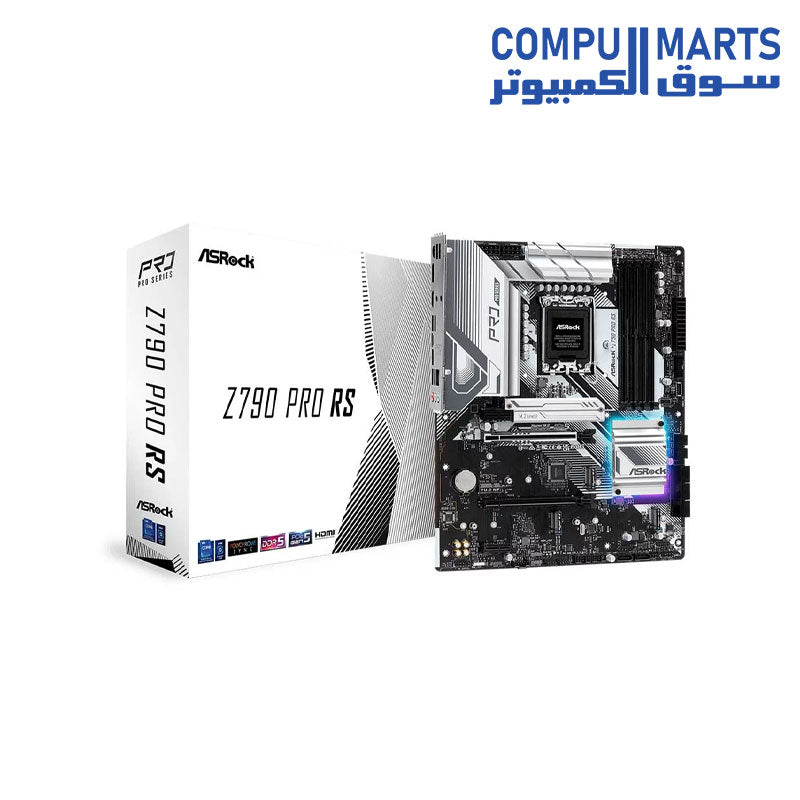

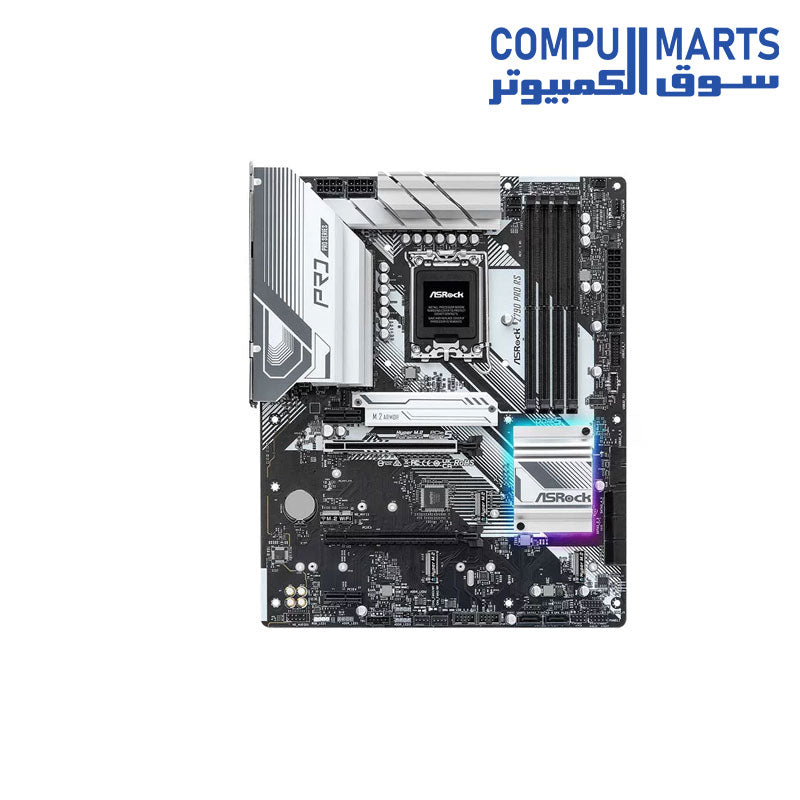

Asrock Z790 Pro Rs DDR5 Motherboard

Asrock Z790 Pro Rs DDR5 Motherboard

• Supports 13^th Gen & 12^th Gen and next gen Intel Core Processors

• 14+1+1 Phase Power Design, Dr.MOS for VCore+GT

• 4 x DDR5 DIMMs, supports up to 7200+(OC)

• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key-E for WiFi

• Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio

• 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3

• 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)

• Realtek 2.5G LAN

• • • Unique Feature Superb Productivity

      – PCIe Gen5 (Graphics)

      – Dual Channel DDR5

      Rock-Solid Durability

      – 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor

      – Flexible Integrated I/O Shield

      Ultrafast Connectivity

      – 2.5G LAN

      EZ Update

      – ASRock Auto Driver Installer

      EZ Troubleshooter

      – ASRock Post Status Checker

    • CPU – Supports 13^th Gen & 12^th Gen and next gen Intel Core Processors (LGA1700)

      – Supports Intel Hybrid Technology

      – Supports Intel Turbo Boost Max 3.0 Technology

      – Supports Intel Thermal Velocity Boost (TVB)

      – Supports Intel Adaptive Boost Technology (ABT)

    • Chipset – Intel Z790

    • Memory – Dual Channel DDR5 Memory Technology

      – 4 x DDR5 DIMM Slots

      – Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)

      – Max. capacity of system memory: 192GB

      – Supports Intel Extreme Memory Profile (XMP) 3.0

      1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
      1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
      2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
      2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

    • BIOS – 128Mb AMI UEFI Legal BIOS with GUI support

    • Graphics – Intel Xe Graphics Architecture (Gen 12)

      – 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

      – 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

      – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

    • Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

      – Nahimic Audio

    • LAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

      – Dragon RTL8125BG

      – Supports Dragon 2.5G LAN Software

      – Smart Auto Adjust Bandwidth Control
      – Visual User Friendly UI
      – Visual Network Usage Statistics
      – Optimized Default Setting for Game, Browser, and Streaming Modes
      – User Customized Priority Control

  • Slots CPU:

    – 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode

    Chipset:

    – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode

    – 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4)

    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

    – Supports AMD CrossFire

    Supports NVMe SSD as boot disks

  • Storage CPU:

    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

    Chipset:

    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

    – 8 x SATA3 6.0 Gb/s Connectors

    Supports Intel Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

  • RAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

    – Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

  • USB – 1 x USB 3.2 Gen2x2 Type-C (Front)

    – 1 x USB 3.2 Gen2 Type-C (Rear)

    – 1 x USB 3.2 Gen2 Type-A (Rear)

    – 6 x USB 3.2 Gen1 (2 Rear, 4 Front)

    – 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection

  • Connector – 1 x eDP Signal Connector

    – 1 x SPI TPM Header

    – 1 x Power LED and Speaker Header

    – 1 x RGB LED Header

    – 3 x Addressable LED Headers

    – 1 x CPU Fan Connector (4-pin)

    – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

    – 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

    – 1 x 24 pin ATX Power Connector

    – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

    – 1 x Front Panel Audio Connector

    – 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

    – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

    – 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

    – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

    Supports in total up to 12V/3A, 36W LED Strip

    Support in total up to 5V/3A, 15W LED Strip

    CPU_FAN1 supports the fan power up to 1A (12W).

    CPU_FAN2/WP supports the fan power up to 2A (24W).

    CHA_FAN1~5/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

  • Rear Panel I/O – 2 x Antenna Mounting Points

    – 1 x PS/2 Mouse/Keyboard Port

    – 1 x HDMI Port

    – 1 x DisplayPort 1.4

    – 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

    – 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

    – 2 x USB 3.2 Gen1 Ports

    – 4 x USB 2.0 Ports

    – 1 x RJ-45 LAN Port

    – HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI Software

    – ASRock Motherboard Utility (A-Tuning)

    – ASRock Dragon 2.5G LAN Software

    – ASRock Polychrome SYNC*

    UEFI

    – ASRock EZ Mode

    – ASRock Full HD UEFI

    – ASRock My Favorites in UEFI

    – ASRock Auto Driver Installer

    – ASRock Instant Flash

    – ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Accessories – 1 x User Manual

    – 2 x SATA Data Cables

    – 5 x Screws for M.2 Sockets

    – 1 x Standoff for M.2 Socket

  • Form Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

    – 2oz Copper PCB
