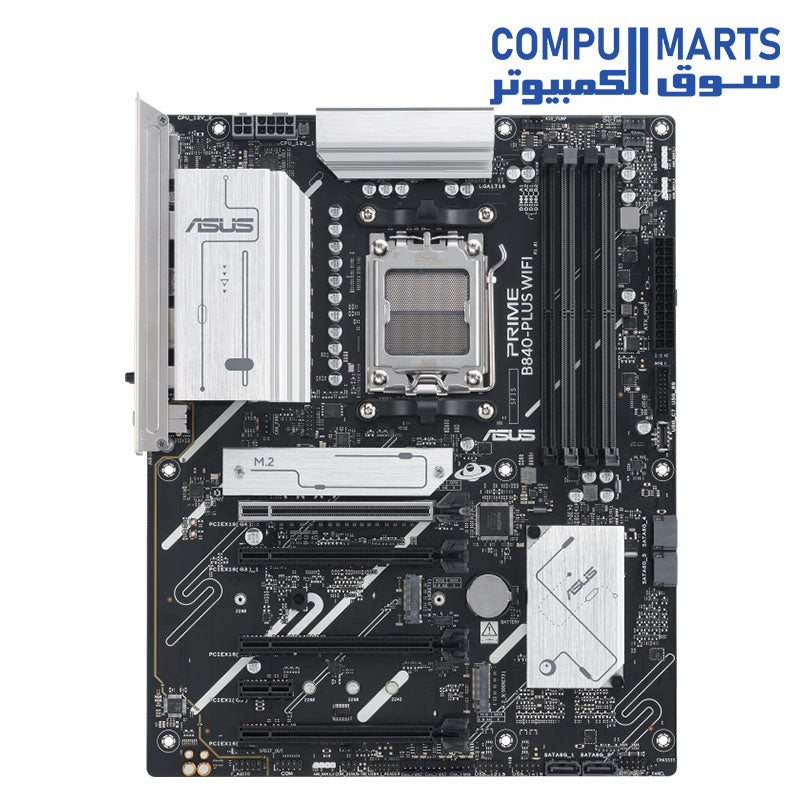

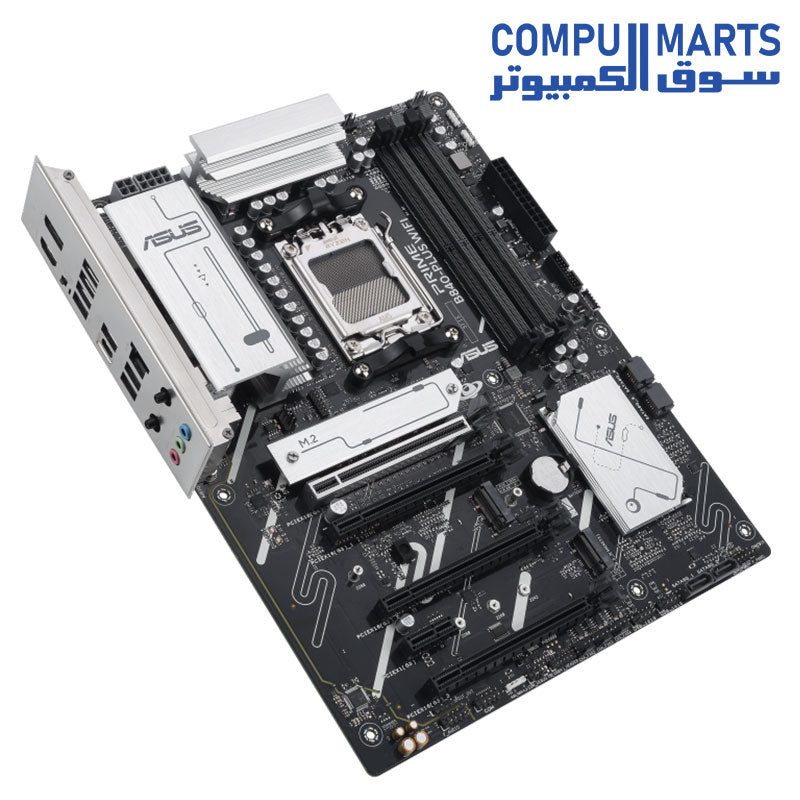

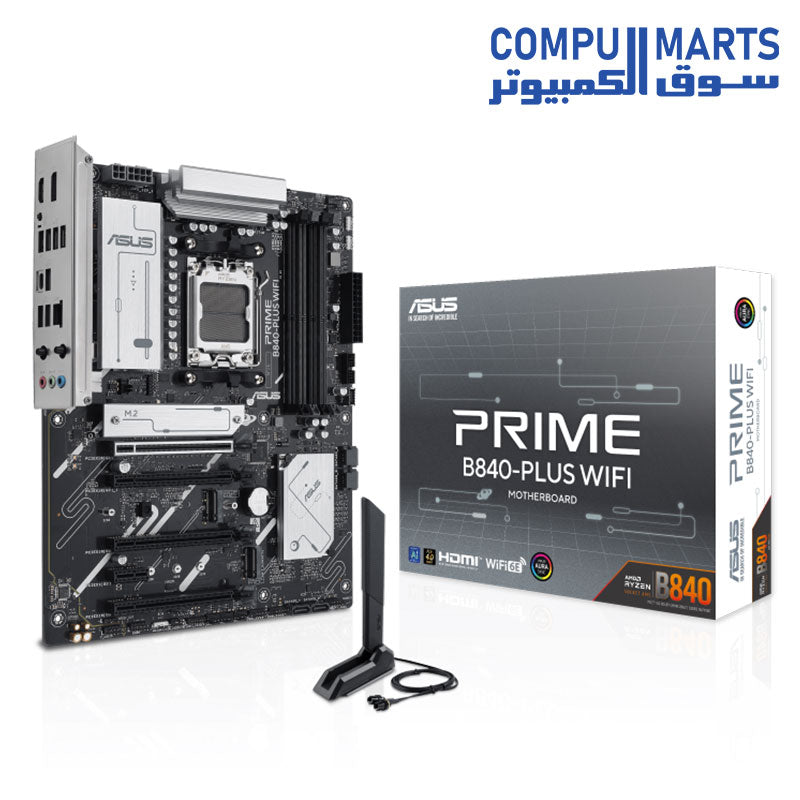

ASUS Prime B840-PLUS WiFi AMD AM5 B840 ATX Motherboard, Advanced AI Ready, DDR5, PCIe 4.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS Flashback, Aura Sync RGB

ASUS Prime B840-PLUS WiFi AMD AM5 B840 ATX Motherboard, Advanced AI Ready, DDR5, PCIe 4.0, 3X M.2, Wi-Fi 6E, 2.5Gb LAN, DisplayPort, HDMI, USB 10Gbps Type-A & Type-C, BIOS Flashback, Aura Sync RGB

CPU
Socket: AMD Socket AM5.
Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors.
Chipset
AMD B840 Chipset.
Memory (RAM)
4 DIMM slots, supporting up to 192GB.
Type: DDR5, with speeds up to 7600+ MT/s (OC).
Supports AMD EXPO™ and ASUS AEMP profiles.
ECC and Non-ECC Un-buffered DIMM support.
Graphics
DisplayPort: Supports up to 8K@30Hz (DisplayPort 1.4).
HDMI: Supports 4K@60Hz (HDMI 2.1).
Expansion Slots
PCIe 4.0 and PCIe 3.0 slots (depending on CPU type).
Supports up to 4 PCIe slots for various configurations.
Storage
3 x M.2 slots (supports PCIe 4.0/3.0 modes).
4 x SATA 6Gb/s ports.
RAID support (varies by CPU type).
Networking
Ethernet: Realtek 2.5Gb Ethernet with ASUS LANGuard.
Wi-Fi: Wi-Fi 6E (2x2), supporting 2.4/5/6GHz bands.
Bluetooth: Version 5.3.

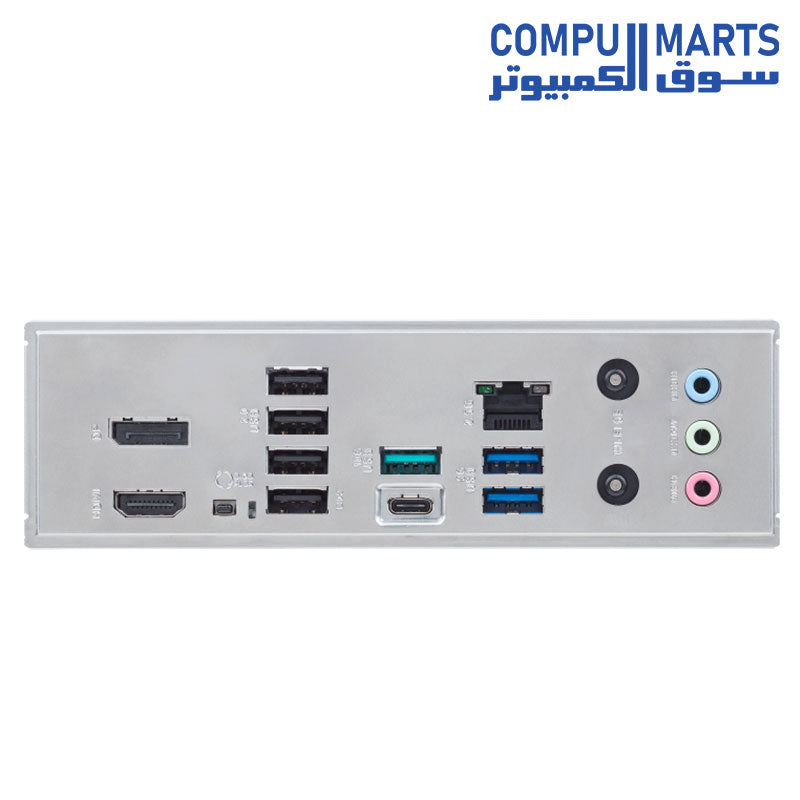

USB Ports
Rear: 8 ports (including USB Type-C and USB 3.2).
Front: Support for up to 7 additional ports.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC.
Features: Audio Shielding, Premium Audio Capacitors, and dedicated audio PCB layers.
Cooling and Power
Multiple fan headers (4-pin), including support for AIO pumps.
Power connectors: 24-pin main power and additional CPU power connectors (8-pin + 4-pin).
Special Features
ASUS 5X PROTECTION III (including SafeSlot Core+ and Overvoltage Protection).
Q-Design features (Q-Antenna, Q-LED Core, etc.).
Aura Sync RGB lighting with Addressable Gen 2 headers.
Enhanced thermal design with VRM heatsinks and M.2 heatsinks.
Software and OS
Compatible with Windows 11 and Windows 10 (64-bit).
Included software: Armoury Crate, Fan Xpert 2+, ASUS CPU-Z, and trial versions of Norton 360 Deluxe, Adobe Creative Cloud, and WinRAR.
Accessories
SATA cables.
ASUS Wi-Fi Q-Antenna.
M.2 screws and rubber packages.
Dimensions and Form Factor
ATX form factor (30.5 x 24.4 cm).
