ASUS Prime H570-PLUS LGA1200 (Intel 11th/10th Gen) ATX Motherboard (PCIe 4.0, 8 Power Stages, HDMI, DVI, DisplayPort, Dual M.2, Intel 1Gb LAN, USB 3.2 Gen 2 Type-C, Thunderbolt 4)



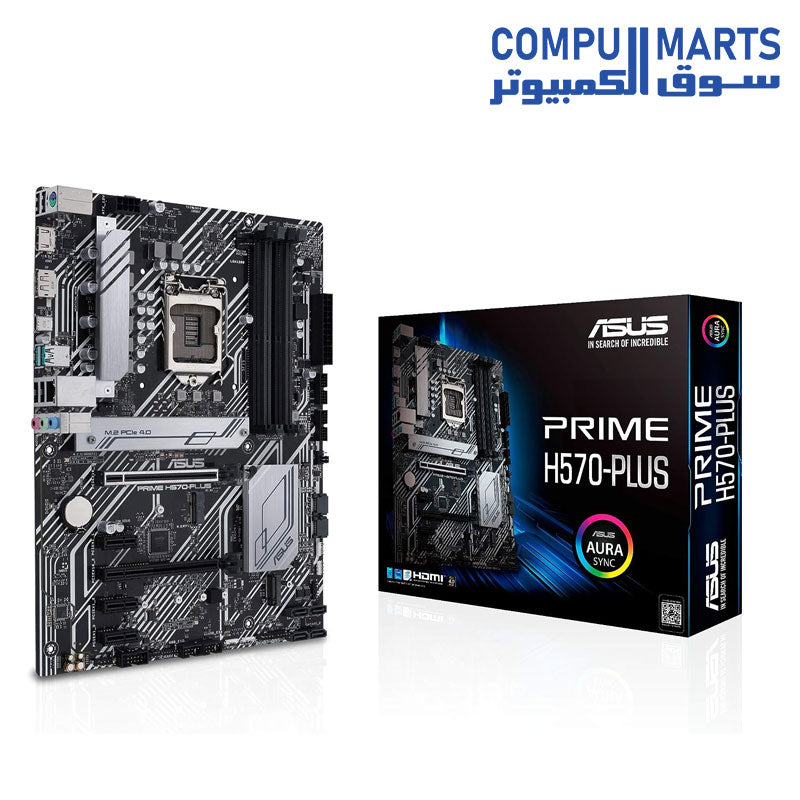

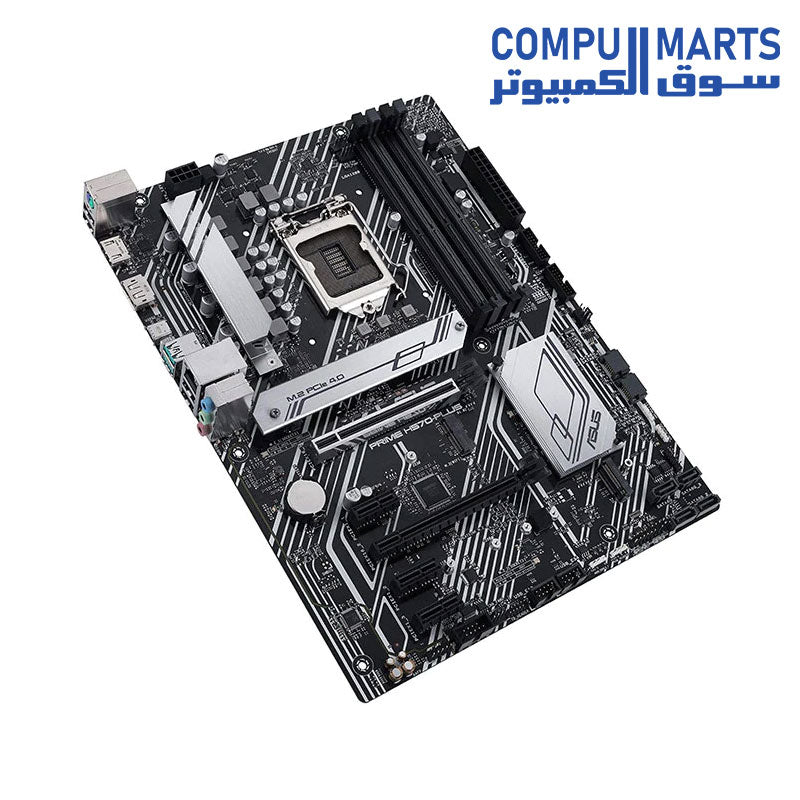

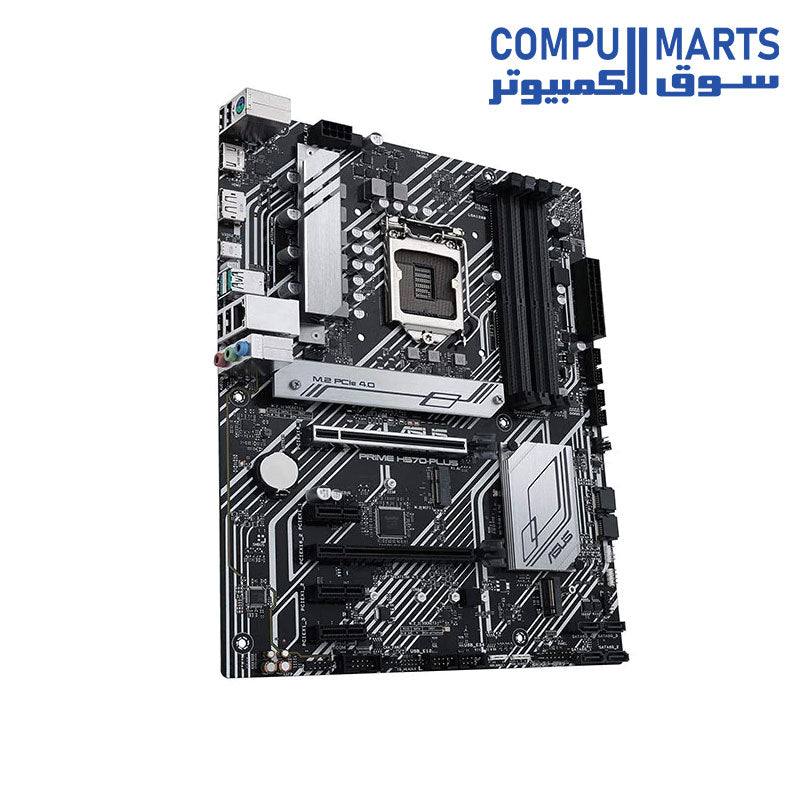

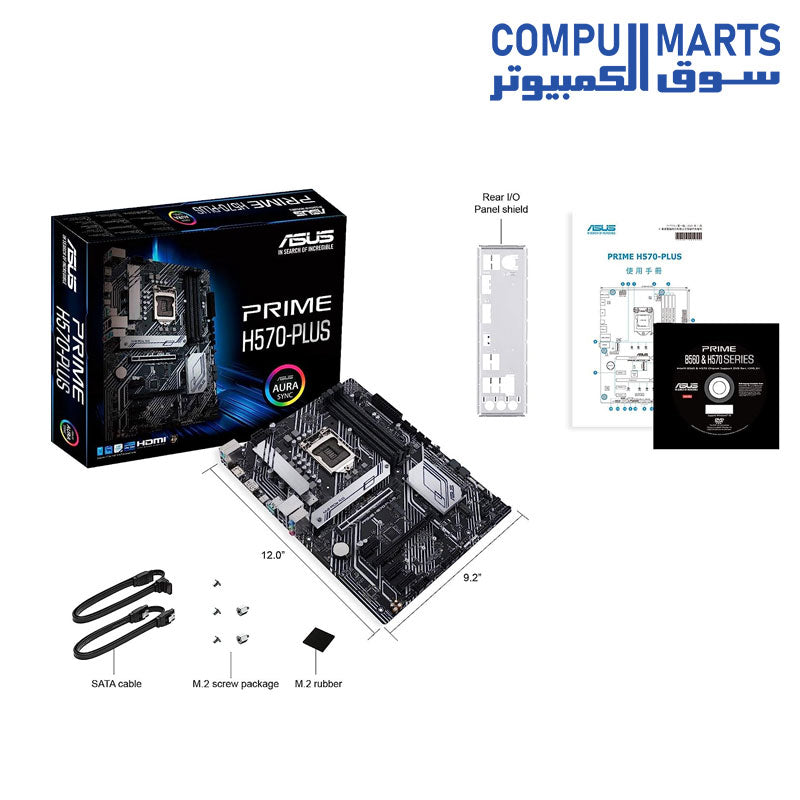

ASUS Prime H570-PLUS LGA1200 (Intel 11th/10th Gen) ATX Motherboard

Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors.

Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery.

Ultrafast connectivity: PCIe 4.0, Dual M.2, 1Gb Ethernet, rear USB 3.2 Gen 2 Type-C and Thunderbolt 4 support.

ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.

5X Protection III: Multiple hardware safeguards for all-round protection.

Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors

Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets

Chipset Intel H570

Onboard Video

Onboard Video Chipset Supported only by CPU with integrated graphic

Memory
Number of Memory Slots 4×288pin
Memory Standard DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133

 11th Gen Intel Core processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
10th Gen Intel Core i9 / i7 processors support 2933 / 2800 / 2666 / 2400 / 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.

Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

 Actual support may vary by CPU.
PCI Express 3.0 x16 1 x PCIe 3.0 x16

 Supports x4 mode.
PCI Express x1 1 x PCIe 3.0 x1



Storage Devices

SATA 6Gb/s 6 x SATA 6Gb/s



M.2 Intel 11th Gen Processors:

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel H570 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

*When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
Intel Optane Ready To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Onboard Audio
Audio Chipset Realtek ALC897
Audio Channels 7.1 Channels

 A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN

LAN Chipset Intel I219-V

Max LAN Speed 10/100/1000Mbps

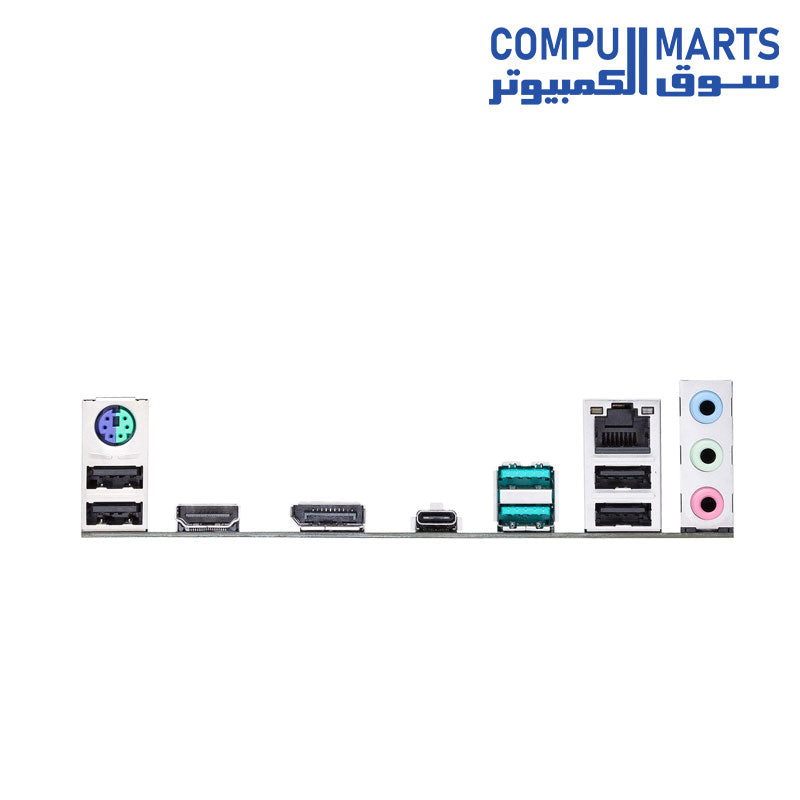

Rear Panel Ports

Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x DVI-D port

1 x HDMI port

1 x Intel I219V 1Gb Ethernet

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port



Internal I/O Connectors

Onboard USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Other Connectors Fan and cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

2 x 4-pin Chassis Fan headers

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Physical Spec

Form Factor Micro ATX

LED Lighting RGB
Dimensions (W x L) 9.6" x 9.6"

Power Pin 1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Features

Features Special Features:

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-Slot

ASUS Thermal Solution

- VRM heatsink design

AURA Sync

- AURA RGB headers

- Addressable Gen 2 RGB headers

Software Features:

ASUS Exclusive Software

Armoury Crate

- AURA Sync

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

FAN Xpert 2+

- EZ update

ASUS CPU-Z

AI Charger

Norton Anti-virus software (Free Trial version)

DAEMON Tools

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode



BIOS:
192 (128+64) MB Flash ROM, UEFI AMI BIOS

Manageability:
WOL by PME, PXE

Operating System:
Windows 10 - 64-bit
