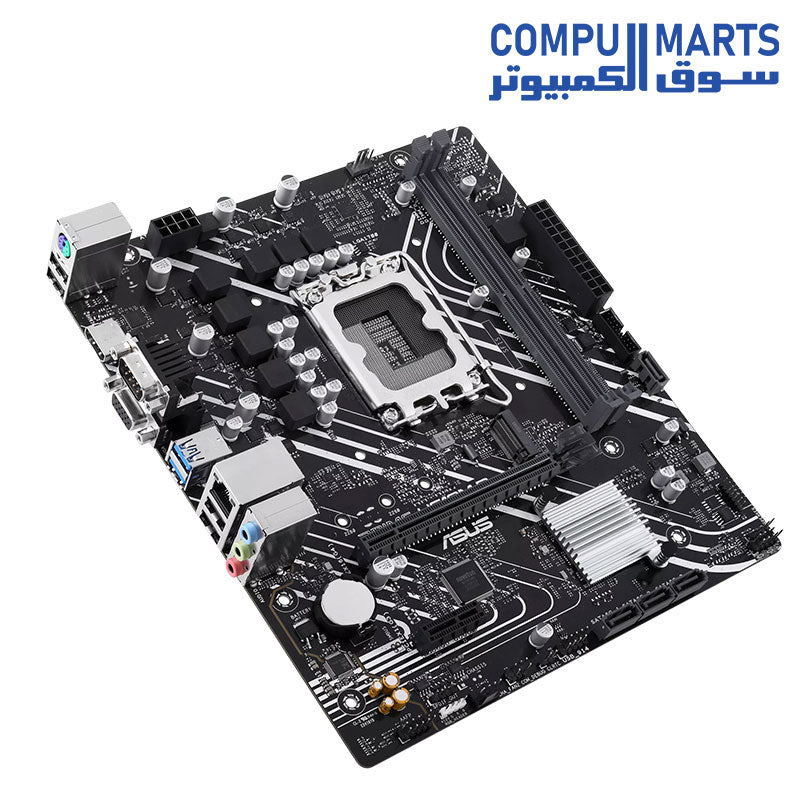

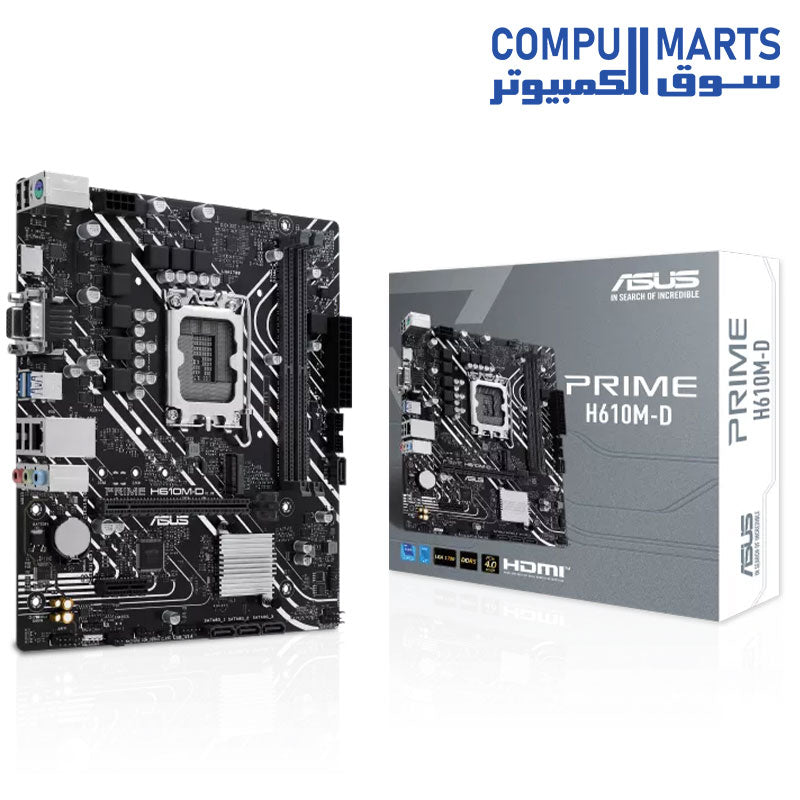

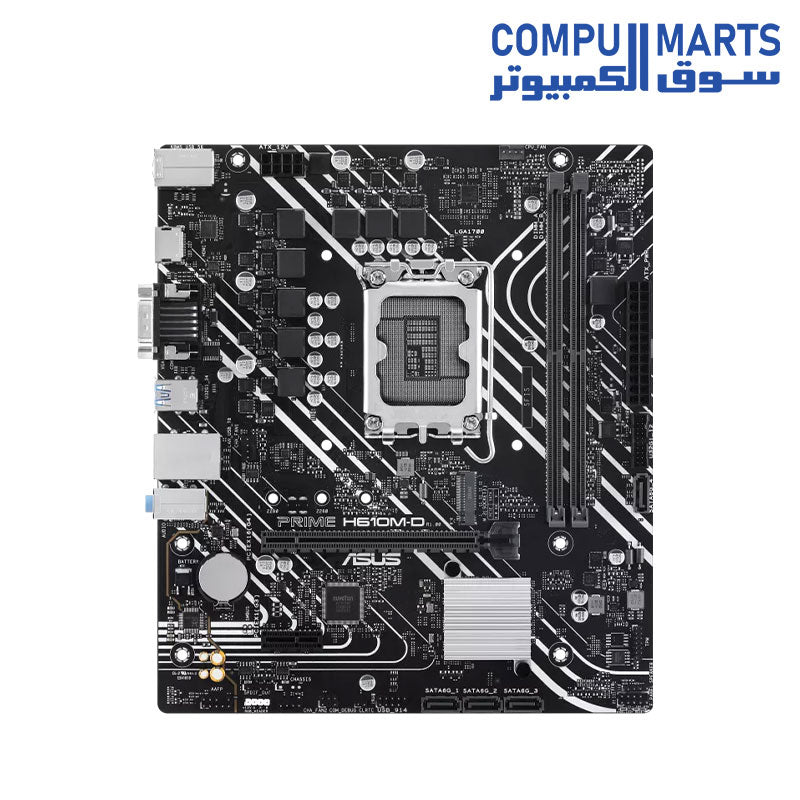

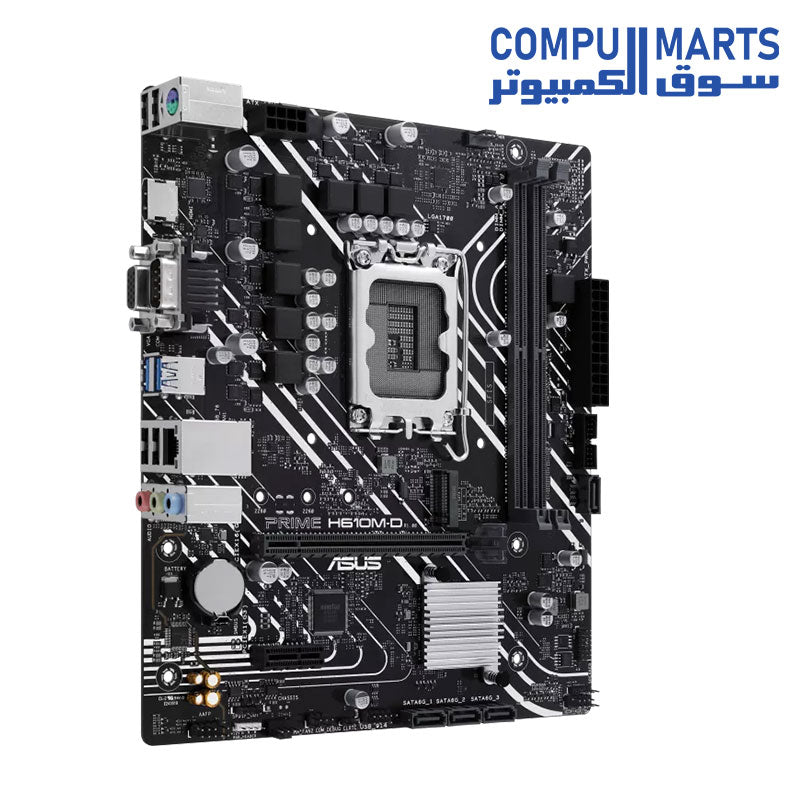

ASUS PRIME H610M-D MOTHERBOARD

ASUS PRIME H610M-D MOTHERBOARD

• Model

  PRIME H610M-D

  The new BIOS with Intel microcode (0x129) enhancing the stability of Intel Core 13th and 14th Gen desktop processors is now available. Please visit support site for the latest BIOS updates.

  CPU

  Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*

  Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

  ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset

  Intel H610 Chipset

  Memory

  2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

  Dual Channel Memory Architecture

  Supports Intel Extreme Memory Profile (XMP)

  * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

  * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  Graphics

  1 x VGA port

  1 x HDMI port**

  * Graphics specifications may vary between CPU types.

  ** Supports 4K@60Hz as specified in HDMI 2.1.

  Expansion Slots

  Intel Core Processors (14th & 13th & 12th Gen)

  1 x PCIe 4.0 x16 slot

  Intel H610 Chipset

  1 x PCIe 3.0 x1 slot

  Storage

  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

  Intel H610 Chipset

  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

  4 x SATA 6Gb/s ports

  Ethernet

  1 x Realtek 1Gb Ethernet

  USB

  Rear USB (Total 6 ports)

  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

  4 x USB 2.0 ports (4 x Type-A)

  Front USB (Total 4 ports)

  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

  1 x USB 2.0 header supports 2 additional USB 2.0 ports

  Audio

  Realtek 7.1 Surround Sound High Definition Audio CODEC*

  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  - Supports up to 24-Bit/192 kHz playback

  Audio Features

  - Audio Shielding

  - Premium audio capacitors

  - Dedicated audio PCB layers

  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  Back Panel I/O Ports

  2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)

  4 x USB 2.0 ports (4 x Type-A)

  1 x VGA port

  1 x HDMI™ port

  1 x Realtek 1Gb Ethernet port

  3 x Audio jacks

  1 x COM port

  1 x PS/2 Keyboard/Mouse combo port

  Internal I/O Connectors

  Fan and Cooling related

  1 x 4-pin CPU Fan header

  2 x 4-pin Chassis Fan headers

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  1 x M.2 slot (Key M)

  4 x SATA 6Gb/s ports

  USB

  1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports

  1 x USB 2.0 header supports 2 additional USB 2.0 ports

  Miscellaneous

  1 x RGB header

  1 x Clear CMOS header

  1 x Front Panel Audio header (AAFP)

  1 x S/PDIF Out header

  1 x Speaker header

  1 x SPI TPM header (14-1pin)

  1 x 10-1 pin System Panel header

  Special Features

  ASUS 5X PROTECTION III

  - DIGI+ VRM

  - LANGuard

  - Overvoltage Protection

  - SafeSlot Core

  - Stainless-Steel Back I/O

  ASUS Q-Design

  - Q-DIMM

  - Q-LED Core

  - Q-Slot

  ASUS Thermal Solution

  - Aluminum heatsink design

  ASUS Lighting Control

  - RGB header

  Software Features

  ASUS Exclusive Software

  Armoury Crate

  - Fan Xpert 2+

  AI Suite 3

  - EPU

  - DIGI+ VRM

  - PC Cleaner

  ASUS CPU-Z

  Norton 360 Deluxe (60 Days Free Trial)

  WinRAR

  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode

  BIOS

  128 Mb Flash ROM, UEFI AMI BIOS

  Manageability

  WOL by PME, PXE

  Accessories

  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

  1 x I/O Shield

  1 x M.2 Anchor

  Documentation

  1 x User guide

  Operating System

  Windows 11, Windows 10 64-bit

  Form Factor

  micro-ATX Form Factor

  9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
