Description
Description

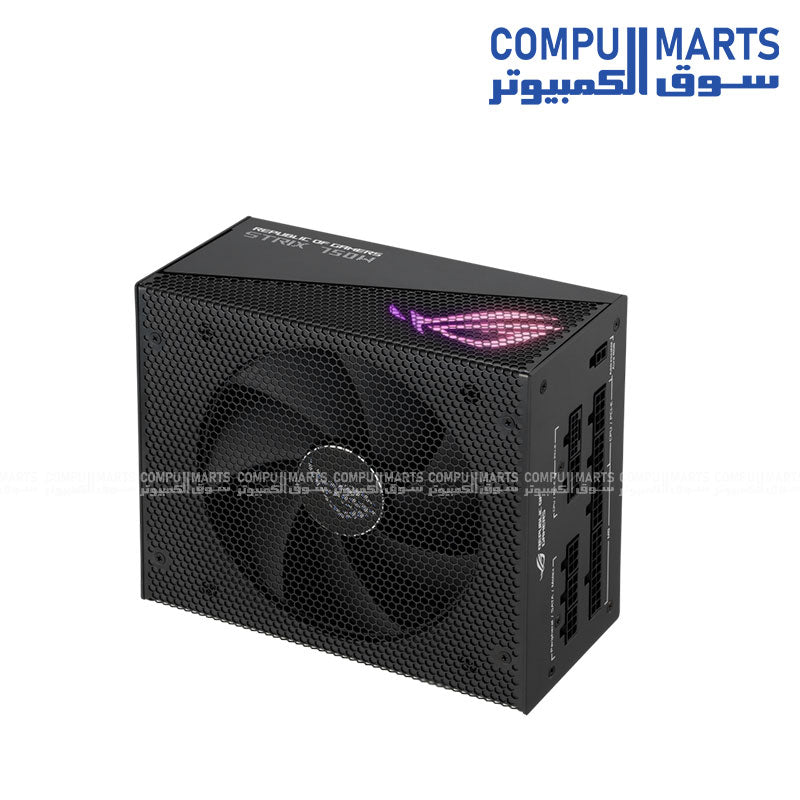

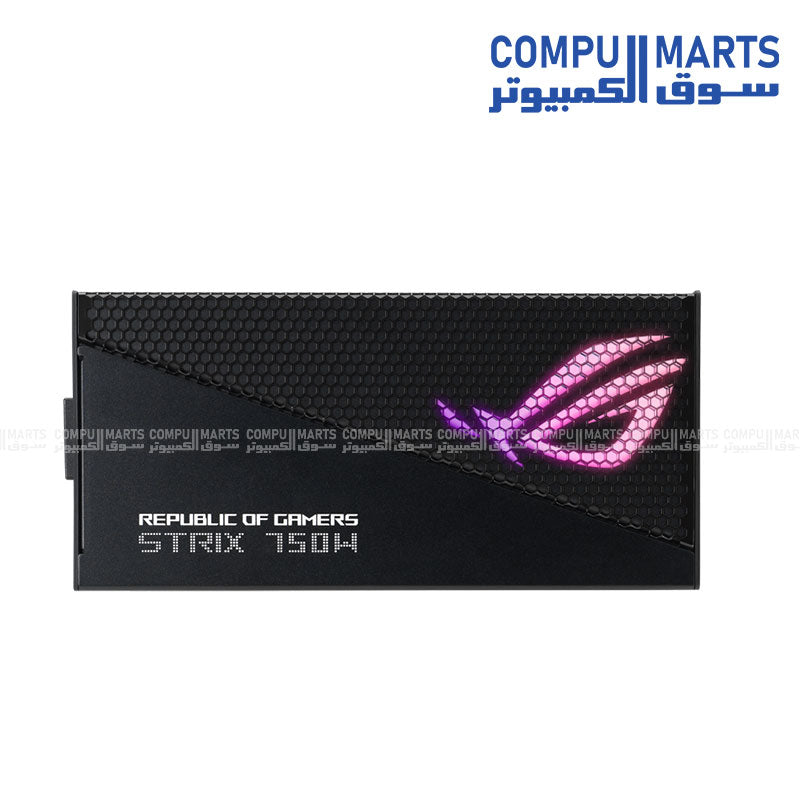

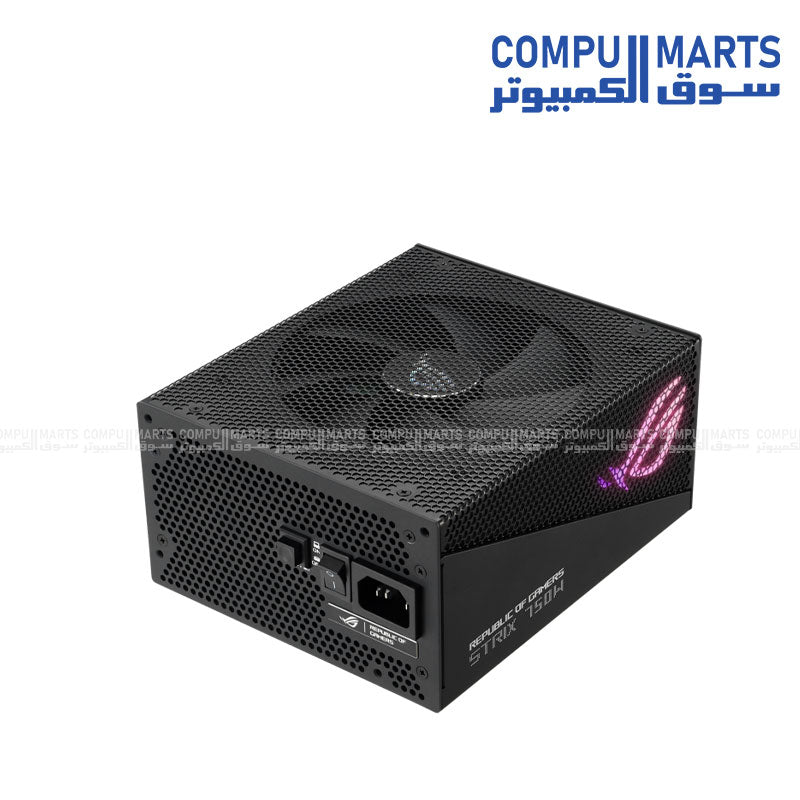

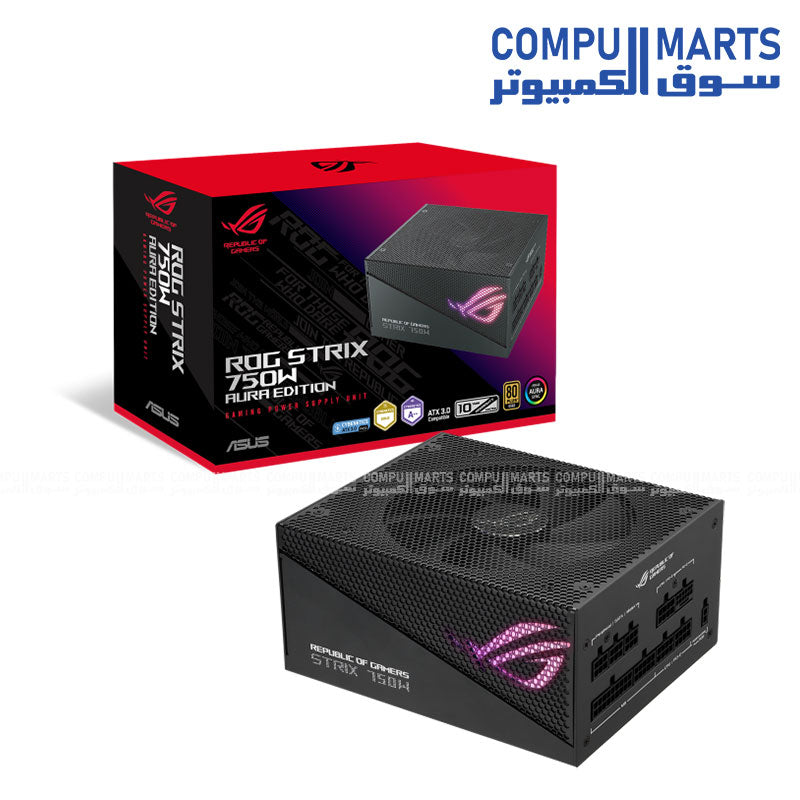

ASUS ROG STRIX 750G Aura Gaming Power Supply – 750W, Fully Modular, 80+ Gold Certified PSU
Model
ROG STRIX 750W Gold Aura Edition
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.0
Dimensions
180 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
22A 22A 62.5A 0.3A 3A
Combined Load
120W 120W 750W 3.6W 15W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
Weight
2.689 kg (single PSU)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
