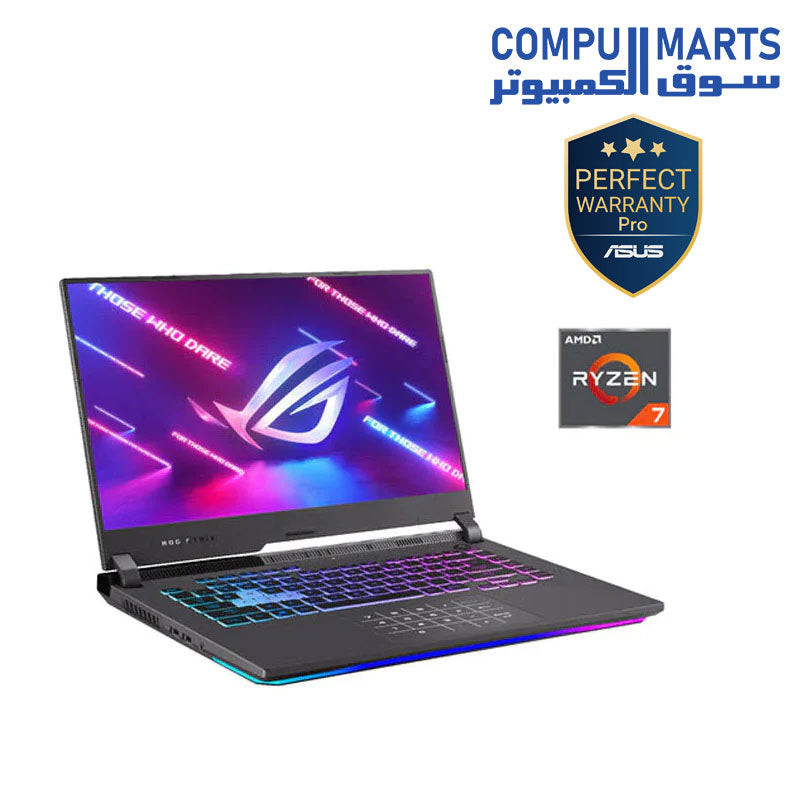

ASUS ROG STRIX G15 2022 G513RM-HF007W RYZEN 7 6800H Laptop - Ram 16GB DDR5 - 1TB SSD - RTX 3060 6GB - 15.6 FHD 300HZ - WIN11

Part No

90NR0845-M00JP0

Model Name

G513RM-HF007W

EAN Code

4711081813149

UPC Code

195553813143

Marketing Name

ROG Strix G15

Color

Eclipse Gray

Dimension (W x D x H)

35.4 x 25.9 x 2.26 ~ 2.72 cm (13.94" x 10.20" x 0.89" ~ 1.07")

Weight

2.30 Kg (5.07 lbs)

Processor

AMD Ryzen 7 6800H Mobile Processor (8-core/16-thread, 20MB cache, up to 4.7 GHz max boost)

Chipset

N/A

Discrete/Optimus

MUX Switch + Optimus

Graphic

NVIDIA GeForce RTX 3060 Laptop GPU

Graphic Wattage

ROG Boost: 1752MHz* at 140W (1702MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost)

Graphic Memory

6GB GDDR6

IGPU

AMD Radeon Graphics

Panel Size

15.6-inch

Resolution

FHD (1920 x 1080) 16:9

Refresh Rate

300Hz

Response Time (G2G)

3ms

Viewing Angle

170

Panel Tech

IPS-level

Brightness

300nits

Contrast

1:1000

NTSC %

72%

SRGB %

100.00%

Adobe %

75.35%

Anti glare

Anti-glare display

Adaptive-Sync technology

Adaptive-Sync

Pantone

N/A

Support Dolby Vision HDR

Yes

On board memory

N/A

DIMM Memory

8GB DDR5-4800 SO-DIMM *2

Total System Memory

DDR5 16GB

Memory Slot

2x SO-DIMM slots

Memory Max.

32GB

Multi-channel memory technology

Support dual channel memory

System Storage Installed

1TB PCIe 4.0 NVMe M.2 SSD

M.2 slots support either SATA or NVMe

2

M.2 SSD Support List

M.2 512GB PCIe

M.2 1TB PCIe

Expansion Slot (includes used)

2x DDR5 SO-DIMM slots

2x PCIe

LAN

10/100/1000/2500 Mbps

Wi-Fi/Bluetooth

Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.) -RangeBoost

I/O Ports

1x RJ45 LAN port

1x USB 3.2 Gen 2 Type-C

1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery / G-SYNC

2x USB 3.2 Gen 1 Type-A

Display output

1x HDMI 2.1 TMDS

Audio

1x 3.5mm Combo Audio Jack

Webcam

N/A

Mic

Built-in array microphone

Keyboard Type

Backlit Chiclet Keyboard 4-Zone RGB

NumberPad

N/A

Aura Sync

Yes

Speakers

2-speaker system with Smart Amplifier Technology

Audio Tech

AI noise-canceling technology

Dolby Atmos

Hi-Res certification

Smart Amp Technology

Operating System

Windows 11 Home

Antivirus

MCAFEE_30D

Xbox Game Pass

Xbox Game Pass Ultimate_1 month (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Security

BIOS Administrator Password and User Password Protection

Trusted Platform Module (Firmware TPM)

Battery

90WHrs, 4S1P, 4-cell Li-ion

Fast charging

Recharge from 0-50% in 30 minutes

Power

ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal

Reparability Index (for FR)

7.3
