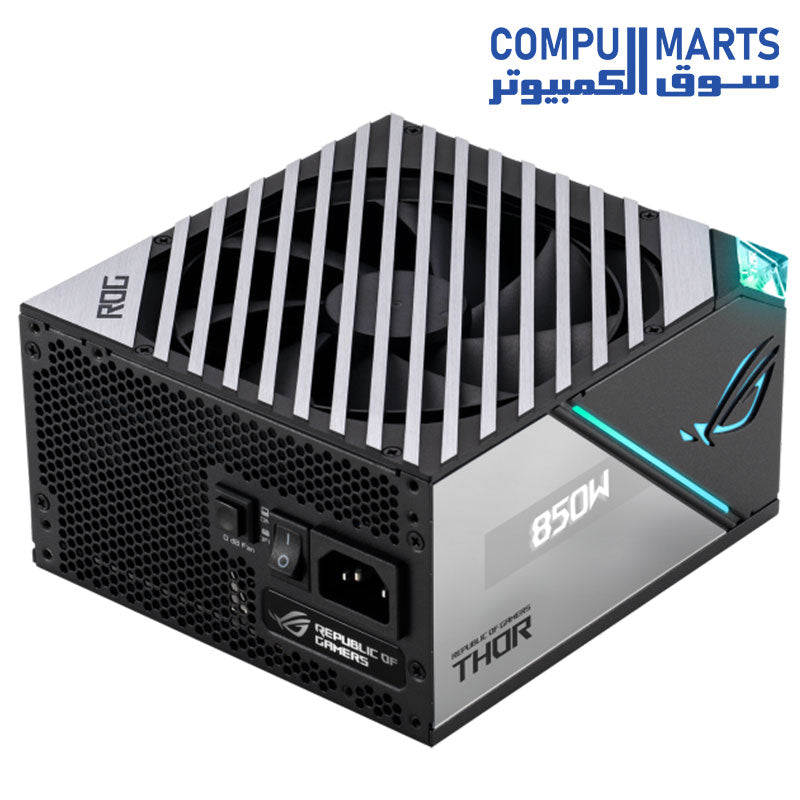

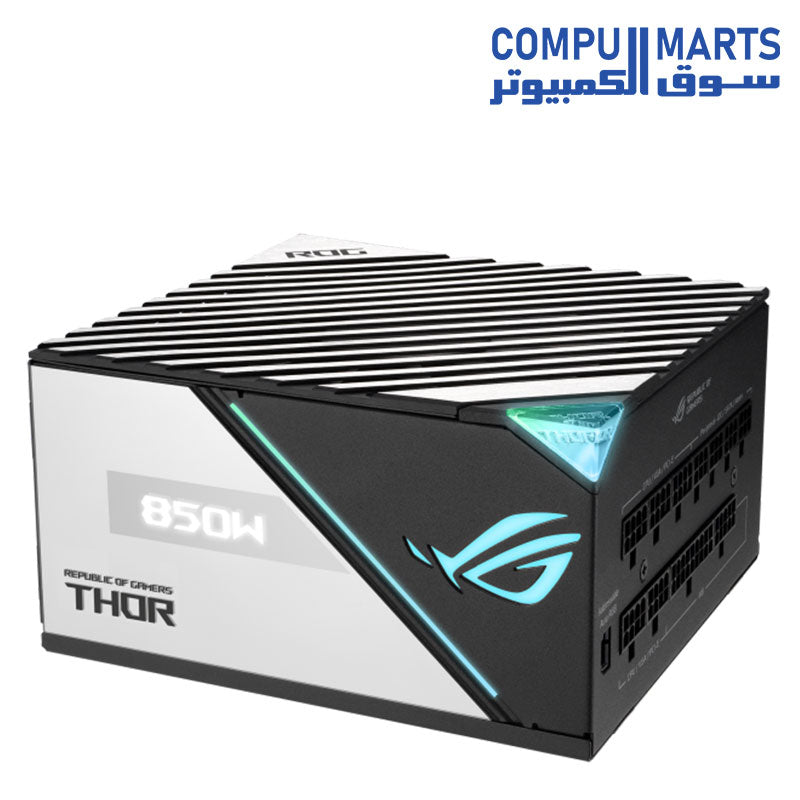

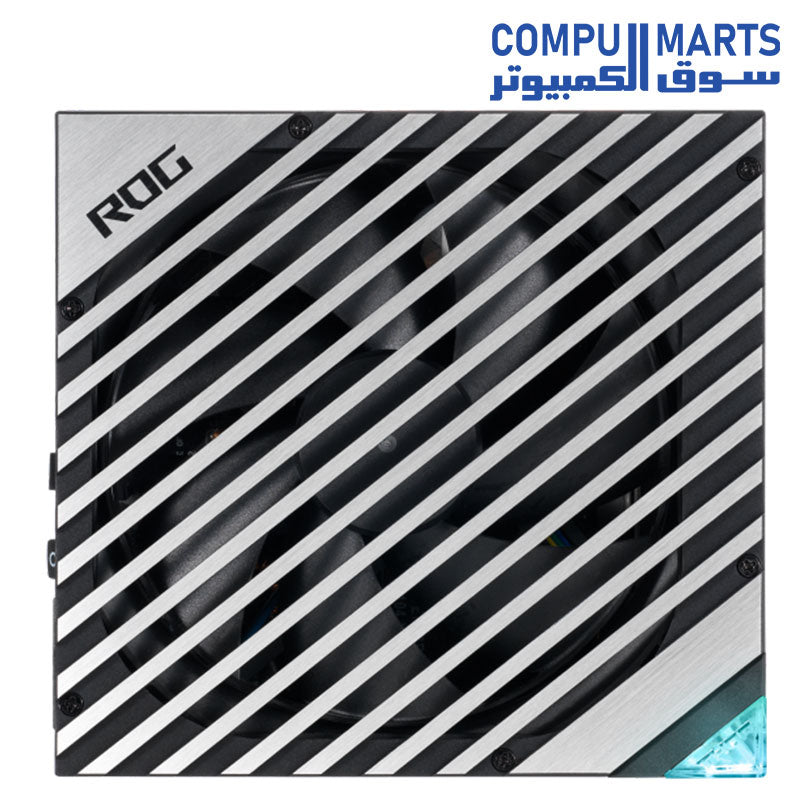

ASUS ROG Thor 850W Platinum II (Fully Modular Power Supply, 80+ Platinum, Lambda A++ Certified, ROG heatsinks, 135mm PWM Fan, 0dB Mode, OLED Panel, Sleeved Cables, Aura Sync)

ASUS ROG Thor 850W Platinum II (Fully Modular Power Supply, 80+ Platinum, Lambda A++ Certified, ROG heatsinks, 135mm PWM Fan, 0dB Mode, OLED Panel, Sleeved Cables, Aura Sync)

PFC Type
Active PFC
Dimensions
160 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 71A 0.3A 3A
Combined load
100W 100W 852W 3.6W 15W
Total output
850W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 3
SATA x 10
PERIPHERAL x 6
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E Cable 1-to-1 x 3 (675mm)
SATA Cable 1-to-4 x 2 (400+120+120+120 mm)
SATA Cable 1-to-2 x 1 (450+120mm)
Peripheral 1-to-3 x 2 (450+120+120mm)
Addressable RGB cable x1 (800mm)
ROG sticker x 1
ROG cable tie x 4
Sleeved Cable Combs (6-pin) x 2
Sleeved Cable Combs (8-pin) x 6
Sleeved Cable Combs (24-pin) x 2
Chassis Screws Package x 1
Cable Tie x 10
User Manual x 1
Weight
1.865kg (Single)
AURA SYNC
ARGB
Cybenetics Noise Level Certification
A++
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load

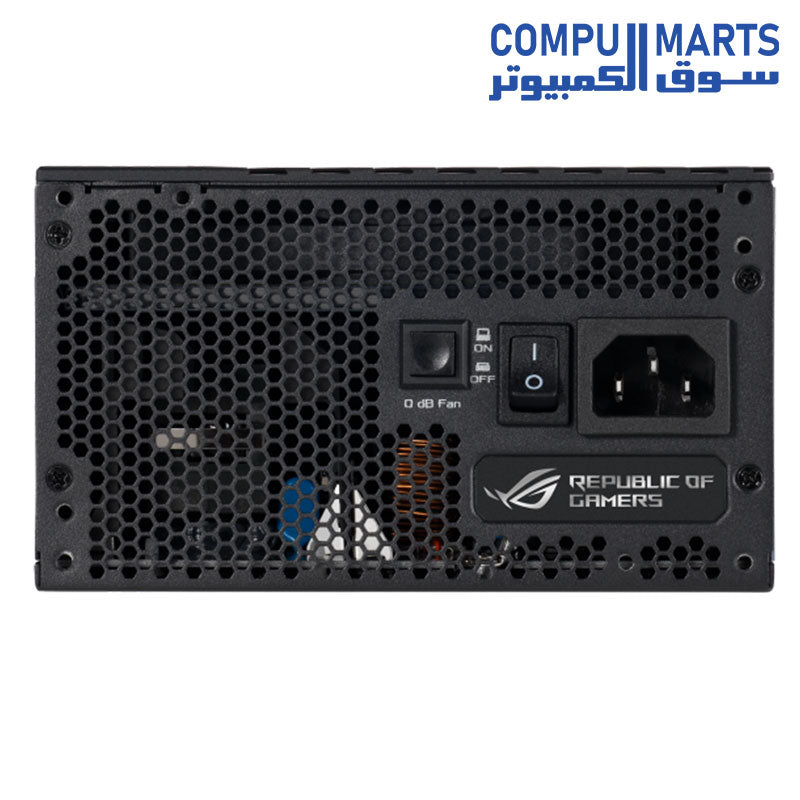

0dB Fan Button
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
