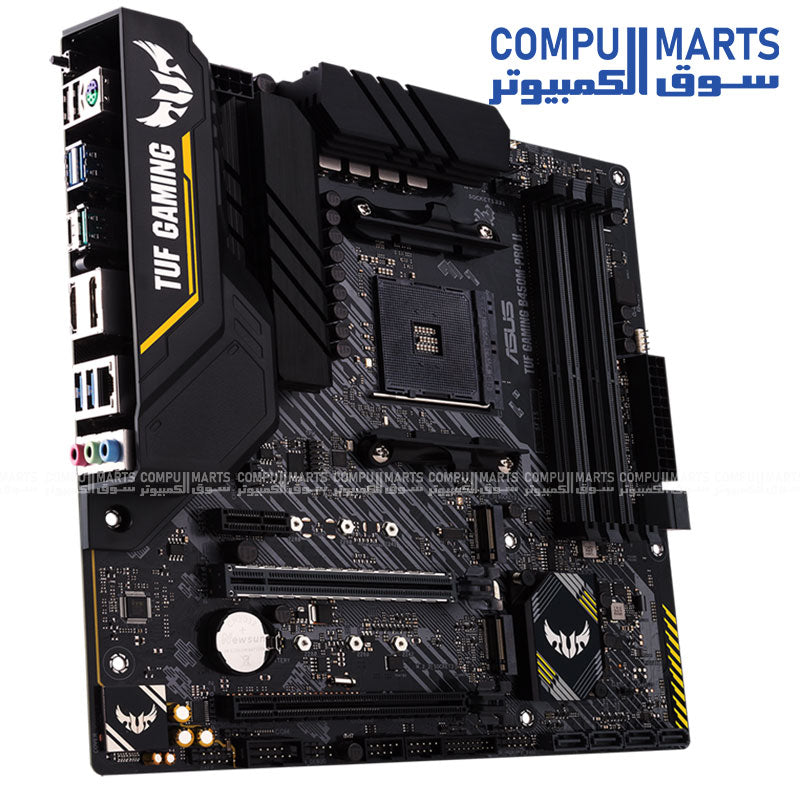

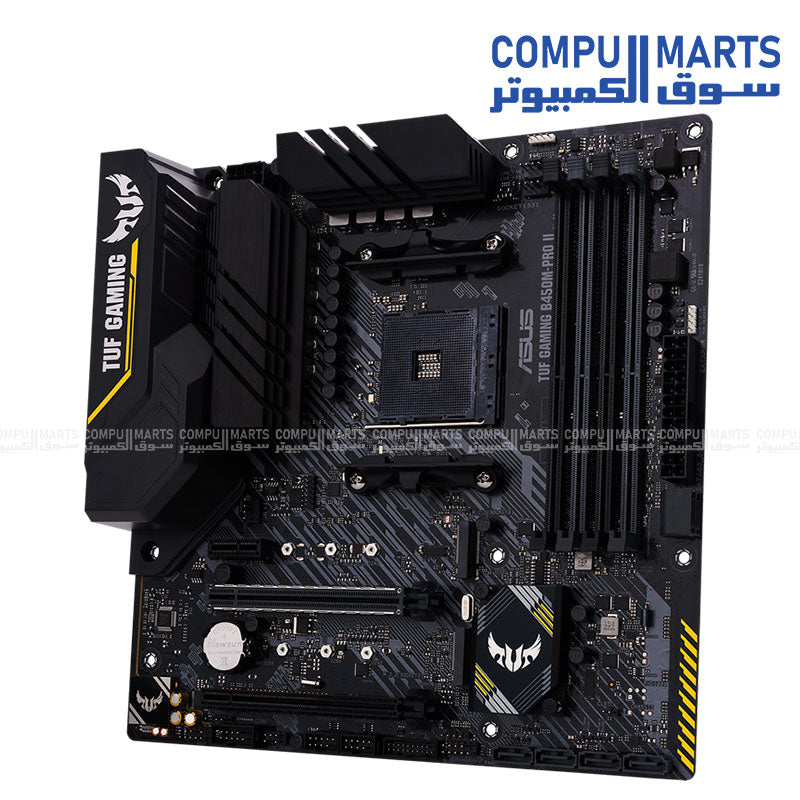

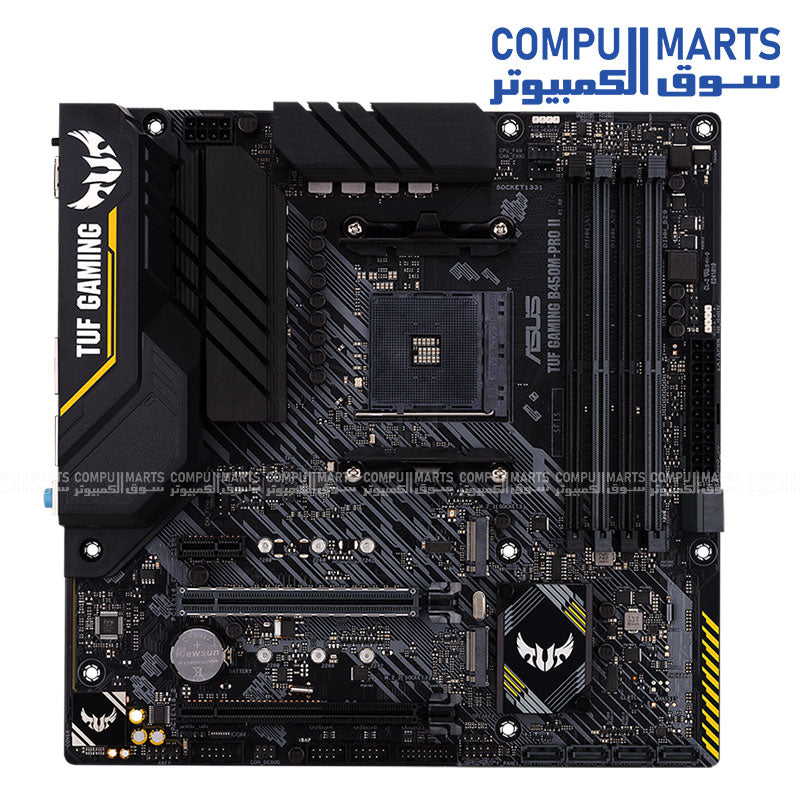

ASUS TUF Gaming B450M-PRO II Micro-ATX AM4 Motherboard – Dual M.2, PCIe 3.0, USB 3.2 Gen 2 Type-C, Aura Sync RGB

ASUS TUF Gaming B450M-PRO II Micro-ATX AM4 Motherboard – Dual M.2, PCIe 3.0, USB 3.2 Gen 2 Type-C, Aura Sync RGB

Model
TUF GAMING B450M-PRO II
CPU
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors *
Chipset
AMD B450
Memory
4 x DIMM, Max. 128GB, DDR4 4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C.)/34 66(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *,3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* The maximum memory frequency supported varies by processor.
Graphic
1 x HDMI port,1 x DisplayPort 1.2,*Graphics specifications may vary between CPU types.,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Athlon with Radeon Vega Graphics Processors,3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 2.0 x16 (x4 mode),AMD B450 chipset,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (x8 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode),1 x PCIe 2.0 x1
Storage
1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*1,1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)*1,1 2242/2260/2280 storage devices support (SATA & PCIE 3.0 Athlon with Radeon Vega Graphics Processors: ,3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics: ,2 x SATA 6Gb/s port(s),,AMD B450 chipset: ,Support Raid 0, 1, 10.4 x SATA 6Gb/s port(s),
LAN
Realtek RTL8111H 1Gb Ethernet, TUF LANGuard
Audio
Realtek ALC S1200A7.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,Audio Feature :,- Exclusive DTS Custom for GAMING Headsets.
USB Ports
4 x USB 2.0 port (s)(4 Type-C)
Software Features
ASUS Exclusive Software
Armory Crate
- Aura Creator
- Aura Sync
- AI Noise-Canceling Microphone
AI Suite 3
-Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
-PC Cleaner
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
-ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
AURA Sync
- AURA RGB headers

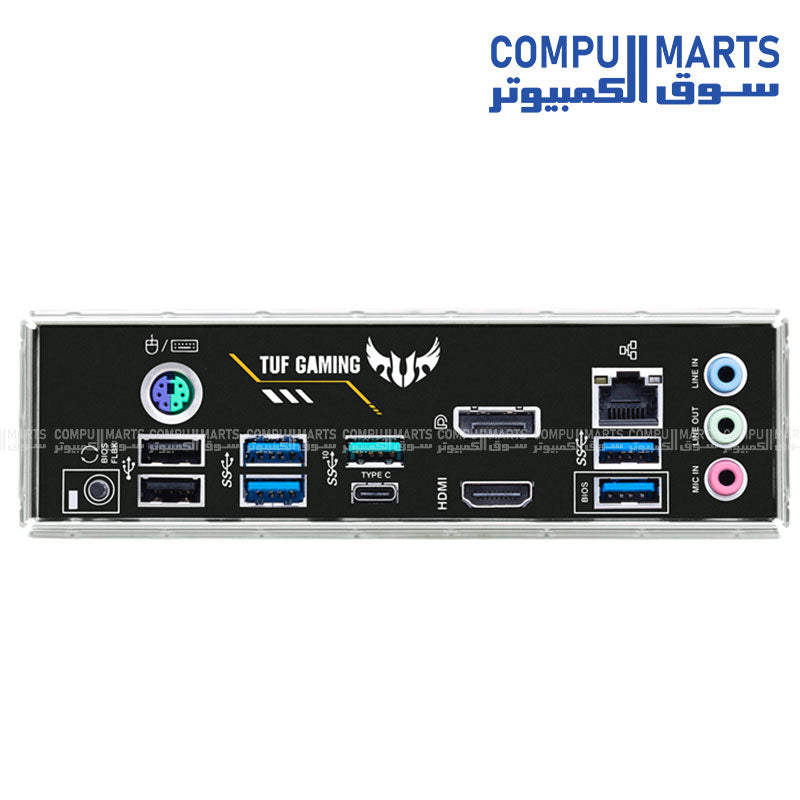

Back I/O Ports
2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C),1 x BIOS FlashBack™ Button(s),4 x USB 3.2 Gen 1 (blue) Type-A,1 x PS/2 keyboard/mouse combo port(s),1 x DisplayPort,1 x HDMI,1 x LAN (RJ45) port(s),2 x USB 2.0,3 x Audio jack(s)
Internal I/O Ports
1 x COM port header,1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x CPU Fan connector(s),2 x Chassis Fan connector(s),2 x Aura RGB Strip Headers,2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x System panel connector,1 x COM port header,1 x Speaker connector
Accessories
1 x M.2 SSD screw package(s),2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s),2 x SATA 6Gb/s cable(s)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PXE
Operating System
Windows 7 64-bit *3,Windows 10 64-bit
Form Factor
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
