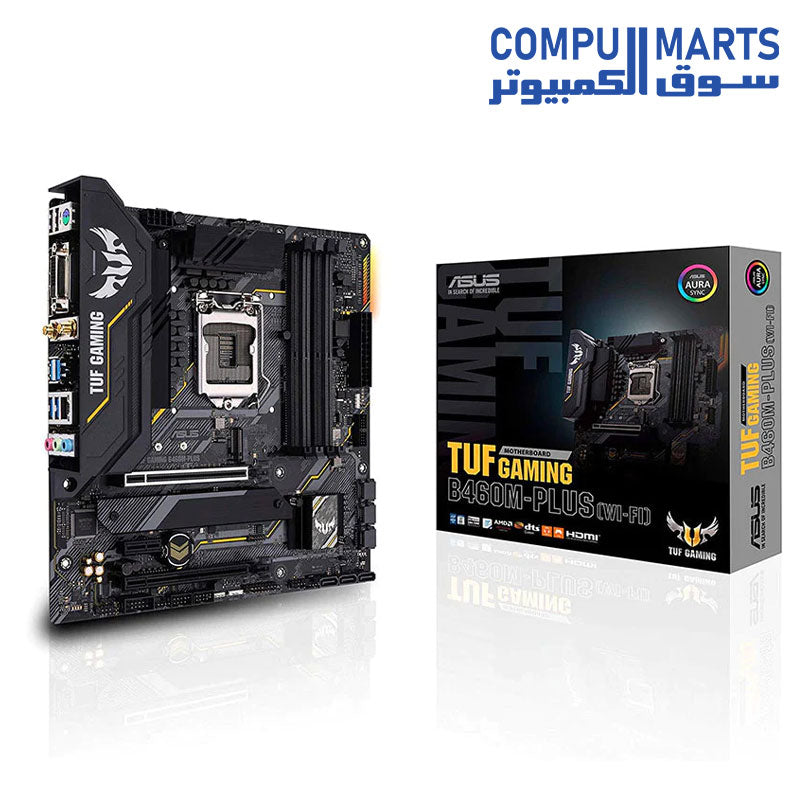

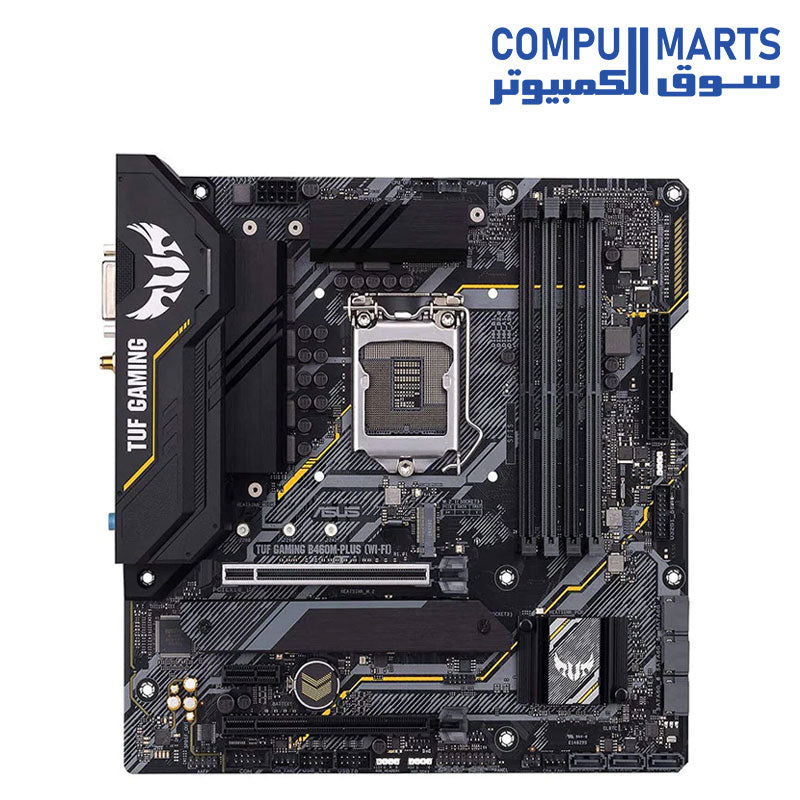

ASUS TUF Gaming B460M-Plus WiFi 6 LGA1200 (Intel 10th Gen) Micro ATX Gaming Motherboard (Intel 1Gb LAN, USB 3.2 gen 1 Front Panel Connector, addressable Gen 2 RGB Header, Aura Sync)

ASUS TUF Gaming B460M-Plus WiFi 6 LGA1200 (Intel 10th Gen) Micro ATX Gaming Motherboard

Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors.

Enhanced power solution: 6+1+1 power stages, military-grade TUF components, and Digi+ VRM for maximum durability.

Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink.

Made for online gaming: Intel WiFi 6 802.11ax, Intel Ethernet Connection I219-V, TUF LANGuard and Turbo LAN technology.

Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in.

Aura Sync RGB Lighting: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable gen 2 RGB strips.

CPU:

Intel® Socket 1200 for 10^th Gen Intel^® Core^™, Pentium^® Gold and Celeron^® Processors *
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset:

Intel® B460

Memory:

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* 10th Gen Intel® Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphic:

Integrated Graphics Processor
1  x DisplayPort 1.4 **
1  x HDMI 1.4b
1  x DVI-D
*Graphics specifications may vary between CPU types.

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

Expansion Slots:

Intel® 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel® B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x1

Storage:

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel® B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel® Rapid Storage Technology supports
Intel® Optane™ Memory Ready *

LAN:

Intel® I219-V 1Gb Ethernet

Wireless Data Network:

Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface

Bluetooth:

Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio:

Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports:

Rear USB Port ( Total 6  )
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6  )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Software Features:

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

ASUS Special Features:

ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
AURA Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)

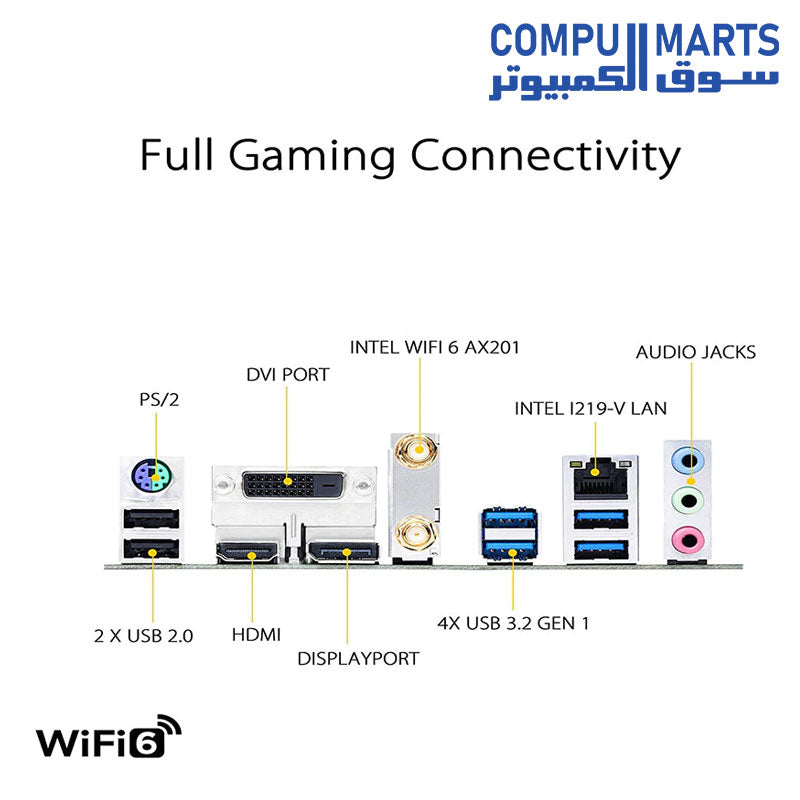

Back I/O Ports:

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 Type-A
2 x USB 2.0
3 x Audio jack(s)
1 x ASUS Wi-Fi Module

Internal I/O Ports:

1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header

Accessories:

User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s)

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Manageability:

WOL by PXE

Operating System:

Windows® 10 64-bit

Form Factor:

mATX Form Factor

9.6  inch x 9.6  inch ( 24.4  cm x 24.4  cm )
