ASUS TUF Gaming B760-PLUS WiFi D4

Vendor: ASUS
SKU: 90MB1DF0-M0EAY0
Availability: Out Of Stock
Product Type: Motherboards
10,000.00 EGP
10,000.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
B760-Motherboard-ASUS-TUF-Gaming-LGA-1700-ATX

ASUS TUF Gaming B760-PLUS WiFi D4

10,000.00 EGP

ASUS TUF Gaming B760-PLUS WiFi D4

10,000.00 EGP

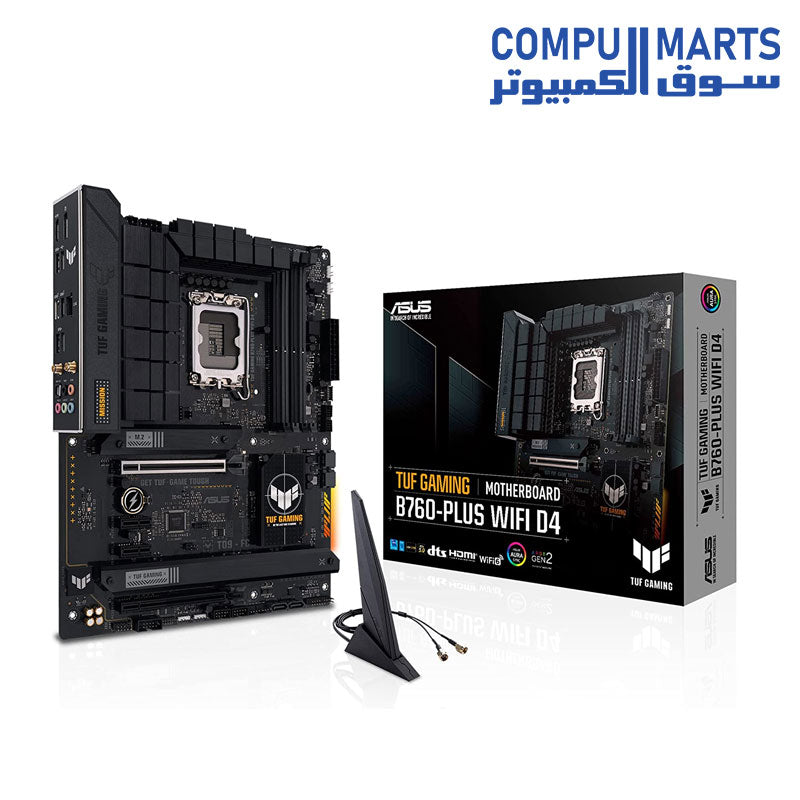

ASUS TUF Gaming B760-PLUS WiFi D4 Intel(13th and 12th Gen) LGA 1700 ATX Motherboard



  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

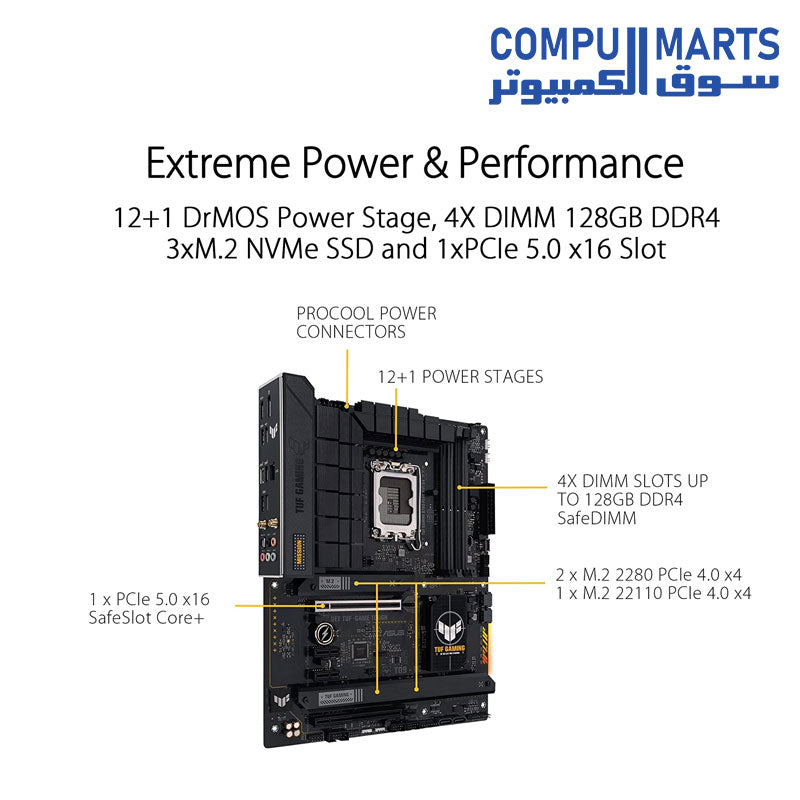

  • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

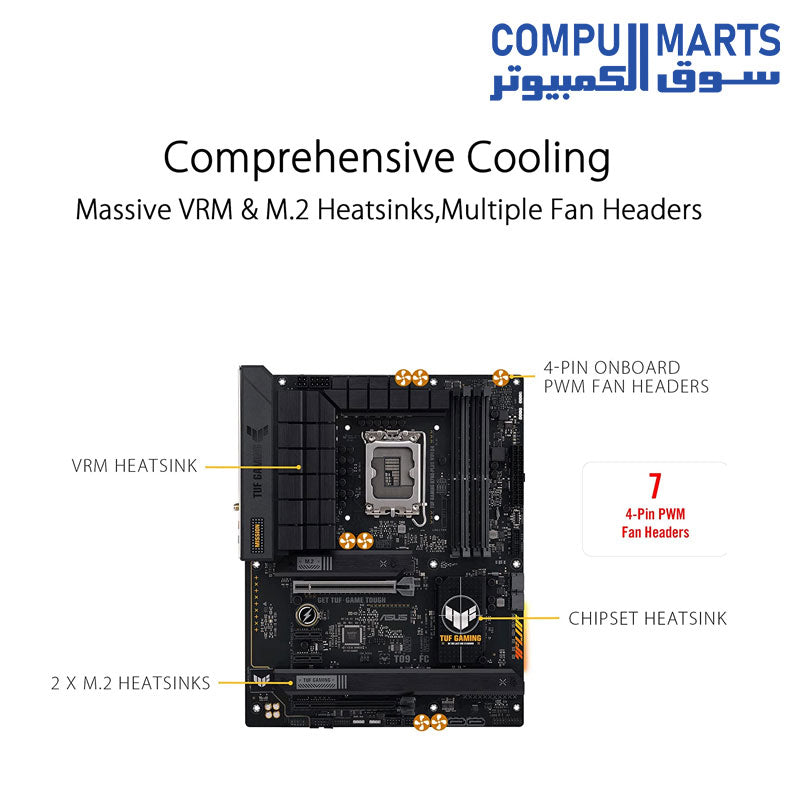

  • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4

  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support

  • Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LAN Guard

  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

  • Brand

    ASUS

    CPU Socket

    LGA 1700

    Compatible Devices

    Personal Computer

    RAM Memory Technology

    DDR4

    Compatible Processors

    Intel Celeron, Intel Pentium Gold

    Chipset Type

    Intel B760

    Memory Clock Speed

    2133 MHz

    Platform

    No Operating System

    Model Name

    TUF GAMING B760-PLUS WIFI D4

    CPU Model

    Pentium

TUF GAMING B760-PLUS WIFI D4

CPU

Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B760 Chipset

Memory

4 x DIMM, Max. 192GB, DDR4
5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II

Graphics

1 x DisplayPort
1 x HDMI port
 Supports max. 4K@60Hz as specified in DisplayPort 1.4
 Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
 PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

 Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wireless & Bluetooth

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

USB

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover

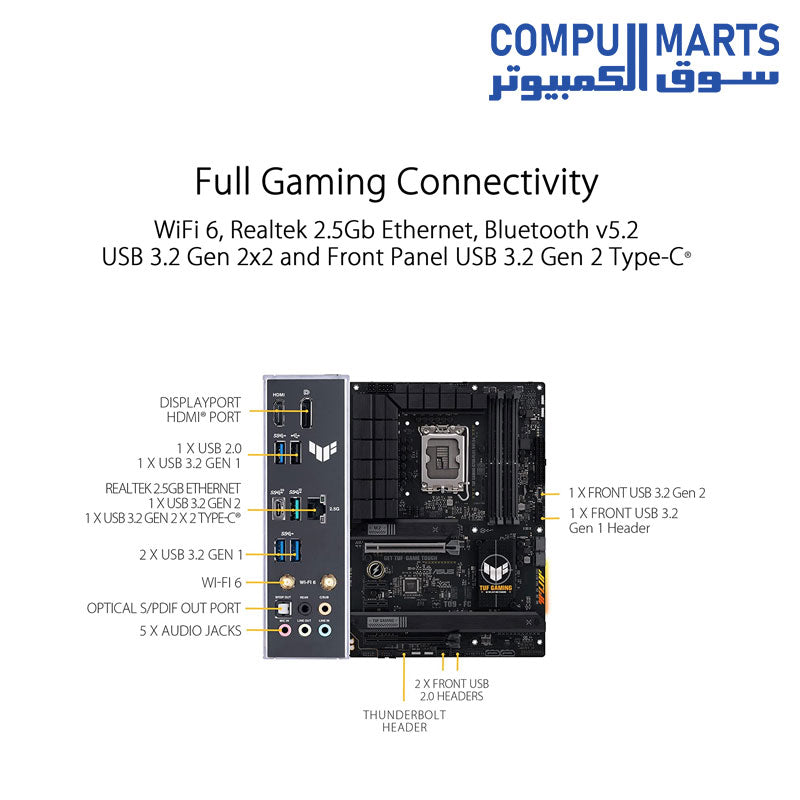

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header

Special Features

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeSlot Core+
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x TUF Gaming sticker
2 x M.2 Rubber Packages
1 x Screw package for M.2 SSD
Documentation
1 x TUF Certification card
1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
