ASUS TUF GAMING B760M-PLUS WIFI D4

Vendor: ASUS
SKU: 90MB1DG0-M0EAY0
Availability: In Stock
Product Type: Motherboards
12,500.00 EGP
12,500.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
B760M-motherboard-ASUS-WIFI-D4

ASUS TUF GAMING B760M-PLUS WIFI D4

12,500.00 EGP

ASUS TUF GAMING B760M-PLUS WIFI D4

12,500.00 EGP

ASUS TUF GAMING B760M-PLUS WIFI D4 Intel(13th and 12th Gen)LGA 1700 mATX motherboard,PCIe 5.0,2xPCIe 4.0 M.2 slots,DDR4

  • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

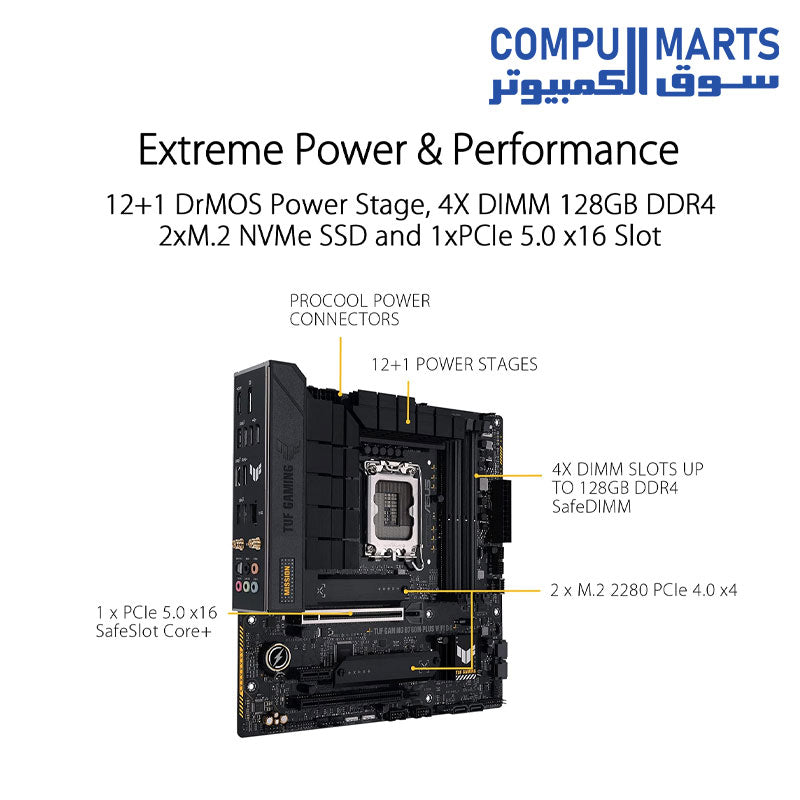

  • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

  • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4

  • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support

  • Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard

  • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

  • Model

  • TUF GAMING B760M-PLUS D4

  • CPU

  • Intel Socket LGA1700 for 13 Gen Intel Core & 12 Gen Intel Core, Pentium Gold and Celeron Processors

  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

  • DDRefer to www.asus.com for CPU support list.

  •  Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

  • Chipset

  • Intel B760 Chipset

  • Memory

  • 4 x DIMM, Max. 128GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory

  • Dual Channel Memory Architecture

  • Supports Intel Extreme Memory Profile (XMP)

  • OptiMem II

  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

  • Graphics

  • 1 x DisplayPort

  • 1 x HDMI port

  • Expansion Slots

  • Intel 13 & 12 Gen Processors

  • 1 x PCIe 5.0 x16 slot

  • Intel B760 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

  • 1 x PCIe 4.0 x1 slot

  • Storage

  • Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

  • Intel 13 & 12 Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • Intel B760 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

  •  Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

  • Ethernet

  • 1 x Realtek 2.5Gb Ethernet

  • TUF LANGuard

  • USB

  • Rear USB (Total 8 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)

  • 1 x USB 3.2 Gen 1 port (1 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • Front USB (Total 7 ports)

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

  • USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.

  • Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC

  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • - Supports up to 24-Bit/192 kHz playback

  • Audio Features

  • - Audio Shielding

  • - Rear optical S/PDIF out port

  • - Premium audio capacitors

  • - Dedicated audio PCB layers

  • Back Panel I/O Ports

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)

  • 1 x USB 3.2 Gen 1 port (1 x Type-A)

  • 2 x USB 2.0 ports (2 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI port

  • 1 x Wi-Fi Module

  • 1 x Realtek 2.5Gb Ethernet port

  • 5 x Audio jacks

  • 1 x Optical S/PDIF out port

  • Internal I/O Connectors

  • I/O Connectors  Fan and Cooling related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 3 x 4-pin Chassis Fan headers

  • Power related

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

  • 1 x 4-pin +12V Power connector

  • Storage related

  • 2 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)

  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

  • Miscellaneous

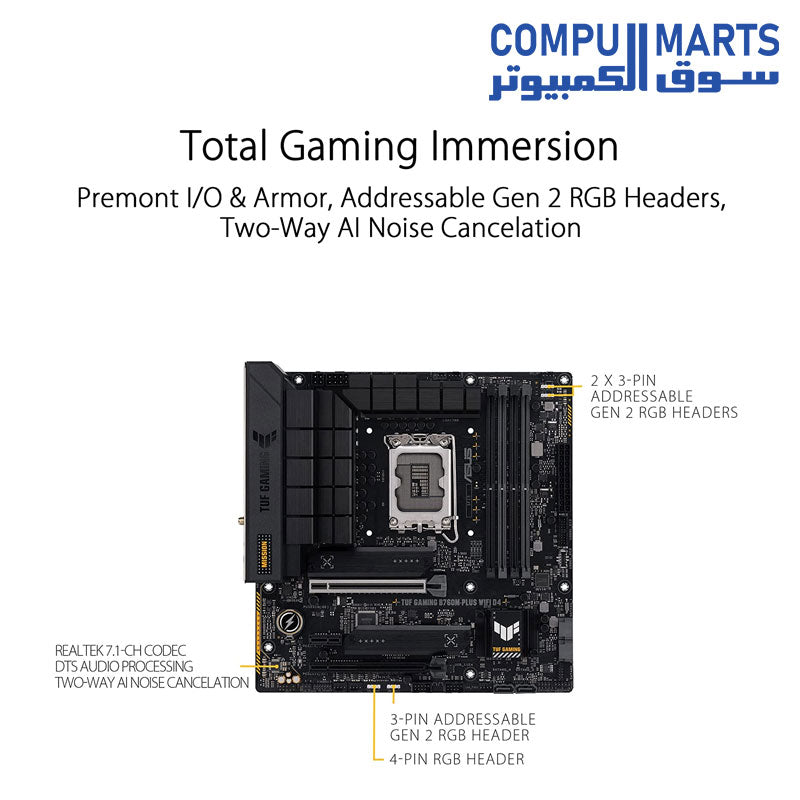

  • 3 x Addressable Gen 2 headers

  • 1 x AURA RGB header

  • 1 x Clear CMOS header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x 20-3 pin System Panel header with Chassis intrude function

  • 1 x Thunderbolt (USB4) header

  • Special Features

  • ASUS TUF PROTECTION

  • - DIGI+ VRM (- Digital power design with DrMOS)

  • - ESD Guards

  • - TUF LANGuard

  • - Overvoltage Protection

  • - SafeSlot Core+

  • - Stainless-Steel Back I/O

  • ASUS Q-Design

  • - M.2 Q-Latch

  • - Q-DIMM

  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • - Q-Slot

  • ASUS Thermal Solution

  • - M.2 heatsink

  • - VRM heatsink design

  • ASUS EZ DIY

  • - CPU Socket lever protector

  • - ProCool

  • - Pre-mounted I/O shield

  • - SafeDIMM

  • AURA Sync

  • - AURA RGB header

  • - Addressable Gen 2 headers

  • Software Features

  • ASUS Exclusive Software

  • Armoury Crate

  • - AURA Creator

  • - AURA Sync

  • - Fan Xpert 2+

  • - Power Saving

  • - Two-Way AI Noise Cancelation

  • AI Suite 3

  •   DIGI+ VRM

  • - PC Cleaner

  • TUF GAMING CPU-Z

  • DTS Audio Processing

  • Norton 360 for Gamers

  • WinRAR

  • UEFI BIOS

  • ASUS EZ DIY

  • - ASUS CrashFree BIOS 3

  • - ASUS EZ Flash 3

  • - ASUS UEFI BIOS EZ Mode

  • BIOS

  • 128 Mb Flash ROM, UEFI AMI BIOS

  • Manageability

  • WOL by PME, PXE

  • Accessories

  • Cables

  • 2 x SATA 6Gb/s cables

  • Miscellaneous

  • 1 x M.2 Rubber Package

  • 1 x Screw package for M.2 SSD

  • 1 x TUF Gaming sticker

  • Documentation

  • 1 x TUF Certification card

  • 1 x User guide

  • Operating System

  • Windows 11, Windows 10 64-bit

  • Form Factor

  • mATX Form Factor

  • 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
