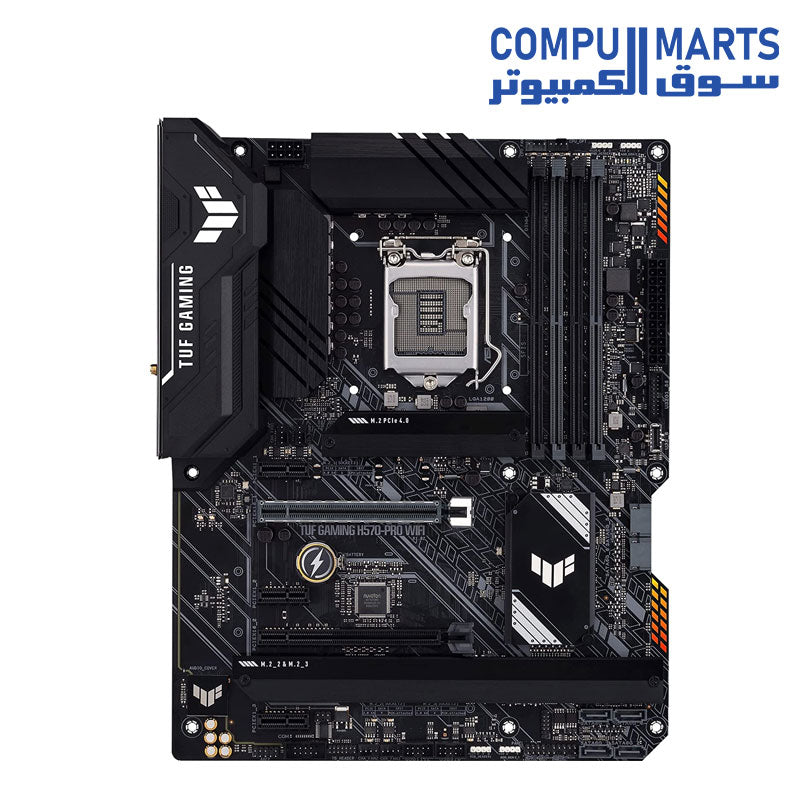

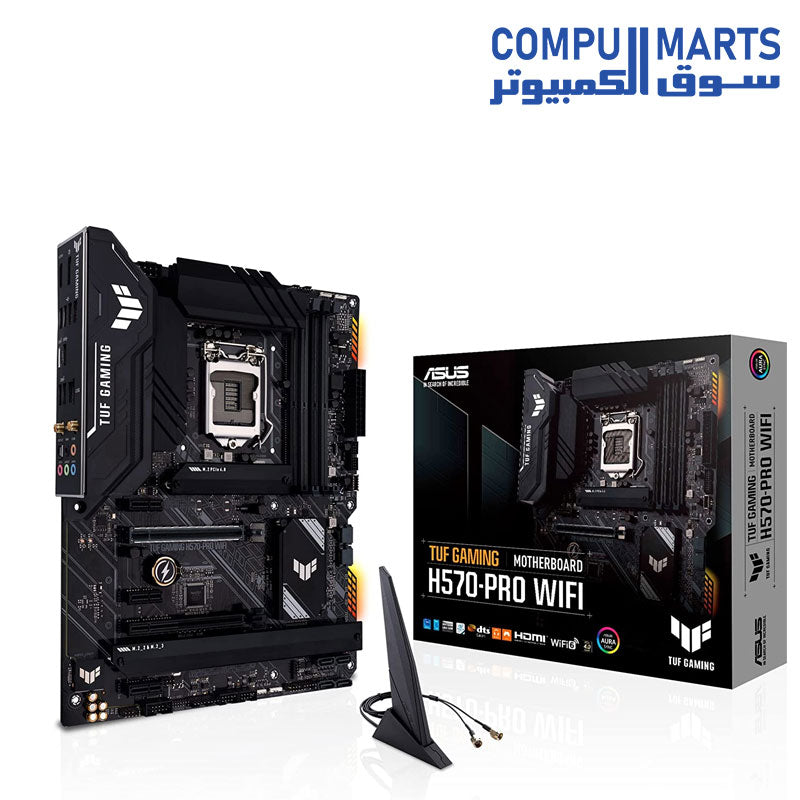

ASUS TUF GAMING H570-PRO WIFI Intel H570 LGA 1200 ATX Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors
-
Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Core processors
-
Enhanced power solution: 8+1 DrMOS power stages, six-layer PCB, ProCool socket, military-grade TUF components and Digi+ VRM for maximum durability
-
Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility
-
Next-gen connectivity: PCIe 4.0, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 support
-
Made for online gaming: Intel WiFi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
-
Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
-
Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
The onboard VRM of TUF GAMING H570-PRO series motherboards utilize 8+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand.
Larger VRM heatsink
The extensive surface area of the large, high-mass heatsink covers the VRM and choke to improve heat dissipation.
Thermal pad
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
2. Three M.2 slots with heatsinks
Each M.2 slot has a dedicated heatsink keep the M.2 SSDs at optimum operating temperature to ensure consistent performance and reliability.
PCIe 4.0 M.2 (up to 64 Gbps)
TUF GAMING H570-PRO series motherboards feature PCIe 4.0 M.2 and NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to PCIe 4.0 storage to enjoy the fastest data-transfer speeds on the 11th Gen Intel Core processors.
USB 3.2 Gen 2x2 Type-C
Extensive USB support ensures connections to a wide array of peripherals. TUF GAMING H570-PRO WIFI includes USB 3.2 Gen 2x2 Type-C that deliver increased bandwidth and transmission speeds of up to 20 Gbps.
Intel WiFi 6
The Intel WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks
Model
TUF GAMING H570-PRO WIFI
CPU
Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
H570
Memory
DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
11th Gen Intel processors support 3200/2933/2800/2666/2400/2133 natively.
10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Graphics
Graphics specifications may vary between CPU types.
Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz.
Only Intel 11th processors, support HDMI 2.0 with max. resolution of 4K 60Hz, others would only support HDMI 1.4 with max. resolution of 4K 30Hz .
Expansion Slots
Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th processors support PCIe 4.0 x16
- Intel 10th processors support PCIe 3.0 x16
Intel H570 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
3 x PCIe 3.0 x1 slots
* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel Optane Memory.
Storage
Supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel H570 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
6 x SATA 6Gb/s ports
Raid function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
USB
Rear USB :Total 8 ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Audio cover

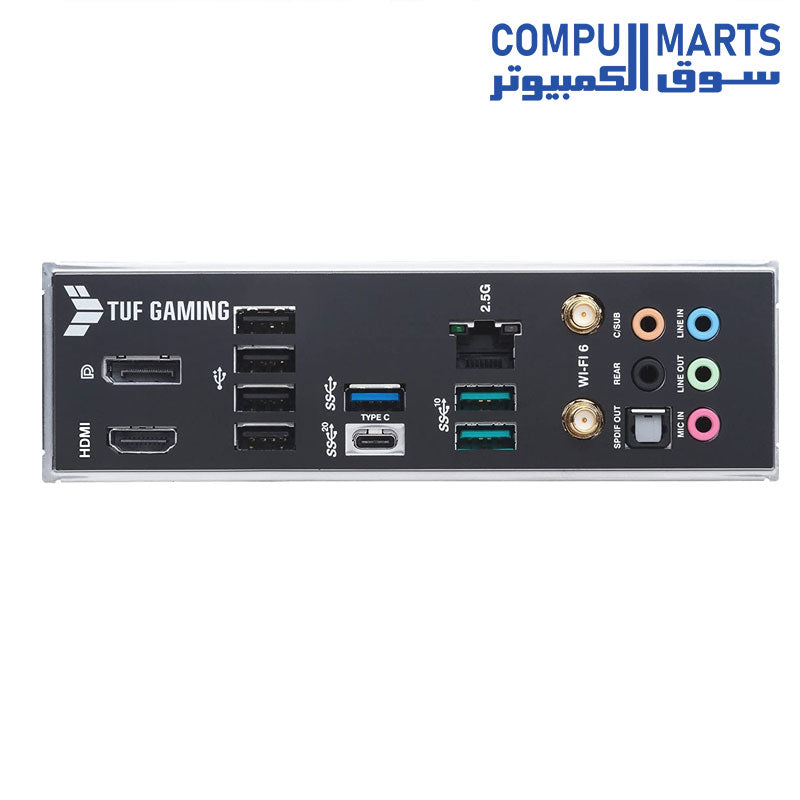

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- TUF LANGuard
- Overvoltage Protection
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 4
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous

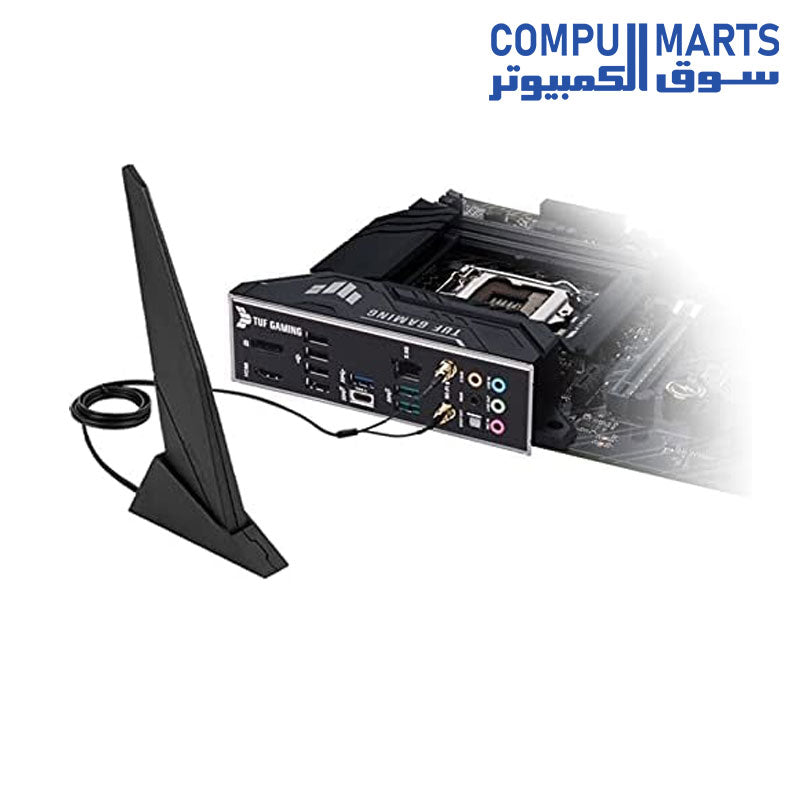

1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
2 x M.2 SSD screw packages
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 24.4cm
