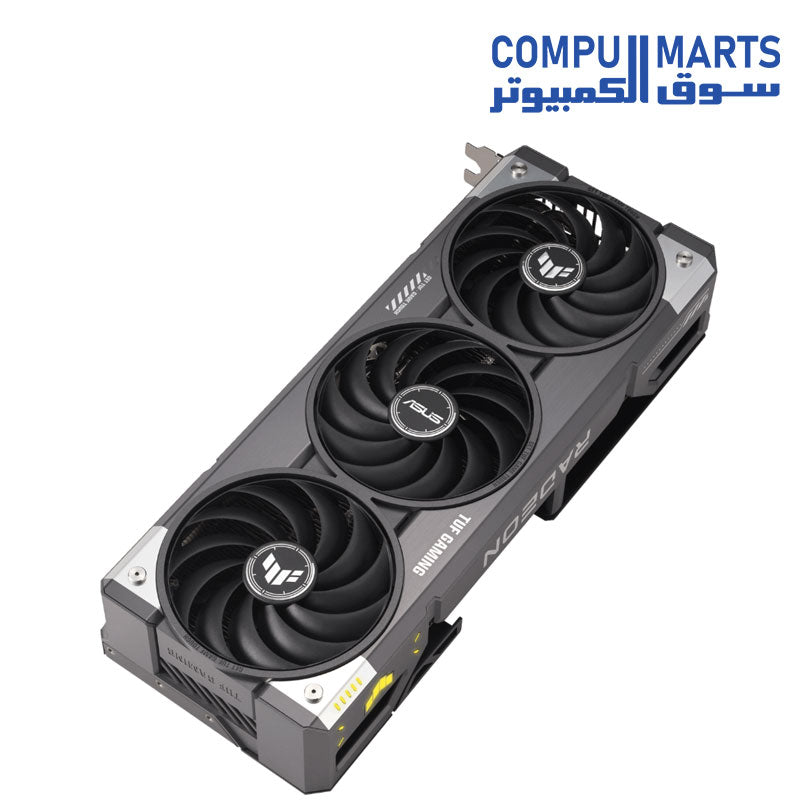

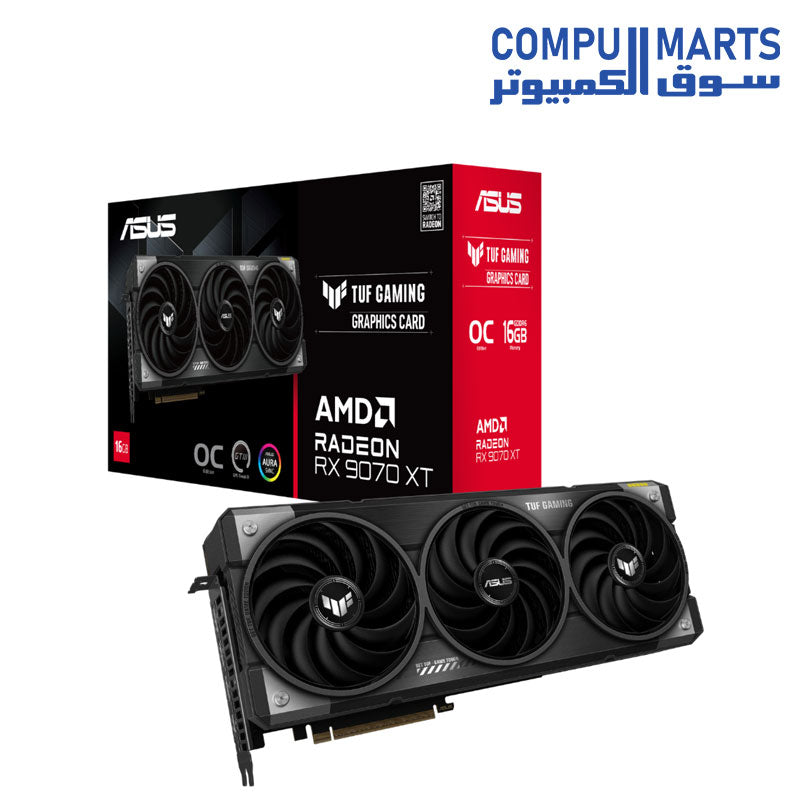

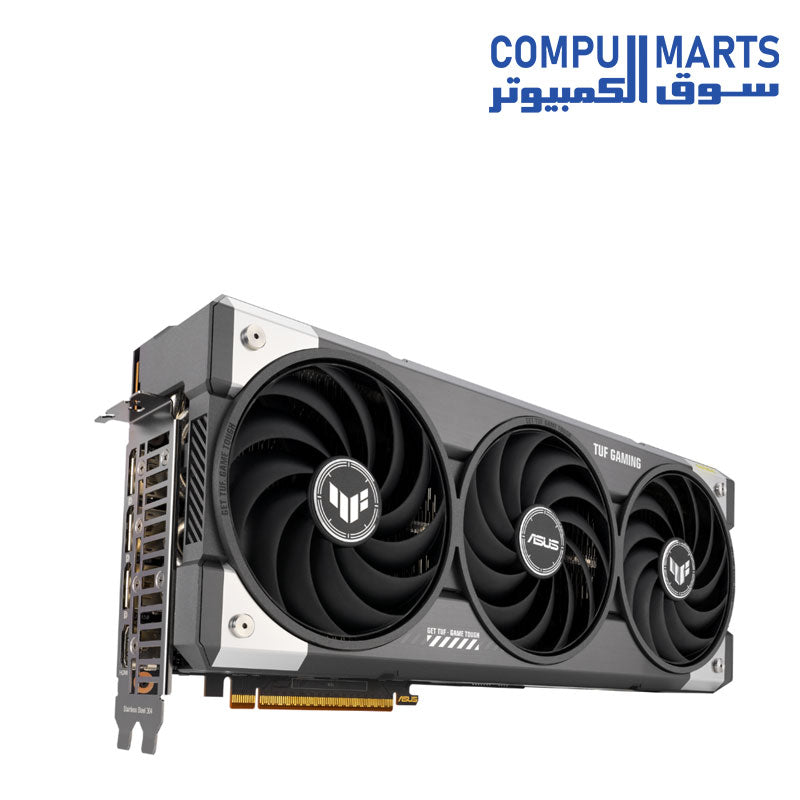

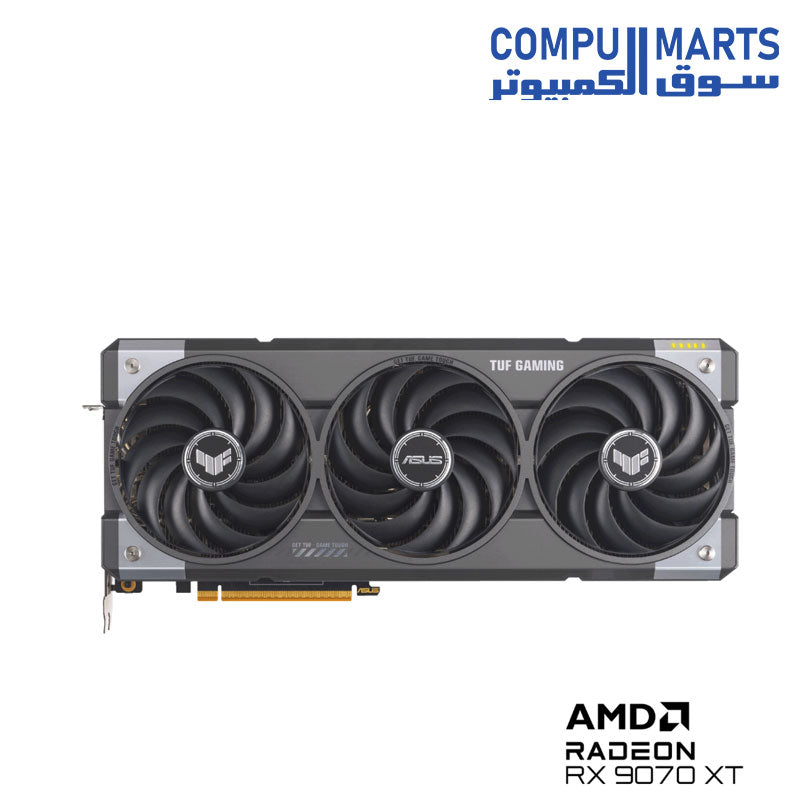

ASUS TUF Gaming Radeon RX 9070 XT OC Edition 16GB GDDR6

Core Features

• Graphic Engine: AMD Radeon RX 9070 XT.

• Bus Standard: PCI Express 5.0 for enhanced data transfer speeds.

• OpenGL Support: OpenGL 4.6.

Memory and Performance

• Video Memory: 16GB GDDR6 for exceptional rendering capabilities.

• Memory Speed: 20 Gbps for high-performance graphics processing.

• Memory Interface: 256-bit for a wide bandwidth.

• Stream Processors: 4096 for seamless multitasking and parallel processing.

• Engine Clock:

  • OC Mode (via GPU Tweak III): Boost Clock up to 3080 MHz, Game Clock up to 2540 MHz.

  • Default Mode: Boost Clock up to 3060 MHz, Game Clock up to 2520 MHz.

Display and Connectivity

• Maximum Resolution: Digital max resolution of 7680 x 4320 (8K-ready).

• Display Outputs:

  • 1 x Native HDMI 2.1b.

  • 3 x Native DisplayPort 2.1a.

• HDCP Support: Version 2.3 for secure content streaming.

• Maximum Display Support: Up to 4 displays.

Design and Power

• Recommended PSU: 850W for reliable and stable operation.

• Power Connectors: 3 x 8-pin for power delivery.

• Slot Size: 3.125-slot design for enhanced cooling.

• Dimensions:

  • 330 x 140 x 62.5 mm (13 x 5.5 x 2.5 inches).

Gaming Features

• RGB Lighting: AURA SYNC compatible for customizable lighting effects.

• NVlink/Crossfire Support: Not supported.

Accessories

• TUF Additions:

  • 1 x TUF Certificate of Reliability.

  • 1 x TUF Gaming Graphics Card Holder.

  • 1 x TUF Velcro Hook & Loop.

  • 1 x TUF Fridge Magnet.

• Other Inclusions:

  • 1 x Thank You Card.

  • 1 x Speedsetup Manual.

Software

• Utilities: ASUS GPU Tweak III & Drivers, available for download on the ASUS support site.
