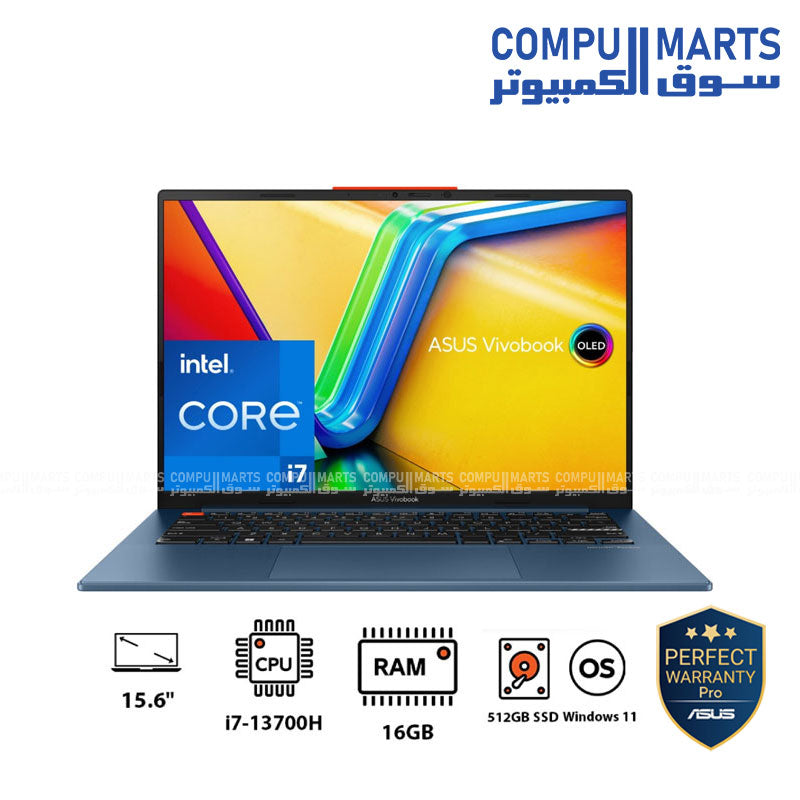

ASUS Vivobook S 15 OLED K5504VA-MA007W (2023), Intel Core i7-13700H 13th Gen, 15.6" 3K (2880 x 1620) OLED 120Hz (16GB/512GB SSD/Iris Xe/Win 11)

Part No

90NB0ZK1-M00P20

Sales Model Name

K5504VA-MA007W

EAN Code

4711387460481

UPC Code

197105460485

WEEE

1.6

BASE UNIT

VSNB0ZK1-BU0100

Marketing Name

ASUS Vivobook S 15 OLED

Operating System

Windows 11 Home - ASUS recommends Windows 11 Pro for business

Office

1-month trial for new Microsoft 365 customers. Credit card required.

LCD cover-material

Aluminum

LCD cover-color

Solar Blue

Top case-material

Plastic

Top case-color

Solar Blue

Keyboard color

Black

Bottom case-material

Plastic

Bottom case-color

Solar Blue

Military grade

US MIL-STD 810H military-grade standard

Touch Panel

Non-touch screen

Panel Size

15.6-inch

Resolution

2.8K (2880 x 1620) OLED 16:9 aspect ratio

Response time

0.2ms response time

Refresh rate

120Hz refresh rate

Peak Brightness

600nits HDR peak brightness

Color gamut

100% DCI-P3 color gamut

Gamut mapping

Yes

Contrast ratio

1,000,000:1

VESA CERTIFIED Display HDR

VESA CERTIFIED Display HDR True Black 600

Color depth

1.07 billion colors

Pantone

PANTONE Validated

Glare

Glossy display

Low blue light

70% less harmful blue light

TÜV Rheinland-certified

TÜV Rheinland-certified

Screen-to-body ratio

86%

Intel Athena Program

Intel Evo Platform

Processor

Intel Core i7-13700H Processor 2.4 GHz (24MB Cache, up to 5.0 GHz, 14 cores, 20 Threads)

Chipset

N/A

Discrete/Share

Share

Intergrated GPU

Intel Iris Xe Graphics

Disclaimer for Intel Iris Xe

Intel Iris Xᵉ Graphics is only available in models with Intel Core™ i5/i7/i9 processors and dual-channel memory.

Graphic Memory

N/A

Expansion Slot(includes used)

N/A

On board memory

16GB LPDDR5 on board

Total System Memory

LPDDR5 16GB

Disclaimer for memory

*Supports dual-channel memory.

Storage

512GB M.2 NVMe PCIe 4.0 SSD

Front-facing camera

1080p FHD camera ; With privacy shutter

Wireless

Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth 5.3 Wireless Card (*Bluetooth version may change with OS version different.)

Keyboard type

Backlit Chiclet Keyboard

Touchpad

Precision touchpad

FingerPrint

FingerPrint

I/O ports

1x USB 2.0 Type-A

1x USB 3.2 Gen 1 Type-A

1x Thunderbolt 4 supports display / power delivery

1x HDMI 1.4

1x 3.5mm Combo Audio Jack

1x DC-in

Audio

Smart Amp Technology

Built-in speaker

Built-in array microphone

harman/kardon (Mainstream)

Voice control

with Cortana voice-recognition support

Power

ø4.5, 90W AC Adapter, Output: 19V DC, 4.74A, 90W, Input: 100~240V AC 50/60Hz universal

Battery

75WHrs, 2S2P, 4-cell Li-ion

Replaceable Battery

No

Dimension (W x H x D)

35.93 x 22.94 x 1.79 ~ 1.79 cm (14.15" x 9.03" x 0.70" ~ 0.70")

Weight (with Battery)

1.70 kg (3.75 lbs)

Weight (without Battery)

1.70 kg (3.75 lbs)

Antivirus

McAfee 30 days free trial

Security

Fingerprint sensor integrated with Power Key

McAfee

BIOS Booting User Password Protection

Trusted Platform Module (Firmware TPM)

MyASUS feature

System diagnosis

Battery health charging

Fan Profile

Splendid

Tru2Life

Function key lock

WiFi SmartConnect

Link to MyASUS

TaskFirst

Live update

ASUS OLED Care

AI Noise Canceling

Built-in Apps

MyASUS

ScreenXpert

GlideX

Adobe Creative Cloud Hard Bundle

One-Month Membership of Adobe Creative Cloud All Apps, Individual.

The redemption duration from September 15, 2021 to August 31, 2024.

Ecolabels & Compliances

Energy star 8.0

RoHS

REACH

Reparability Index (for France)

7.4
