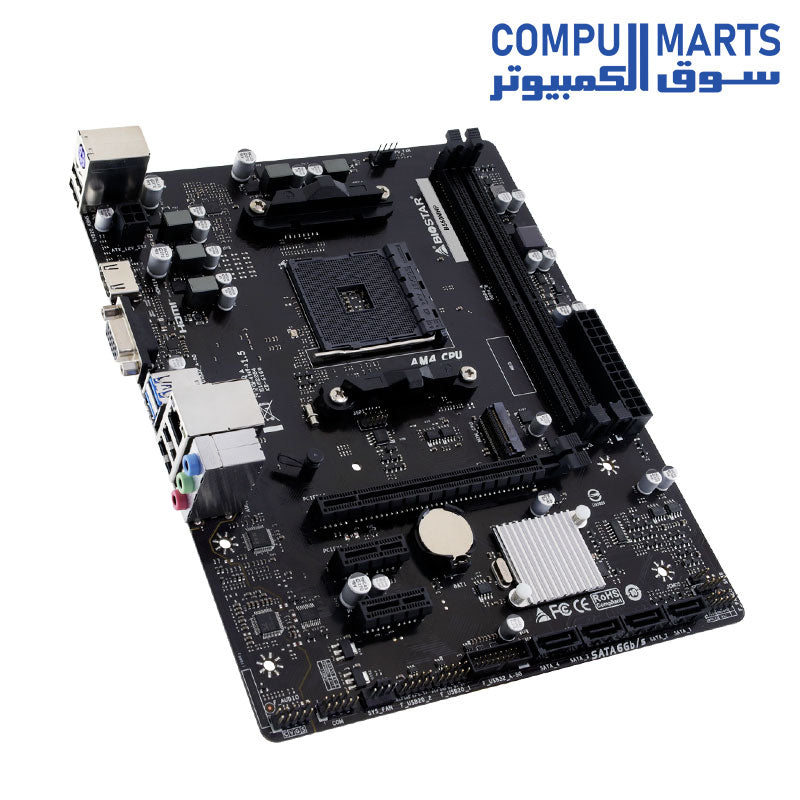

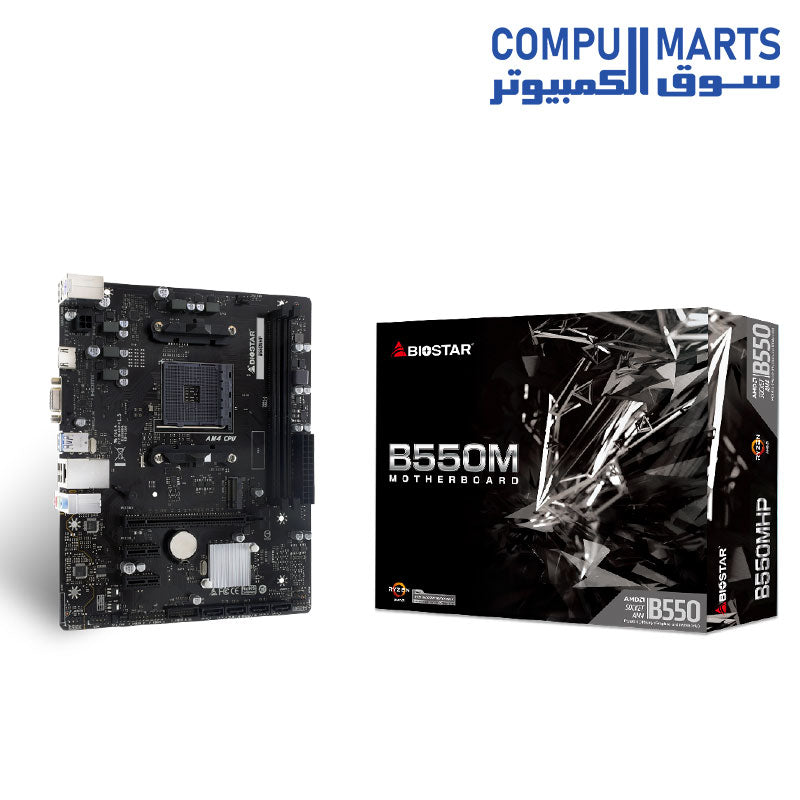

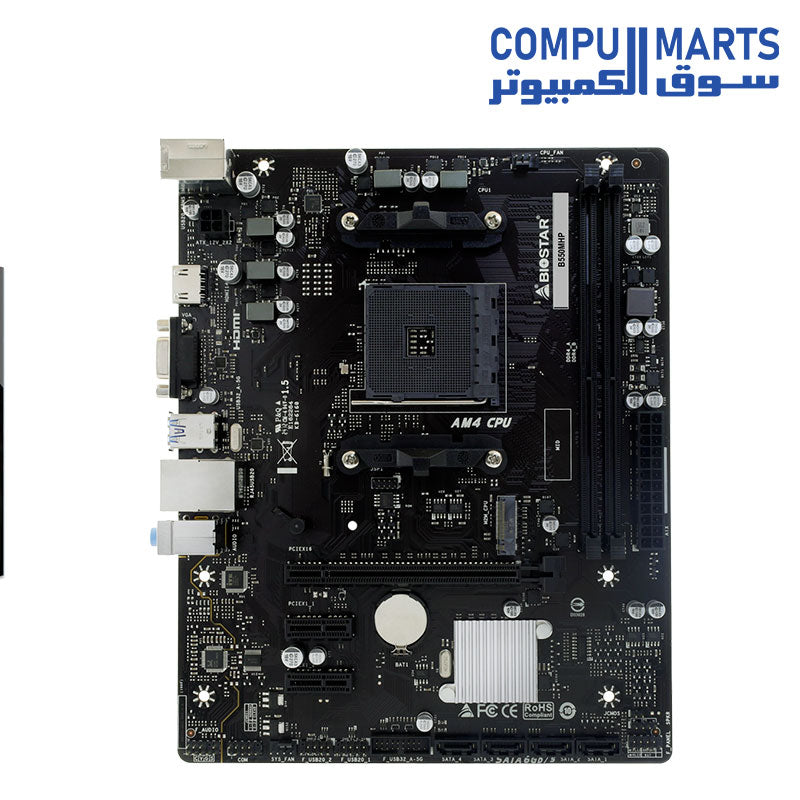

Biostar B550MHP micro ATX DDR4 / AMD Socket AM4 Motherboard

Chipset

AMD B550

CPU SUPPORT

Support AMD Ryzen  5000/5000G/4000G/3000 series Processors

Support for future AMD Ryzen  processors with BIOS update

 Please refer to www.biostar.com.tw for CPU support list.

MEMORY

4th Gen AMD Ryzen Processors (Vermeer CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):

Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

3rd Gen AMD Ryzen Processors (Matisse CPUs):

Supports Dual Channel DDR4 - 4266+(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/2667/ 2400/2133

3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

Supports Dual Channel DDR4 - 4400+(OC)/ 4266(OC)/4133(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/2933/ 2667/ 2400/2133

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

 Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO

By CPU model

Supports DX12

Supports HDCP

STORAGE

Total supports 1 x M.2 socket and 4 x SATA III (6Gb/s) ports

1 x M.2 (M Key) Socket (M2M_CPU):

Supports M.2 Type 2260/2280 SSD module

AMD Ryzen 5000/3000 Processors

Supports PCIe 4.0 x4 (64Gb/s) - NVMe SSD, SATA III (6.0Gb/s) SSD.

AMD Ryzen 5000G/4000G Processors

Supports PCIe 3.0 x4 (32Gb/s) - NVMe SSD, SATA III (6.0Gb/s) SSD.

AMD B550 Chipset

4 x SATA III Connector (6Gb/s):

Supports AHCI & RAID 0, 1, 10

 M.2 (M2M_CPU) Socket: The bandwidth is depended on CPU.

 Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse & 4th Gen Vermeer.

 Specifications vary by CPU types

LAN

Realtek RTL8111H

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC

Realtek ALC897

7.1 Channels, High Definition Audio, Hi-Fi (Front)

USB

4 x USB 3.2 (Gen1) port

(2 on rear I/Os and 2 via internal headers)

8 x USB 2.0 port

(4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT

AMD Ryzen 5000/3000 Processors

1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode)

or

AMD Ryzen 5000G/4000G Processors

1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)

AMD B550 Chipset

2 x PCIe 3.0 x1 Slot

* According to different CPUs will have different speeds.

* Specifications vary by CPU types

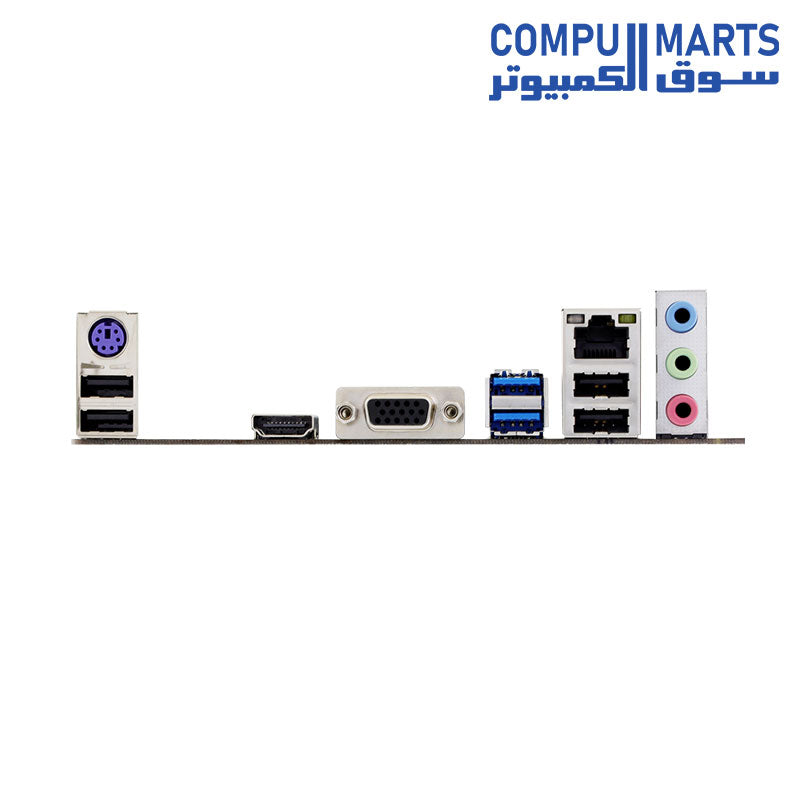

REAR I/O

1 x PS/2 Keyboard/ Mouse

1 x VGA Port

1 x HDMI Port

1 x LAN port

2 x USB 3.2 (Gen1) Ports

4 x USB 2.0 Ports

3 x Audio Jack

INTERNAL I/O

4 x SATA III 6.0Gb/s Connectors

1 x USB 3.2 (Gen1) Header

(each header supports 2 USB 3.2 (Gen1) ports)

2 x USB 2.0 Header

(each header supports 2 USB 2.0 ports)

1 x 4-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Serial Header

1 x Internal Stereo Speaker Header

DIMENSION

Micro ATX Form Factor Dimension: 19.0 cm x 23.5 cm ( W x L )

OS SUPPORT

Supports Windows 10(64bit)/ 11(64bit)

Biostar reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES

2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide
