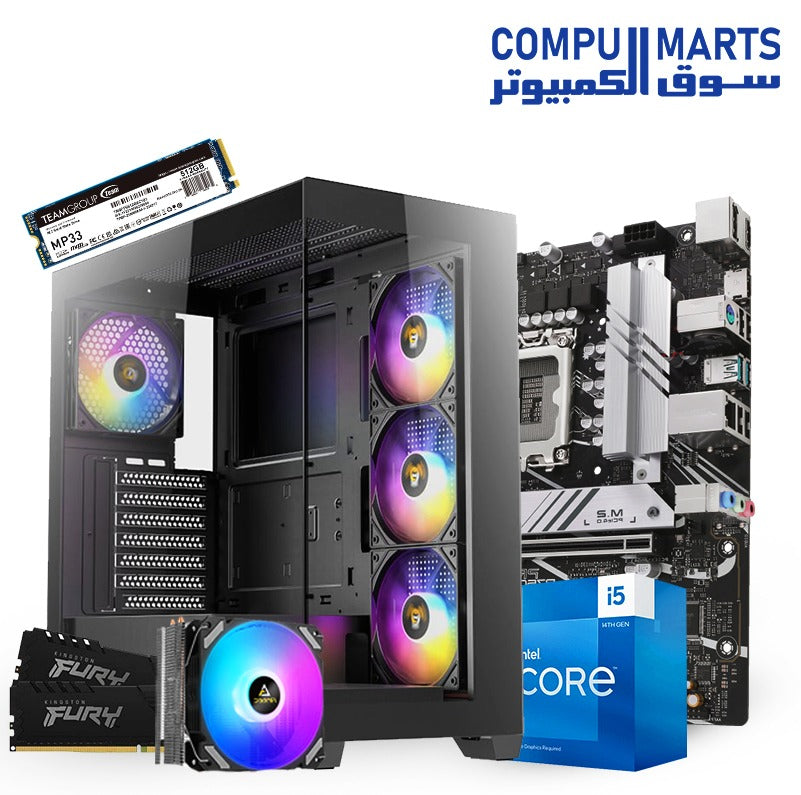

CORE I5-14600K & ASUS PRIME B760M-A D4 Bundle

CORE I5-14600K

Total Cores  : 14

# of Performance-cores : 6

# of Efficient-cores : 8

Total Threads  : 20

Max Turbo Frequency  : 5.3 GHz

Performance-core Max Turbo Frequency  : 5.3 GHz

Efficient-core Max Turbo Frequency  : 4 GHz

Performance-core Base Frequency : 3.5 GHz

Efficient-core Base Frequency : 2.6 GHz

Cache  : 24 MB Intel Smart Cache

Total L2 Cache : 20 MB

Processor Base Power  : 125 W

Maximum Turbo Power  : 181 W

*Supplemental Information

Marketing Status : Launched

Launch Date  : Q4'23

Embedded Options Available  : No

*Memory Specifications

Max Memory Size (dependent on memory type)  : 192 GB

Memory Types

Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels  : 2

ASUS PRIME B760M-A D4

• Intel LGA 1700 Socket: Ready for 13^th and 12^th Gen Intel processors

• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C

• Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking

• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware

RAM 8X2 KINGSTONE FURY 3200 CL 16

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.3425” (34.1mm), w/heatsink

SSD TEAM MP33 512 M.2 NVME

• 256GB MP33 M.2 PCI-E GEN3.0 X4 NVME 1.3

• NVMe PCIe Gen3x4 High Speed Interface - Sequential read/write speed can reach up to 1600/1000 MB/s which reduce the delays of the operating system and game

• 256GB MP33 M.2 PCI-E GEN3.0 X4 NVME 1.3

• NVMe PCIe Gen3x4 High Speed Interface - Sequential read/write speed can reach up to 1600/1000 MB/s which reduce the delays of the operating system and game/software.

• Ultra High Performance - Transfer performance is 5 times higher than the SATA III interface. Capable of reading and writing large amounts of game data, complex graphics and motion processing algorithms, or loading heavy duty video/graphics editing software

• M.2 2280 specification: Supports the next-generation platforms of Intel and AMD. Suitable for both desktop and notebook | Supports SLC Caching technology. Greatly enhance computing performance

CASE Antec CX300 ARGB Black + Antec Atom V650 650 Watts Non-Modular

• Motherboard Support: ATX, Micro-ATX, ITX

• Form Factor: Mid Tower

• Case Material: Steel Glass

• Side & Front Panel: 4mm Tempered Glass

• 1/0 Ports: Power, LED On/Off, USB 2.0 x 2, USB 3.0 x 1, MIC/HD-AUDIO 7

COOLING AIR ANTEC A400I
