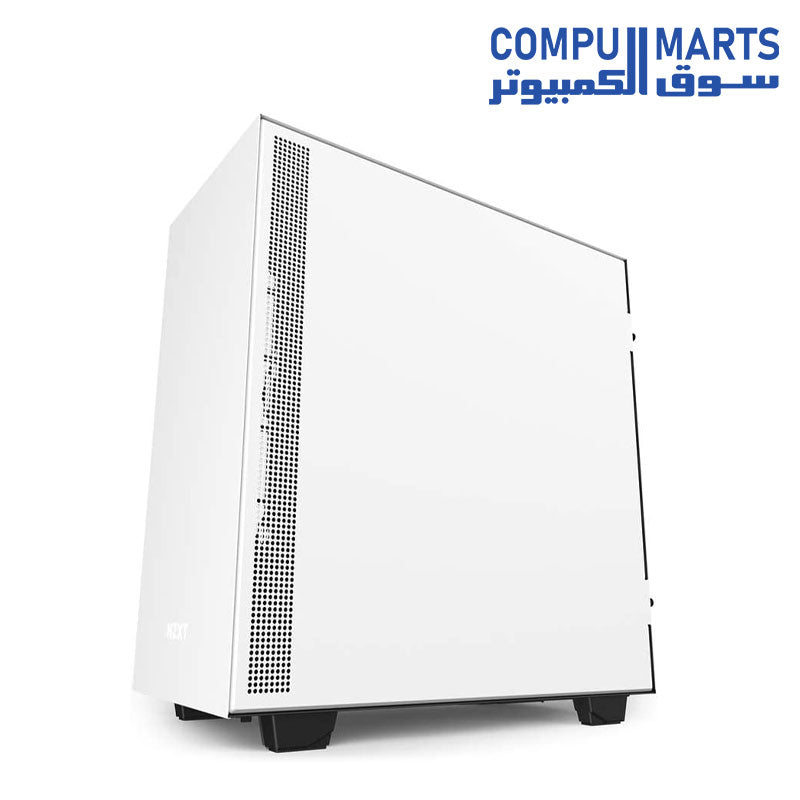

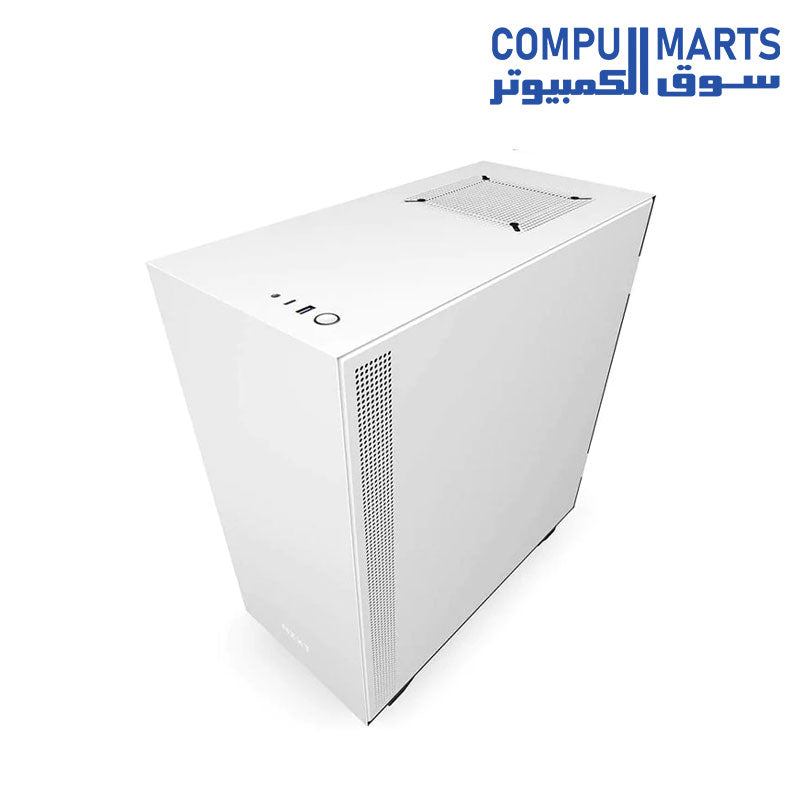

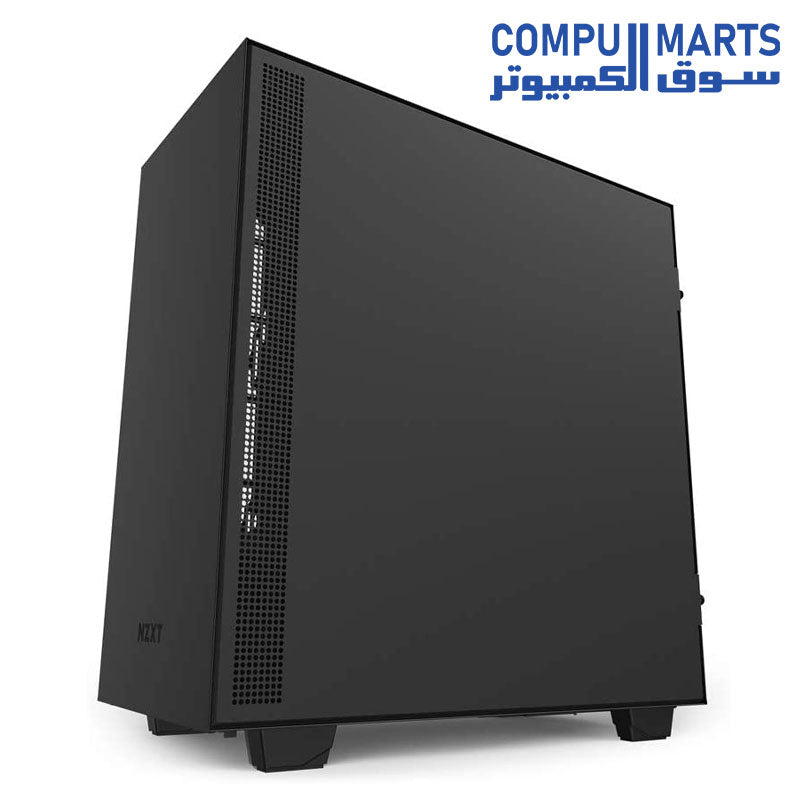

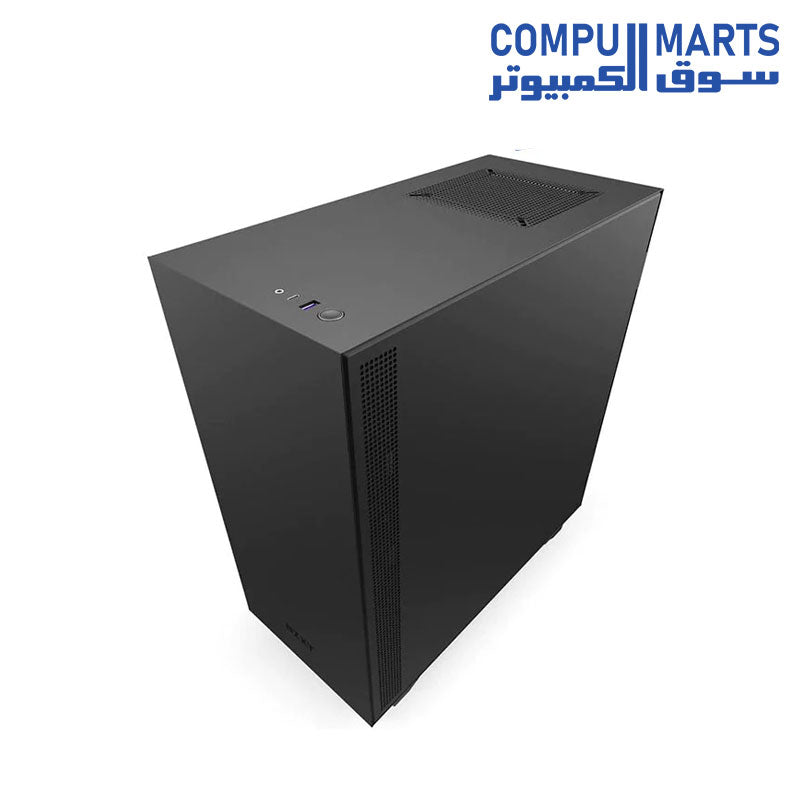

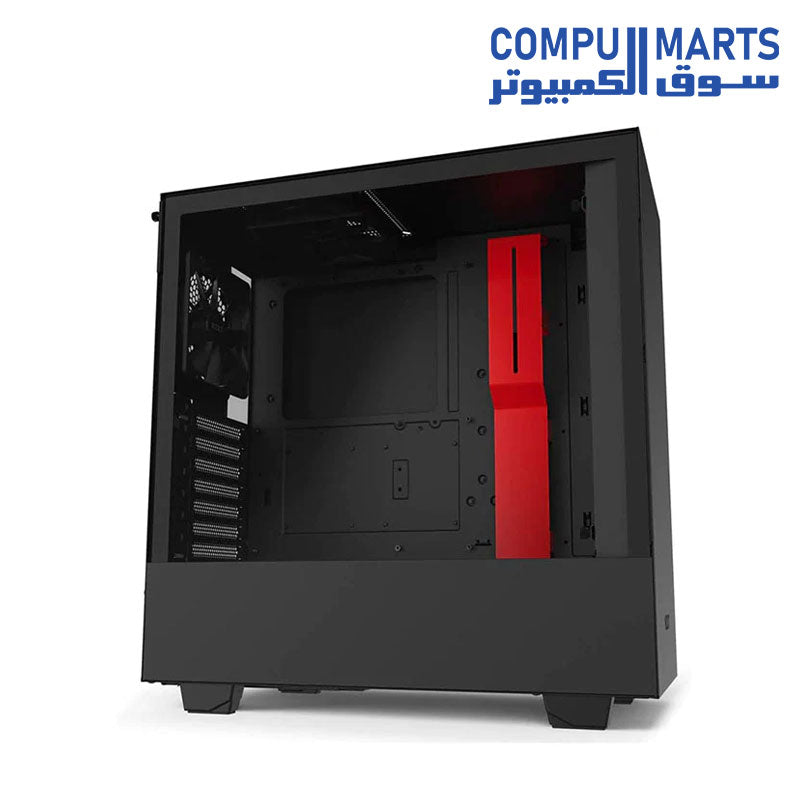

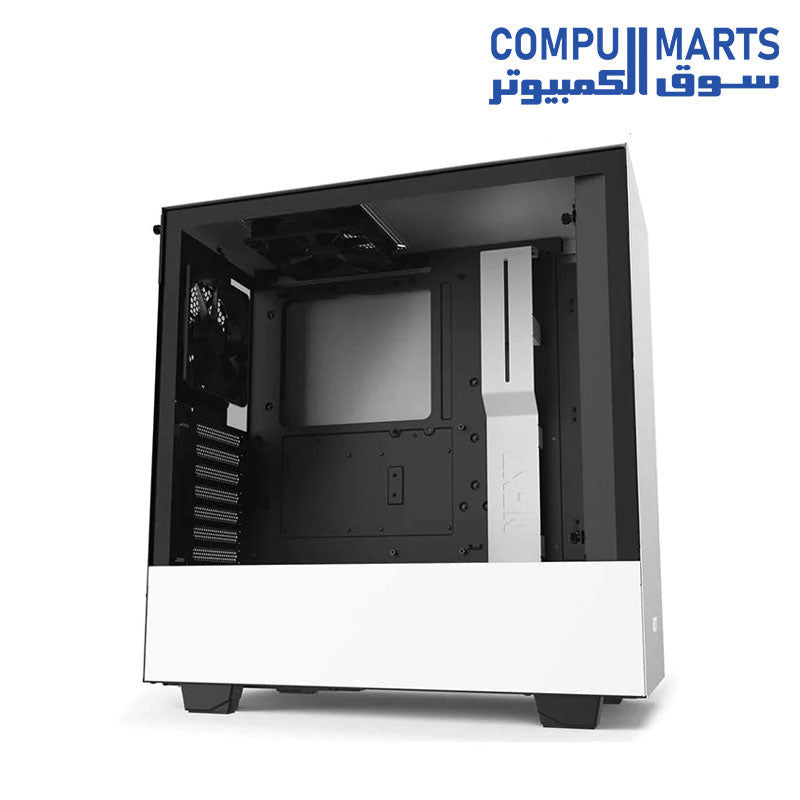

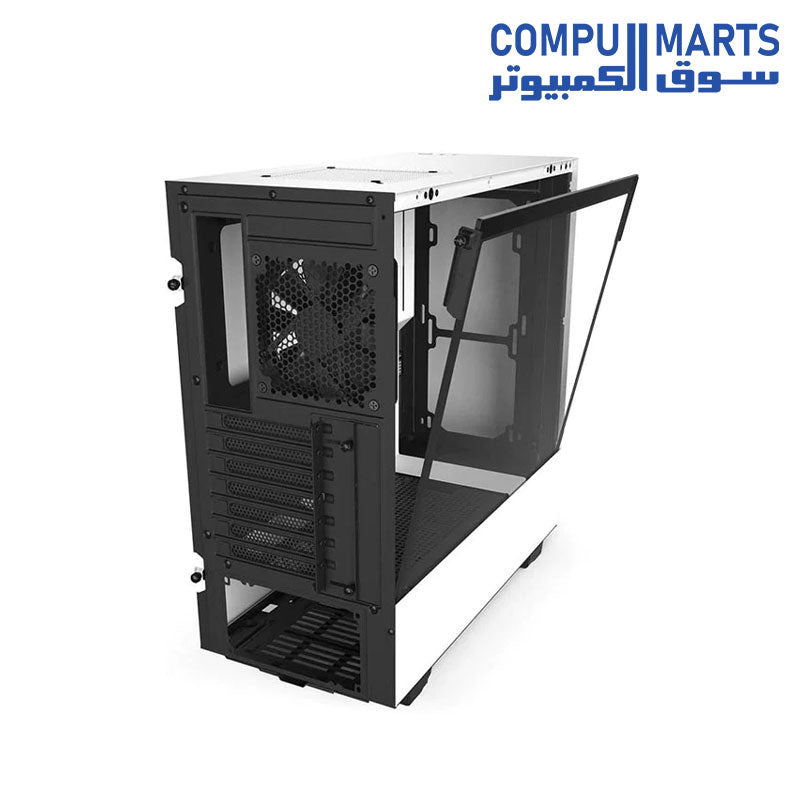

NZXT H510 - Compact ATX Mid-Tower PC Gaming Case

Our best-selling case is loved by more than 100,000 customers!

This compact mid-tower is an ideal case for the majority of builds. The H510 is easy-to-build-in and offers flexibility for a variety of ATX parts.

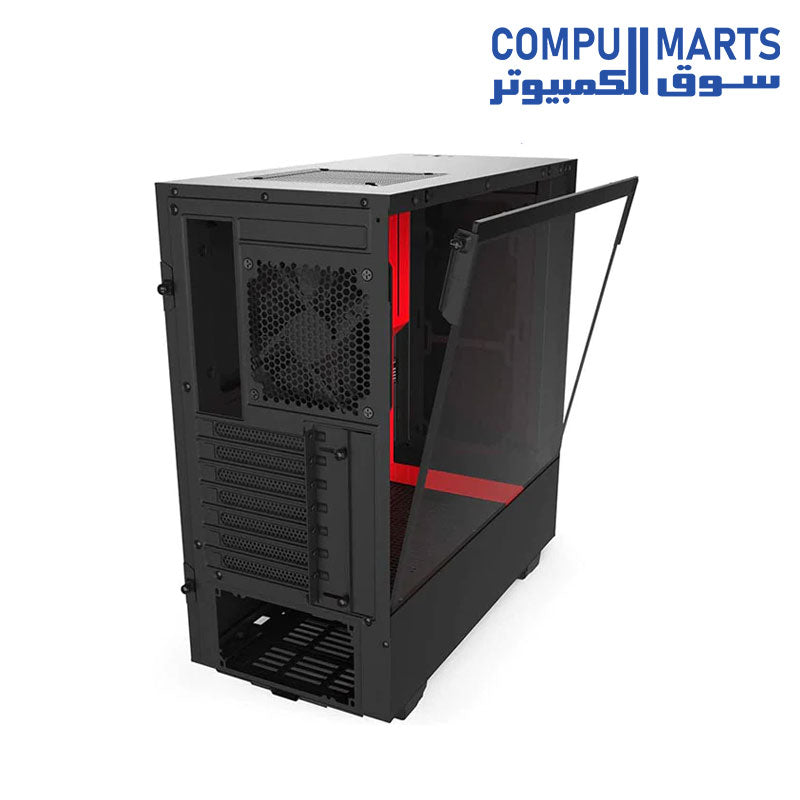

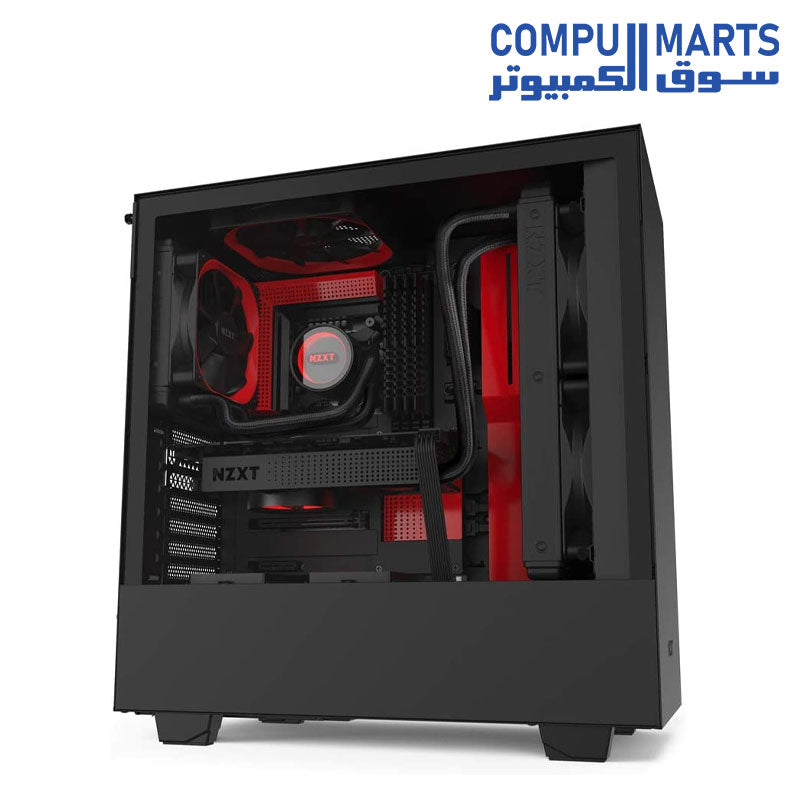

• Iconic cable management bar and uninterrupted tempered-glass side panel

• USB 3.2 Gen2-compatible USB-C connector on the front panel

• Cable routing kit with pre-installed channels and straps

• Two Aer F120mm fans and removable filter on PSU intake

• Removable bracket designed for radiators up to 280mm

Inside the Box

• H510 Case

• Aer F 120mm (Case Version)

• Headset Audio Jack Splitter

• Breakout Cable

• Installation Accessories

KEY SPECS

• Motherboard Support:Mini-ITX, MicroATX, ATX

• Enclosure Type:Compact Mid-Tower

• Case Material:SGCC Steel, Clear Tempered Glass

DIMENSIONS

• Height:460mm / 18.11 inches

• Width:210mm / 8.27 inches

• Depth:428mm / 16.85 inches

• Weight:6.6 kg / 14.55 lb

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:165mm

• Max GPU Clearance:381mm

• Front Fan & Radiator Clearance:60mm

• Cable Management:19 - 23mm

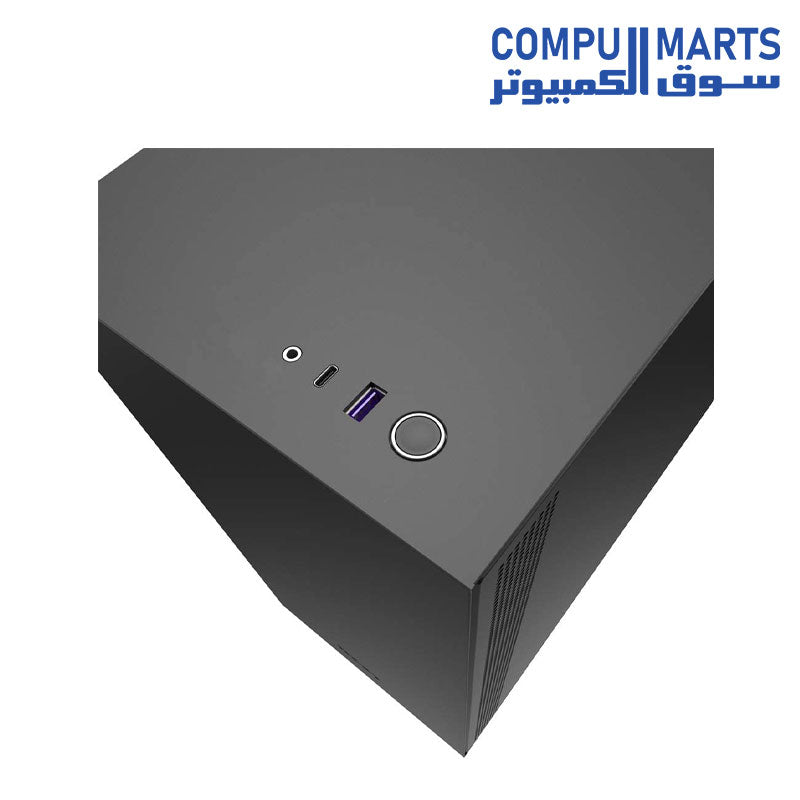

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:1

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

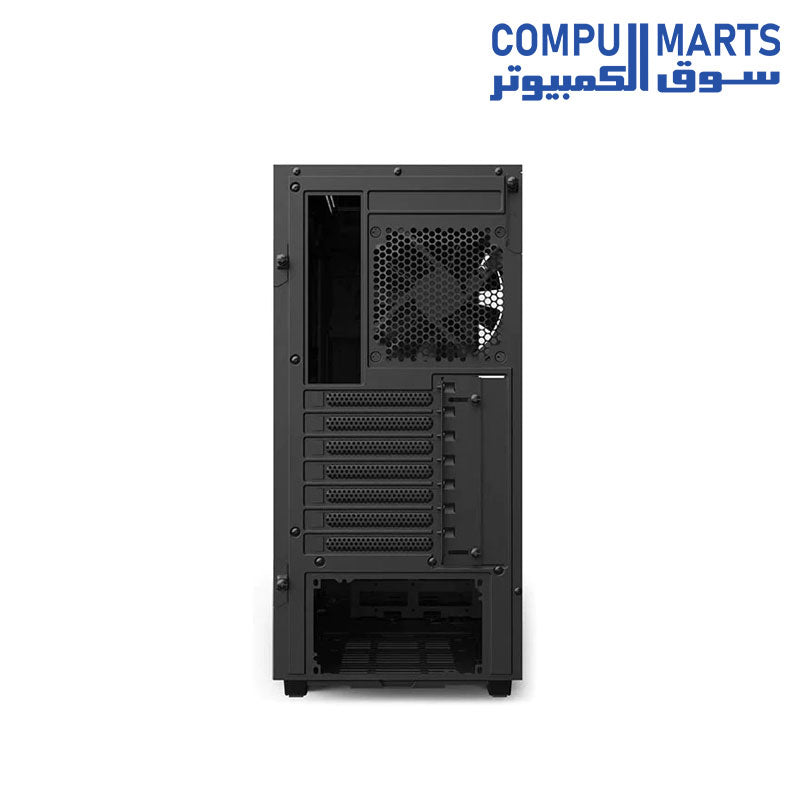

EXPANSION SLOTS

• Standard:7

• Vertical:-

DRIVE BAYS

• 2.5":2 + 1

• 3.5":2 + 1

FAN SUPPORT

• Front:2 x 120mm / 2 x 140mm

• Top:1 x 120mm / 1 x 140mm

• Rear:1 x 120mm

• Filters:All air intakes

RADIATOR SUPPORT

• Front:280mm

• Top:-

• Rear:120mm

FAN SPECS

• Model:Aer P 120mm (Case Version)

• Speed:1,200 ± 200RPM

• Airflow:50.42 CFM

• Noise:28 dBA

• Fan Connector:3-pin
