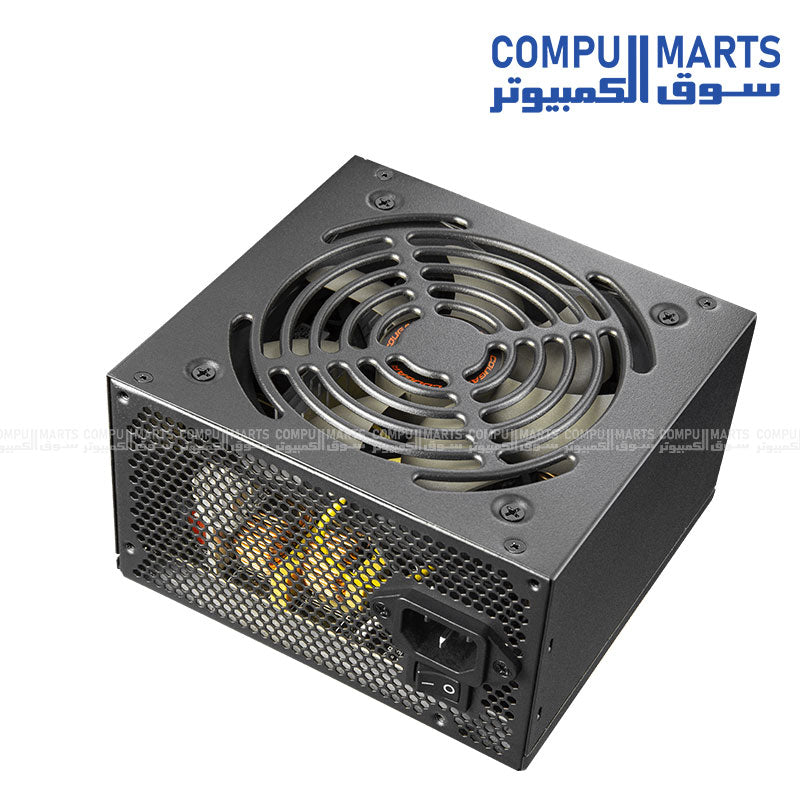

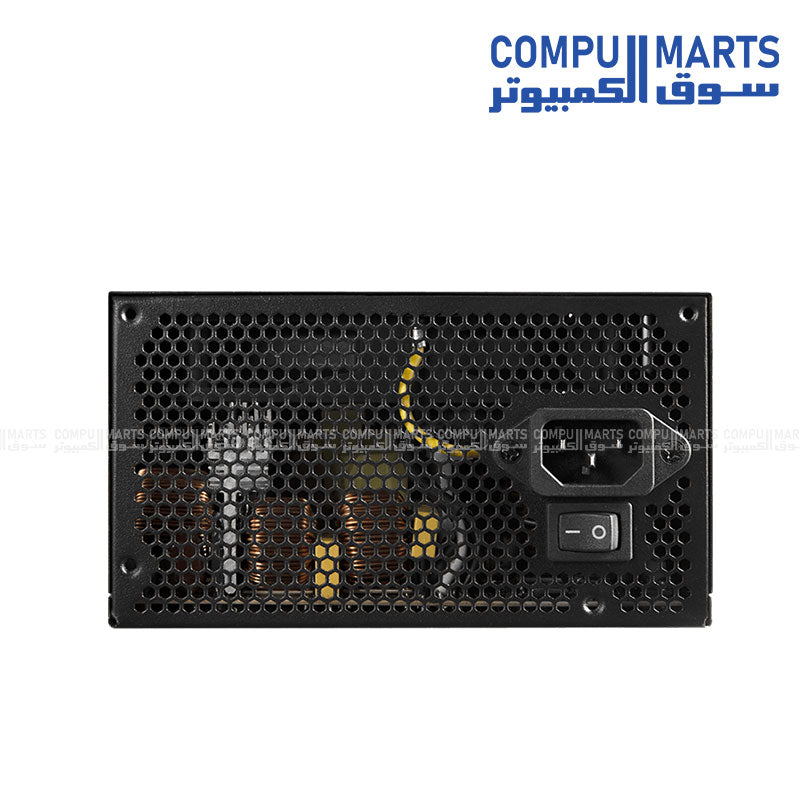

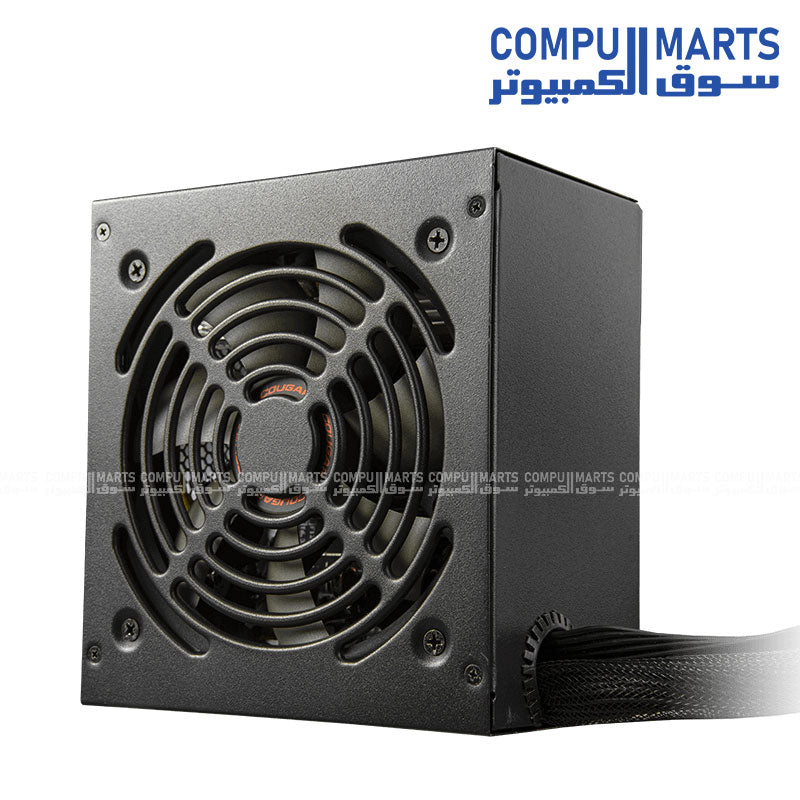

Cougar VTE ATLAS 750W Power Supply – 80 Plus Bronze
Cougar
COUGAR ATLAS series is high-quality 80 PLUS Bronze certified with flawless power delivery, efficiency, silence and durability. It is the best choice for those who are looking for a high value and reliable power supply.
Solid Efficiency Certification with 80 PLUS
Highly efficient output and certified with 80 PLUS Bronze. It can provide excellent efficiency to avoid waste and minimize the electric bill.
Stable Performance
DC-DC technology provides a stable voltage with ±2% variation under the standard modes.
Note: the flat curve is the better performance.
Ultra Durability
The ATLAS is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.
Perfect Control Between Noise And Fan Spinning

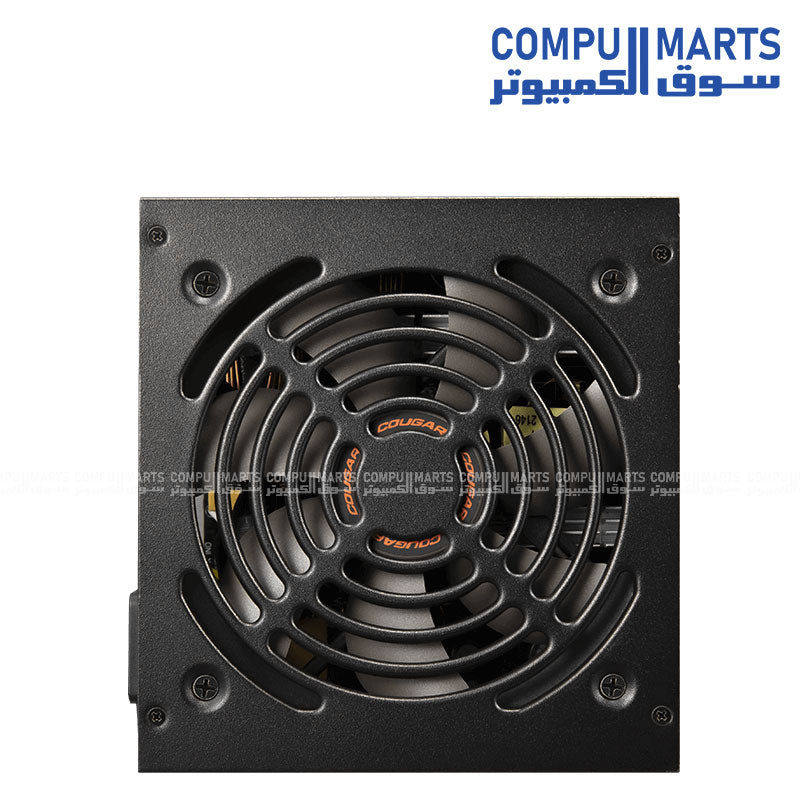

Ultra-Silent 120mm COUGAR fan with automatic thermal speed control for an optimal speed-noise ratio.
Note: the lower curve is the better sound-tuning.
Ample and Black Connection
The Atlas series equips 2 CPU connectors for contemporary M/B and CPU settings. Full black and sufficient cable length allow you to install the PC with orderliness and easiness.
(4+4) Pins
8 Pins
Features
80 PLUS Bronze Certified
Up to 87% efficiency power conversion to cut down your electricity bill
Superior fan Curve Tuning
Advanced technology for noise minimization
Single 12V DC Source
Extreme Performance for Powerful Graphics Systems
PF value up to 99%
Provides clean and reliable power
Compatible with the latest PC
TECHNOLOGY created for user with current and next-generation multi-core CPU platforms
Support PCI express 4.0 next-generation graphics cards with 8(6+2) pin PCI-E connector
FULL PROTECTIONS WITH SCP, OCP, OVP, UVP, OPP
80 PLUS Bronze Certified Up to 86% efficiency power conversion to cut down your electricity bill
Specifications
|
Connector Black Cables |
 MB |
 CPU |
 P-ATA |
 S-ATA |
 PCI-E |
| Pin | 24(20+4) Pins |
8(4+4) Pins 8 Pins |
4 Pins | 5 Pins | 8(6+2) Pins |
| ATLAS 550 | 1 | 1 | 2 | 6 | 2 |
| ATLAS 600 | 1 | 2 | 2 | 6 | 2 |
| ATLAS 650 | 1 | 2 | 2 | 6 | 2 |
| ATLAS 750 | 1 | 2 | 3 | 8 | 4 |
Downloads
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
Safety Standards
