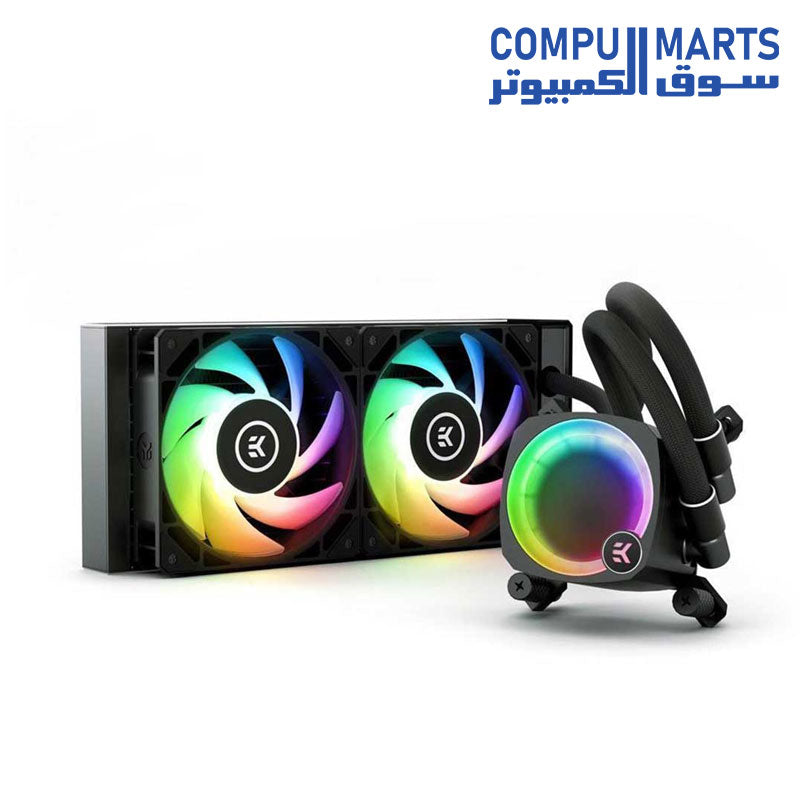

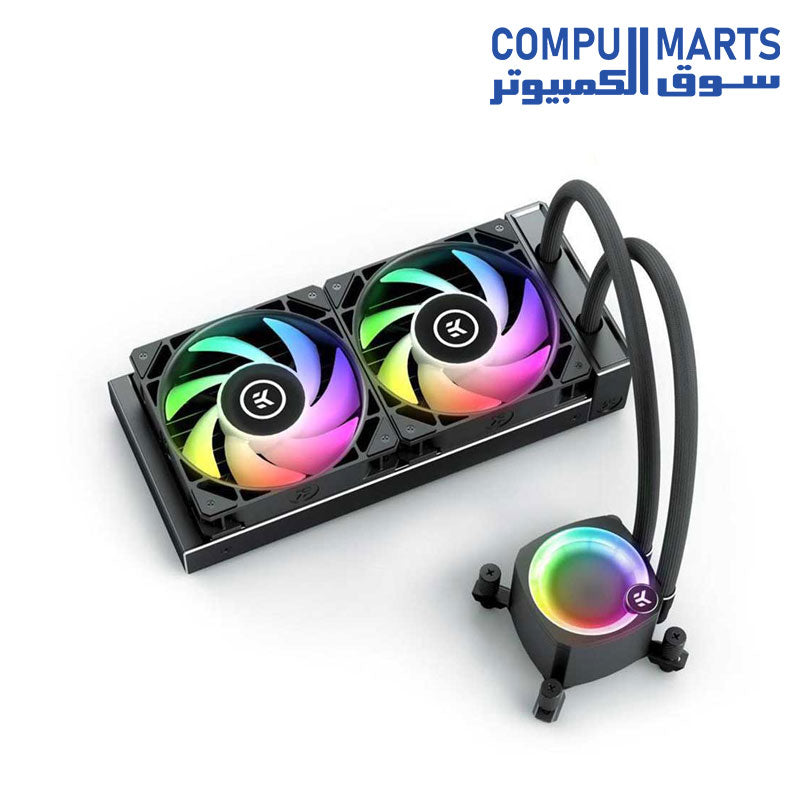

EK Nucleus CR240 Lux DRGB Aio Liquid Cpu Cooler

EK Nucleus CR240 Lux DRGB Aio Liquid Cpu Cooler

• UNIVERSALLY COMPATIBLE – All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets (LGA 1700 and AM5)

• ADDRESSABLE RGB – Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top

• NEW POSITIONING OF ROTARY FITTINGS – The CR240 Lux D-RGB (240mm AIO) comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The improved position of rotary fittings allows the EK-Nucleus AIO to be installed in even the tightest spaces

• ROTATABLE PUMP TOP – The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed

• HIGH-STATIC PRESSURE FPT FANS – FPT series fans aim to succeed the EK-Vardar fans completely as they improve upon many aspects while maintaining focus on excellent radiator performance

• Radiator Dimensions:

• 281 x 124 x 27 mm

• Radiator Material:

• Aluminum

• Fan Compatibility:

• 120 mm

• Pump Unit Dimensions:

• 82.3 x 69.2 x 61.6 mm

• Pump Unit Material:

• ABS housing, ABS top ring

• Pump Speed Range:

• 3100 RPM ± 10%

• Pump PWM Range:

• 20 – 100%

• Pump Unit RGB Type:

• 5V Digital (Addressable)

• Pinout:

• 5V, D, Empty, Ground Pump RGB Cable Length: 500 mm

• Tubing Material:

• Ultra-Low Evaporation Rubber with Nylon Braided Sleeve

• Tubing Length:

• 370 mm

• Fan Dimensions:

• 120 x 120 x 25mm

• Fan Speed Range:

• 550 – 2300 ± 10%

• Fan Noise Level:

• 36 dB (at maximum speed)

• Fan Air Flow:

• 72 CFM = 122,33 m³/h (at maximum speed)

• Fan RGB Type:

• 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground

• System Requirements:

• 4-Pin PWM Header for pump and fan operation

• 3-Pin Addressable 5V D-RGB header

• Enclosed:

• EK-Nucleus AIO CR240 Lux D-RGB – White unit

• EK-FPT FAN 120 D-RGB Full Pressure Technology Fan (2x)

• Mounting Kit

  User Manual

• Compatible CPU Sockets:

•  Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + Next-gen Intel Socket, 1700

•  AMD Socket: AM4, AM5

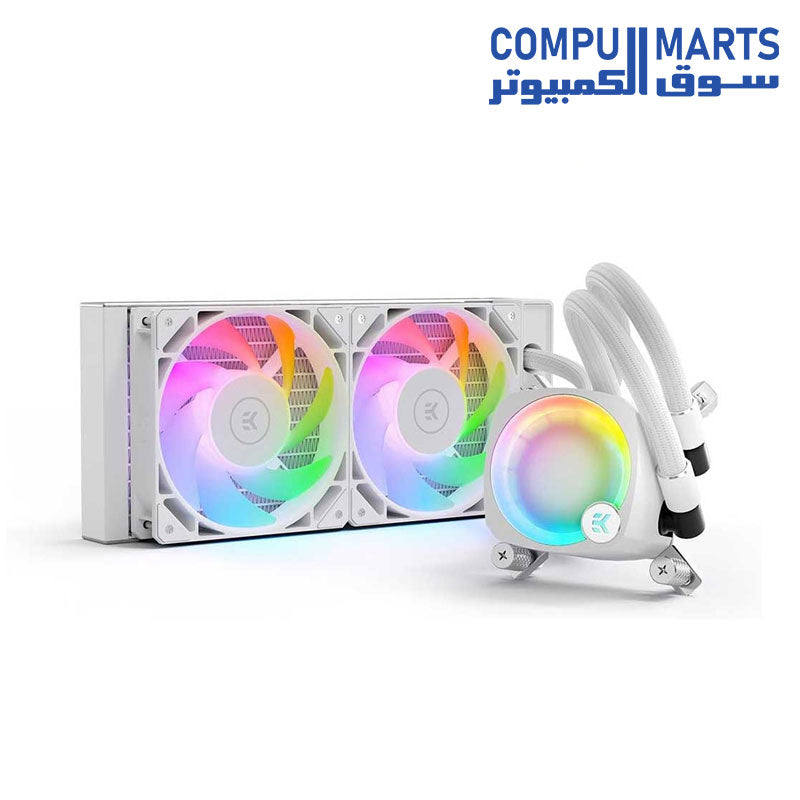

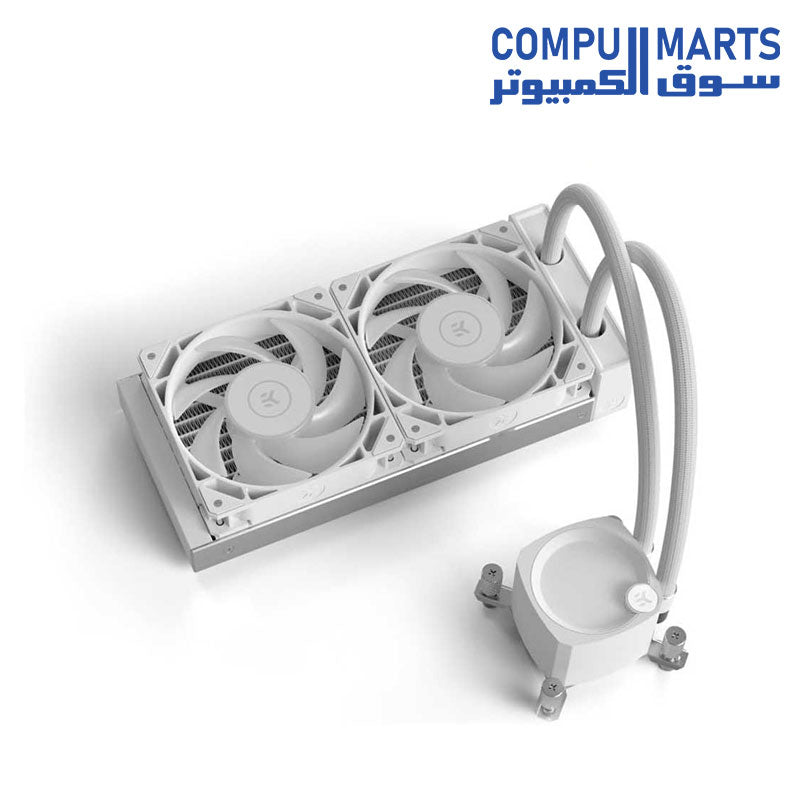

EK Nucleus CR240 Lux DRGB White Aio Liquid Cpu Cooler

• Addressable RGB Lighting

• Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top for all who search for that perfect RGB AIO aesthetics.

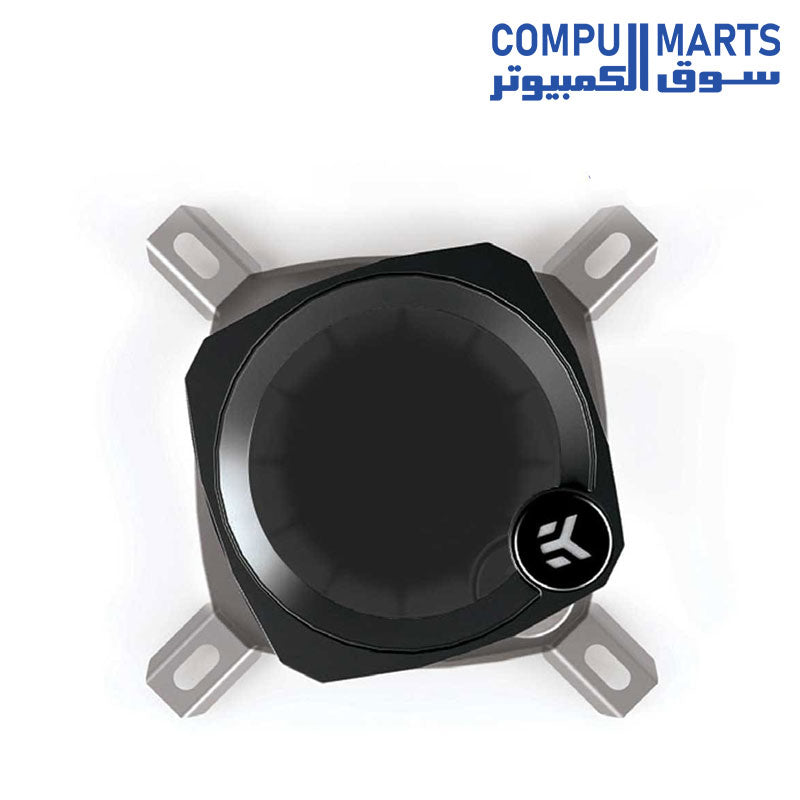

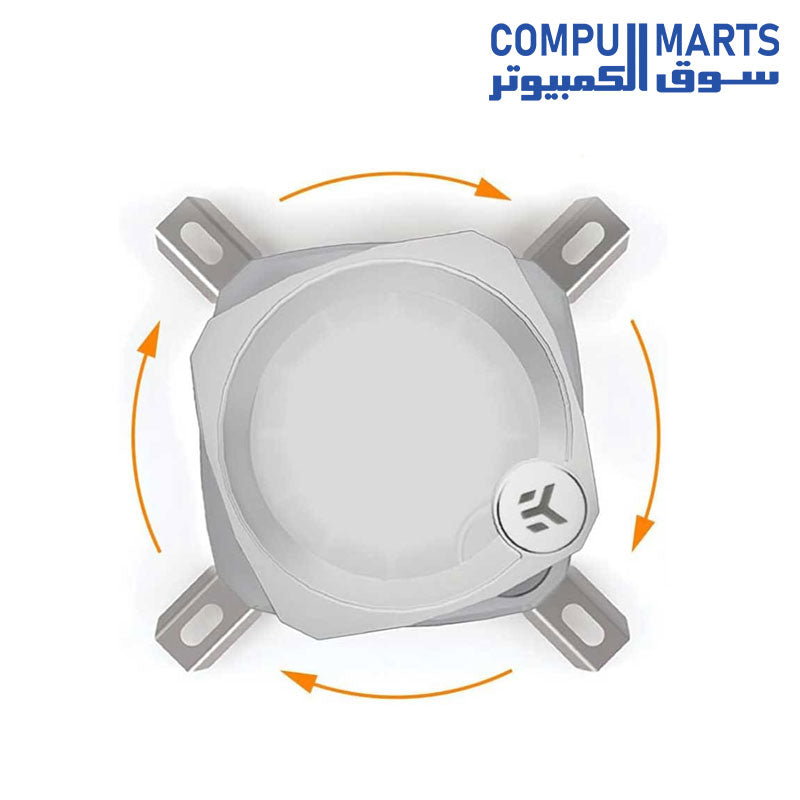

• Rotatable Pump Top

• The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.

• New Positioning of Rotary Fittings

• The AIO CR240 Lux comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic white radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans.

• The improved position of rotary fittings on the other side, which are now placed next to each other, allows the EK-Nucleus AIO to be installed in even the tightest spaces.

• Sleeved Tubing

• Fine sleeving is added to the tube to enrich the look of the tubing and additionally protect the inner tubing as an added layer.

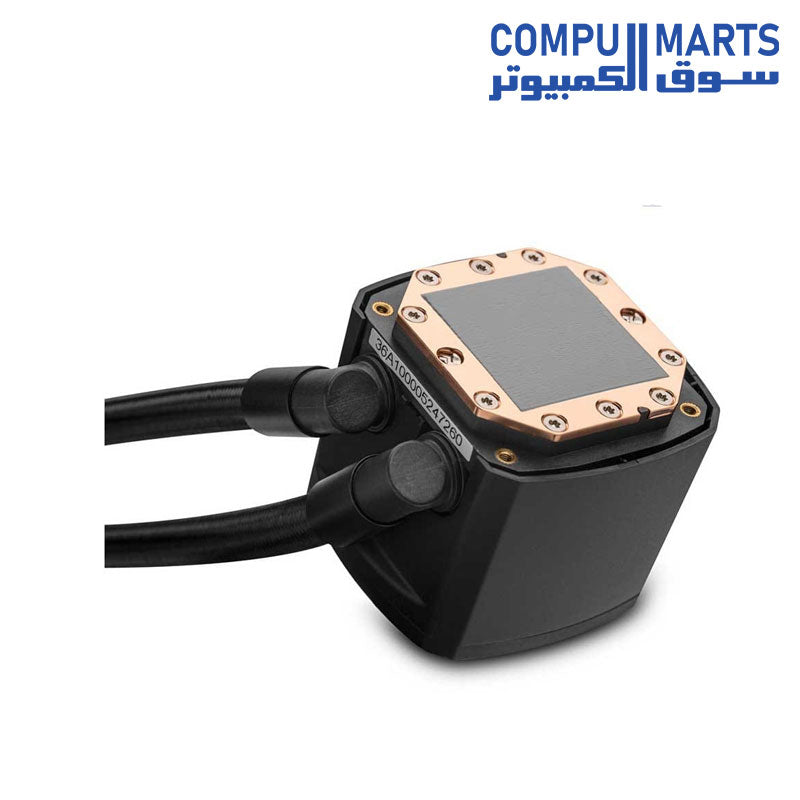

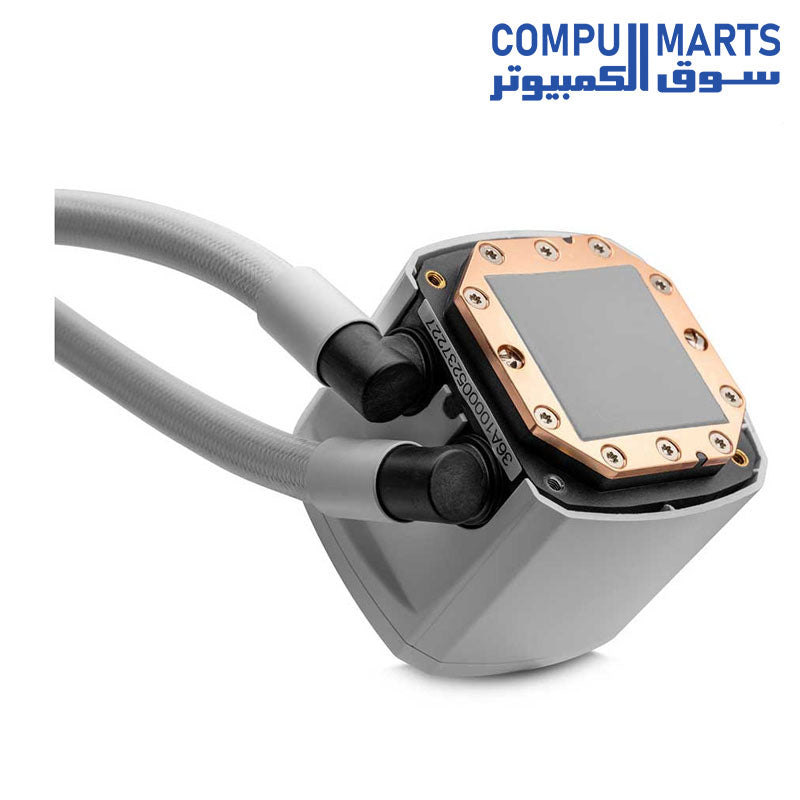

• Dense Microfin Copper Coldplate

• The copper coldplate that touches the CPU IHS is made of copper to enhance the thermal transferring characteristics. It has a dense stack of microfins that boost the thermal transfer area between the copper base and coolant, ensuring unparalleled cooling.
