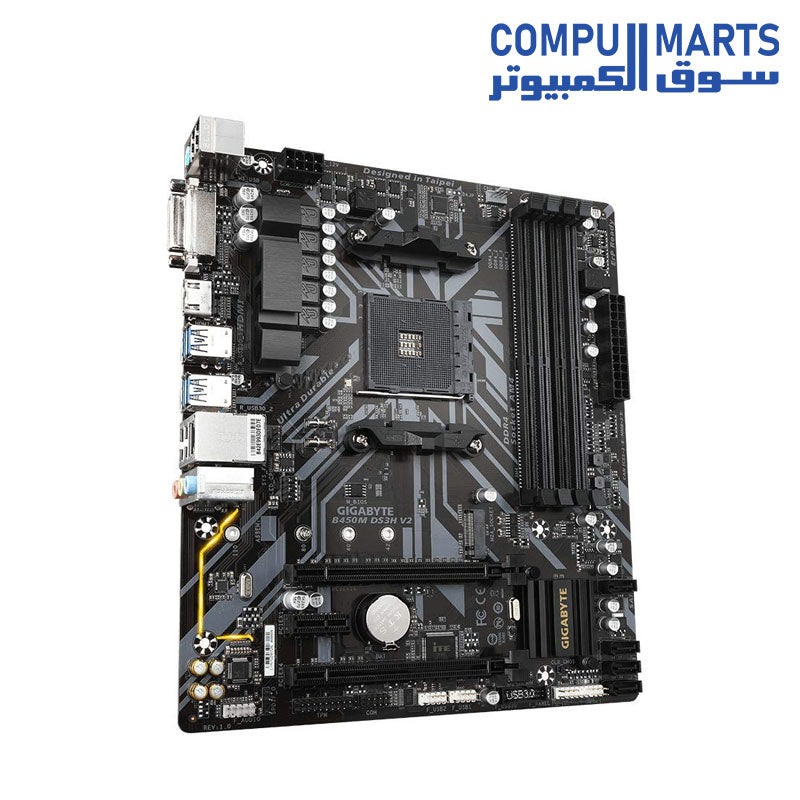

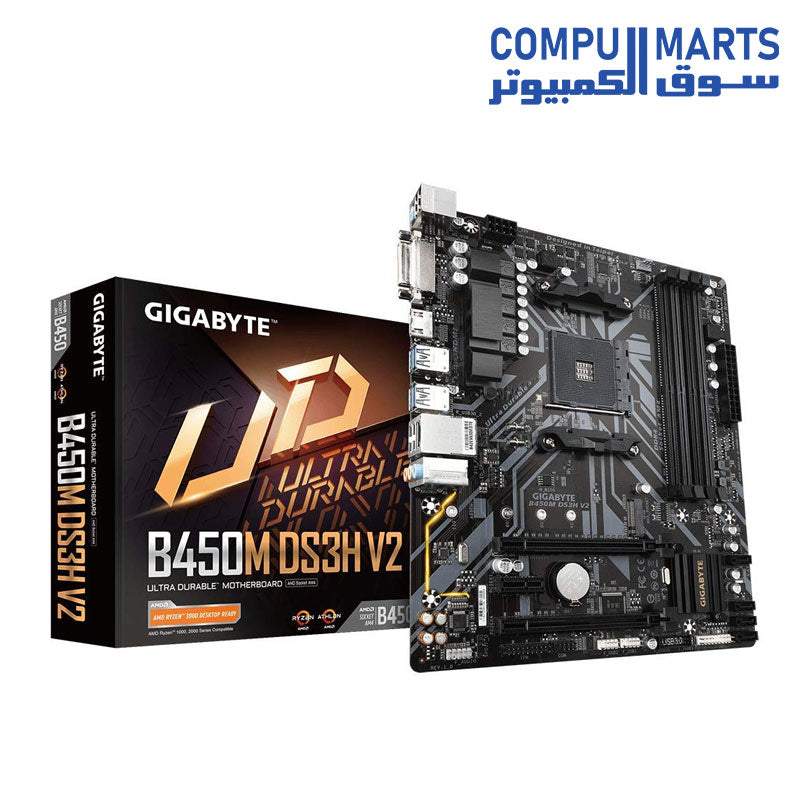

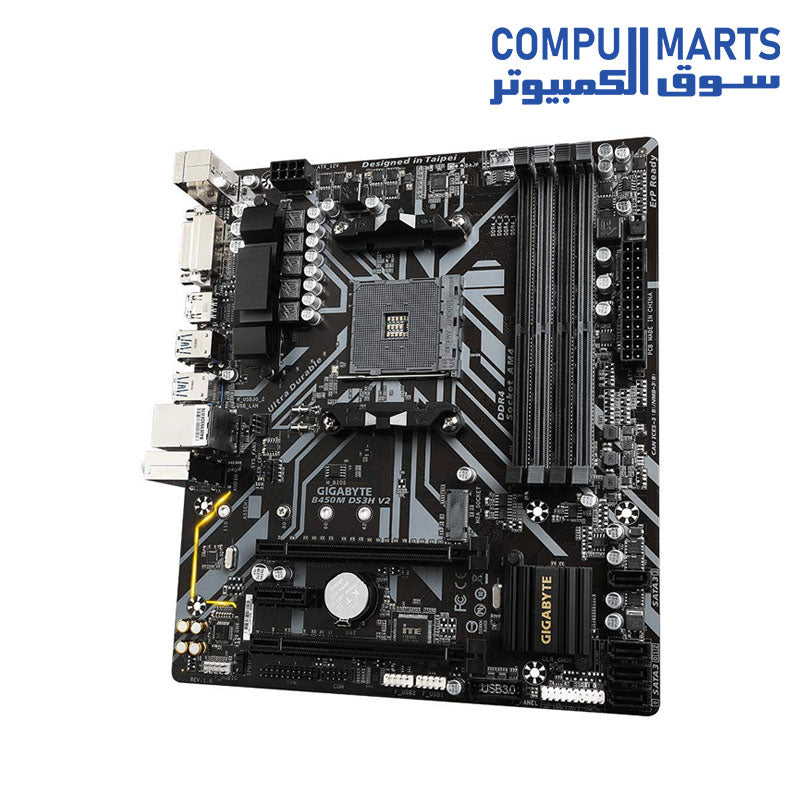

GIGABYTE B450M DS3H V2 AMD DDR4 Motherboard

GIGABYTE B450M DS3H V2 AMD DDR4 Motherboard

• Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryze with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

• Feature Digital VRM Solution with Low RDS(on) MOSFETs

• HDMI, DVI-D Ports for Multiple Display

• Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

• Realtek GbE LAN with Bandwidth Management

• RGB Fusion supports RGB LED Strips in 7-Colors

• Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP

• APP Center Including EasyTune and Cloud Station Utilities

• CEC 2019 Ready, Save Power with a Simple Click

• CPU

  1. AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryze with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors

  (Please refer "CPU Support List" for more information.)

• Chipset

  1. AMD B450

• Memory

  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  2. Dual channel memory architecture

  3. Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

• Onboard Graphics

  Integrated Graphics Processor:

  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

     * The DVI-D port does not support D-Sub connection by adapter.

  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz^(Note)

     * Support for HDMI 2.0 version and HDCP 2.2.^(Note)

  Maximum shared memory of 16 GB

  (Note) Actual support may vary by CPU.

• Audio

  1. Realtek Audio codec

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel

     To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

  4. Support for S/PDIF Out

• LAN

  1. Realtek GbE LAN chip (10/100/1000 Mbit)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)^(Note)

     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

     (The PCIEX16 slot conforms to PCI Express 3.0 standard.)

  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

  3. 1 x PCI Express x1 slot

     (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

  (Note) Actual support may vary by CPU.

• Multi-Graphics Technology

  1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

• Storage Interface

  1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)

     * Actual support may vary by CPU.

     * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU.

  2. 4 x SATA 6Gb/s connectors

  3. Support for RAID 0, RAID 1, and RAID 10

     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

• USB

  Chipset:

  1. 2 x USB 3.1 Gen 1 ports available through the internal USB header

  2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  CPU:

  1. 4 x USB 3.1 Gen 1 ports on the back panel

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 1 x system fan header

  5. 1 x M.2 Socket 3 connector

  6. 4 x SATA 6Gb/s connectors

  7. 1 x front panel header

  8. 1 x front panel audio header

  9. 1 x S/PDIF Out header

  10. 1 x CPU cooler LED strip/RGB LED strip header

  11. 1 x USB 3.1 Gen 1 header

  12. 2 x USB 2.0/1.1 headers

  13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)

  14. 1 x serial port header

  15. 1 x Clear CMOS jumper

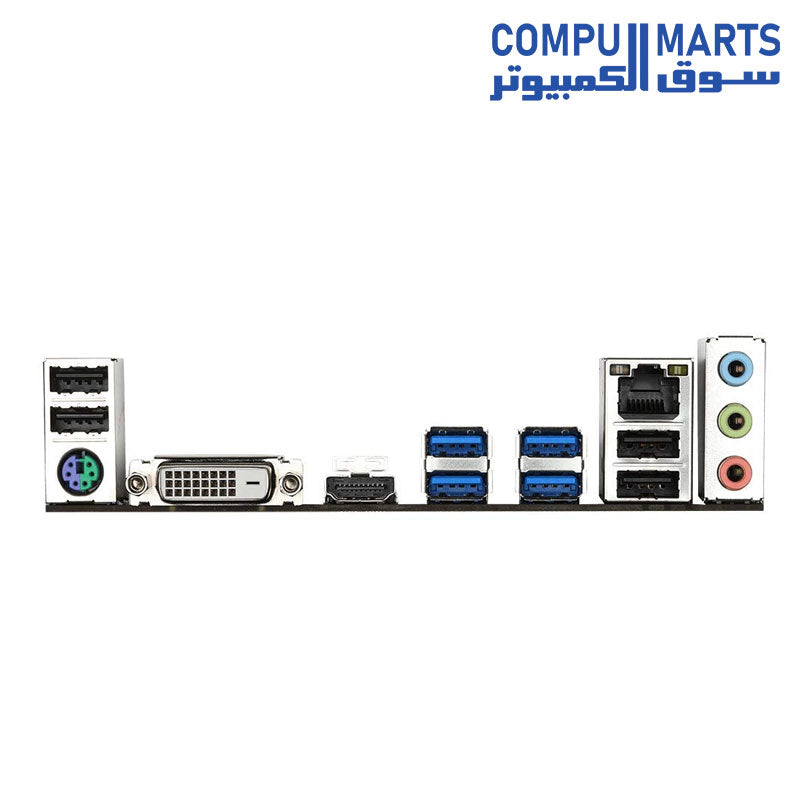

• Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port

  2. 1 x DVI-D port

  3. 1 x HDMI port

  4. 4 x USB 3.1 Gen 1 ports

  5. 4 x USB 2.0/1.1 ports

  6. 1 x RJ-45 port

  7. 3 x audio jacks

• I/O Controller

  1. iTE I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control

     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 128 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center

     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

     @BIOS

     EasyTune

     Fast Boot

     ON/OFF Charge

     RGB Fusion

     Smart Backup

     System Information Viewer

  2. Support for Q-Flash

  3. Support for Xpress Install

• Bundled Software

  1. Norton Internet Security (OEM version)

  2. LAN bandwidth management software

• Operating System

  1. Support for Windows 11 64-bit

  2. Support for Windows 10 64-bit

• Form Factor

  1. Micro ATX Form Factor; 24.4cm x 21.5cm
