GIGABYTE B760 AORUS ELITE DDR4 Motherboard

Vendor: GIGABYTE
SKU: 4719331851941
Availability: In Stock
Product Type: Motherboards
10,200.00 EGP
10,200.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
B760-AORUS-ELITE-Motherboard-GIGABYTE-INTEL

GIGABYTE B760 AORUS ELITE DDR4 Motherboard

10,200.00 EGP

GIGABYTE B760 AORUS ELITE DDR4 Motherboard

10,200.00 EGP

GIGABYTE B760 AORUS ELITE DDR4 Motherboard



  • Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors

  • Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution

  • Dual Channel DDR4:4*DIMMs with XMP Memory Module Support

  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors

  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD Performance

  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design

  • Fast Networks:2.5GbE LAN

  • Extended Connectivity:Rear and Front USB-C® 10Gb/s, DP, HDMI

  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card



  • CPU

    1. LGA1700 socket: Support for the 13th and 12th Generation Intel  Core  Pentium Gold and Celeron  Processors

    2. L3 cache varies with CPU

    * Please refer to “CPU Support List” for more information.

  • Chipset

    1. Intel  B760 Express Chipset

  • Memory

    1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules

    2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    3. Dual channel memory architecture

    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard GraphicsIntegrated Graphics Processor-Intel HD Graphics support:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz

      * Support for HDMI 2.0 version and HDCP 2.3.

    2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

      * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek Audio CODEC

    2. High Definition Audio

    3. 2/4/5.1/7.1-channel

      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    4. Support for S/PDIF Out

  • LAN

    1. Realtek  2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Expansion SlotsCPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

  • Storage InterfaceCPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)

    2. 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USBChipset:

    1. 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)

    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header

    Chipset+USB 3.2 Gen 1 Hub:

    1. 4 x USB 3.2 Gen 1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector

    2. 1 x 8-pin ATX 12V power connector

    3. 1 x 4-pin ATX 12V power connector

    4. 1 x CPU fan header

    5. 1 x CPU fan/water cooling pump header

    6. 3 x system fan headers

    7. 1 x system fan/water cooling pump header

    8. 2 x addressable LED strip headers

    9. 2 x RGB LED strip headers

    10. 3 x M.2 Socket 3 connectors

    11. 4 x SATA 6Gb/s connectors

    12. 1 x front panel header

    13. 1 x front panel audio header

    14. 1 x USB Type-C header, with USB 3.2 Gen 2 support

    15. 1 x USB 3.2 Gen 1 header

    16. 2 x USB 2.0/1.1 headers

    17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    18. 1 x reset button

    19. 1 x Q-Flash Plus button

    20. 1 x reset jumper

    21. 1 x Clear CMOS jumper

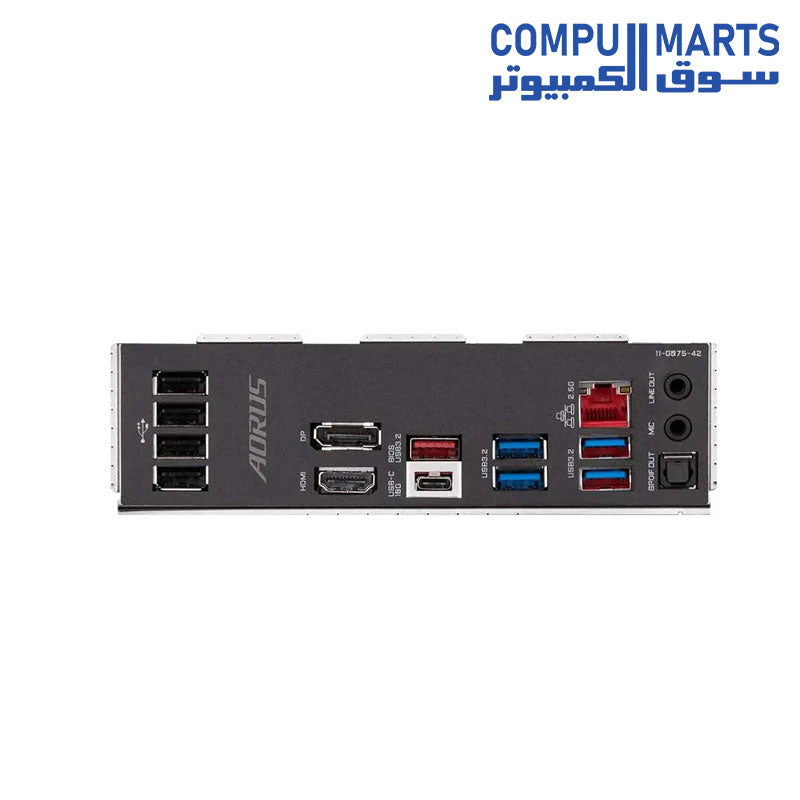

  • Back Panel Connectors

    1. 1 x USB Type-C port, with USB 3.2 Gen 2 support

    2. 1 x USB 3.2 Gen 2 Type-A port (red)

    3. 4 x USB 3.2 Gen 1 ports

    4. 4 x USB 2.0/1.1 ports

    5. 1 x HDMI port

    6. 1 x DisplayPort

    7. 1 x RJ-45 port

    8. 1 x optical S/PDIF Out connector

    9. 2 x audio jacks

  • I/O Controller

    1. iTE I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection

    2. Temperature detection

    3. Fan speed detection

    4. Water cooling flow rate detection

    5. Fan fail warning

    6. Fan speed control

      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS

    1. 1 x 256 Mbit flash

    2. Use of licensed AMI UEFI BIOS

    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)

      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    2. Support for Q-Flash

    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton Internet Security (OEM version)

    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit

    2. Support for Windows 10 64-bit

  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm
