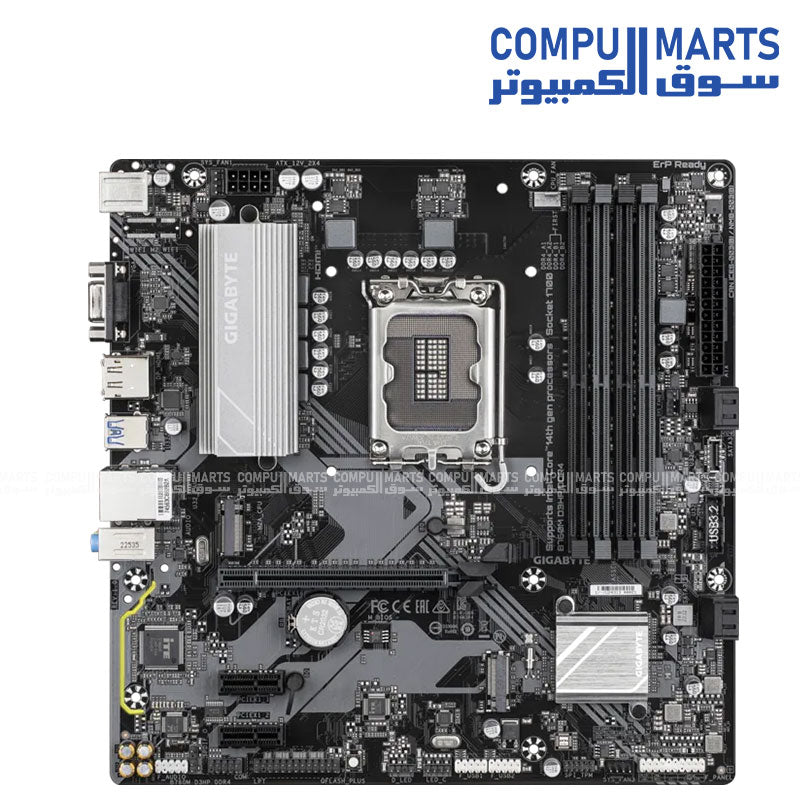

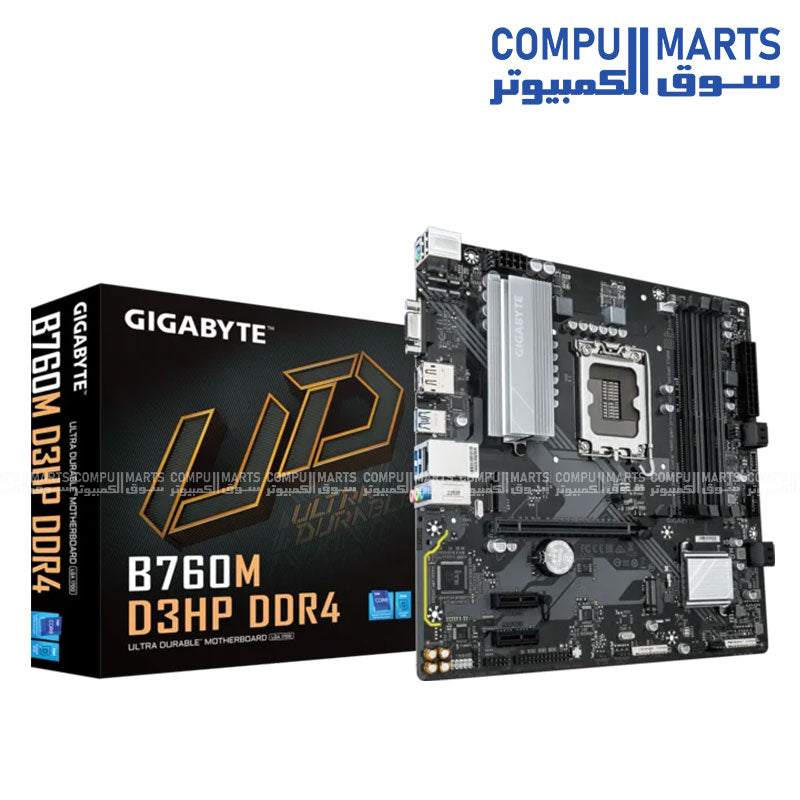

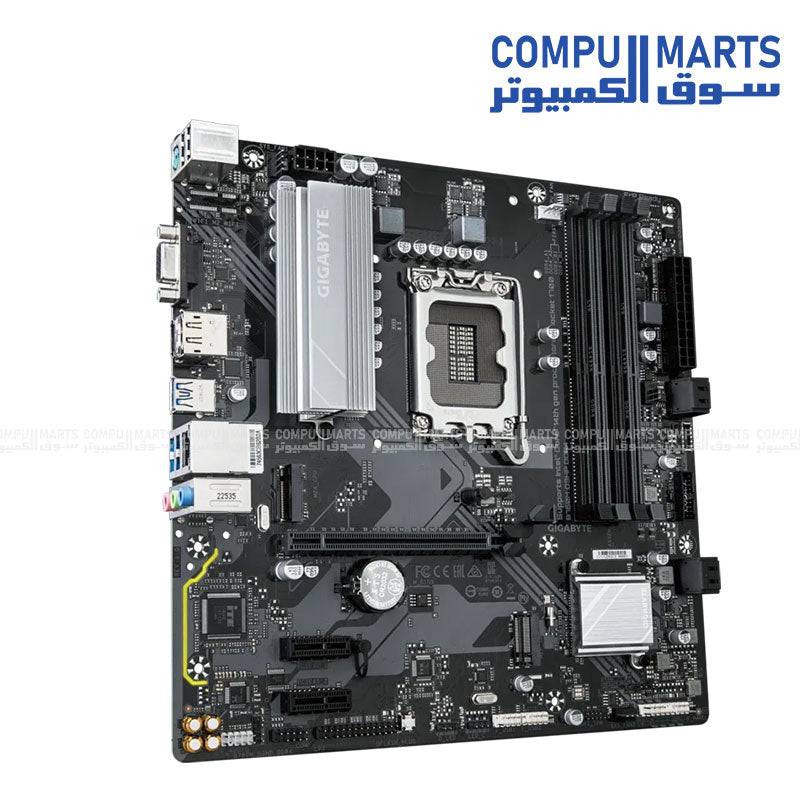

The GIGABYTE B760M D3HP DDR4 Motherboard features the Intel® B760 Express Chipset and an LGA1700 socket supporting 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. It supports DDR4 memory modules up to 128 GB across four DDR4 DIMM sockets, with supported memory speeds up to 5333(O.C.) MT/s and dual channel memory architecture. Storage includes 2 x M.2 connectors supporting PCIe 4.0 x4/x2 SSDs and 4 x SATA 6Gb/s connectors, while expansion includes a PCI Express x16 slot supporting PCIe 4.0 at x16 and two PCI Express x1 slots supporting PCIe 3.0 at x1. The motherboard also provides Realtek® GbE LAN, integrated graphics outputs including D-Sub, HDMI and DisplayPort, USB 3.2 Gen 1 and USB 2.0/1.1 connectivity, Realtek® High Definition Audio with 2/4/5.1/7.1-channel support, Q-Flash Plus, and a Micro ATX Form Factor; 24.4cm x 24.4cm. The GIGABYTE B760M D3HP DDR4 is available for shoppers looking for an Intel B760 DDR4 motherboard in Egypt through Compumarts.
Key specs
| CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors; L3 cache varies with CPU; (Please refer "CPU Support List" for more information.) |
| CHIPSET | Intel® B760 Express Chipset |
| MEMORY | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules; 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| ONBOARD GRAPHICS | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; Support for HDMI 2.1 version and HDCP 2.3; Support for native HDMI 2.1 TMDS compatible ports; 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; Support for DisplayPort 1.2 version and HDCP 2.3; Support for up to triple-display at the same time |
| AUDIO | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; You can change the functionality of an audio jack using the audio software; To configure 7.1-channel audio, access the audio software for audio settings; Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| EXPANSION SLOTS | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16; The PCIEX16 slot can only support a graphics card or an NVMe SSD; Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| STORAGE INTERFACE | CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB | Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header; 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
| INTERNAL I/O CONNECTORS | 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x serial port header; 1 x parallel port header; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset jumper; 1 x Clear CMOS jumper |

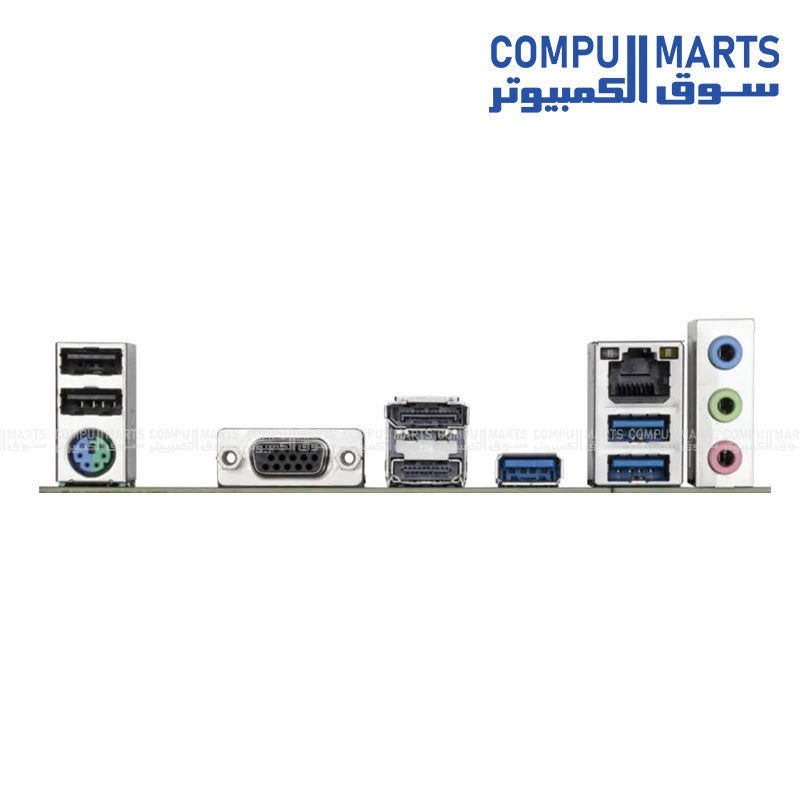

| BACK PANEL CONNECTORS | 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port*; 1 x DisplayPort*; 1 x HDMI port*; 3 x USB 3.2 Gen 1 ports; 1 x RJ-45 port; 3 x audio jacks; * Actual support may vary by CPU. |
| I/O CONTROLLER | iTE® I/O Controller Chip |
| H/W MONITORING | Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Fan fail warning; Fan speed control; Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS | 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| UNIQUE FEATURES | Support for GIGABYTE Control Center (GCC); Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications; Support for Q-Flash; Support for Q-Flash Plus |
| BUNDLED SOFTWARE | Norton® Internet Security (OEM version) |
| OPERATING SYSTEM | Support for Windows 11 64-bit; Support for Windows 10 64-bit |
| FORM FACTOR | Micro ATX Form Factor; 24.4cm x 24.4cm |
