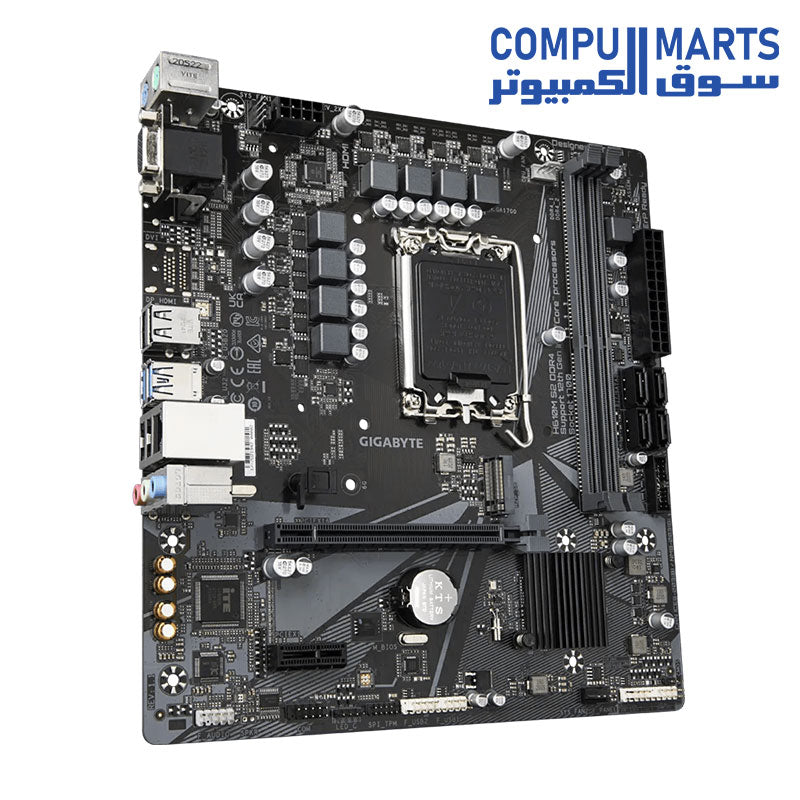

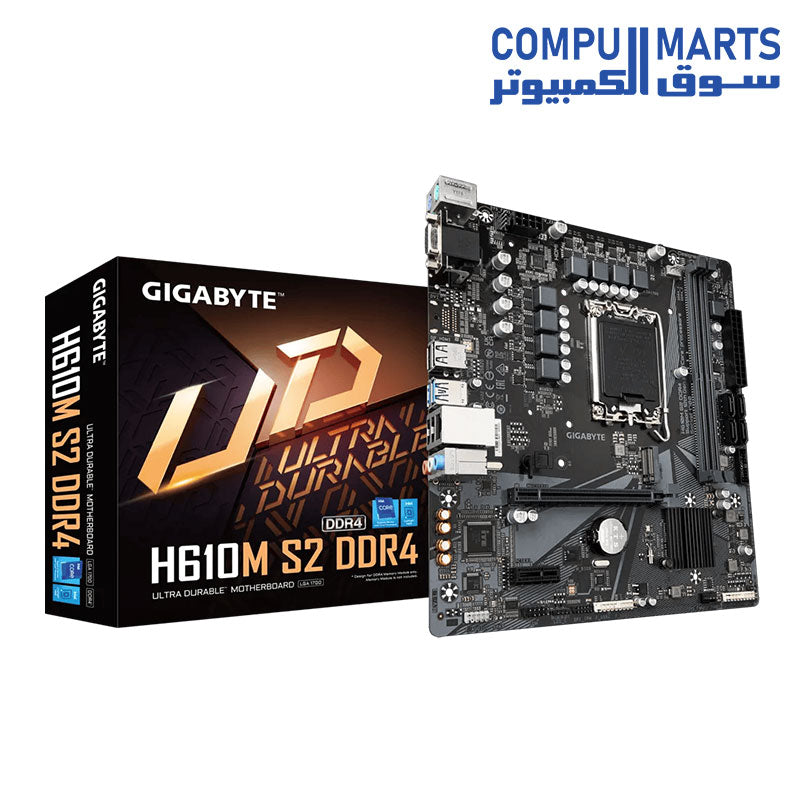

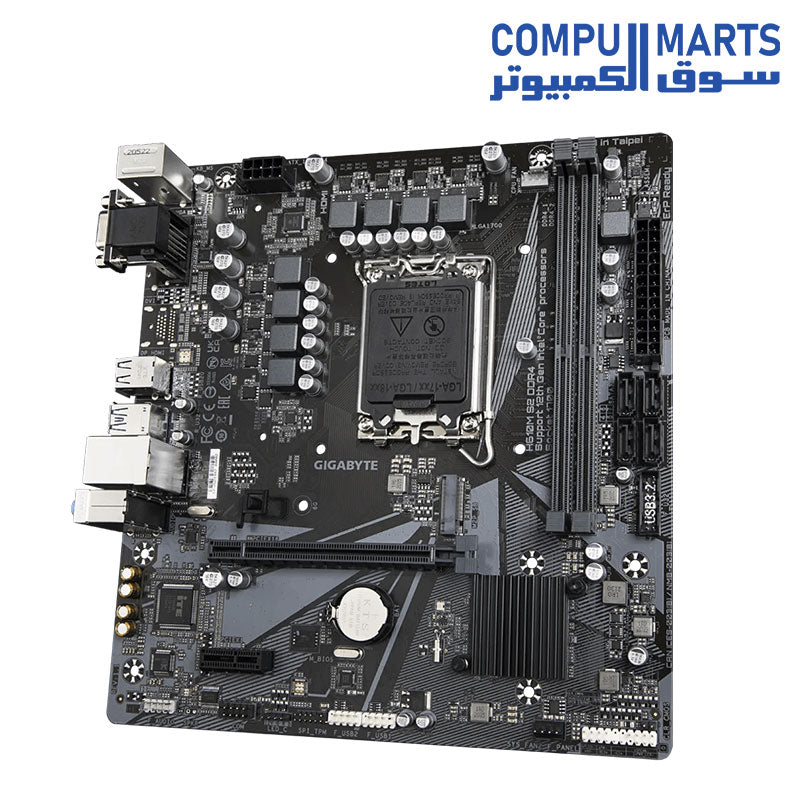

Gigabyte H610M S2 DDR4

Intel H610 Motherboard with 6+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Realtek Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6

Gigabyte H610M S2 DDR4 Motherboard Features

6 + 1 + 1 phases hybrid power design
Cleaner and more efficient power delivery to the CPU with better thermal performance ensures stability under high CPU frequencies and heavy load.

6 + 1 + 1 low phase RDS (on) MOSFETs
Solid capacitors for improved transient response and reduced oscillation.
8-pin hard core CPU power connector.

Exclusive Realtek 8118 Gaming LAN
High-speed gigabit LAN with automatic bandwidth allocation
Realtek 8118 LAN is a high-performance, gamer-friendly network chip with automatic bandwidth allocation to ensure the highest network priority in a game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience.

Solid power connectors

H610 motherboards feature ATX 12V 8pin solid state power connectors to provide a stable power supply during CPU overload.
Advantages of a solid power connector

Larger contact area for electricity
More metal for higher energy conservation and heat generation
Ultra durable and longer life

BIOS
The BIOS is necessary for users during the initial setup to allow for optimal settings. With a new graphical user interface and easier-to-use functions, GIGABYTE has reinvented the BIOS to give users a better experience while setting up their new system.

Gigabyte H610M S2 DDR4 motherboard specifications

• CPU

  LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron Processors*

• L3 cache varies with CPU

• Chipset

  Intel H610 Express Chipset

• Memory

  Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  Dual channel memory architecture

  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  Support for Extreme Memory Profile (XMP) memory modules




• Onboard Graphics

  Integrated Graphics Processor-Intel HD Graphics support:

  1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

  (Graphics specifications may vary depending on CPU support.)

• Audio

  Realtek® Audio CODEC

• High Definition Audio

  2/4/5.1/7.1-channel

  You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  1 x PCI Express x16 slot, running at x16

  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

  1 x PCI Express x1 slot

  (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

• Storage Interface

• Chipset:

  1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

  4 x SATA 6Gb/s connectors

  USB

• Chipset:

  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  4 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1 x 24-pin ATX main power connector

  1 x 8-pin ATX 12V power connector

  1 x M.2 Socket 3 connector

  4 x SATA 6Gb/s connectors

  1 x CPU fan header

  2 x system fan headers

  1 x RGB LED strip header

  1 x front panel header

  1 x front panel audio header

  1 x USB 3.2 Gen 1 header

  2 x USB 2.0/1.1 headers

  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  1 x serial port header

  1 x Clear CMOS jumper

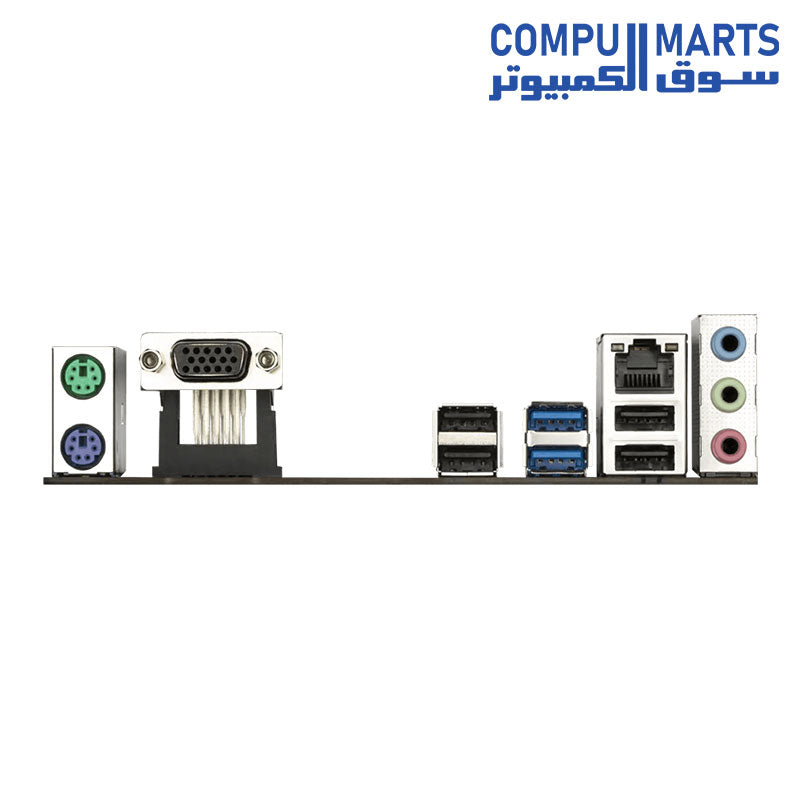

• Back Panel Connectors

  1 x PS/2 keyboard port

  1 x PS/2 mouse port

  1 x D-Sub port

  2 x USB 3.2 Gen 1 ports

  4 x USB 2.0/1.1 ports

  1 x RJ-45 port

  3 x audio jacks

• I/O Controller

  iTE® I/O Controller Chip

• H/W Monitoring

  Voltage detection

  Temperature detection

  Fan speed detection

  Overheating warning

  Fan fail warning

  Fan speed control

  * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1 x 256 Mbit flash

  Use of licensed AMI UEFI BIOS

  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  Support for APP Center

  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• @BIOS

  Ambient LED

  EasyTune

  Smart Backup

  System Information Viewer

  Support for Q-Flash

  Support for Xpress Install

• Bundled Software

  Norton® Internet Security (OEM version)

  LAN bandwidth management software

• Operating System

  Support for Windows 11 64-bit

  Support for Windows 10 64-bit

• Form Factor

  Micro ATX Form Factor; 23.0cm x 21.5cm
