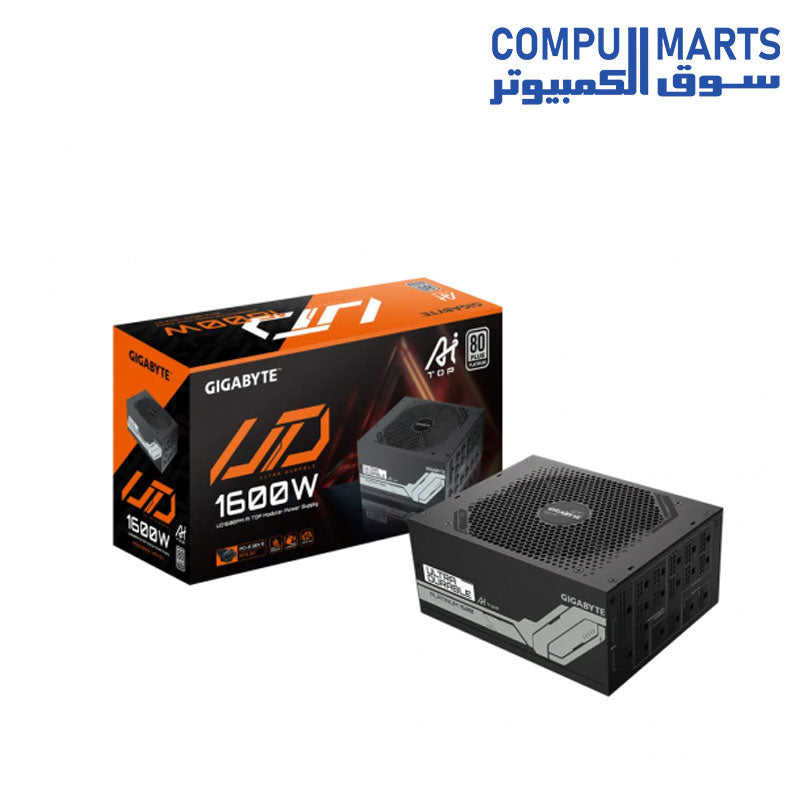

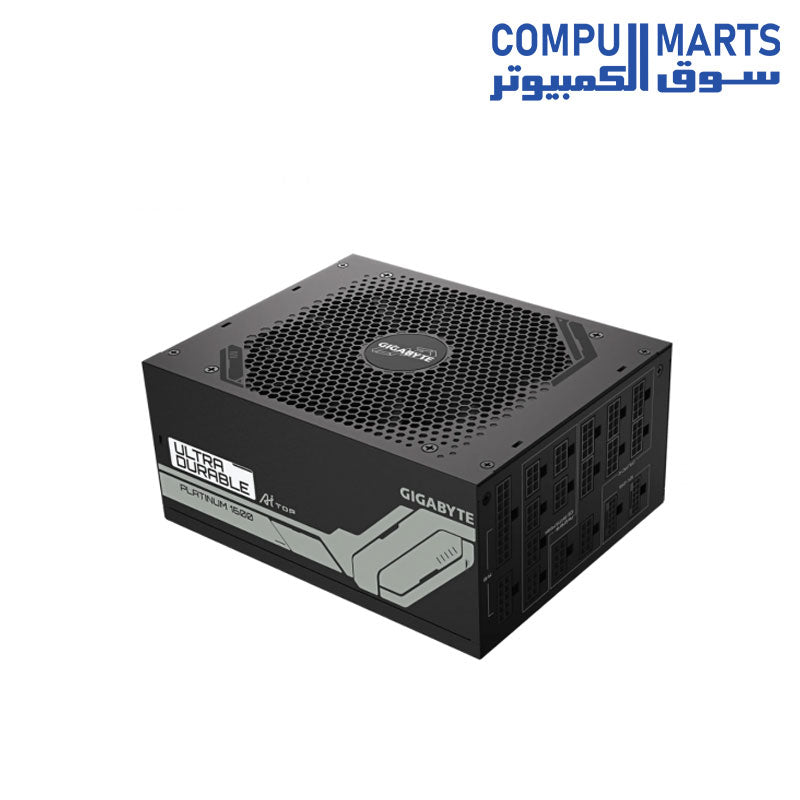

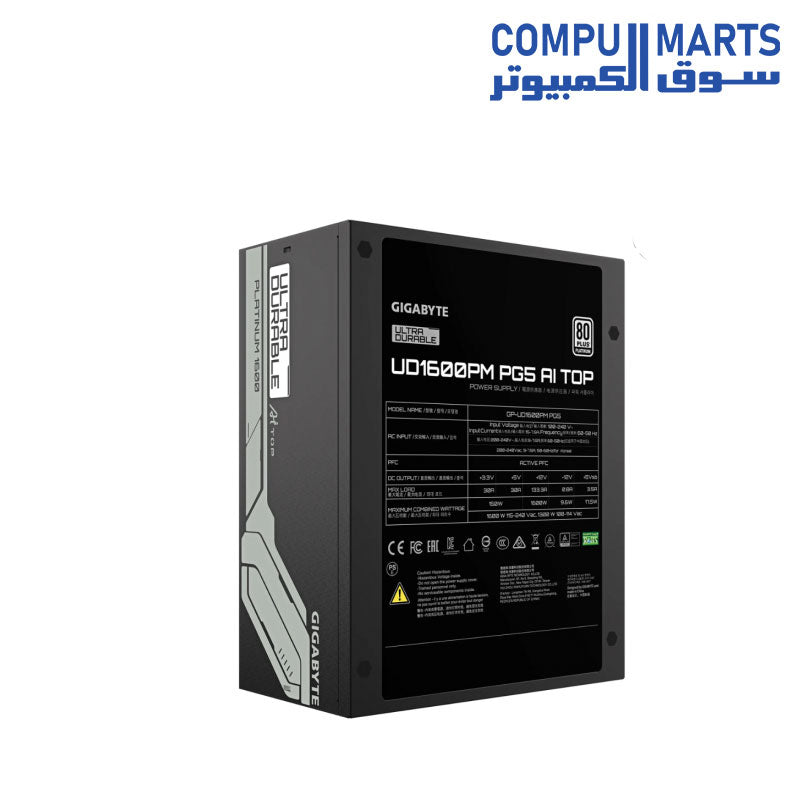

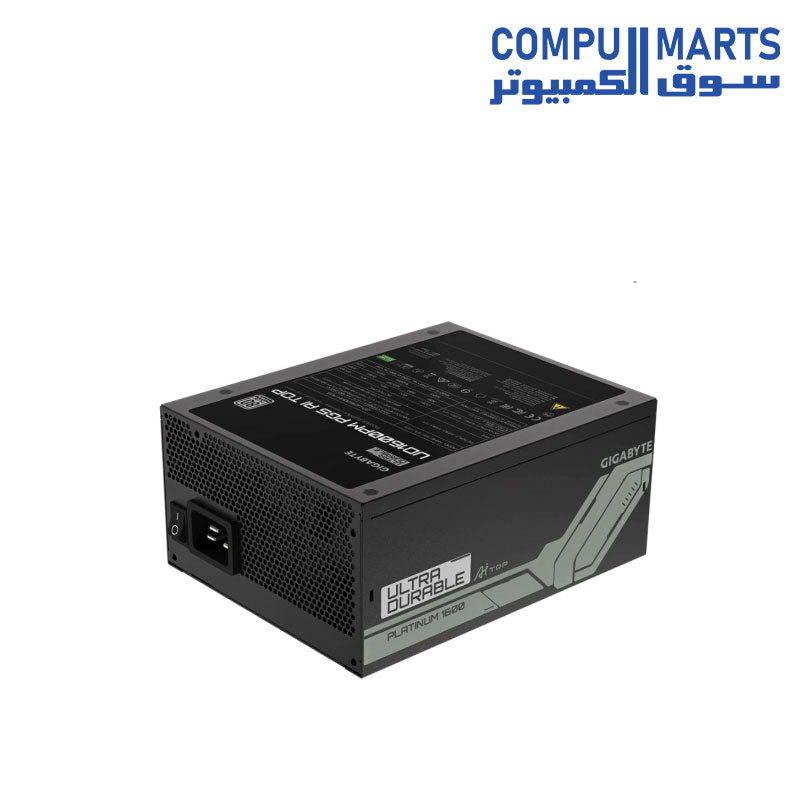

Gigabyte UD1600PM PG5 ,1600W, 80PLUS Platinum, ATX 3.1 and PCIe Gen 5.0 ready, Japanese capacitors, Fully modular

• Form Factor: Intel Form Factor ATX 12V v3.1

Power Factor Correction

• PFC: Active PFC (>0.9 typical)

Input Specifications

• Input Voltage: 100-240 Vac (full range)

• Input Current: 15-7.5 A

• Input Frequency: 60-50 Hz

Output Specifications

• Output Capacity: 1600 W

Physical Dimensions

• Dimension: 150 x 190 x 86 mm

Cooling

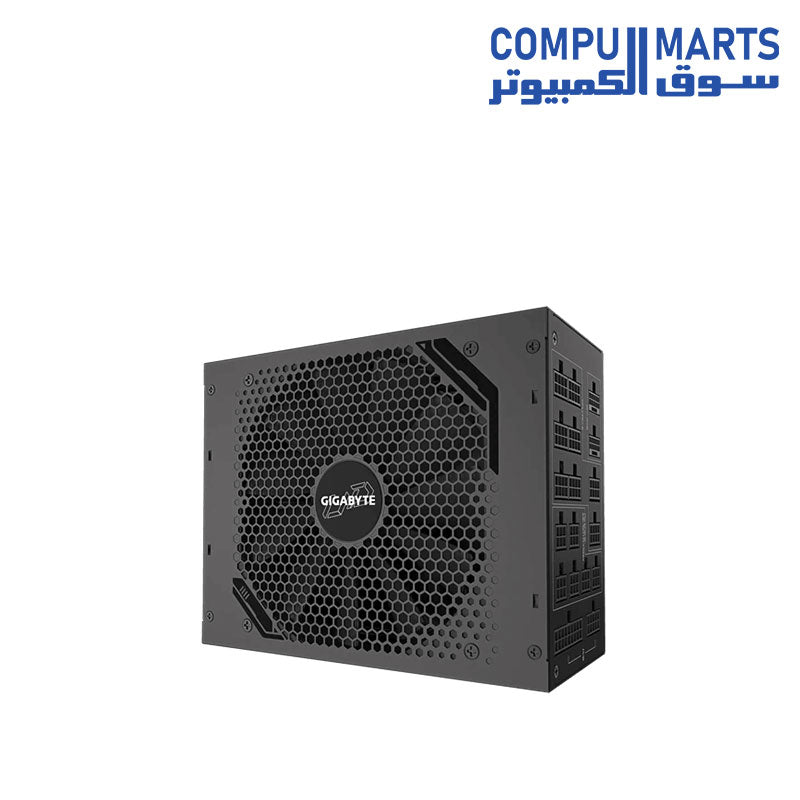

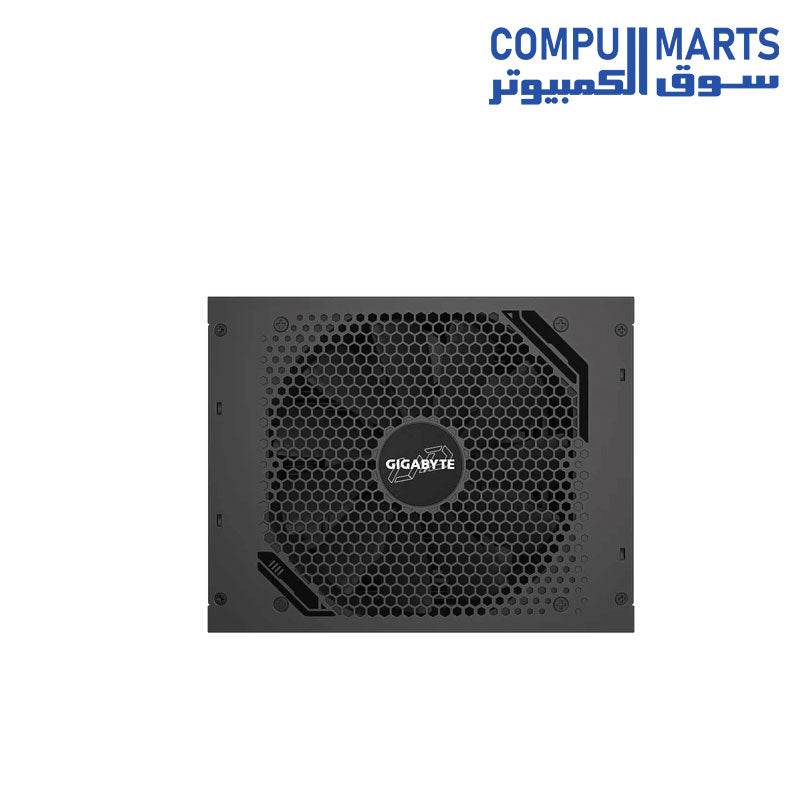

• Fan Type: 140 mm Double Ball Bearing fan

Efficiency

• 80 PLUS Rating: Platinum

• Efficiency: 92% at typical load

Reliability

• MTBF (Mean Time Between Failures): >100,000 hours

Protection Features

• Protection: OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OTP (Over Temperature Protection)

Signal & Timing

• Power Good Signal: 100-150 ms

• Hold Up Time: >16 ms

Cable Specifications

• Cable Type: Flat, All black

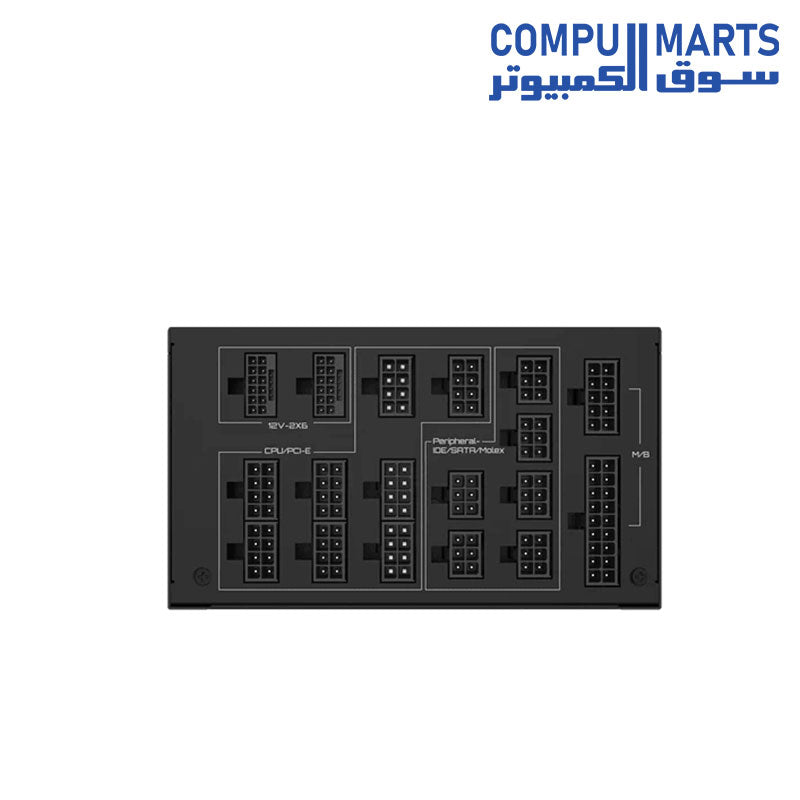

Connectors

• ATX/MB 20+4 Pin: x 1 (610 mm)

• CPU/EPS 4+4 Pin: x 2 (650 mm)

• PCI-E 16 Pin: x 2 (700 mm)

• PCI-E 16 Pin to PCI-E 8 Pin: x 2 (700 mm)

• PCI-E 6+2 Pin: x 8 (650 mm + 150 mm)

• SATA: x 16 (650 mm + 150 mm + 150 mm + 150 mm)

• 4 Pin Peripheral: x 6 + 4 Pin Floppy x 2 (600 mm + 150 mm + 150 mm + 150 mm)
