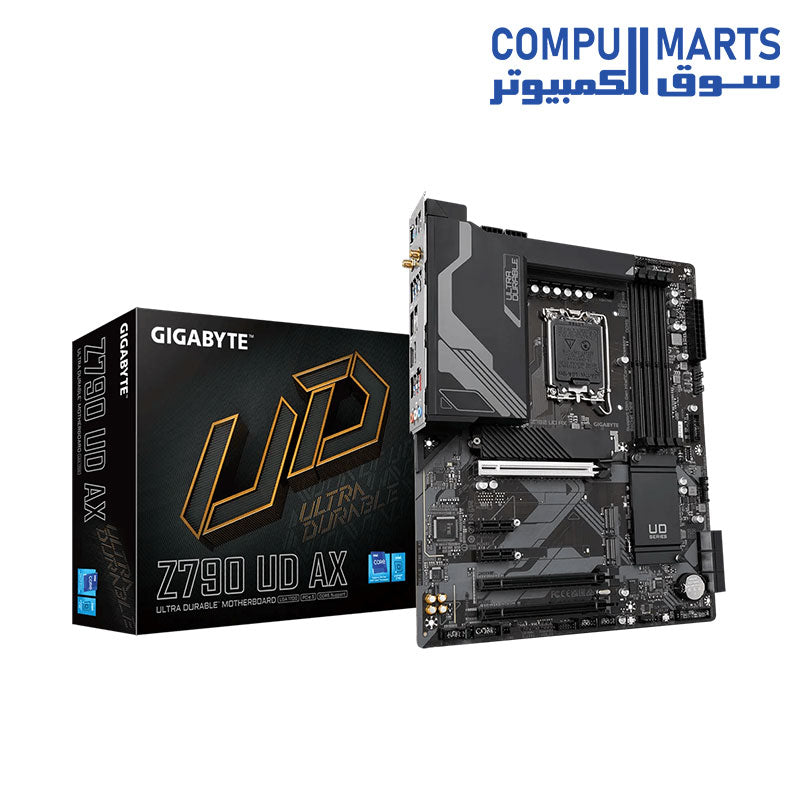

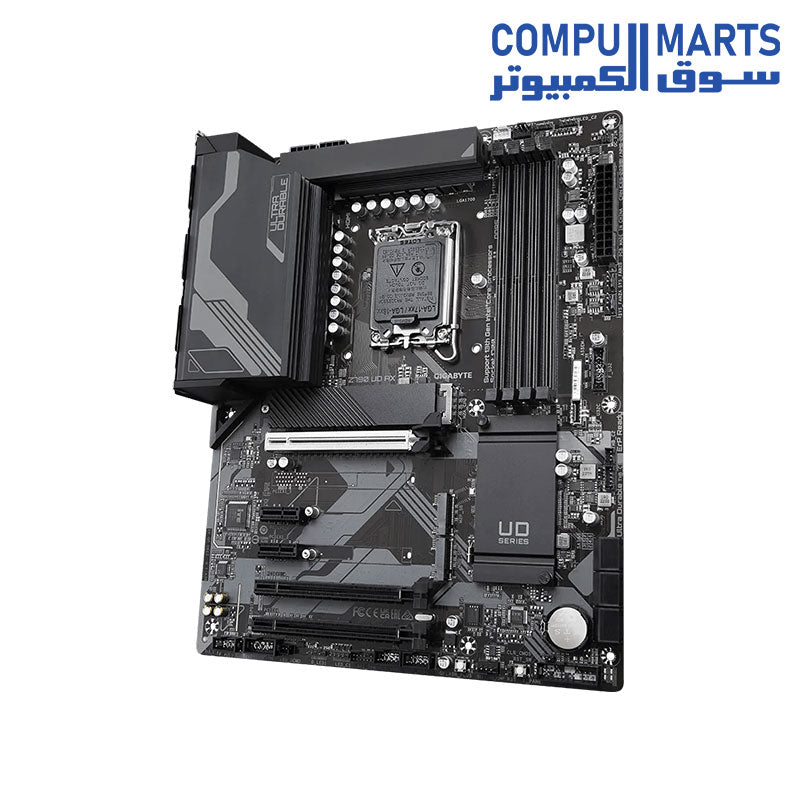

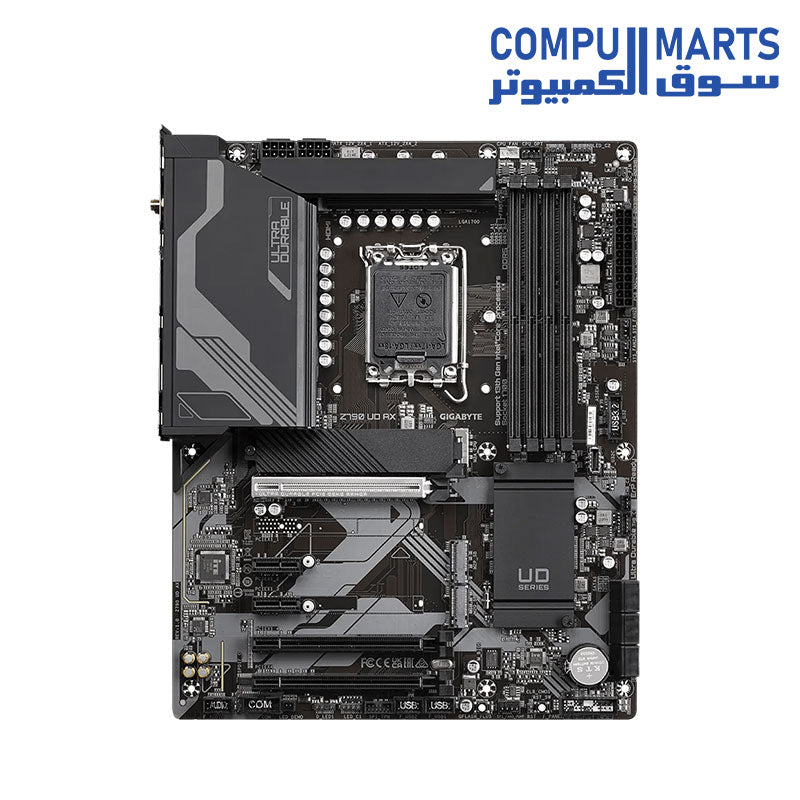

GIGABYTE Z790 UD AX DDR5 LGA1700 Motherboard

Vendor: GIGABYTE
SKU: 4719331850395
Availability: Out Of Stock
Product Type: Motherboards
11,760.00 EGP
11,760.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
Z790-UD-AX-Motherboard-GIGABYTE-DDR5-LGA1700

GIGABYTE Z790 UD AX DDR5 LGA1700 Motherboard

11,760.00 EGP

GIGABYTE Z790 UD AX DDR5 LGA1700 Motherboard

11,760.00 EGP

GIGABYTE Z790 UD AX DDR5 LGA1700 Motherboard



  • Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors

  • Unparalleled Performance:Twin 16+1+1 Phases Digital VRM Solution

  • Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support

  • Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors

  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance

  • EZ-Latch Plus:PCIe 5.0 x16 Slot with Quick Release & Screwless Design

  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax

  • Extended Connectivity:DP, HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s

  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

GIGABYTE Z790 UD AX DDR5 Motherboard

  • CPU

    1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    2. L3 cache varies with CPU


  • Chipset

    1. Intel Z790 Express Chipset
  • Memory

    1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    2. 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules


  • Onboard Graphics

    Integrated Graphics Processor-Intel HD Graphics support:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.0 version and HDCP 2.3.
    2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
      * Support for DisplayPort 1.2 version and HDCP 2.3

    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    4. Support for S/PDIF Out
  • LAN

    1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module

    Intel Wi-Fi 6E AX210 (For PCB rev. 1.0)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Intel Wi-Fi 6E AX211 (For PCB rev. 1.1)

    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    CPU:

    1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:

    1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    2. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
    3. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

    Support for AMD CrossFire technology (PCIEX16 and PCIEX4)

  • Storage Interface

    CPU:

    1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1. 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
    2. 6 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:

    1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2×2 support
    2. 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 2 x 8-pin ATX 12V power connectors
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 3 x system fan headers
    6. 1 x system fan/water cooling pump header
    7. 2 x addressable LED strip headers
    8. 2 x RGB LED strip headers
    9. 3 x M.2 Socket 3 connectors
    10. 6 x SATA 6Gb/s connectors
    11. 1 x front panel header
    12. 1 x front panel audio header
    13. 1 x S/PDIF Out header
    14. 1 x USB Type-C header, with USB 3.2 Gen 1 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x serial port header
    18. 2 x Thunderbolt add-in card connectors
    19. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    20. 1 x reset button
    21. 1 x Q-Flash Plus button
    22. 1 x reset jumper
    23. 1 x Clear CMOS jumper

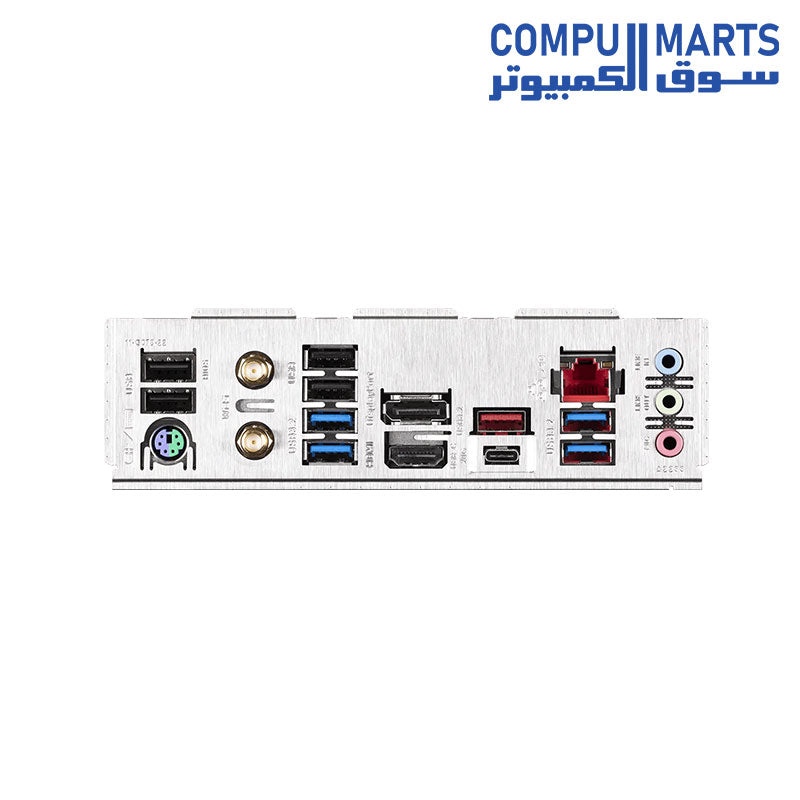

  • Back Panel Connectors

    1. 1 x USB Type-C port, with USB 3.2 Gen 2×2 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red)
    3. 4 x USB 3.2 Gen 1 ports
    4. 4 x USB 2.0/1.1 ports
    5. 2 x SMA antenna connectors (2T2R)
    6. 1 x HDMI 2.0 port
    7. 1 x DisplayPort
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller

    1. iTE I/O Controller Chip
  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus
    4. Support for Smart Backup
  • Bundled Software

    1. Norton Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor

    1. ATX Form Factor; 30.5cm x 24.4cm
