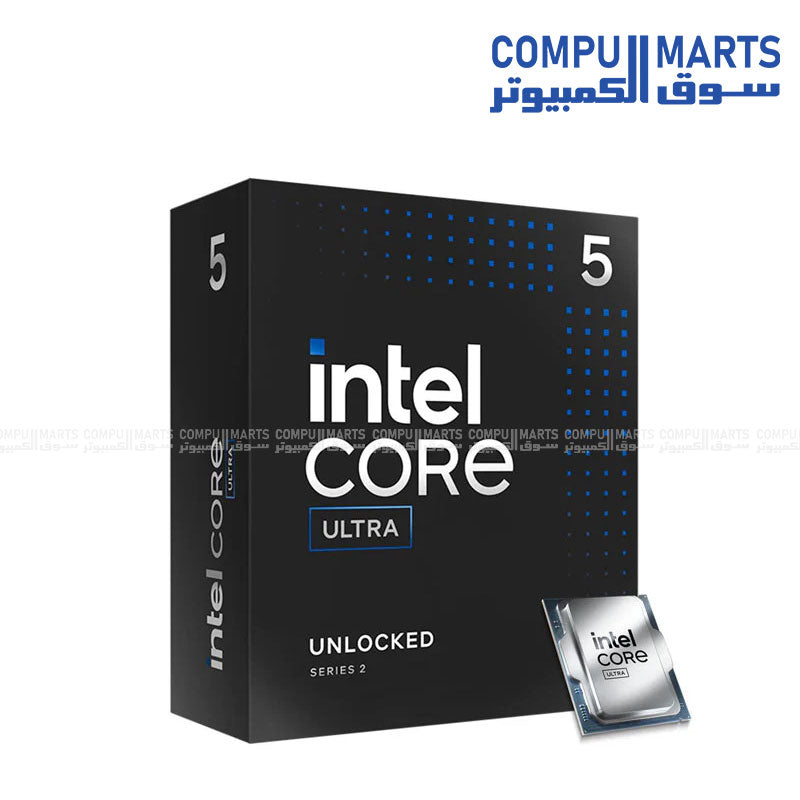

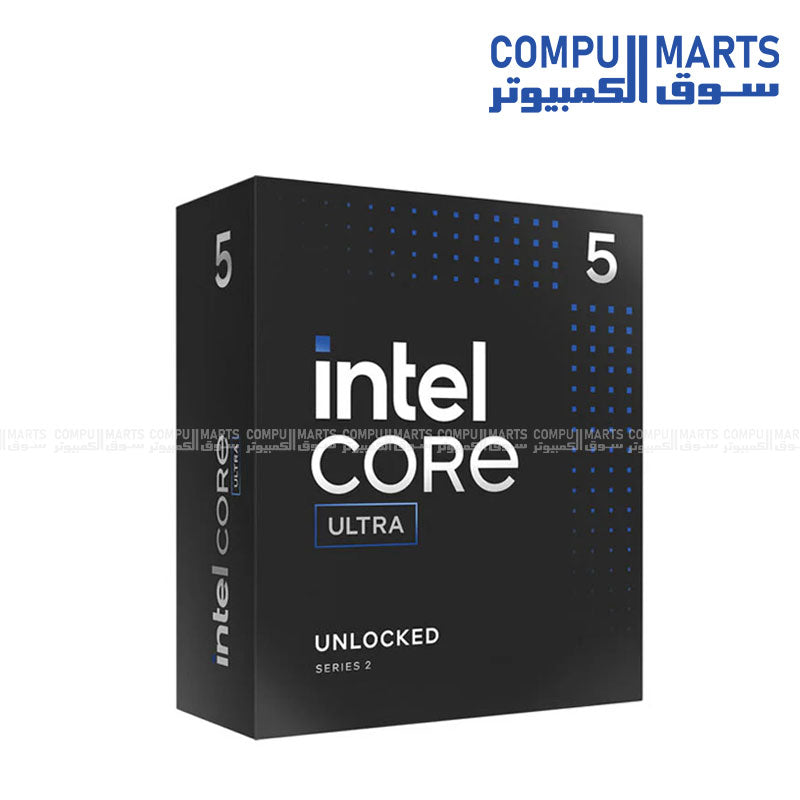

Intel Core Ultra 5 Desktop Processor 245KF - 14 cores (6 P-cores + 8 E-cores) up to 5.2 GHz

Intel Core Ultra 5 Desktop Processor 245KF





CPU Specifications:

Total Cores

14

of Performance-cores

6

 of Efficient-cores

8

Total Threads

14

Max Turbo Frequency

5.2 GHz

Performance-core Max Turbo Frequency

5.2 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Performance-core Base Frequency

4.2 GHz

Efficient-core Base Frequency

3.6 GHz

Cache

24 MB Intel Smart Cache

Total L2 Cache

26 MB

Processor Base Power

125 W

Maximum Turbo Power

159 W

Intel  Deep Learning Boost (Intel  DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Use Conditions

PC/Client/Tablet

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 6400 MT/s

Maximum Memory Speed

6400 MHz

Max   of Memory Channels

2

NPU Specifications

NPU Name

Intel  AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO , WindowsML, DirectML, ONNX RT, WebNN

Direct Media Interface (DMI) Revision

4

Max of DMI Lanes

8

Intel  Thunderbolt 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations

Up to 1x16+2x4, 2x8+2x4,
1x8+4x4

Max # of PCI Express Lanes

24

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Intel  Volume Management Device (VMD)

Yes

Intel  Gaussian & Neural Accelerator

3.5

Intel  Thread Director

Yes

Intel Speed Shift Technology

Yes

Intel  Turbo Boost Technology

2.0

Intel  64 ^‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel  SSE4.1, Intel  SSE4.2, Intel  AVX2

Idle States

Yes

Enhanced Intel SpeedStep  Technology

Yes

Thermal Monitoring Technologies

Yes
