Lenovo Legion 83DG00CWAD – Intel Core i7-14650HX / RTX 4050 6GB / 16GB DDR5 / 1TB SSD / 16" WQXGA 165Hz / Luna Grey / RGB Keyboard / DOS

Intel Core i7-14650HX, 16C (8P + 8E) / 24T, P-core 2.2 / 5.2GHz, E-core 1.6 / 3.7GHz, 30MB

AI-Powered Gaming PC

NVIDIA GeForce RTX 4050 6GB GDDR6, Boost Clock 2370MHz, TGP 140W, 194 AI TOPS

Intel HM770 Chipset

1x 16GB SO-DIMM DDR5-5600

Two DDR5 SO-DIMM slots, dual-channel capable

Up to 64GB DDR5-5600

1TB SSD M.2 2280 PCIe 4.0x4 NVMe

Two M.2 2280 PCIe 4.0 x4 slots

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB

None

microSD Card Reader

High Definition (HD) Audio, Realtek ALC3287 codec

Stereo speakers, 2W x2, optimized with Nahimic Audio

2x, Array

FHD 1080p with E-shutter

80Wh

230W Slim Tip (3-pin)

AI Chip: LA1

16" WQXGA (2560x1600) IPS 350nits Anti-glare, 100% sRGB, 165Hz, Dolby Vision, G-SYNC, Low Blue Light

None

93% AAR (active area ratio)

Factory Color Calibration

Pen Not Supported

4-Zone RGB Backlit, Arabic

Buttonless Mylar surface multi-touch touchpad, 75 x 120 mm (2.95 x 4.72 inches)

359.7 x 262.3 x 19.7-25.2 mm (14.16 x 10.33 x 0.78-0.99 inches)

Around 2.36 kg (5.2 lbs)

Luna Grey

Aluminium (Top), PC-ABS (Bottom)

Aluminium Stamping (Anodized with Sandblasting)

None

None

Wi-Fi® 6E, 802.11ax 2x2 + BT5.2

Non-WWAN

100/1000M (RJ-45)

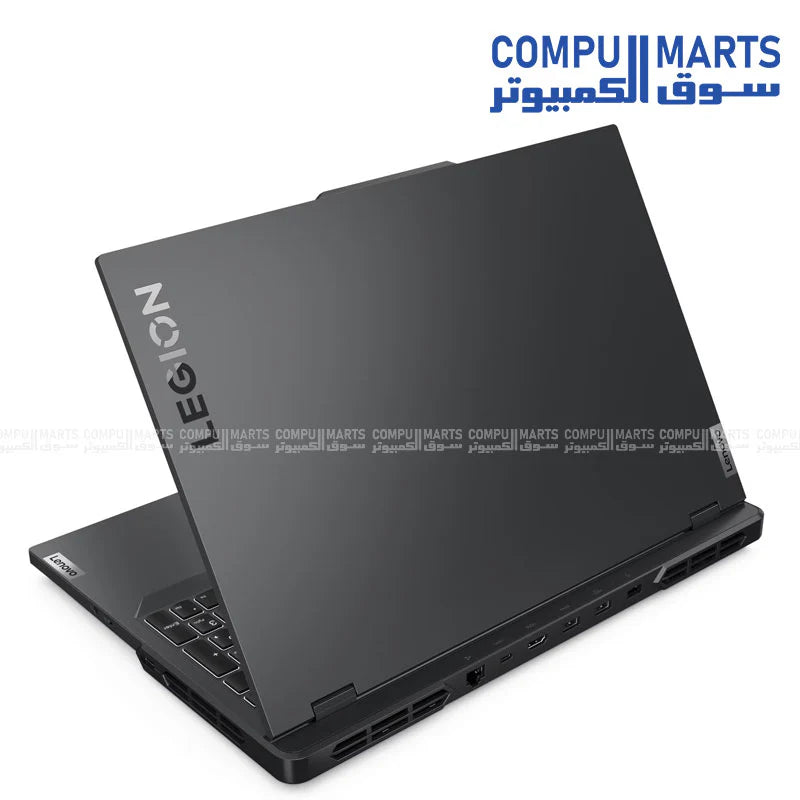

• 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
• 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
• 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with Lenovo PD 140W and DisplayPort™ 1.4
• 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort 1.4
• 1x HDMI 2.1, up to 8K/60Hz
• 1x Headphone / microphone combo jack (3.5mm)
• 1x Ethernet (RJ-45)
• 1x Card reader
• 1x Power connector

Firmware TPM 2.0 Enabled

None

E-shutter

2-year, Courier or Carry-in

None

Lenovo Legion Gaming Speed Mouse Pad M

• ErP Lot 6/26
• RoHS compliant

83DG00CWAD
