Motherboard ASUS PRIME H510M-E Intel H510 (LGA 1200) micro ATX with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header

Vendor: ASUS
SKU: 10907
Availability: In Stock
Product Type: Motherboards
5,150.00 EGP
5,150.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
H510M-E-Motherboard-ASUS-intel

Motherboard ASUS PRIME H510M-E Intel H510 (LGA 1200) micro ATX with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header

5,150.00 EGP

Motherboard ASUS PRIME H510M-E Intel H510 (LGA 1200) micro ATX with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header

5,150.00 EGP

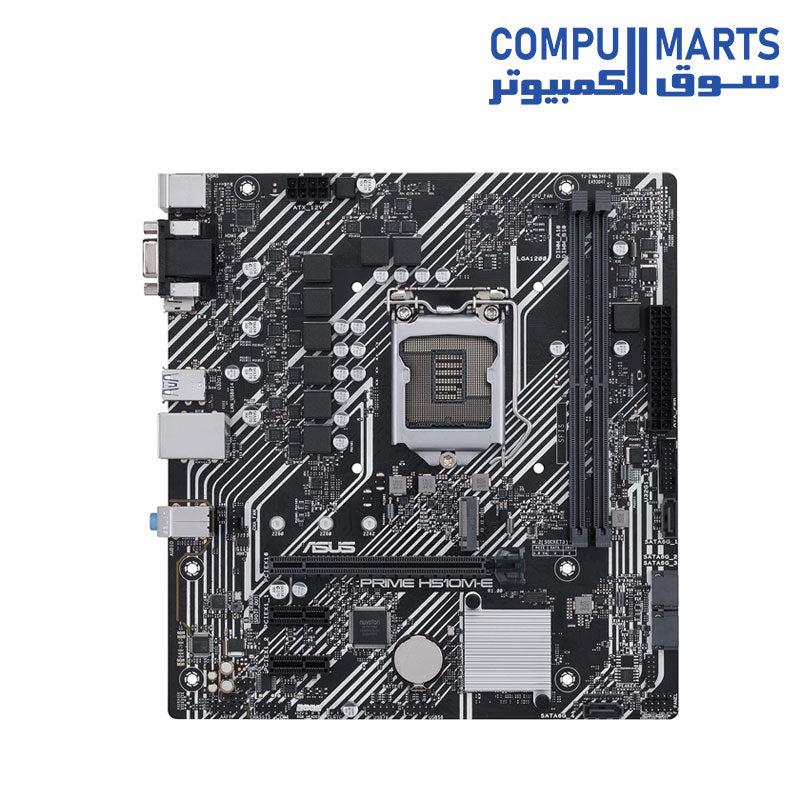

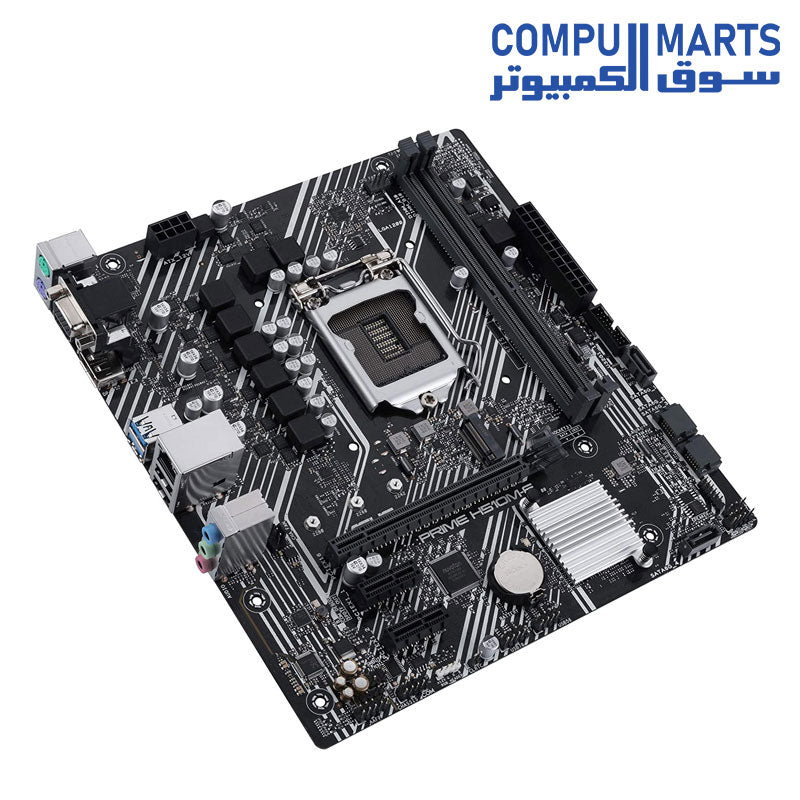

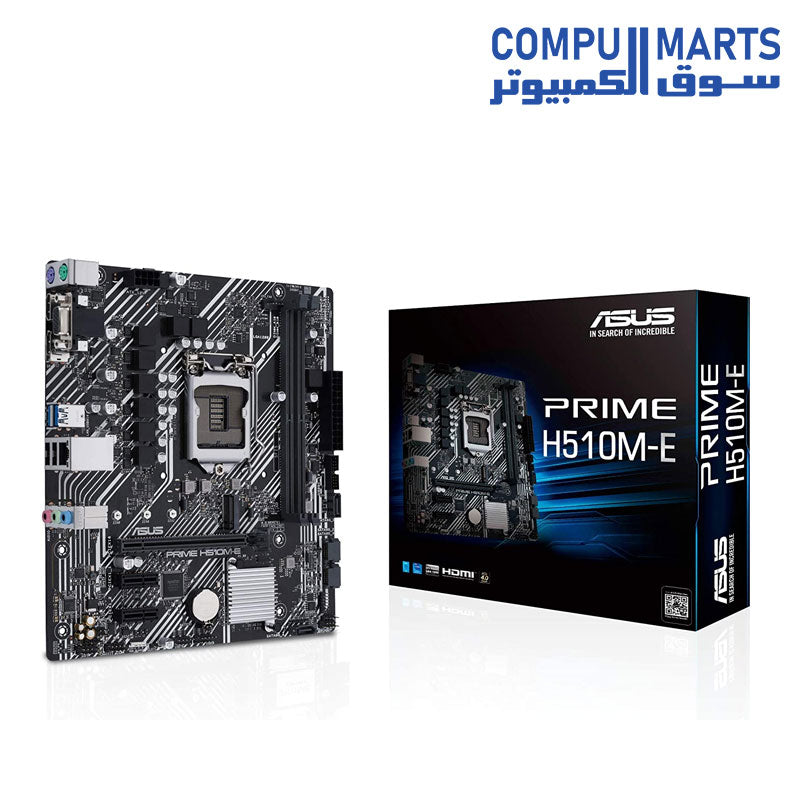

 Motherboard ASUS PRIME H510M-E Intel H510 (LGA 1200) micro ATX




Intel H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 Type A, SATA 6Gbps, COM header, RGB header

    • Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors

    • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 Type-A

    • Comprehensive cooling: PCH heatsink and Fan Xpert

    • 5X Protection III: Multiple hardware safeguards for all-round protection


OP product mainImage
PRIME H510M-E


PS/2

HDMI

D-Sub

DP

2 x USB 3.2 Gen 1

Intel 1Gb Ethernet

2 x USB 2.0

3 x Audio jacks

PCIe 4.0/3.0 x16

● ASUS Safe Slot Core

Audio Features

Audio Shielding

● Premium Japanese audio capacitors

● Dedicated audio PCB layers

DIGI+ VRM & EPU

2 x DDR4 3200 (OC) MHz

LGA 1200 Socket

● Intel 11th Gen Core Processors & 10th Gen Processors

2 x Front USB 3.2 Gen 1

32Gb/s M.2

PCIe 3.0 x4 & SATA mode

4 x SATA 6Gb/s

Intel H510 Chipset

4 x Front USB 2.0

1 x RGB header


    • Intelligent Control




    • UEFI BIOS



EPU



Fan Xpert



DIGI+ VRM Control



All-around Energy Efficiency


With the Energy Processing Unit (EPU), you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.



Cool to the Core

Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.




    • Cooler by Design

Cooler by Design
Prime H510 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.







        • Multiple Temperature Sources
        • 4-Pin PWM/DC Fan
        • Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

      Build on a Solid Foundation Prime H510 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS H510 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


        • Storage


        • Connectivity






      M.2 (up to 32 Gbps)


      M.2 slot supports data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.



      Small Details Make a Big Difference

      Prime H510 series adds the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.

        • Audio

        • Personalization

        • DIY Friendly

        • Armoury Crate


      Armoury Crate

      Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.

      Model

      PRIME H510M-E

      CPU

      Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors


      Supports Intel 14 nm CPU


      Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0



      Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

      Chipset

      Intel H510 Chipset

      Memory

      2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory


      Dual Channel Memory Architecture


      Supports Intel Extreme Memory Profile (XMP)


       10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.


      11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.


      Graphics

      1 x DisplayPort 1.4


      1 x D-Sub


      1 x HDMI tm 2.0


      * Graphics specifications may vary between CPU types.

       Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.


       Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.

      Expansion Slots

      Intel 11th  & 10th Gen Processors

      1 x PCIe 4.0/3.0 x16 slot

      - Intel 11th Gen processors support PCIe 4.0 x16

      - Intel 10th Gen processors support PCIe 3.0 x16


      Intel H510 Chipset


      2 x PCIe 3.0 x1 slots

      Storage

      Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports


      Intel H510 Chipset

      M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

      4 x SATA 6Gb/s ports


      * The M.2 slot shares bandwidth with SATA6G . 2When a device in SATA mode is installed on the M.2 slot, SATA6G 2 port cannot be used.

      Ethernet

      1 x Intel I219-V 1Gb Ethernet

      USB

      Rear USB (Total 4 ports)


      2 x USB 3.2 Gen 1 ports (2 x Type-A)


      2 x USB 2.0 ports (2 x Type-A)


      Front USB (Total 6 ports)


      1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


      2 x USB 2.0 headers support additional 4 USB 2.0 ports

      Audio

      Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz play backAudio Features - Audio Shielding- Premium Japanese audio capacitors- Dedicated audio PCB layers
       A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

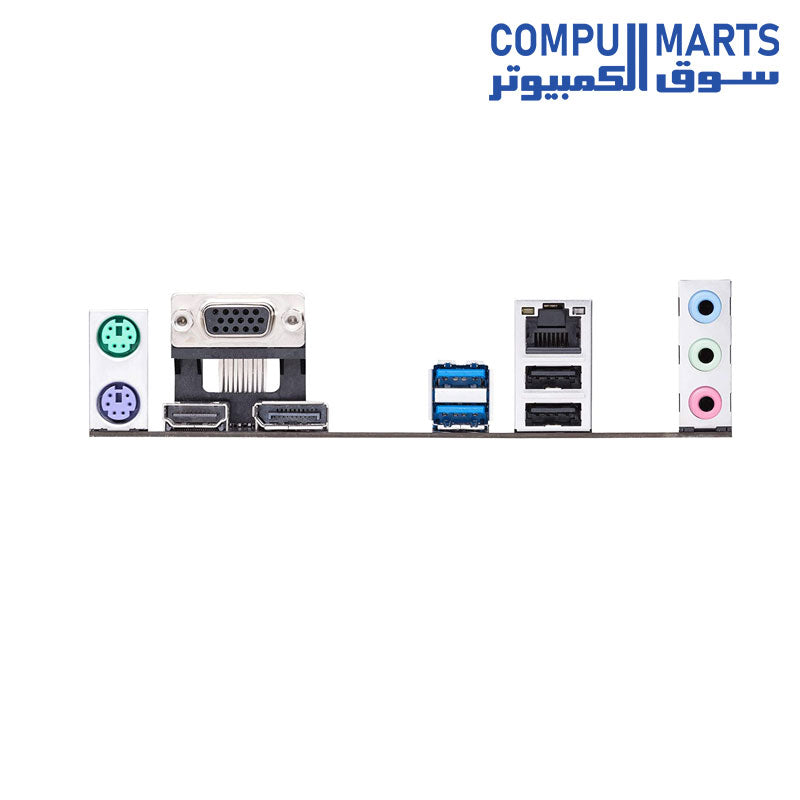

      Back Panel I/O Ports

      2 x USB 3.2 Gen 1 ports (2 x Type-A)

      2 x USB 2.0 ports (2 x Type-A)

      1 x DisplayPort

      1 x D-Sub port

      1 x HDMI port

      1 x Intel I219-V 1Gb Ethernet port

      3 x Audio jacks

      1 x PS/2 Keyboard (purple) port

      1 x PS/2 Mouse (green) port

      Internal I/O Connectors

      Fan and Cooling related

      1 x 4-pin CPU Fan header

      1 x 4-pin Chassis Fan header

      Power related

      1 x 24-pin Main Power connector

      1 x 8-pin +12V Power connector

      Storage related

      1 x M.2 slot (Key M)

      4 x SATA 6Gb/s ports

      USB

      1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

      2 x USB 2.0 headers support additional 4 USB 2.0 ports

      Miscellaneous

      1 x RGB header

      1 x Clear CMOS header

      1 x COM Port header

      1 x Front Panel Audio header (AAFP)

      1 x S/PDIF Out header

      1 x Speaker header

      1 x SPI TPM header (14-1pin)

      1 x 10-1 pin System Panel header

      Special Features

      ASUS 5X PROTECTION III- DIGI+ VRM- LAN Guard- Overvoltage Protection
      - Safe Slot Core - Stainless-Steel Back I/O ASUS Q-Design  - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control  - RGB header

      Software Features

      ASUS Exclusive Software

      Armoury Crate

      AI Suite 3

      - Performance And Power Saving Utility

        TurboV EVO

        EPU

        DIGI+ VRM

        Fan Xpert

      - EZ update

      ASUS CPU-Z

      AI Charger

      DAEMON Tools

      Norton Anti-virus software (Free Trial version)

      WinRAR

      UEFI BIOS

      ASUS EZ DIY

      - ASUS Crash Free BIOS 3

      - ASUS EZ Flash 3

      - ASUS UEFI BIOS EZ Mode

      BIOS

      128 Mb Flash ROM, UEFI AMI BIOS

      Manageability

      WOL by PME, PXE

      Accessories

      Cables
      2 x SATA 6Gb/s cables  Miscellaneous 1 x I/O Shield  1 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual

      Operating System

      Windows 11 64-bit, Windows 10 64-bit

      Form Factor

      mATX Form Factor 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
