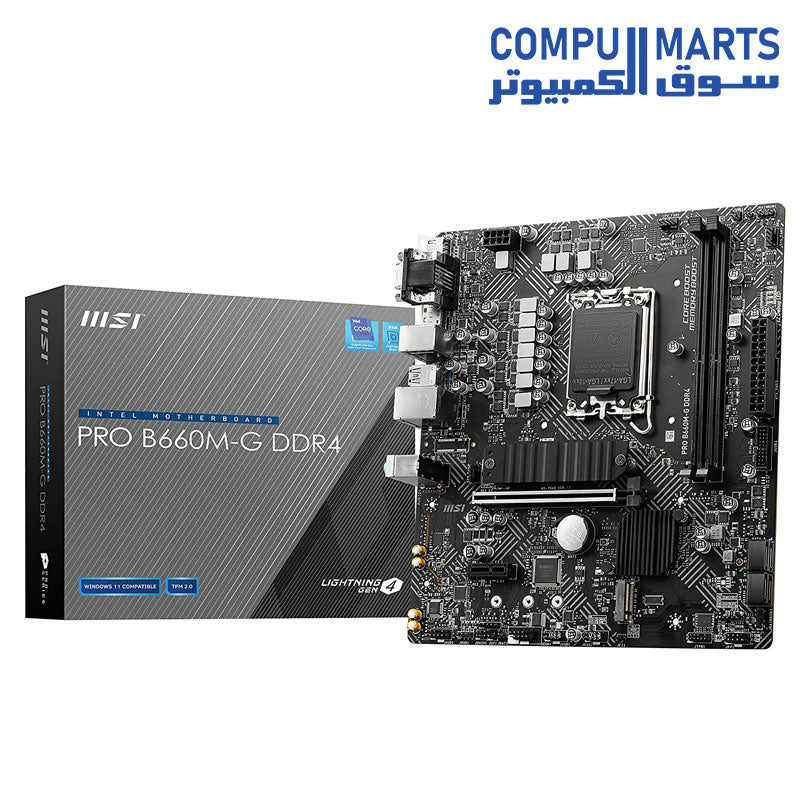

MOTHERBOARD MSI PRO B660M-G DDR4

MOTHERBOARD MSI PRO B660M-G DDR4

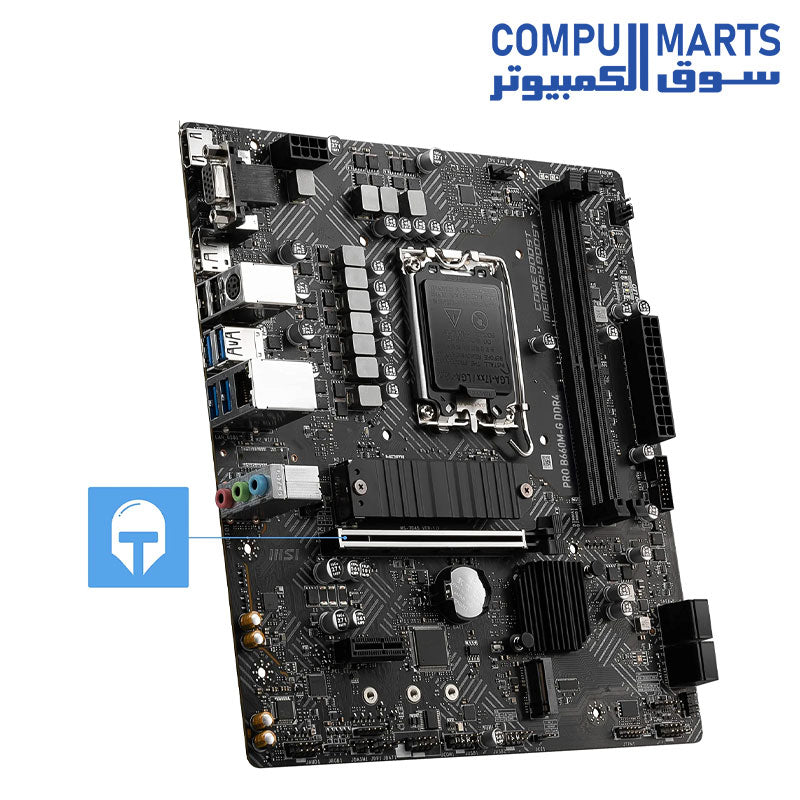

With MSI M.2 Shield FROZR

•  Prevents throttling

•  Maximizes drive performance

• Higher maximum SSD speeds

• Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

• Supports DDR4 Memory, up to 4600+(OC) MHz

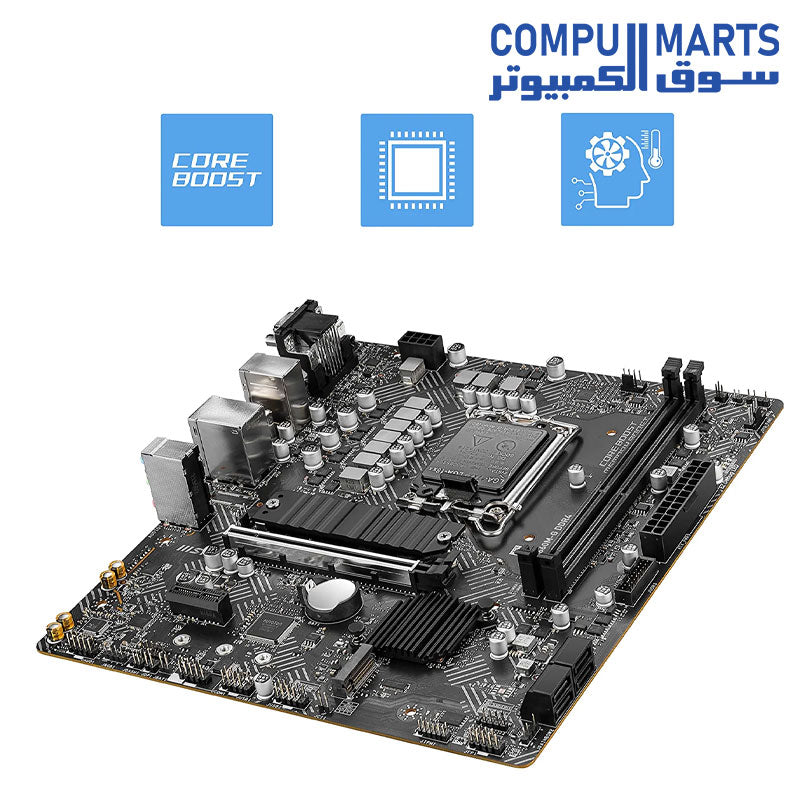

• Core Boost : With premium layout and digital power design to support more cores and provide better performance

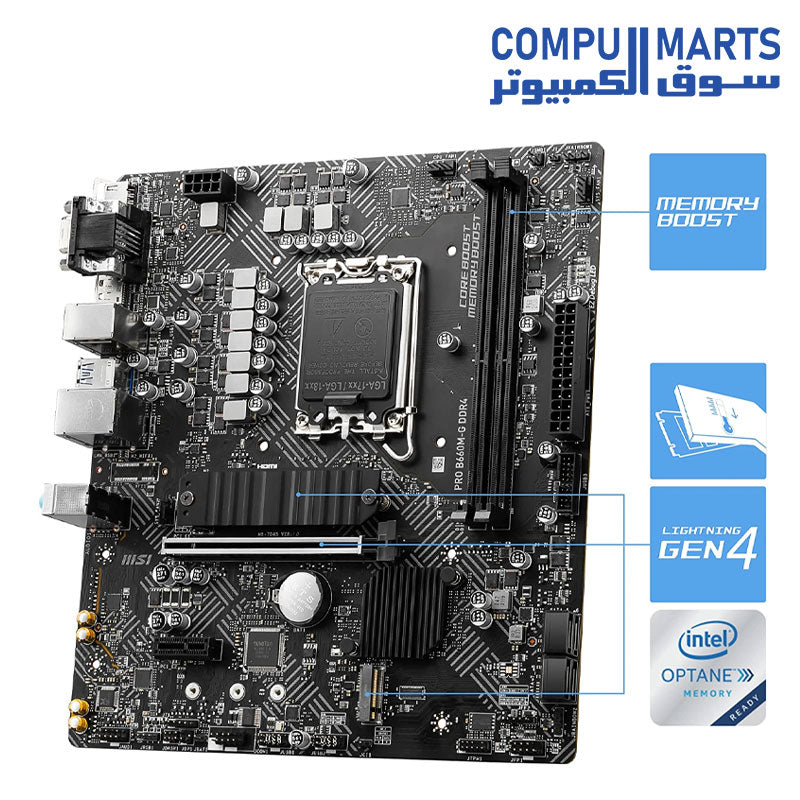

• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• Audio Boost: Reward your ears with studio grade sound quality

• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

• SOCKET : 1700

• CHIPSET : Intel B660 Chipset

• MEMORY CHANNEL : Dual

• DIMM SLOTS : 2

• MAX MEMORY (GB) : 64

• PCI-E X16 : 1

• PCI-E X1 : 1

• SATAIII : 4

• M.2 SLOT : 2

• RAID :  0/1/5/10

• TPM (HEADER) : 1

• USB 3.2 PORTS (FRONT) : 2(Gen 1, Type A)

• USB 3.2 PORTS (REAR) : 4(Gen 1, Type A)

• USB 2.0 PORTS (FRONT) : 4

• USB 2.0 PORTS (REAR) : 2

• SERIAL PORTS(FRONT) : 1

• AUDIO PORTS (REAR) : Realtek ALC897 Codec

• DISPLAYPORT : 1

• VGA : 1

• HDMI : 1

• DIRECTX : 12

• OPERATING SYSTEM : Support for Windows 11 64-bit, Windows 10 64-bit

• FORM FACTOR : MATX

CPUSupports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700

CHIPSET

Intel B660 chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB

• Supports ADL-s 1R 2133/2666/2933/3200 MHz

• 1DPC 1R Max speed up to 4600+ MHz

• 1DPC 2R Max speed up to 4000+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel Extreme Memory Profile (XMP)

EXPANSION SLOT

• 1x PCIe 4.0 x16 slot (from CPU)

• 1x PCIe 3.0 x1 slot (from B660 chipset)

ONBOARD GRAPHICS

• 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

• 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz  (PRO B660M-G DDR4)

1. Available for the processor with integrated graphics.

2. Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

1x Realtek RTL8125BG 2.5Gbps LAN controller

STORAGE

• 4x SATA 6Gb/s ports (From B660 chipset)

• 2x M.2 slots (Key M)

• M2_1 slot (From CPU)

• Supports PCIe 4.0 x4

• Supports 2242/ 2260/ 2280 storage devices

• M2_2 slot (From B660 chipset)

• Supports PCIe 4.0 x4

• Supports SATA 6Gb/s

• Supports 2242/ 2260/ 2280 storage devices

• Supports Intel Optane Technology

• SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

1. Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

Intel B660 Chipset

• 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal connector)

• 2x USB 2.0 Type-A ports on the back panel

USB Hub-GL850G

• 4x USB 2.0 ports available through internal connectors

FORM FACTOR

• M-ATX Form Factor

• 9.6 in. x 8.7 in. (24.4 cm x 22.0 cm)

BIOS FEATURES

• 1x 256 Mb flash

• UEFI AMI BIOS

• ACPI 6.4, SMBIOS 3.4

• Multi-language

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

• 4x SATA 6Gb/s connectors

• 2x USB 2.0 connector (support additional 4 USB ports)

• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)

• 1x 4-pin CPU fan connector

• 2x 4-pin system fan connectorx

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Serial port connector

• 1x TPM module connector

• 1x Chassis Intrusion connector

• 1x Clear CMOS jumper

• 1x JRGB

• 2x JRAINBOW

• 1x Tuning Controller Connector

LED FEATURE

• 4x EZ Debug LED

BACK PANEL CONNECTORS

1. VGA

2. Keyboard / Mouse

3. LAN port

4. Audio connector

5. HDMI

6. DisplayPort

7. USB 2.0

8. USB 3.2 Gen 1 5Gbps Type-A
