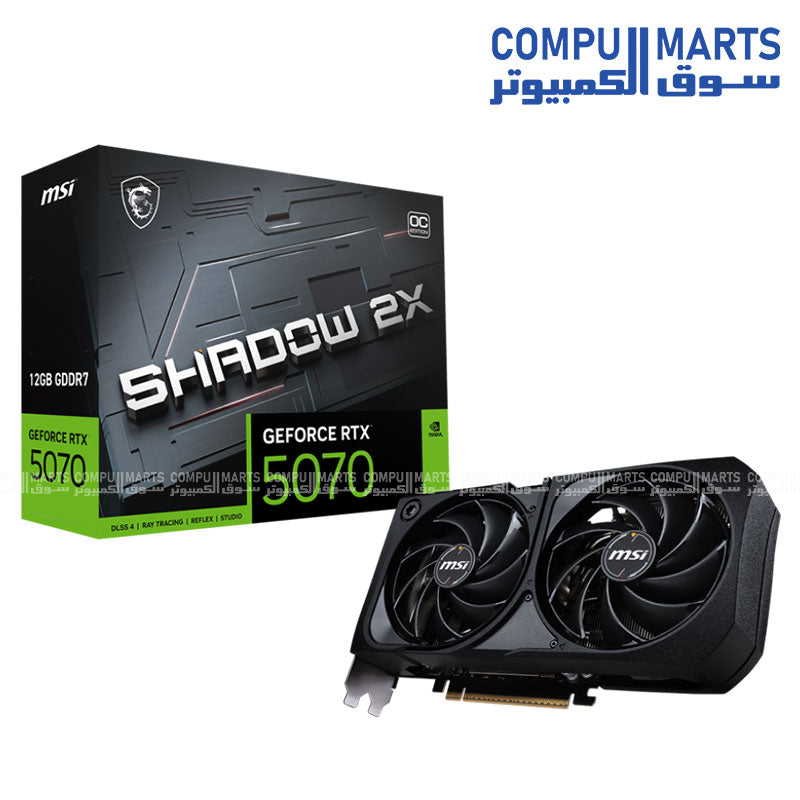

MSI GeForce RTX 5070 SHADOW 2X OC 12GB GDDR7 Graphics Card

MSI GeForce RTX 5070 SHADOW 2X OC 12GB GDDR7 Graphics Card

SPECIFICATIONS
Marketing Name GeForce RTX 5070 12G SHADOW 2X OC
Model Name G5070-12S2C
Graphics Processing Unit NVIDIA GeForce RTX 5070
Interface PCI Express Gen 5
Core Clocks
Extreme Performance: 2557 MHz (MSI
Center)
Boost: 2542 MHz
CUDA®
 CORES 6144 Units
Memory Speed 28 Gbps
Memory 12GB GDDR7
Memory Bus 192-bit
Output
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 250 W
Power connectors 16-pin x 1 (ATX 3.1 PSU recommended)
Recommended PSU 650 W
Card Dimension (mm) 231 x 126 x 50 mm
Weight (Card / Package) 724 g / 1107 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC®
 technology Y
Digital Maximum Resolution 7680 x 4320

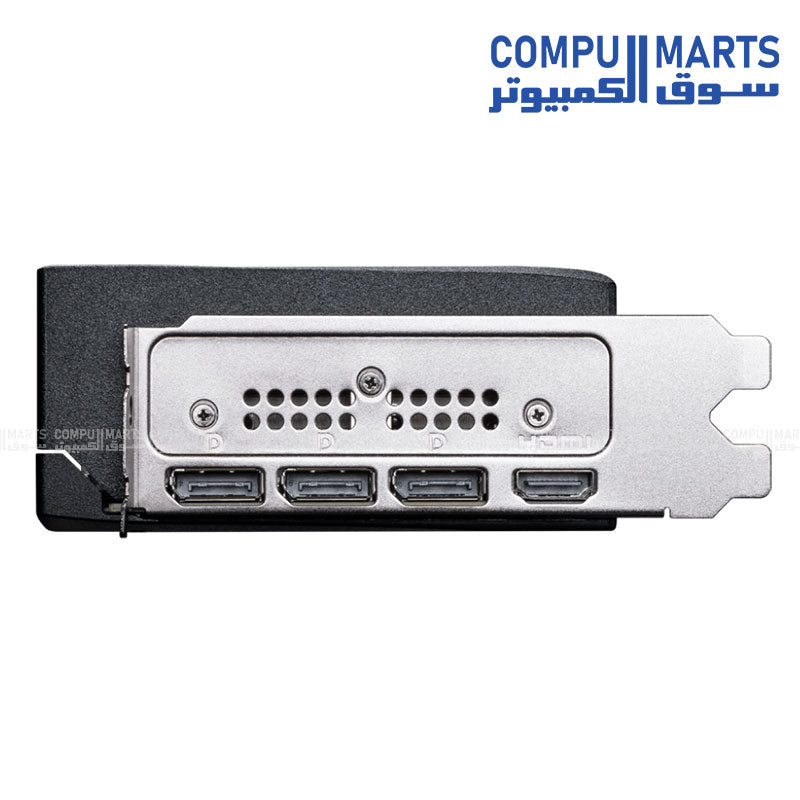

CONNECTIONS
1. DisplayPort
2. HDMI™
FEATURES

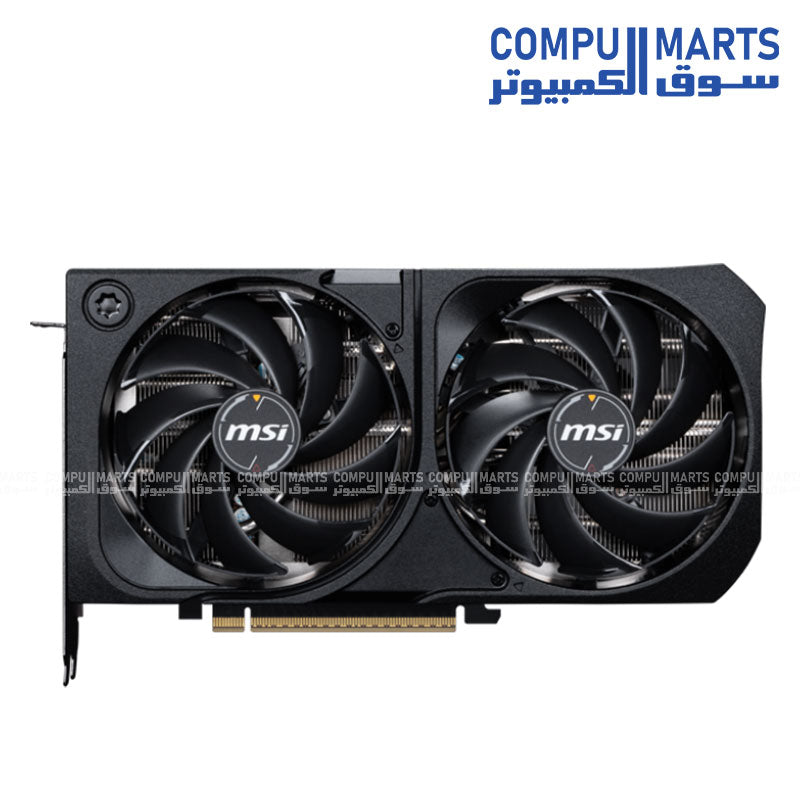

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.
Core Pipes
Core Pipes feature a square design to maximize contact with the
GPU baseplate for optimal thermal management.

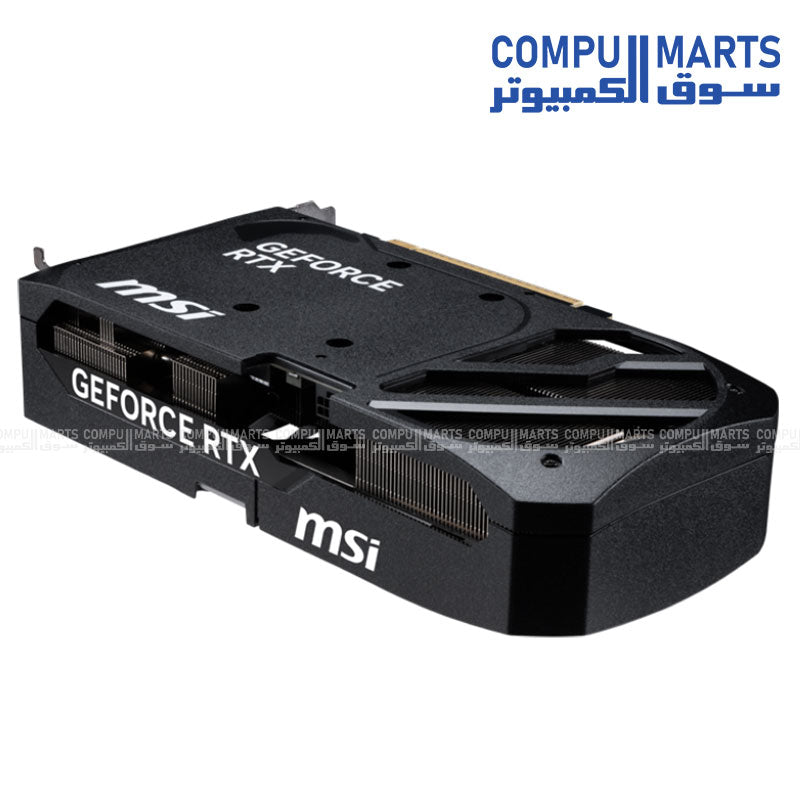

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
