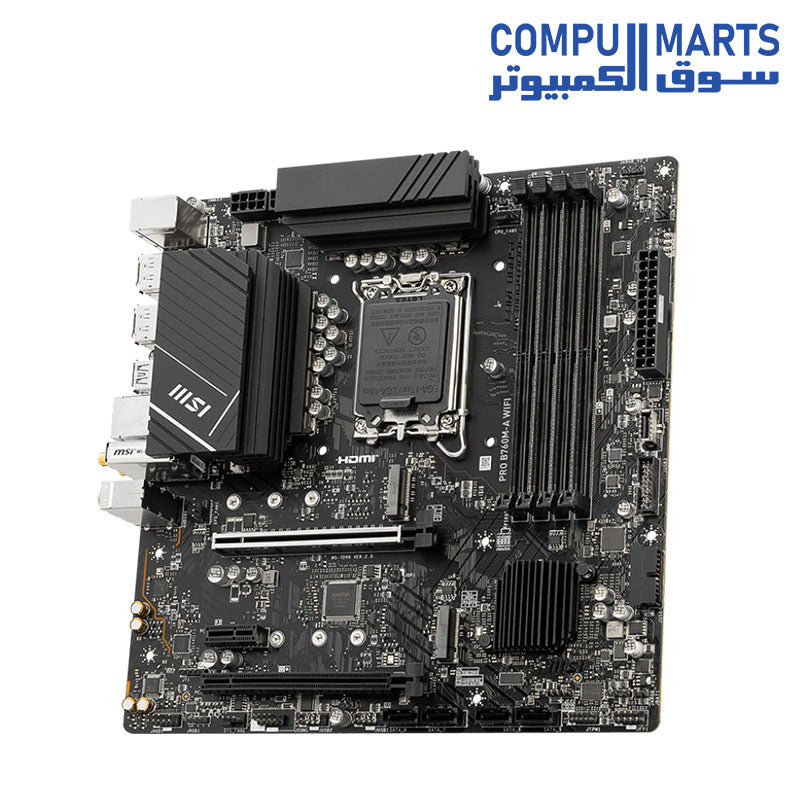

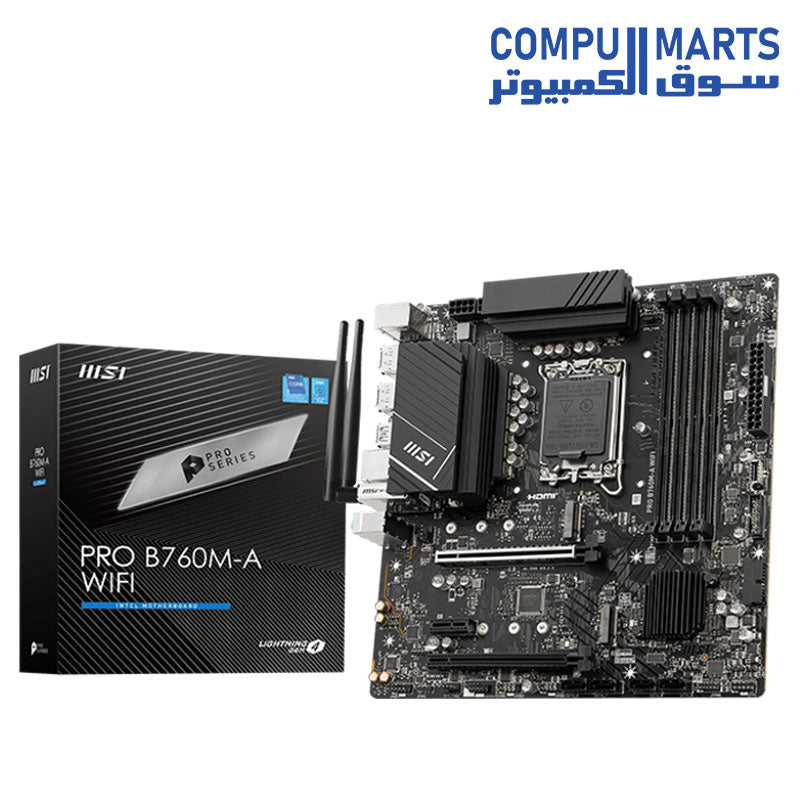

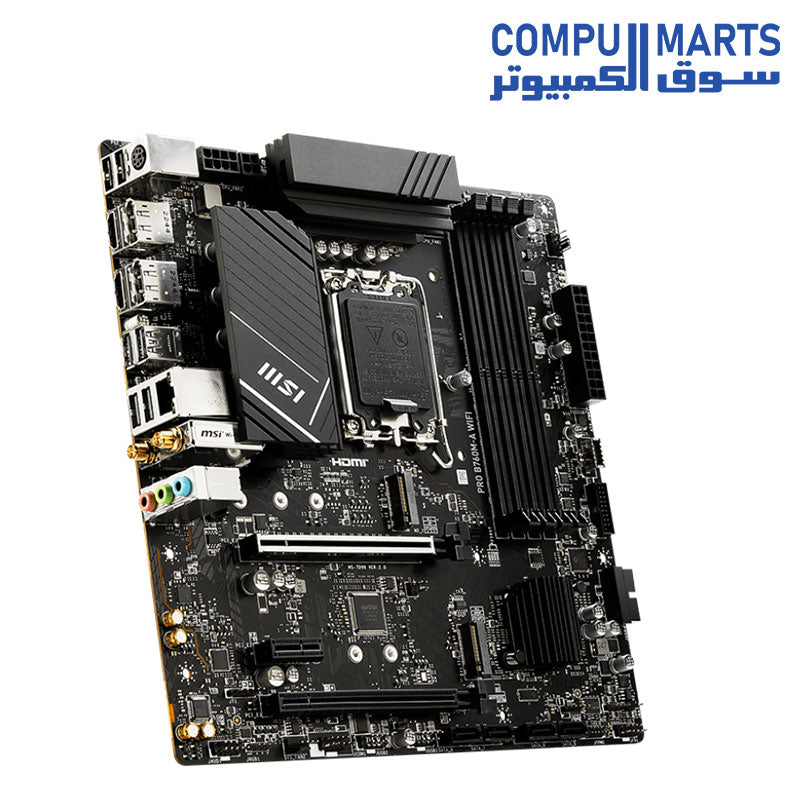

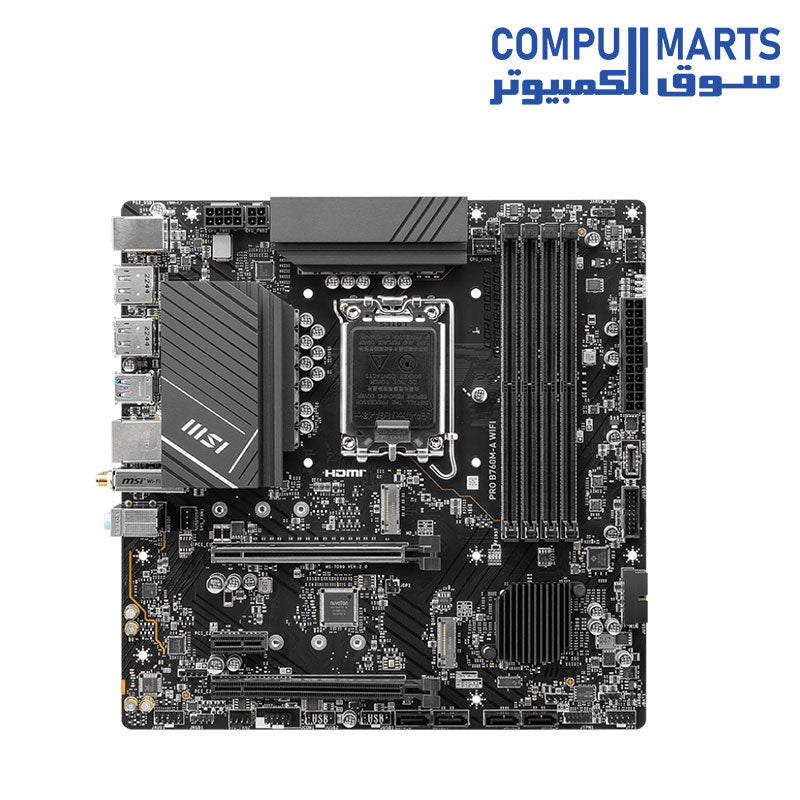

MSI PRO B760M-A WIFI

Vendor: MSI
SKU: 4711377059572
Availability: In Stock
Product Type: Motherboards
12,499.00 EGP
12,499.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
B760M-A-PRO -Motherboard-MSI-WIFI

MSI PRO B760M-A WIFI

12,499.00 EGP

MSI PRO B760M-A WIFI

12,499.00 EGP

MSI PRO B760M-A WIFI





COOLING OVERVIEW

msi pro B790-P WIFI cooling overview mobile1-Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2-Heavy Plated VRM Heatsink

The VRM heatsink covers the upper MOS and helps dissipate the heat.

3-7W/mK Thermal Pad & Additional Choke Pad

High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

4-Chipset Heatsink

The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.



MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

2x

64 Gbps

4x

6 Gbps



MSI PRO B760m-a wifi storage overview

USB FRONT TYPE-C

MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

msi lan 2.5g iconmai 6E wifi icon
msi Pro B760M-A wifi lan 2.5g wifi low-latency networking
  • Wi-Fi 6E
  • Bluetooth 5.3
  • 2.5G LAN

  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket

  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)

  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK and additional choke thermal pads are built for high performance system and non-stop gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper

  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2

  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience



CHIPSET

INTEL B760

CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel® Pentium Gold and Celeron Processors

LGA 1700

MEMORY

4x DDR5, Maximum Memory Capacity  256GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 6800+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

2x HDMI

Support HDMI 2.1, maximum resolution of 4K 60Hz*

2x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

2x PCI-E x16 slot

1x PCI-E x1 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

STORAGE

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

4x SATA 6G

* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 3.2 Gen1 Type A (Rear)

4x USB 3.2 Gen1 Type A (Front)

1x USB 3.2 Gen1 Type C (Front)

2x USB 3.2 Gen2 Type A (Rear)

LAN

Realtek RTL8125BG 2.5G LAN

WIRELESS LAN & BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.3, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC897 Codec

7.1-Channel High Definition Audio

INTERNAL IO

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 3.2 Gen1 Type A ports

1x USB 3.2 Gen1 Type C ports

LED FEATURE

4x EZ Debug LED

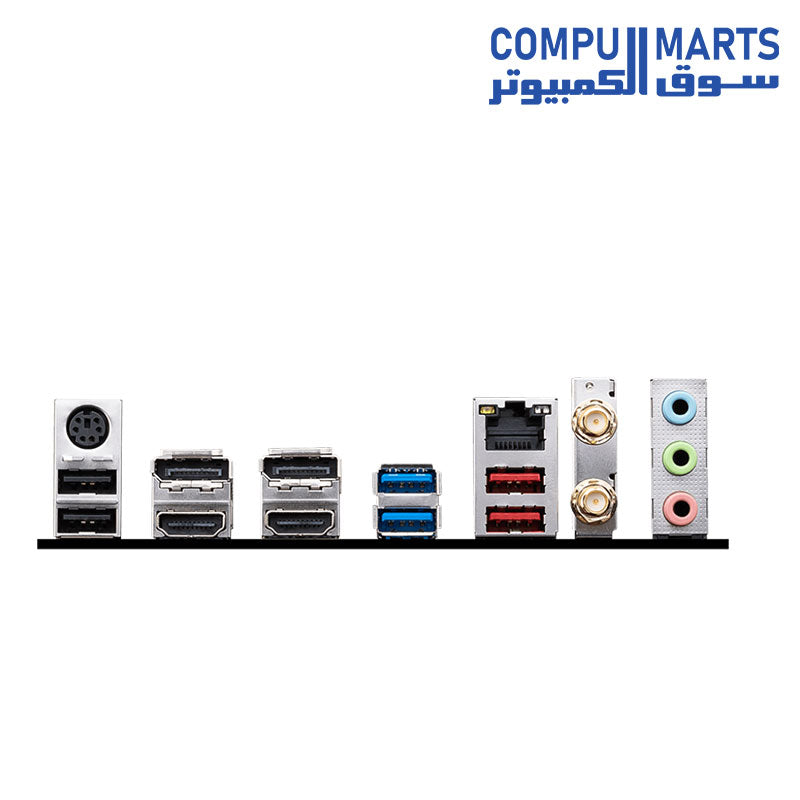

BACK PANEL PORTS

  1. Keyboard / Mouse

  2. DisplayPort

  3. USB 3.2 Gen 1 5Gbps (Type-A)

  4. 2.5G LAN

  5. Wi-Fi / Bluetooth

  6. Audio Connectors

  7. USB 2.0

  8. HDMI

  9. USB 3.2 Gen 2 10Gbps (Type-A)

OPERATING SYSTEM

Support for Windows11 64-bit, Windows 10 64-bit

PCB INFO

mATX

243.84mmx243.84mm
