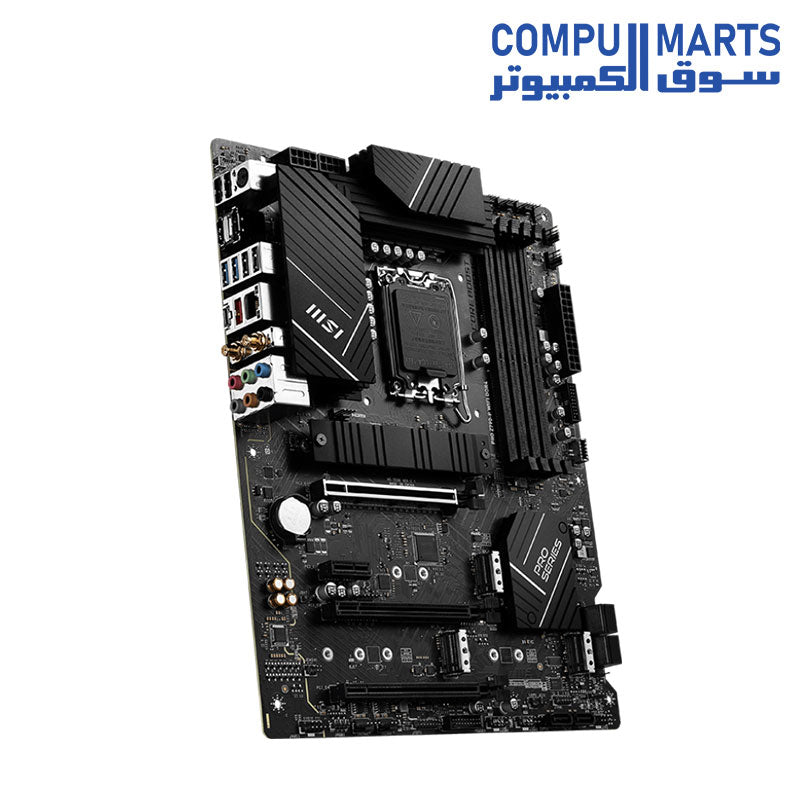

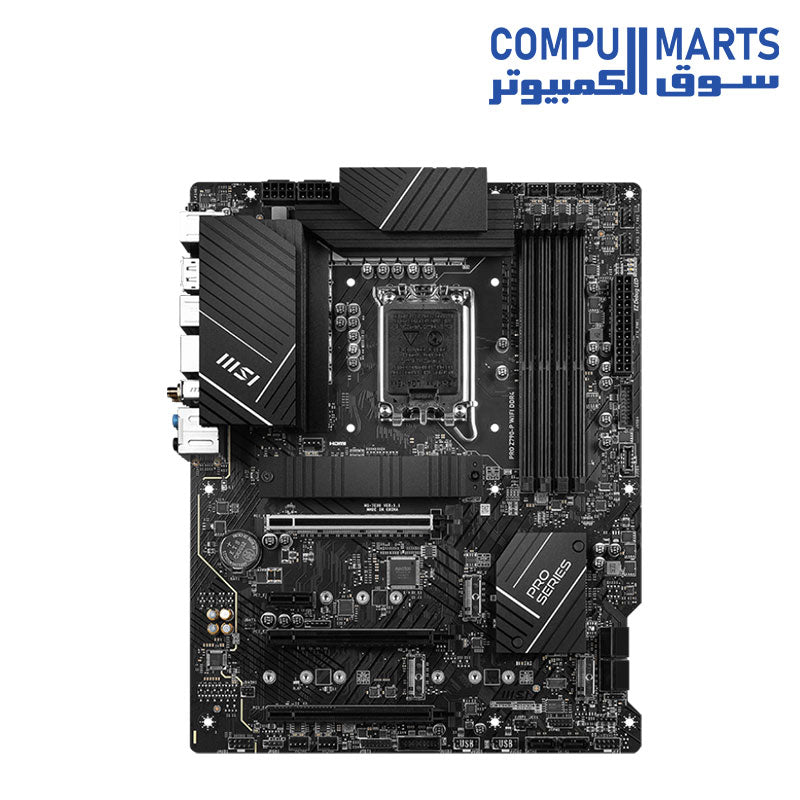

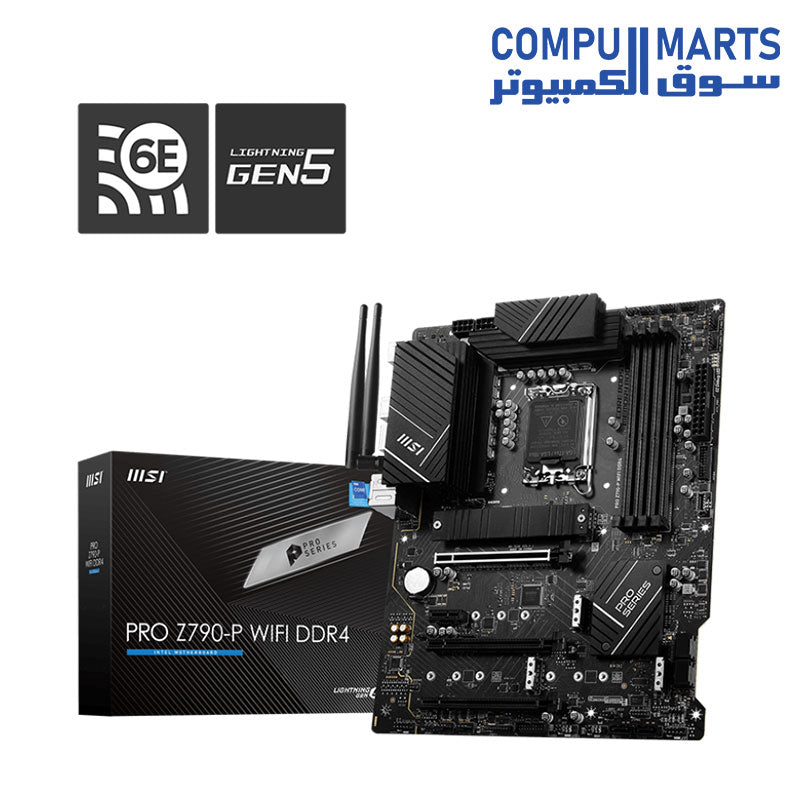

MSI PRO Z790-P WIFI DDR4 Motherboard

Vendor: MSI
SKU: 4711377011426
Availability: Out Of Stock
Product Type: Motherboards
10,700.00 EGP
10,700.00 EGP
Limited-Time Offers, End in: 151D 8H 23M 0S

SHIPPING ALL ACROSS EGYPT!

Safe shipping

Estimated to be delivered on 1-5 Working Days .

Enjoy With Compumarts Warranty

Learn More.
PRO-Z790-P-Motherboard-MSI-WIFI-DDR4-intel

MSI PRO Z790-P WIFI DDR4 Motherboard

10,700.00 EGP

MSI PRO Z790-P WIFI DDR4 Motherboard

10,700.00 EGP

MSI PRO Z790-P WIFI DDR4 Motherboard



PRO Z790-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)

  • Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost

  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience



COOLING OVERVIEW

msi pro Z790-P WIFI DDR4  cooling overview mobile
  1. Extended Heatsink

    Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

  2. M.2 Shield Frozr

    Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

  3. Heavy Plated VRM Heatsink

    The VRM heatsink covers the upper MOS and helps dissipate the heat.

  4. 7W/mK Thermal Pad & Additional Choke Pad

    High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

  5. Chipset Heatsink

    The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.



LIGHTNING GEN 5 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT

The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.



REINFORCED,
HEAVY SOLDERED CONNECTIONSSecure to the motherboard with extra solder points and support the weight of heavy graphics cards.



MEMORY BOOST

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.



DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

MSI Pro Z790-p wifi DDR4 LATEST DDR5 MEMORY WITH SMT SLOT



AUDIO BOOST

  • DE-POP PROTECTION
  •

    Audio boost



  • MYSTIC LIGHT
  • SYNCHRONIZE
  •

  • GLOW YOUR PC
  • Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.


    EXTEND YOUR RGB EXPERIENCE WITH EASE

    Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.


    Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
    *Gen2 device only supports 7 RGB themes

    Supports 12V RGB devices.

  • 2.5G LAN & WI-FI 6E

  • HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
  • MSI's premium network solution provides incredible data transfer speed for demanding users.

    msi lan 2.5g iconmai 6E wifi icon
    msi Pro x670-p wifi lan 2.5g wifi low-latency network with natenna
    • Wi-Fi 6E

    • Bluetooth 5.3

    • 2.5G LAN




    CHIPSET

    INTEL Z790

    CPU SUPPORT

    Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

    LGA 1700

    MEMORY

    4x DDR4, Maximum Memory Capacity 128GB

    Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 5333+ MHz

    • 1DPC 2R Max speed up to 4800+ MHz

    • 2DPC 1R Max speed up to 4400+ MHz

    • 2DPC 2R Max speed up to 4000+ MHz

    Supports Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Supports Intel Extreme Memory Profile (XMP)

    ONBOARD GRAPHICS

    1x HDMI

    Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz*

    1x DisplayPort

    Support DP 1.4, maximum resolution of 4K 60Hz*

    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    EXPANSION SLOT

    3x PCI-E x16 slot

    1x PCI-E x1 slot

    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

    PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

    STORAGE

    4x M.2

    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

    M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

    6x SATA 6G

    RAID

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

    Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

    USB

    4x USB 2.0 (Rear)

    4x USB 2.0 (Front)

    2x USB 3.2 Gen1 Type A (Rear)

    4x USB 3.2 Gen1 Type A (Front)

    1x USB 3.2 Gen2 Type A (Rear)

    1x USB 3.2 Gen2 Type C (Front)

    1x USB 3.2 Gen2x2 Type C (Rear)

    LAN

    Intel 2.5Gbps LAN

    WIRELESS / BLUETOOTH

    Intel Wi-Fi 6E

    The Wireless module is pre-installed in the M.2 (Key-E) slot

    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth 5.3, FIPS, FISMA

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

    AUDIO

    Realtek ALC897 Codec

    7.1-Channel High Definition Audio

    INTERNAL I/O

    1x Power Connector(ATX_PWR)

    2x Power Connector(CPU_PWR)

    1x CPU Fan

    1x Pump Fan

    6x System Fan

    2x Front Panel (JFP)

    1x Chassis Intrusion (JCI)

    1x Front Audio (JAUD)

    1x TBT connector (JTBT, supports RTD3)

    1x Tuning Controller connector(JDASH)

    2x Addressable V2 RGB LED connector (JARGB_V2)

    1x RGB LED connector(JRGB)

    1x TPM pin header(Support TPM 2.0)

    4x USB 2.0 ports

    4x USB 3.2 Gen1 Type A ports

    1x USB 3.2 Gen2 Type C ports

    LED FEATURE

    4x EZ Debug LED

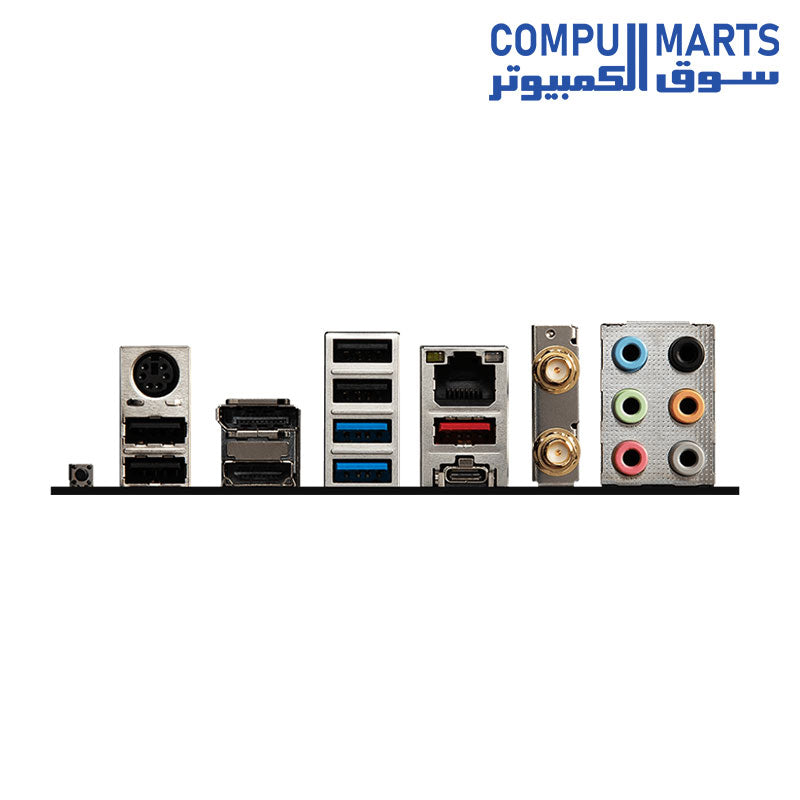

    BACK PANEL PORTS

    1. Keyboard / Mouse

    2. DisplayPort

    3. USB 2.0

    4. 2.5G LAN

    5. Wi-Fi / Bluetooth

    6. Audio Connectors

    7. Flash BIOS Button

    8. USB 2.0

    9. HDMI

    10. USB 3.2 Gen 1 5Gbps (Type-A)

    11. USB 3.2 Gen 2x2 20Gbps (Type-C)

    12. USB 3.2 Gen 2 10Gbps (Type-A)

    OPERATING SYSTEM

    Support for Windows 11 64-bit, Windows 10 64-bit

    PCB DIMENSION

    ATX

    243.84mmx304.8mm
