MSI GeForce RTX 5060 Shadow 2X OC 8GB GDDR7 Graphics Card

MSI GeForce RTX 5060 Shadow 2X OC 8GB GDDR7 Graphics Card

SPECIFICATIONS
Marketing Name GeForce RTX 5060 8G SHADOW 2X OC
Model Name G5060-8S2C
Graphics Processing Unit NVIDIA GeForce RTX 5060
Interface PCI Express Gen 5 x16 (uses x8)
Core Clocks
Extreme Performance: 2535 MHz (MSI
Center)
Boost: 2527 MHz
CUDA
 CORES 3840 Units
Memory Speed 28 Gbps
Memory 8GB GDDR7
Memory Bus 128-bit
Output
DisplayPort x 3 (v2.1b)
HDMI x 1 (As specified in HDMI 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming
VRR, HDR)
HDCP Support Y
Power consumption 145 W
Power connectors 8-pin x 1
Recommended PSU 550 W
Card Dimension (mm) 197 x 120 x 40 mm
Weight (Card / Package) 493 g / 814 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC
 technology Y
Digital Maximum Resolution 7680 x 4320
CONNECTIONS
1. DisplayPort
2. HDMI™
FEATURES

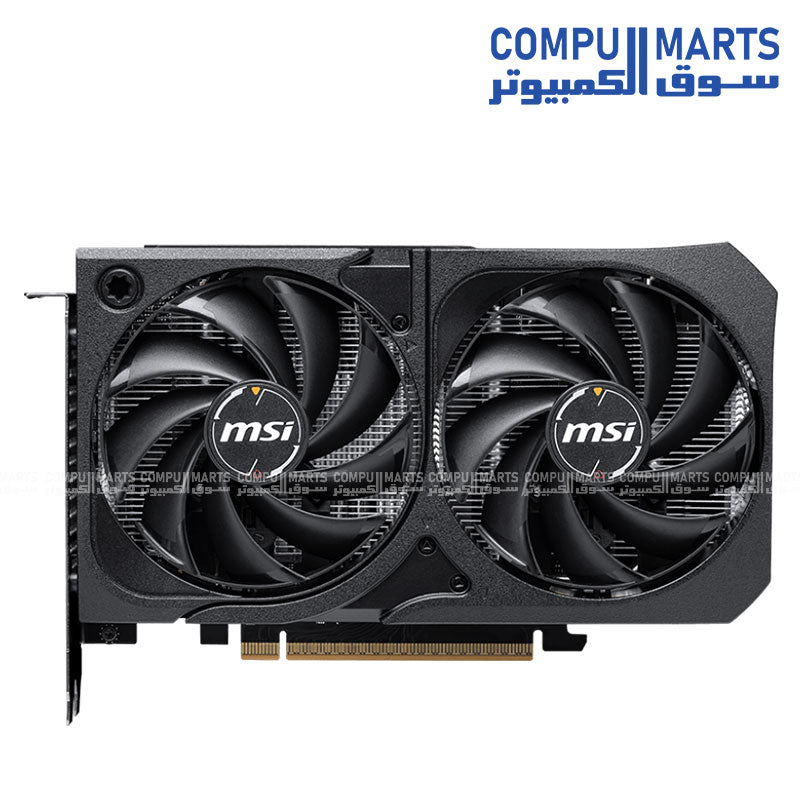

Dual Fan
Two fans and a huge heatsink ensure a cool and quiet experience
for you.
TORX FAN 5.0
Fan blades linked by ring arcs and a fan cowl work together to
stabilize and maintain high-pressure airflow.

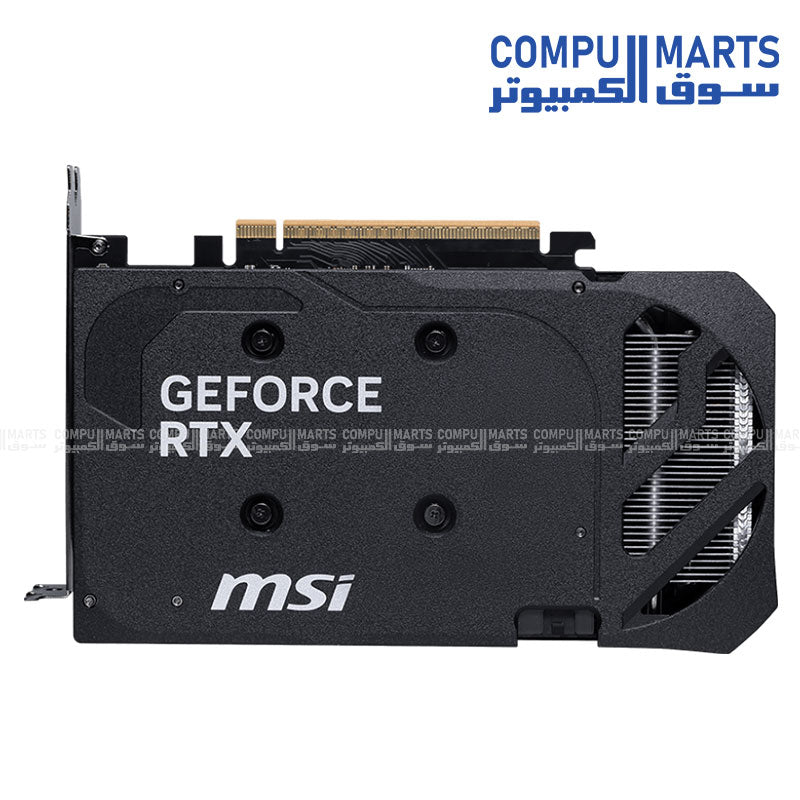

Reinforcing Backplate
The reinforcing backplate features a flow-through design that
provides additional ventilation.
Zero Frozr
The fans completely stop when temperatures are relatively low,
eliminating all noise.
Fuse
Additional fuses built into the custom PCB provide additional
safeguards against electrical damage.
DrMOS
DrMOS power stage solutions provide great efficiency with low
power loss and enhanced voltage controls.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and
optimize MSI products in real-time.
Afterburner
Take full control with the most recognized and widely used
graphics card overclocking software in the world.
