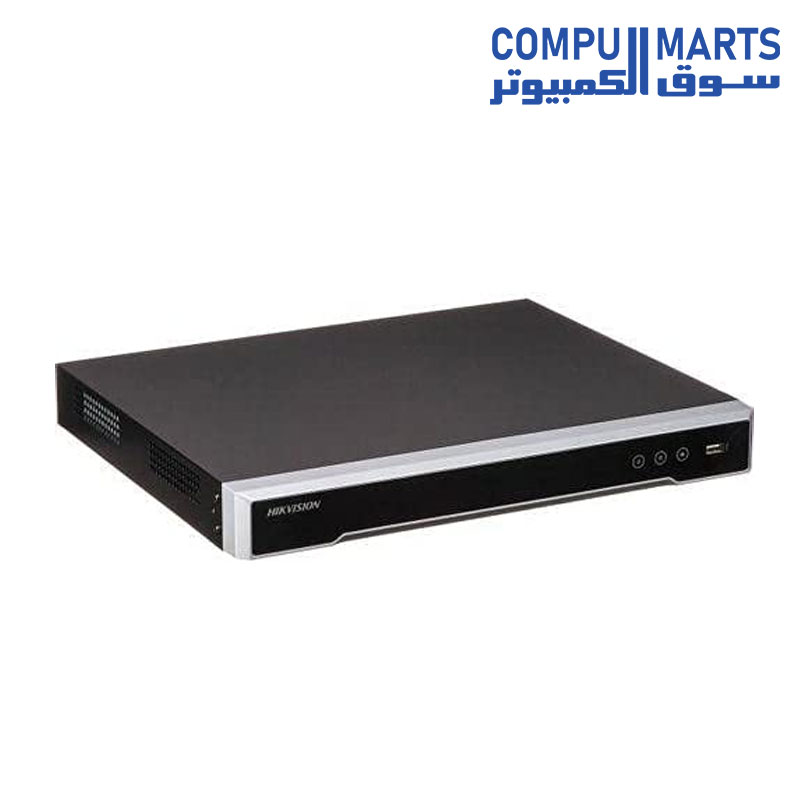

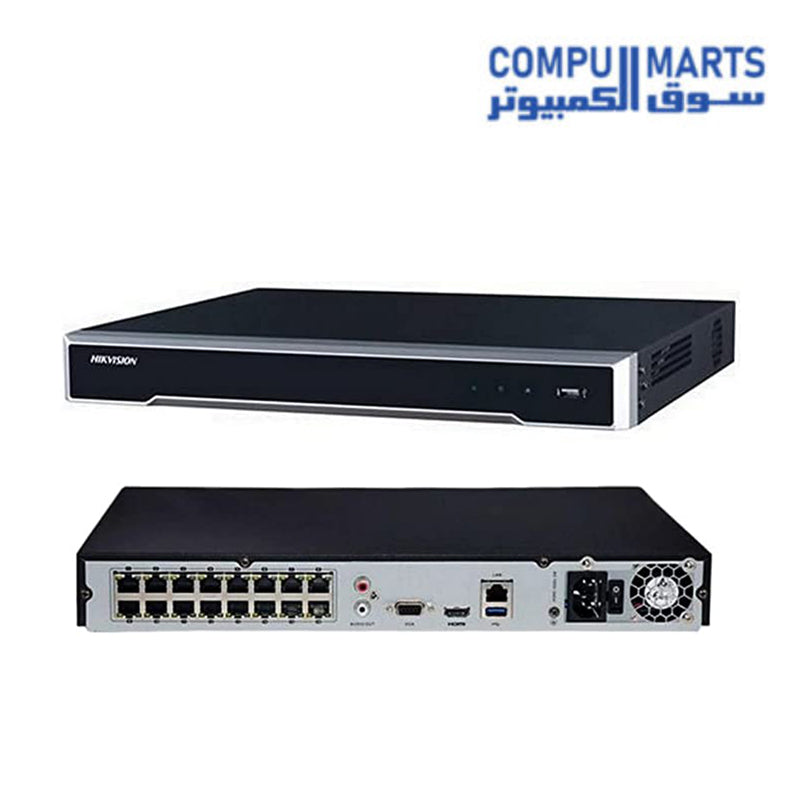

NVR HIKVISION DS-7616NI-Q2/16P Network Video Recorders Pro-Series

NVR HIKVISION DS-7616NI-Q2/16P Network Video Recorders Pro-Series

• Up to 16-ch IP camera inputs

• H.265+/H.265/H.264+/H.264 video formats

• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity

• Up to 160 Mbps incoming bandwidth

       NVR HIKVISION DS-7616NI-Q2/16P

• Video And Audio

• IP Video Input16-ch

• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz

• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

• Video Output ModeHDMI/VGA simultaneous output

• Incoming Bandwidth160 Mbps

• Outgoing Bandwidth80 Mbps

• Audio Output1-ch, RCA (Linear, 1 KΩ)

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)

• Decoding

• Decoding FormatH.265+,H.265,H.264+,H.264

• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)

• Synchronous Playback16-ch

• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Network

• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE

• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• Power≤ 150W

• StandardIEEE 802.3 af/at

• RAID

• RAID TypeNo

• Auxiliary Interface

• SATA2 SATA interfaces

• CapacityUp to 8TB capacity for each disk

• USB Interface2 × USB 2.0

• General

• Power Supply100-240V～, 50/60Hz, 3.2A MAX

• Consumption≤ 15W

• Working Temperature-10 to +55º C (+14 to +131º F)

• Working Humidity10 to 90 %

• Chassis1U chassis

• Dimension (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

• ≤ 2.6 kg (5.7 lb)
