DEEPCOOL | SKU:
7135
Sold out

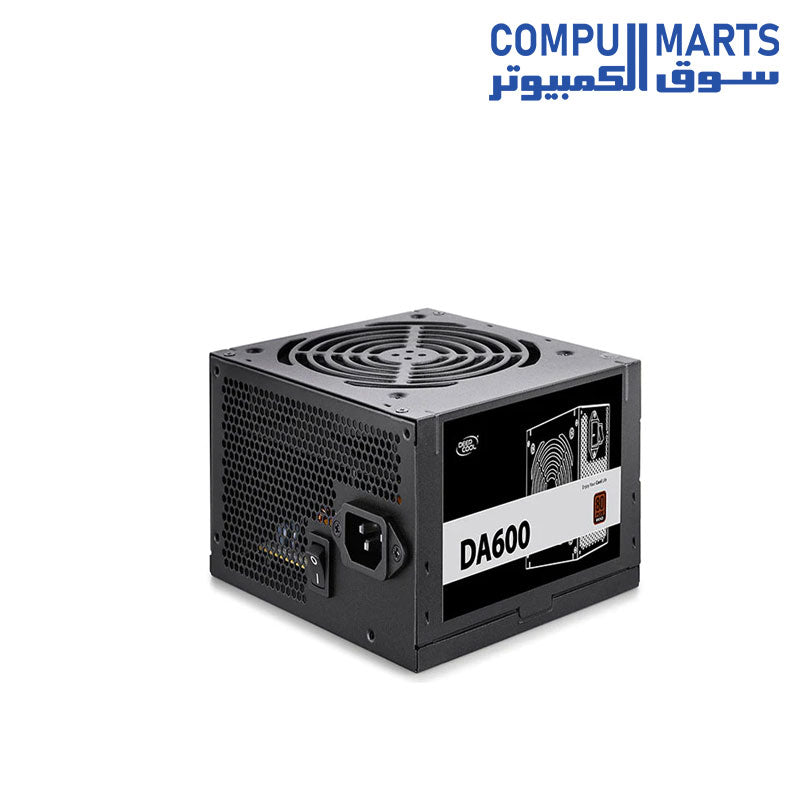

Deepcool DA600 80 Plus Bronze Certified 600W Power Supply | 120mm PWM Silent Fan
Regular price
1,250.00 EGP
Unit price
/
Unavailable
Shipping calculated at checkout.
Deepcool DA600 80 Plus Bronze Certified 600W Power Supply | 120mm PWM Silent Fan is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast shipping to your doorstep! Get your order delivered within 1-5 days based on location.
Subscribe to our newsletter
Sign up for exclusive offers.
Description
Description
Deepcool DA600 80 Plus Bronze Certified 600W Power Supply | 120mm PWM Silent Fan
80PLUS BRONZE
80PLUS Bronze certified provide high energy efficiency up to 85%.
Silent and High Performance Fan
120mm silent fan to provide incredible performance-noise ratio.
Features
-
Compatible with Intel ATX12V V2.4.
-
Integrated Active PFC + PWM Combo Controller boost the exchange efficiency and achieve a PFC of higher than 99%.
-
80 PLUS? Bronze certified to achieve up to 85% efficiency.
-
120 mm silent fan with temperature control function.
-
Longer cable design for enhancing cable management.
-
Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
-
Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards.
-
CircuitShield? – OVP, UVP, SCP, and OPP.
-
Support Multi-Way SLI / CrossFire + Multi-Core CPUs.
-
High reliability with at least 100,000-hour MTBF.
OUTPUTS
AC INPUT |
VOLTAGE |
CURRENT |
FREQUENCY |
||
100-240V |
4.5-9A |
47-63Hz |
|||
DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5VSB |
CURRENT(Max) |
20A |
17A |
46A |
0.3A |
2.5A |
OUTPUT(Max) |
120W |
552W |
3.6W |
12.5W |
|
TOTAL OUTPUT |
600W |
||||
Technical Spec
Model |
DA600 |
Type |
ATX 12V V2.4 |
Certifications |
80PLUS Bronze |
Dimension |
150×140×86mm (W x L x H) |
Output Capacity |
600W |
Input Voltage |
100~240V |
Input Current |
9.0A |
Input Frequency Range |
47~63Hz |
Fan Size |
120mm Silent Fan |
PFC |
Active PFC (>0.9) |
Power Good Signal |
100-500ms |
Hold Up Time |
>16ms |
Efficiency |
>85% Under Typical Load |
Protection |
OVP/ SCP/UVP/OPP |
Operation Temperature |
0~40°C |
Regulatory |
CE / FCC / CCC / CB / EAC / TUV |
MTBF |
100,000 Hours |
EAN |
6933412798705 |
P/N |
DP-BZ-DA600N |
