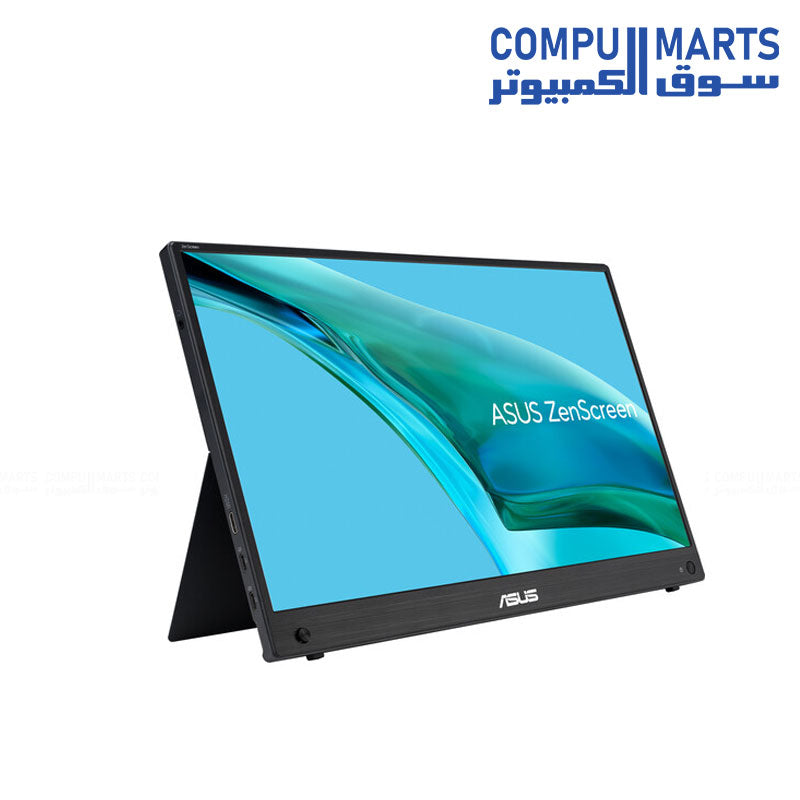

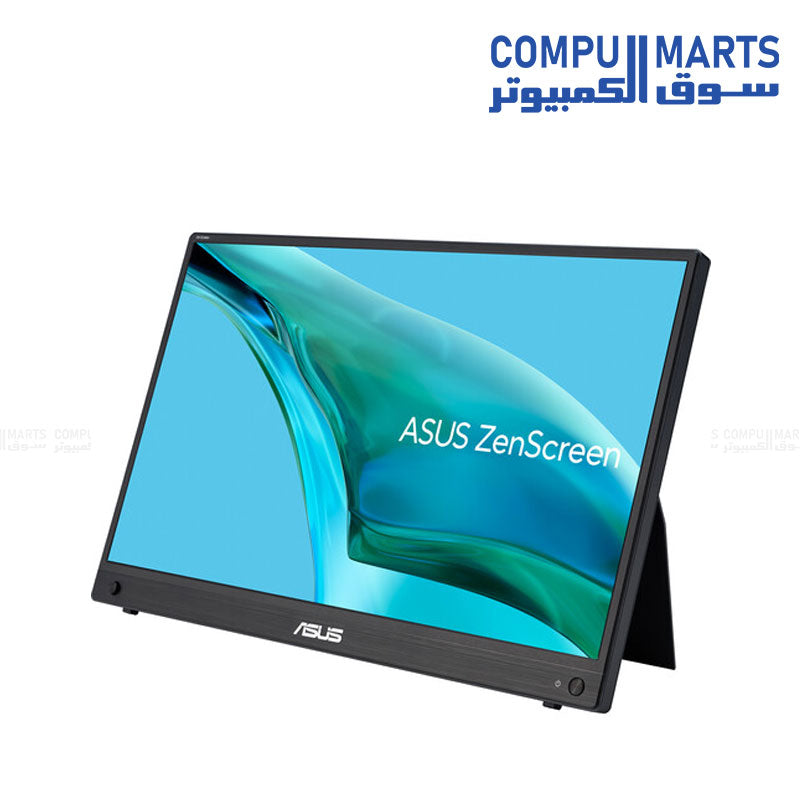

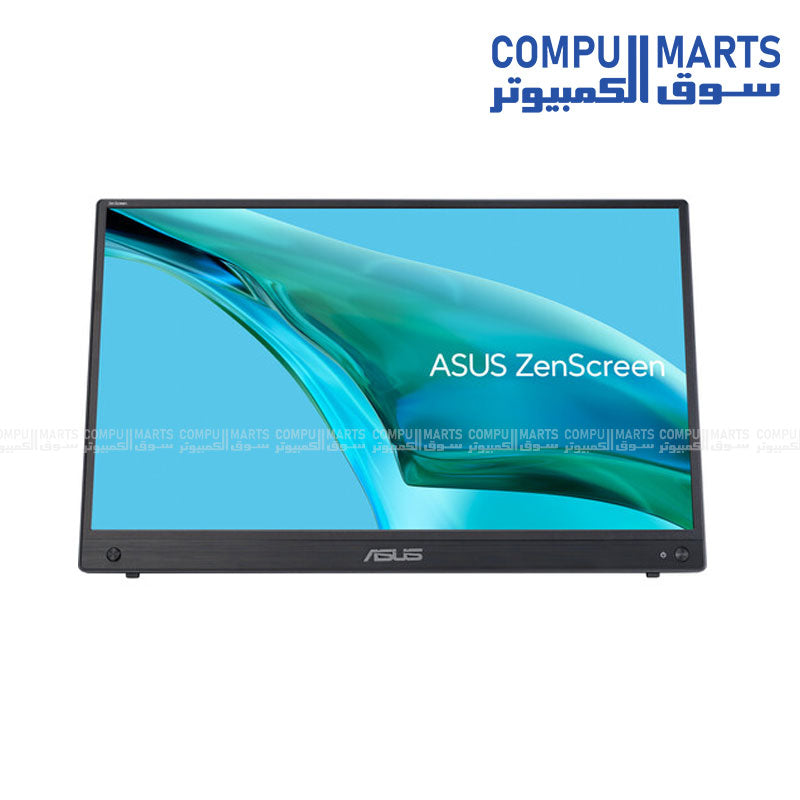

ASUS ZenScreen MB16AHG 16-Inch Portable FHD Monitor – 144Hz, USB-C, FreeSync
Model:
ASUS ZenScreen MB16AHG
Display:
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59 mm
Display Surface : Anti-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR10, H/V) : 178°/ 178°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Color Space (sRGB) : 100%
Brightness (Typ.) : 300cd/
Contrast Ratio (Typ.) : 1200:1
Display Colors : 16.7M
Response Time : 3ms(GTG)
Refresh Rate (Max) : 144Hz
Flicker-free : Yes
Features:
Trace Free Technology : Yes
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes, 1.4
VRR Technology : Yes (Adaptive-Sync)
DisplayWidget : Yes, DisplayWidget Lite
Low Blue Light : Yes
Audio:
Speaker : No
I/O Ports:
USB-C x 2 (DP Alt Mode)
Mini HDMI x 1
Earphone Jack : Yes
Signal Frequency:
Digital Signal Frequency : HDMI: 30-180 KHz(H) / 60-144Hz (V)
USB-C: 180 KHz(H) / 60-144Hz (V)
Power Consumption:
Power Consumption : 17W
Power Saving Mode : 0.5W
Power Off Mode : 0.3W
Voltage : 100-240V, 50/60Hz
Mechanical Design:

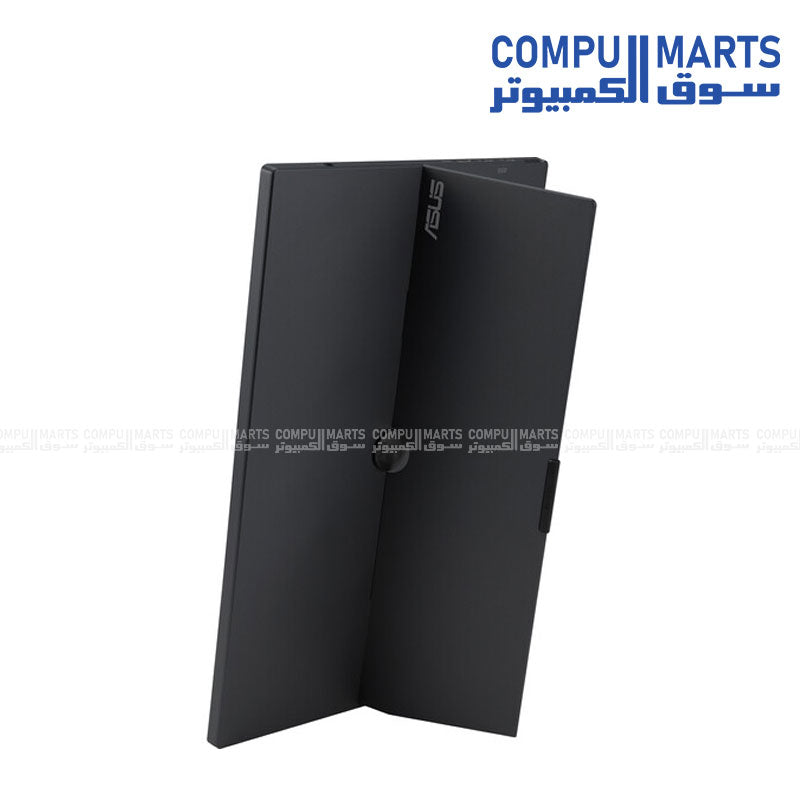

Tilt : Yes (+15 +35)
Height Adjustment : No
1/4 Tripod Socket : Yes
Dimensions (Esti.):
Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.20 cm (14.17 x 8.93 x 0.47)
Box Dimension (W x H x D) : 48.50 x 30.50 x 7.60 cm (19.09 x 12.01 x 2.99)
Weight (Esti.):
Net Weight without Stand : 0.92 kg (2.03 lbs)
Gross Weight : 2.78 kg (6.13 lbs)
Accessories (vary by regions):
Mini HDMI to HDMI cable
Power adapter;
Quick start guide
USB-C cable
Warranty Card;

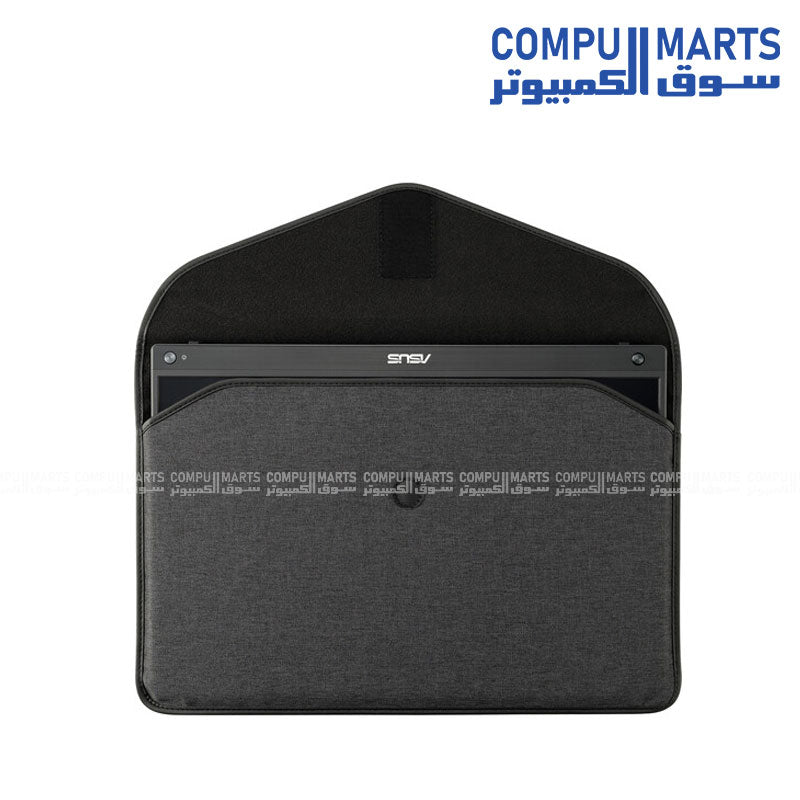

ZenScreen sleeve
USB Type-C to A adapter
USB-C to A cable
Operation Temperature / Humidity
Operation Temperature : 0~40℃
Operation Humidity : 20-90% RH
Operation Humidity : 20-90% RH
Certificate:
