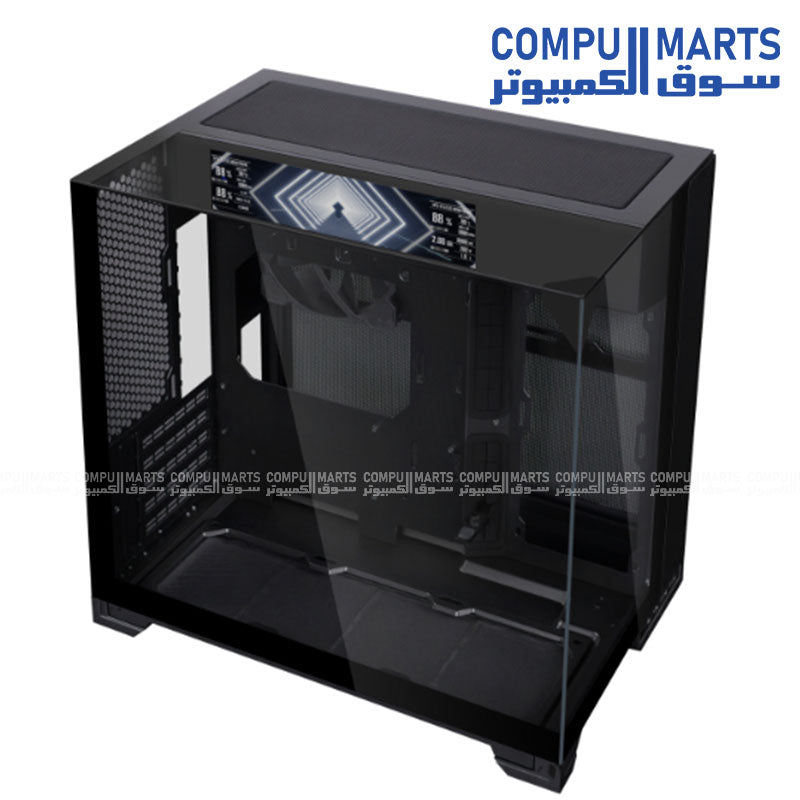

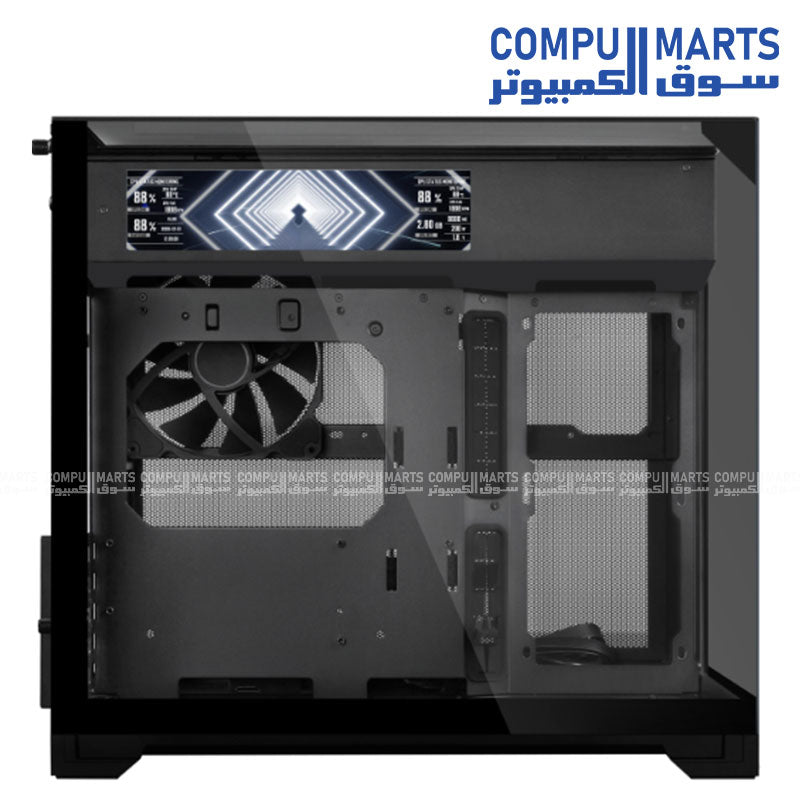

The Lian Li O11 VISION-M Digital is a premium black PC case featuring an integrated 9.2-inch IPS LCD display with a 1920 × 462 resolution, 60Hz refresh rate, and 500-nit brightness. Its digital screen adds a distinctive visual element to a modern gaming or high-performance PC build.

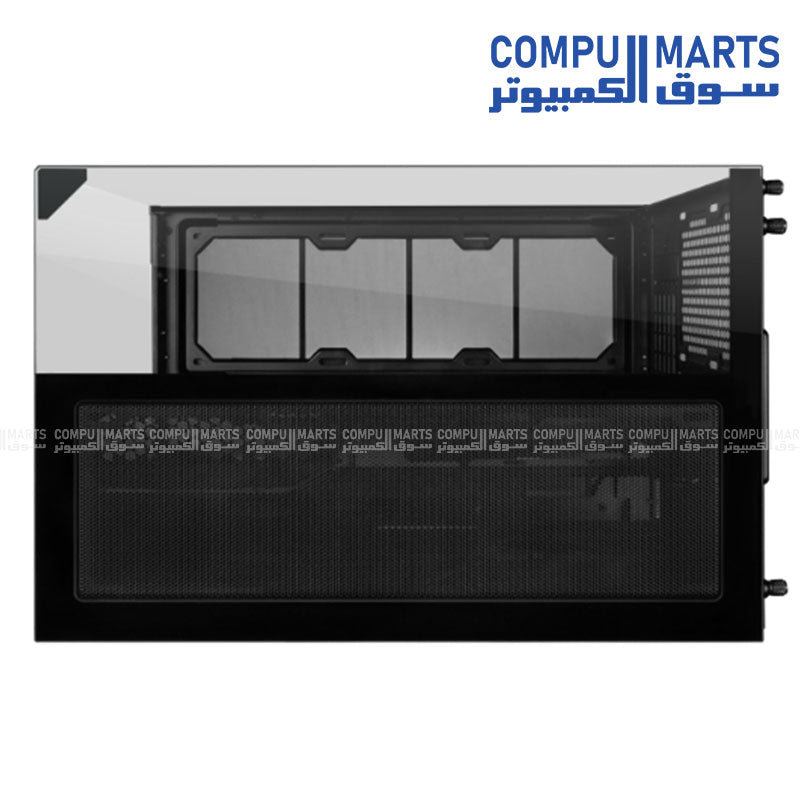

The case supports Micro-ATX and Mini-ITX motherboards and provides up to 410mm of GPU clearance and 162mm of CPU cooler height clearance. It supports ATX power supplies under 182mm and offers extensive cooling compatibility, including a 360mm radiator at the top.

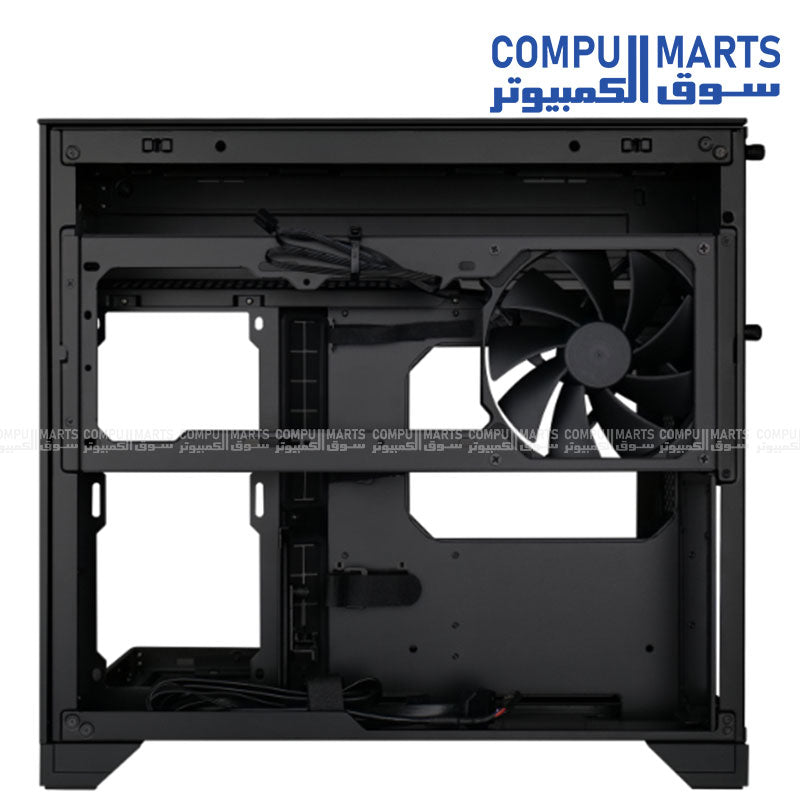

Cooling options include three 120mm fans at the top, two 120mm fans on the side, three 120mm fans at the bottom, and two 120mm fans at the rear. The second chamber supports one 140mm fan plus two 120mm fans and includes one pre-installed 140mm fan.
Storage support includes one 3.5-inch HDD plus two 2.5-inch SSDs, or up to three 2.5-inch SSDs. The case also features a removable bottom dust tray and front I/O connectivity with USB Type-A, USB Type-C, and audio ports.
| MODEL | O11VMDX |
| FORM FACTOR SUPPORT | Micro-ATX / Mini-ITX |
| DIGITAL SCREEN | 9.2" IPS LCD, 1920 × 462, 60Hz, 500 nits |
| GPU CLEARANCE | 410 mm |
| CPU COOLER CLEARANCE | 162 mm |
| PSU SUPPORT | ATX, Under 182 mm |
| RADIATOR SUPPORT | Top: 360mm / 240mm; Side: 240mm |
| FAN SUPPORT | Top: 3 × 120mm; Side: 2 × 120mm; Bottom: 3 × 120mm; Rear: 2 × 120mm |
| INCLUDED FAN | 1 × 140mm |
| STORAGE SUPPORT | 1 × 3.5" HDD + 2 × 2.5" SSD or 3 × 2.5" SSD |
| EXPANSION SLOTS | 5 |
| MATERIALS | Steel / Tempered Glass / Aluminum |
| DIMENSIONS | 419.6 × 275.1 × 395.2 mm |
| I/O PORTS | 2 × USB 3.0 Type-A / 1 × USB 3.2 Type-C / Audio |
| DUST FILTER | Removable Bottom Dust Tray |
| WARRANTY | 1 Year |
