APC BGM2200B-GR Back-UPS Pro for Gaming, 2200VA/1320W, Tower, 230V, 4x Schuko and 2x IEC C13 outlets, RGB Lights, Pure Sine Wave

APC BGM2200B-GR Back-UPS Pro for Gaming, 2200VA/1320W, Tower, 230V, 4x Schuko and 2x IEC C13 outlets, RGB Lights, Pure Sine Wave

Main
Main Input Voltage 230 V AC 1 phase
Other Input Voltage 230 V
Main Output Voltage 230 V 1 phase
Rated power in W 1320 W
rated power in VA 2200 VA
Product or component type Uninterruptible power supply (UPS)

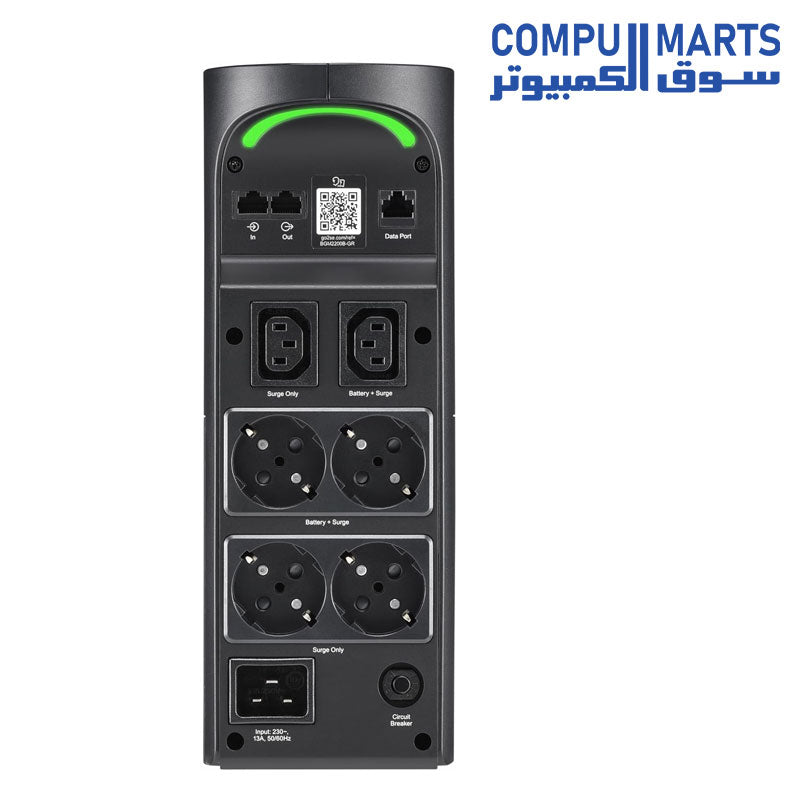

Input Connection Type Schuko
output connection type 4 Schuko surge
2 IEC 60320 C13
Cable length 1.5 m
Number of cables 1
Battery type Lead-acid battery
Range of product Back-UPS Pro
Batteries & Runtime
Run Time View Runtime Graph actionnewwindow
Efficiency View Efficiency Graph actionnewwindow
Number of battery filled slots 1
Number of battery free slots 0
Battery recharge time 16 h
Number of battery replacement
quantity
1
Battery voltage 24 V
Overcurrent protection 15 A
Battery charger power 12 W rated
Battery life 3…5 year(s)
General
Product datasheet
Specifications
May 6, 2025 1
Price is “List Price” and may be subject to a trade discount – check with your local distributor or retailer for actual price.
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
Provided equipment safety guide
USB cable
power cable
product web sub-family Gaming performance
Number preinstalled power
module
0
Number of power module free
slots
0
Redundant No
Physical
Colour Black
Height 292.1 mm
Width 104.1 mm
Depth 408.9 mm
Net weight 12.34 kg
Mounting support Floor
Mounting preference No preference
Mounting mode Not rack-mountable
Two post mountable 0
USB compatible Yes
Mounting position Vertical
Input
Network frequency 50/60 Hz +/- 3 Hz
Plug standard Schuko
Input voltage limits 168...302 V
Maximum input current 12 A
Switching current capacity 15 A
Input harmonic distortion Less than 3 % for full load
Input protection type Circuit breaker
Output
Maximum configurable power in
W
1320 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
UPS type Line interactive
Wave type Sine wave
Full load runtime 00:00:30
Half load runtime 00:04:19
Maximum configurable power in
VA
2200 VA
Transfer time 8 ms typical : 10 ms maximum
Conformance
Product certifications CE
CB
2 May 6, 2025
Equipment protection policy Lifetime : 50000 euros
Environmental
ambient air temperature for
operation
0…40 °C
Relative humidity 0…95 %
Operating altitude 0...10000 ft
Ambient air temperature for
storage
-15…40 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.0000000000…3048.0000000000 m
Acoustic level 45 dBA
IP degree of protection IP20
Communications & Management
Free slots 0

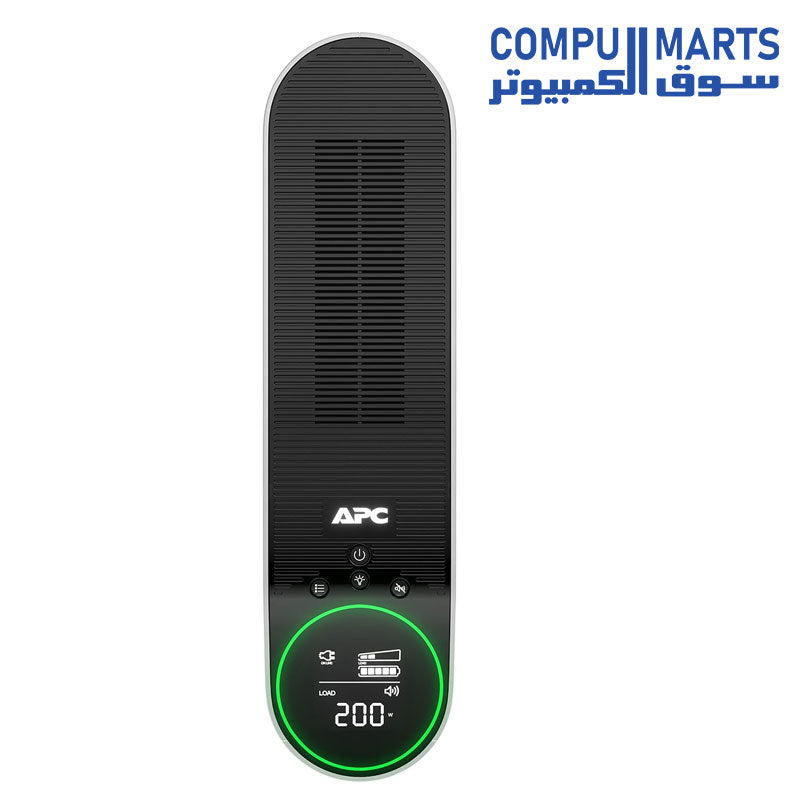

control panel Multifunction LCD status and control console
Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone
alarm
Surge Protection and Filtering
Surge energy rate 1080 J
Noise suppression Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping
response time: instantaneous
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 15.5 cm
Package 1 Width 35.5 cm
Package 1 Length 48 cm
Package 1 Weight 14.52 kg
Unit Type of Package 2 PAM
Number of Units in Package 2 30
Package 2 Height 90.6 cm
Package 2 Width 100 cm
Package 2 Length 120 cm
Package 2 Weight 450.50 kg
SCC14 20731304634762
Contractual warranty
Warranty 2 years repair or replace, 3 years repair or replace for European Union countries
