Description
Description

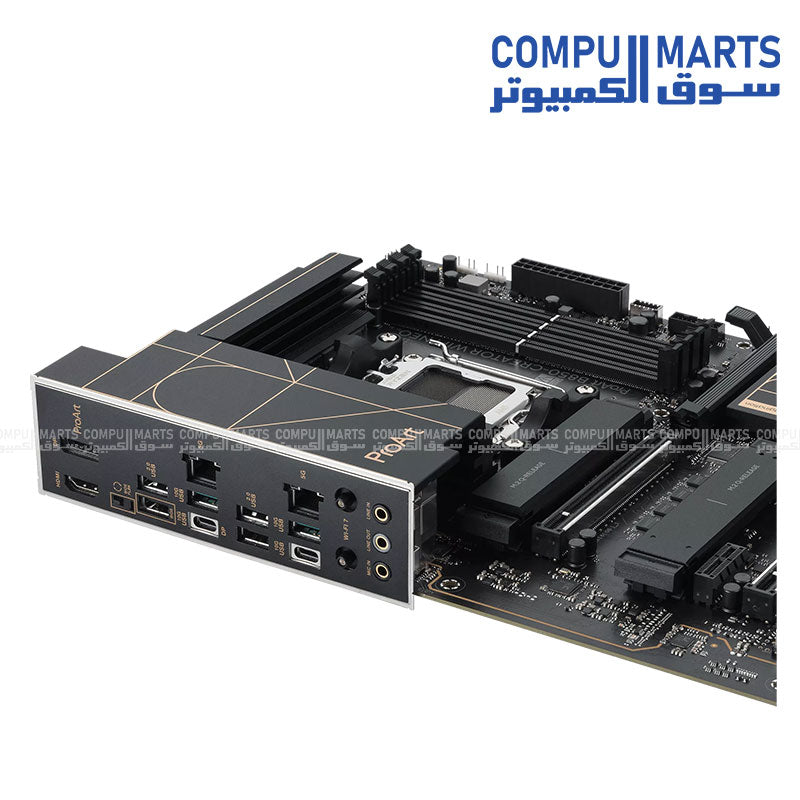

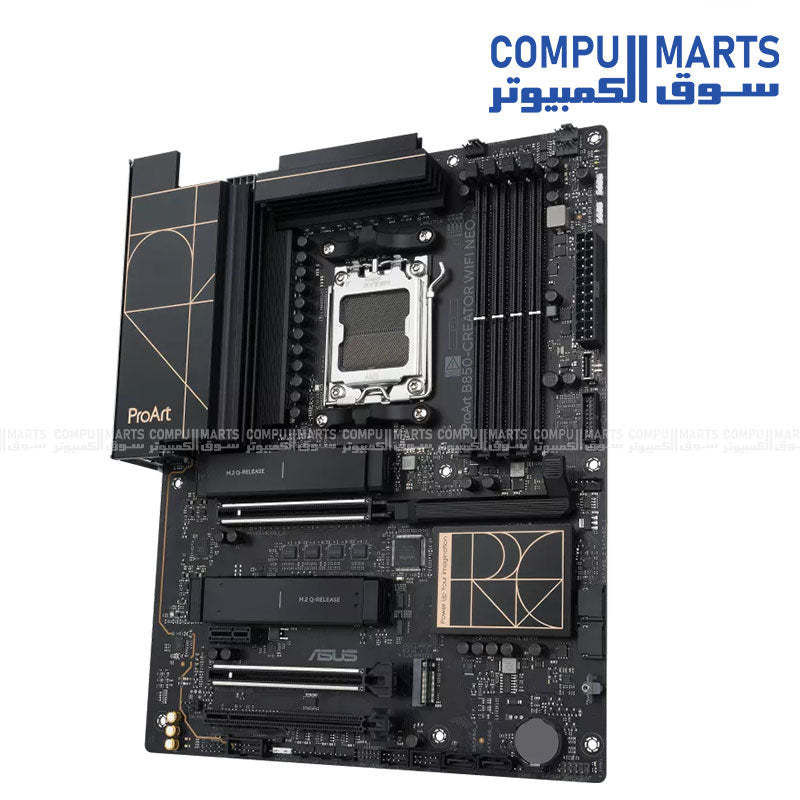

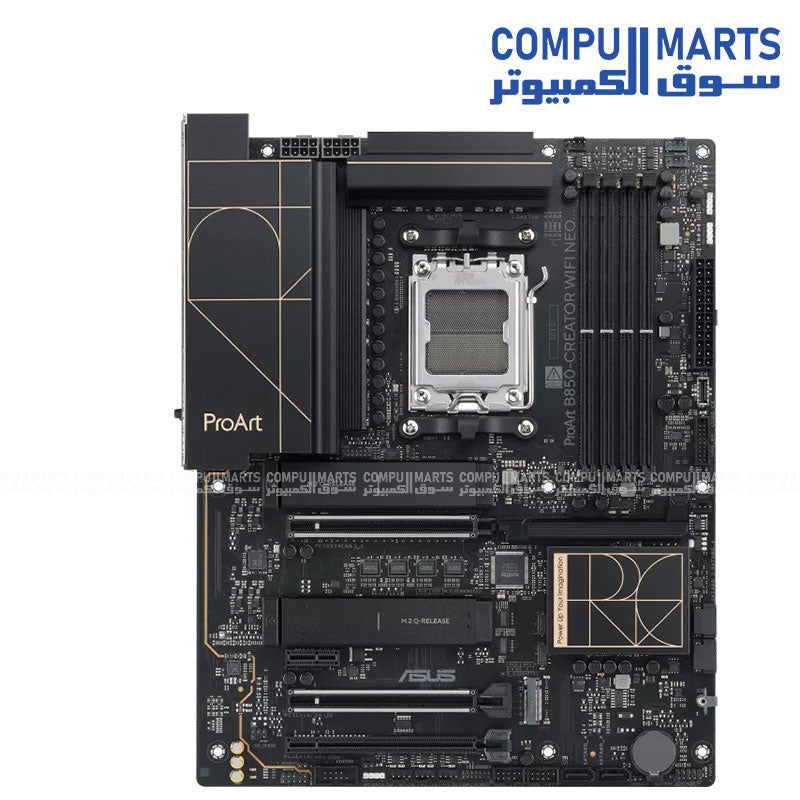

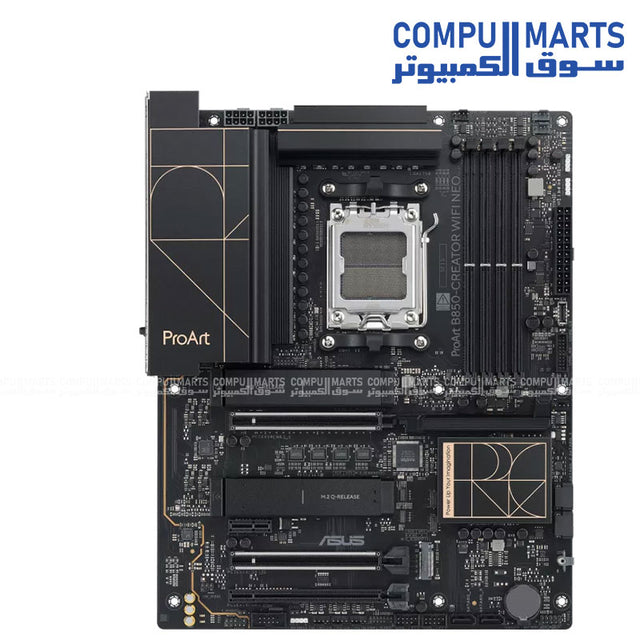

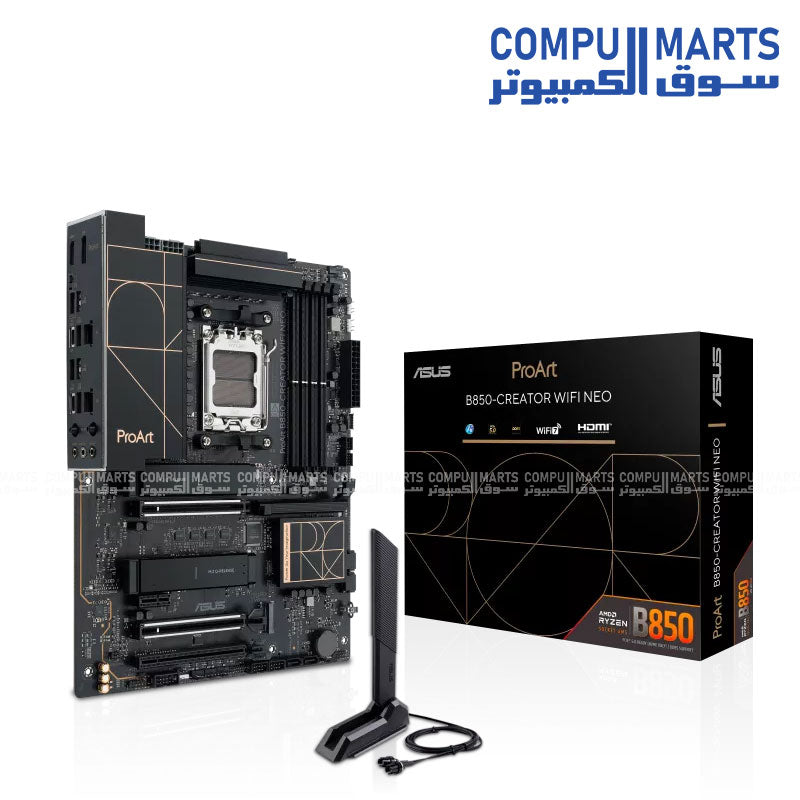

The ProArt B850-CREATOR WIFI NEO is an ATX motherboard built around the AMD B850 Chipset with an AMD Socket AM5 platform supporting AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors. It supports DDR5 memory across four DIMM slots with up to 256GB, AMD EXPO™ and ASUS AEMP, while Ryzen™ processor configurations support the supplied DDR5 overclocking speeds. Storage includes 3 x M.2 slots and 4 x SATA 6Gb/s ports, with PCIe 5.0 x4 support on the primary M.2 slots for supported processors. Connectivity includes Wi-Fi 7, dual Realtek 5Gb Ethernet, USB 20Gbps, USB 10Gbps, DisplayPort and HDMI. The ProArt B850-CREATOR WIFI NEO also includes Realtek ALC1220P audio, ASUS 5X PROTECTION III, ASUS Q-Design features, BIOS FlashBack™, and Windows 11 support for AMD Ryzen™ Series processors. Shop the ASUS ProArt B850-CREATOR WIFI NEO at Compumarts Egypt.
| MODEL | ProArt B850-CREATOR WIFI NEO |
| SOCKET | AM5 |
| CPU SUPPORT | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors and AMD EPYC™ 4005 Series Processors* |
| CPU POWER SUPPORT | Supports up to AMD 170W CPU |
| CHIPSET | AMD B850 Chipset |
| MEMORY | 4 x DIMM slots, max. 256GB, DDR5 |
| MEMORY ARCHITECTURE | Dual channel memory architecture |
| MEMORY PROFILES | Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| EXPANSION | 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*** |
| STORAGE | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| M.2 | M.2_1 and M.2_2 support PCIe 5.0 x4 mode; M.2_3 supports PCIe 4.0 x4 mode |
| RAID | AMD RAIDXpert2 Technology; Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
| ETHERNET | 2 x Realtek 5Gb Ethernet |
| WIRELESS | Wi-Fi 7 (Realtek® RTL8922AE), 2x2 Wi-Fi 7* (802.11be) |
| BLUETOOTH | Bluetooth® (suppports LE Audio)*** |
| USB | Rear USB: 2 x USB 10Gbps Type-C® + 2 x USB 10Gbps Type-A + 4 x USB 2.0 Type-A; Front USB: USB 20Gbps, USB 5Gbps and USB 2.0 headers |
| AUDIO | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| DISPLAY OUTPUT | 1 x DisplayPort**, 1 x HDMI™ port***, 1 x USB 10Gbps port (USB Type-C®) supports DisplayPort video output** |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| FORM FACTOR | ATX Form Factor |
| DIMENSIONS | 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| OS | AMD EPYC™ 4005 Series: Windows Server* 2025/2022; AMD Ryzen™ Series: Windows 11 |
Specifications
Specifications
| Category | Specification Details |
|---|
