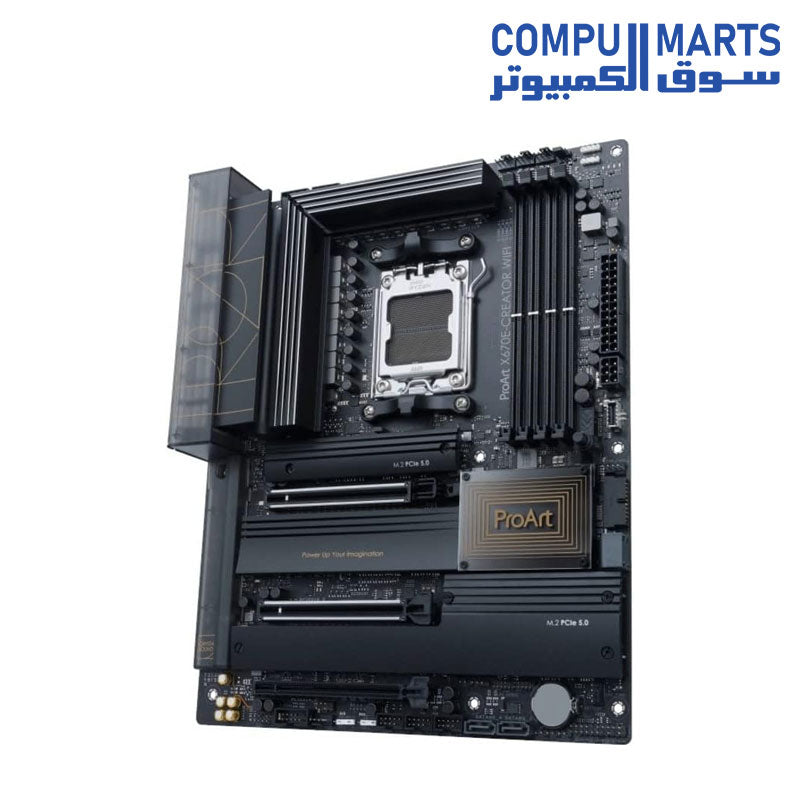

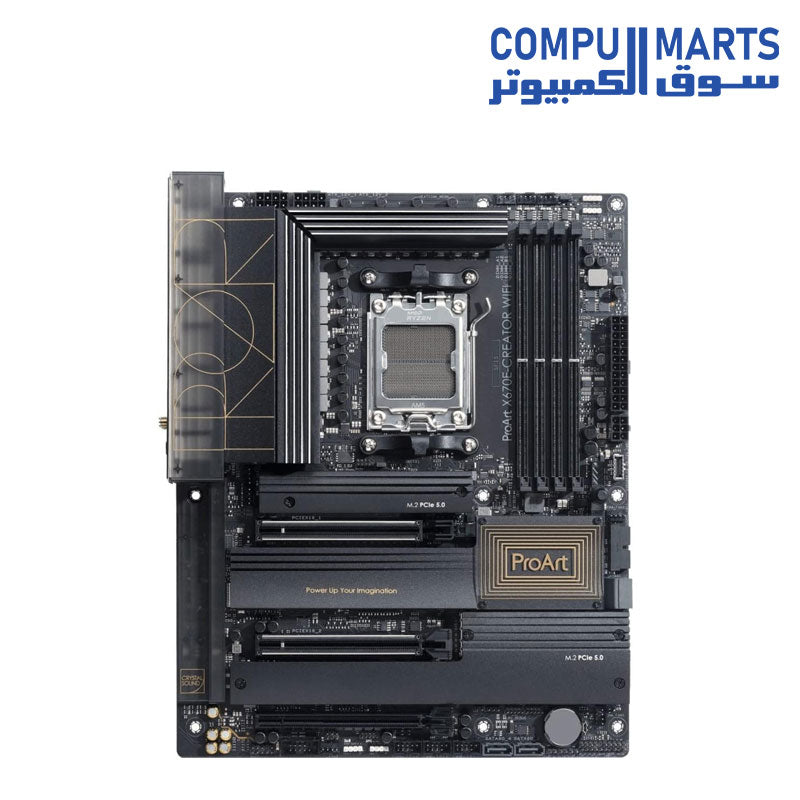

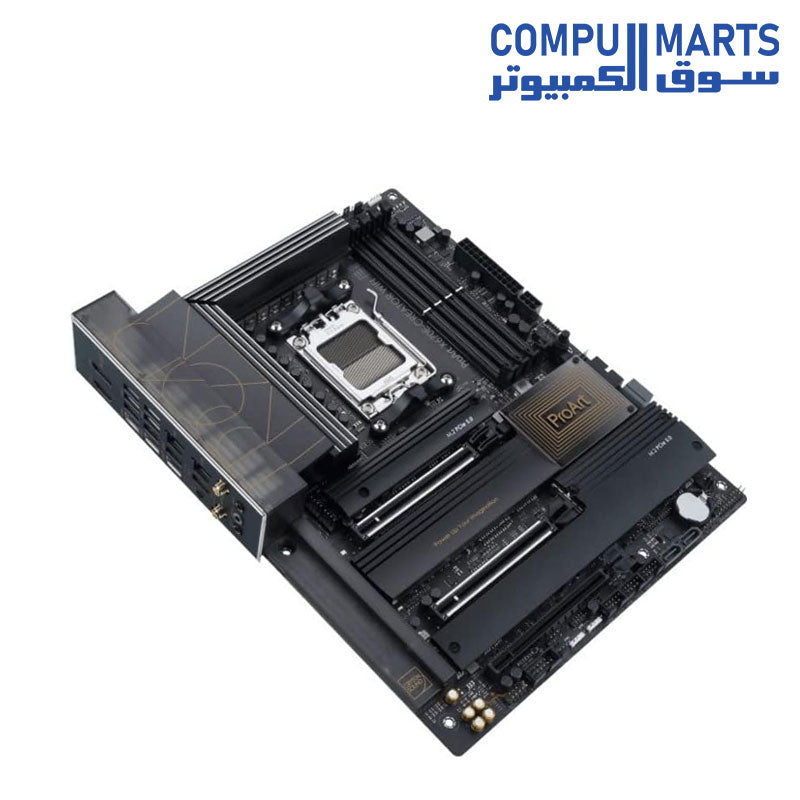

ASUS ProArt X670E-Creator WiFi 6E Socket AM5(LGA 1718) Ryzen 7000 ATX content creator motherboard

ASUS ProArt X670E-Creator WiFi

CPU

AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors

AMD X670

Memory

4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

OptiMem II

Graphics

1 x HDMI port

2 x USB4 ports support USB Type-C display outputs

1 x HDMI port

2 x USB4 ports support USB Type-C display outputs

Expansion Slots

AMD Ryzen 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x2 mode)

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Ethernet

1 x Marvell AQtion 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

WiFi 6E 6GHz regulatory may vary between countries.

USB

Rear USB (Total 11 ports)

2 x USB4 with Intel JHL8540 USB4 controller ports (2 x USB Type-C)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

7 x USB 3.2 Gen 2 ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Audio

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback

Audio Features

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

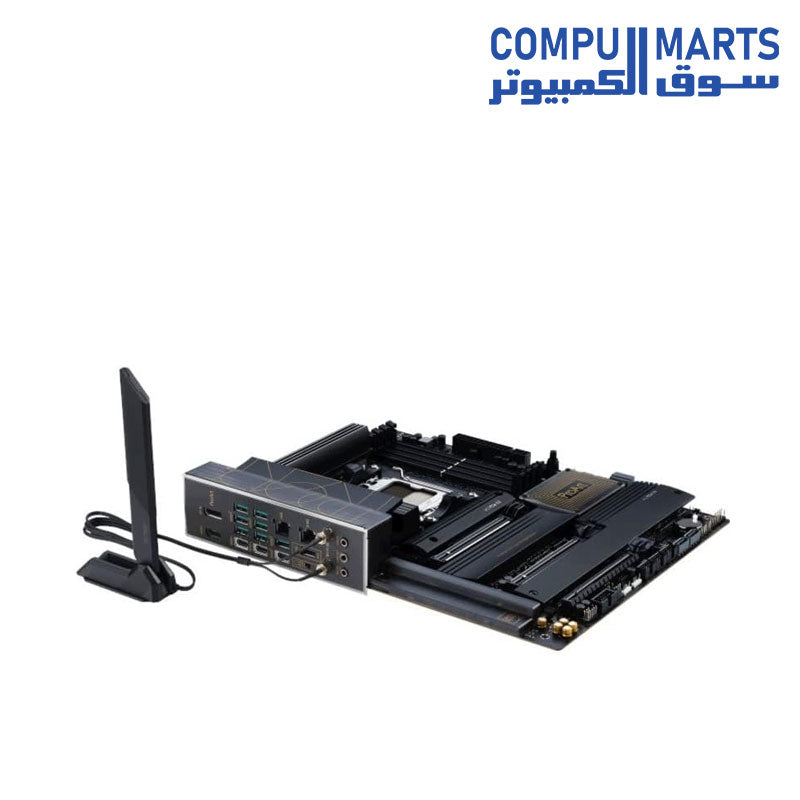

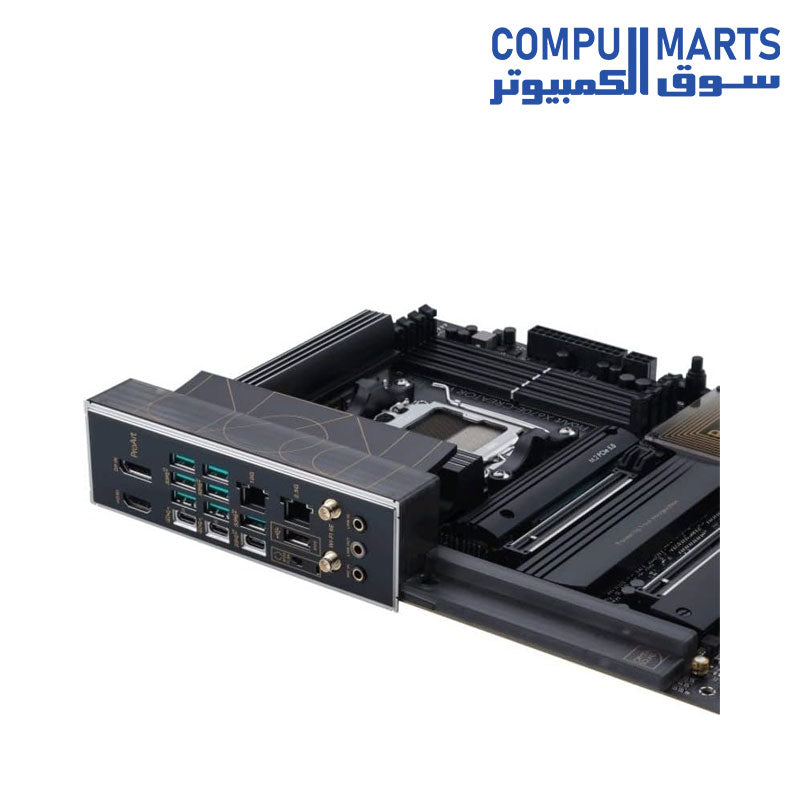

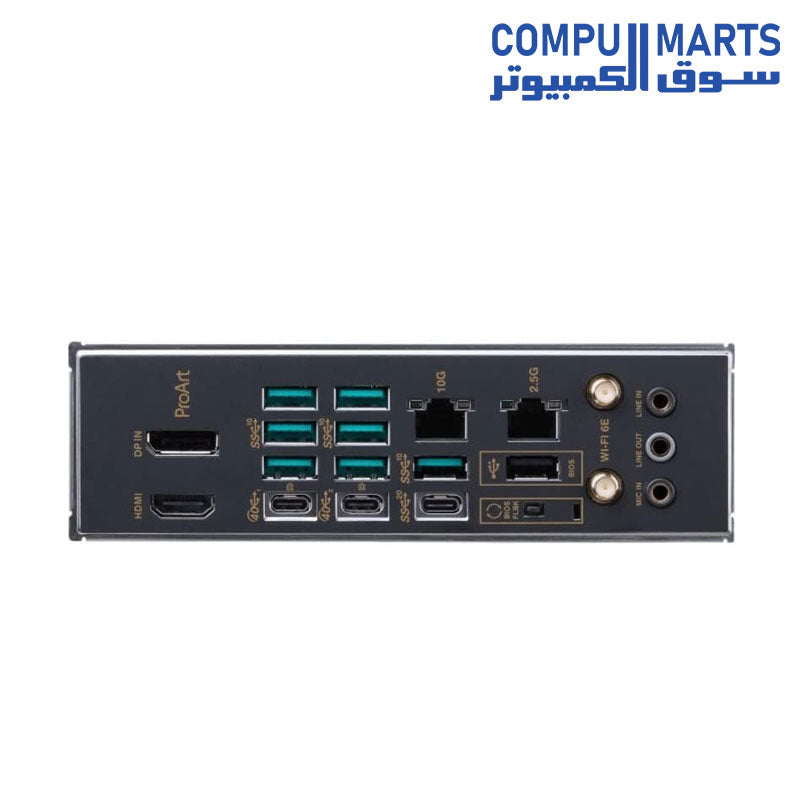

Back Panel I/O Ports

2 x USB4 with Inte JHL8540 USB4 controller ports (2 x USB Type-C)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)

7 x USB 3.2 Gen 2 ports (7 x Type-A)

1 x USB 2.0 port (1 x Type-A)

1 x DisplayPort (Input only)

1 x HDMI port

1 x Wi-Fi Module

1 x Marvell AQtion 10Gb Ethernet

1 x Intel 2.5Gb Ethernet

3 x Audio jacks

1 x BIOS FlashBack button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

1 x 6-pin PCIe Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design)

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- Safeslot

- Stainless-Steel Back I/O

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsinks

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

AURA Sync

- Aura RGB header

- Addressable Gen 2 headers

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support

- Support: up to 60W charging

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 with AI Cooling II

- Power Saving

- Two-Way AI Noise Cancellation

AI Suite 3

TPU

DIGI+ VRM

Turbo app

ASUS CPU-Z

IT Management software supported

- ASUS Control Center Express(ACCE)

CreationFirst

MyAsus

Norton Anti-virus software (Free Trial version)

ProArt Creator Hub

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

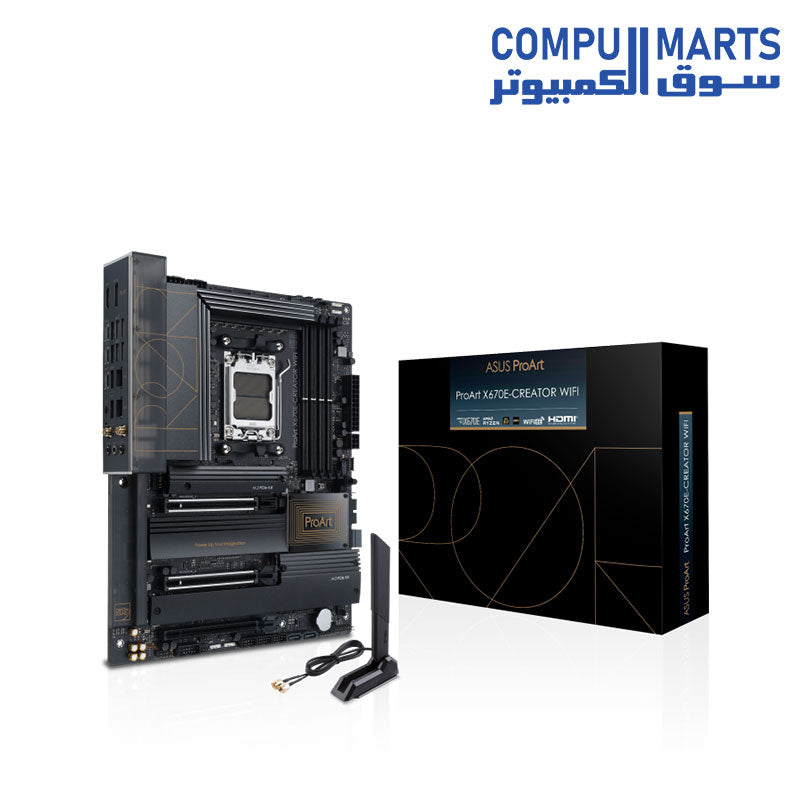

Accessories

Cables

1 x DisplayPort cable

4 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x Q-connector

1 x M.2 Q-Latch package for M.2 backplate

2 x Rubber Packages for M.2

1 x Rubber Package for M.2 backplate

1 x Screw packages for M.2 SSD

1 x ProArt ruler

Documentation

1 x ACC Express Activation Key Card

1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
